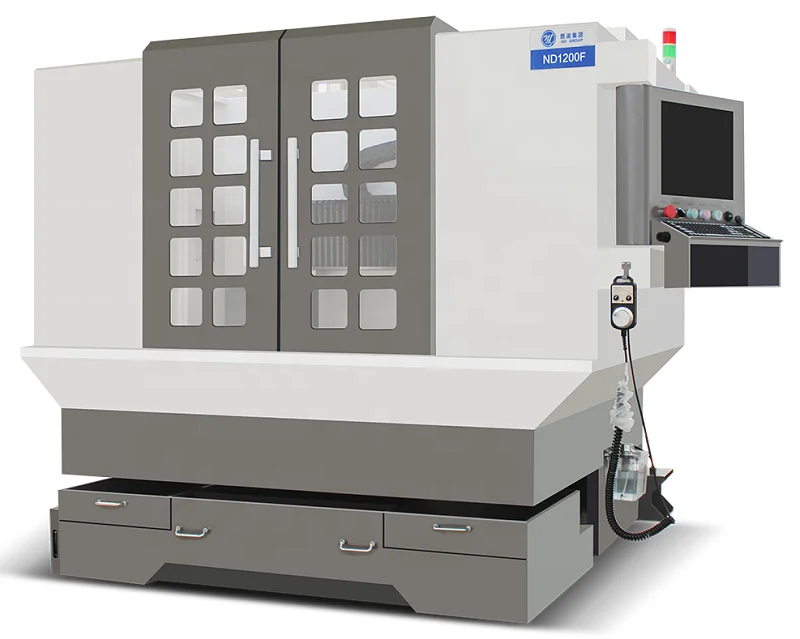

Flexible dies CNC metal machine ND1200F
Product Description
ND1200 Series metal CNC machine includes full cover, CCD camera, linear gauge, vacuum table, multi tool changer magazine, on-the-fly compensation and so on. The design concept of ND1200 Series metal CNC machine is based on granite bed, beam and guide rail base. It is equipped with high-precision screw guide and high-power/RPM spindle. The whole system is controlled by servo and glass processing of multiple processes through programming completely.
The whole system can be equipped with robots or manipulators to achieve completely automatic loading and unloading (the specific scheme needs to be further communicated and finalized with the end user according to the site conditions).
Typical applications include automobile central control glass processing, medium panel glass display processing, switch socket cover glass, mobile phone/tablet computer cover and other size glass processing.
ND1200 Series metal CNC machine TECHNICAL PARAMETERS
Item | Parameter | Standard Value | Remark |
Machine Accuracy | Positioning Accuracy(X/Y/Z Axis) | ±0.004mm | |
| Repeat Positioning Accuracy(X/Y/Z Axis) | ±0.0025mm | ||
| X/Y Axis Perpendicularity | ±0.005mm | ||
| Z/XY Axis Perpendicularity | ±0.005mm | ||
| Spindle | Rotate Speed | 60000-100000rpm | Optional |
Power | 1.2/2.5kw | Optional | |
Diameter | 62/80mm | Optional | |
Torque | ≥0.76 N.m | ||
Atc Pressure(Bar) | 0.6 MPa | ||
Feed | Max. Feed Speed | 15m/min | |
Max. Working Speed | 6m/min | ||
Max. Travel | Travel X/Y/Z | 1200*800*150mm | |
Dimension | Machine Dimension | 2790*2120*2250mm | Full cover |
Working Table X/Y | 1200*800mm | ||
Weight | Total Weight | 4.6t | Full cover |
Power | Rated Power X/Y/Z Axis | 850/850/850W | |
Machine Total Power | 10kW | Optional | |
Environmental Requirement | Temperature | +5℃~+35℃ | |
Humidity | 30%~75% | ||
Power/Air Supply | Voltage | AC380V | Optional |
Rated Frequency | 50Hz | ||
Positive Pressure Air Flow/Pressure | 300L/min/0.6Mpa | ||
Vacuum Negative Pressure | -0.06Mpa | Optional |
ND1200 Series metal CNC machine MAIN CONFIGURATION
Configuration | Description | Quantity |
ND1200 Series Metal CNC Machine | ND Main CNC Machine | 1 |
Machine Body, Beam And Guide Rail Base | “Jinan Black”Granite | 1 |
X/Y/Z Mounting Plate | “Jinan Black”Granite | 1 |
Lubricating Pump | Auto Lubricating Pump | 1 |
Control System | Metal Process Cnc Control System | 1 |
Computer | Industrial Computer | 1 |
Control Box Cooling | Control Box Water-Air Conditioner | 1 |
Handwheel | 4 Axis Handwheel | 1 |
High Power Spindle | 2.5kw, 100000 Rpm /1.8kw, 60000 Rpm/(Optional) | 1 |
Inverter | 2.5kw/1.5kw(Optional) | 1 |
X/Y/Z Ball Screw | C3 Grinding Ball Screw | 3 |
X/Y/Z Guide Rail | P Level Guide Rail | 3 |
X/Y/Z Servo Motor | 850W/850W/850W | 3 |
X/Y/Z Servo Driver | 850W/850W/850W | 3 |

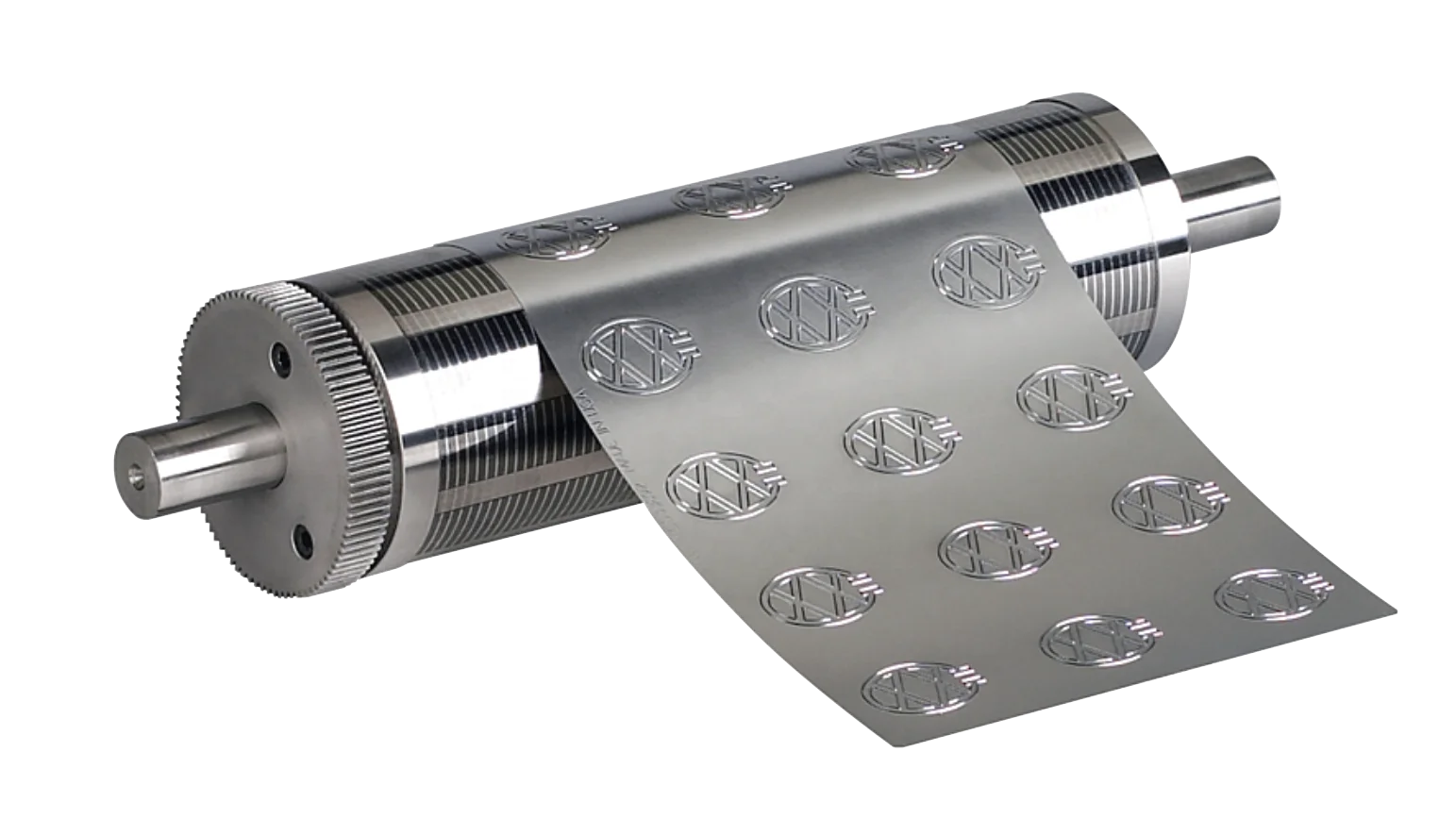

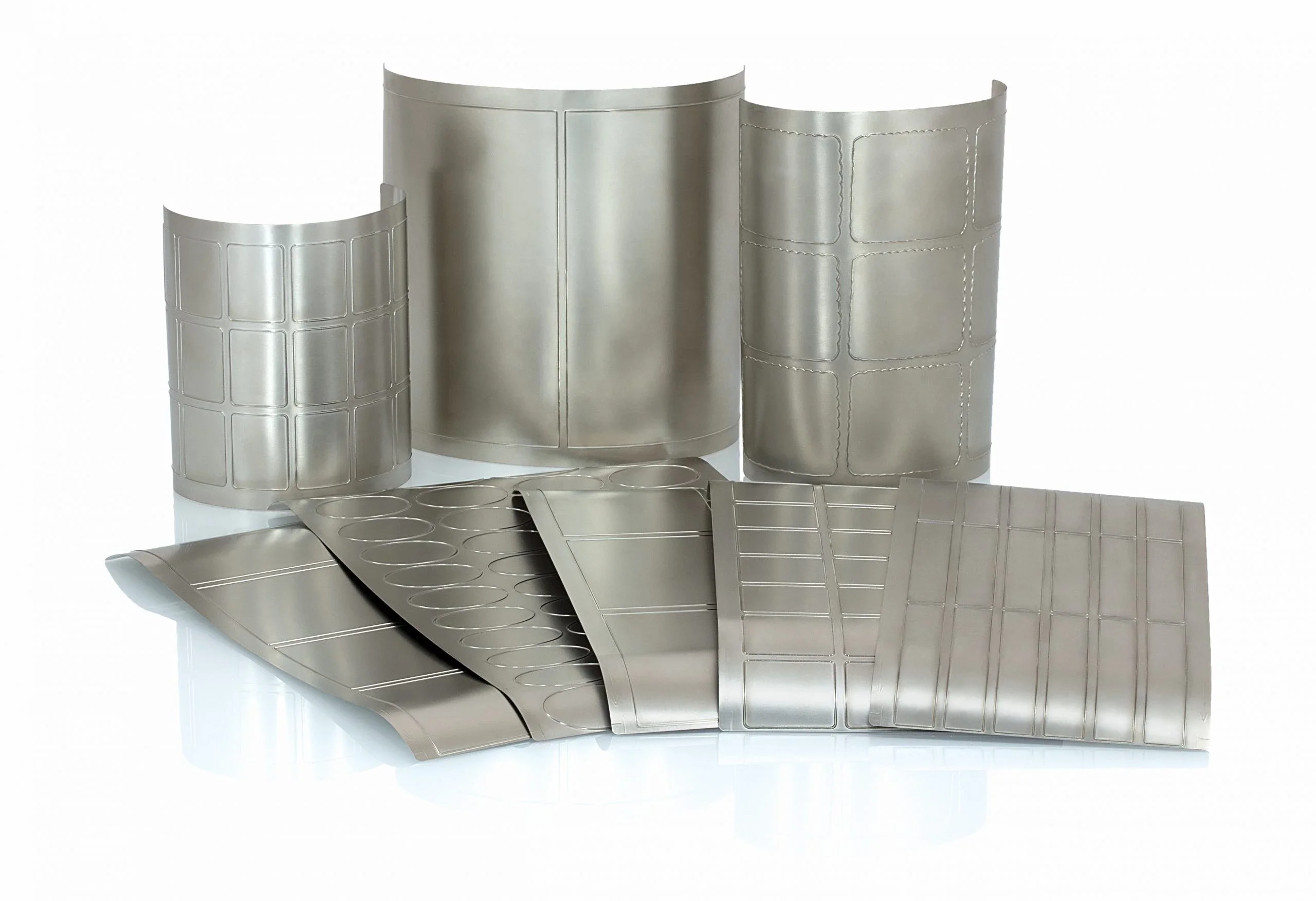

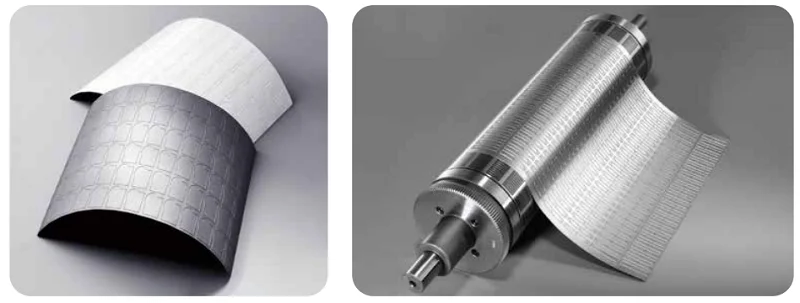

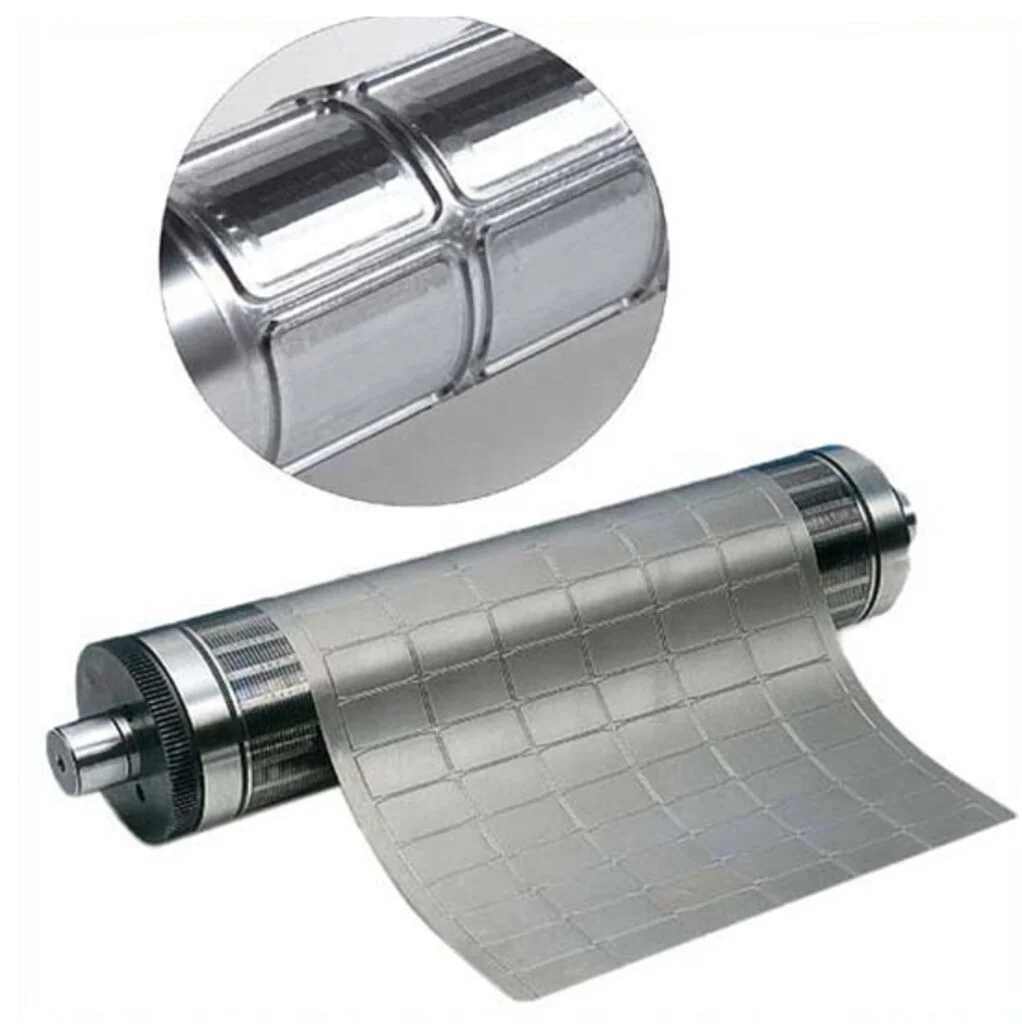

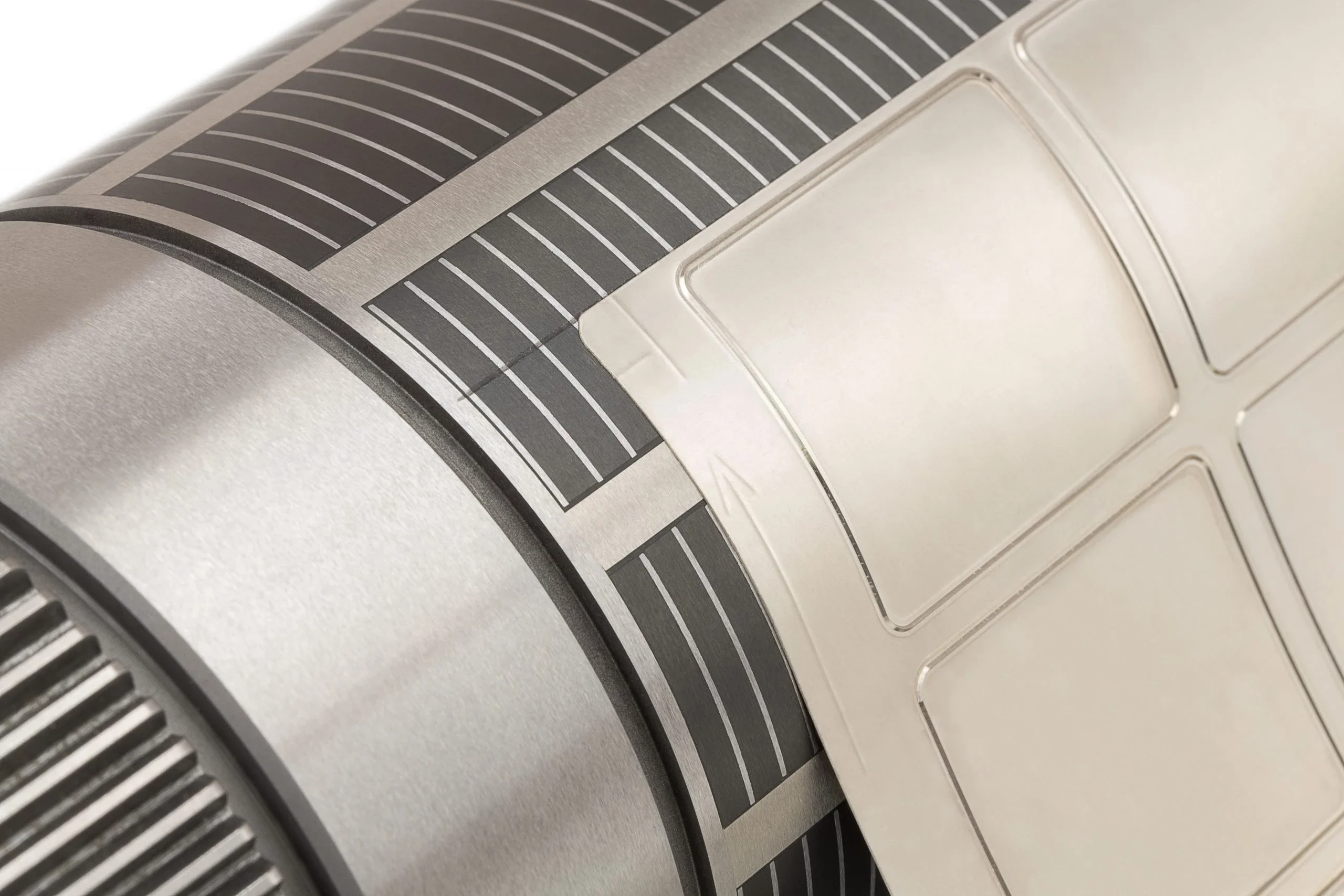

ND1200 Series metal CNC machine APPLICATION CASES
Our Services
All of machines will be adjusted before it is delivered, user manual and video was included.
Service Process
ND remote training service as follow:
1. Support 24 hours -7 days technical support by call or email.(Please provide your order number)
2. Support online text&video instruction via Skype, whatsapp, wechat, viber etc
Guarantee
13 months guarantee of the whole machine.
All parts shall be changed free of charge if there is any problem during the warranty period.
We will provide consumable parts and raw material at an agency price.
After sales service
Contact our after sales engineers by email / skype / whatsapp / wechat or mobile phone, service AT nd-cnc.com
Provide your PI number and briefly describe the problem, it’s better to provide pictures or videos to explain.
All of engineers can speak English, will reply you within 2 hours(include public holiday and weekend), basic problem will reply solution within 4-8 hours, complexity problem will reply solution within 12 hours.
