Безопасные и простые операторы в использовании систем маркировки точечной обработки создают глубокие следы на металлах других поверхностях
- Категория: Metal Engraving Machinery >>>
- Поставщик: Jinan,Minglun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2059.70 $* | 2162.39 $* |
| Aug-19-2025 | 2041.80 $* | 2143.96 $* |
| Jul-19-2025 | 1713.58 $* | 1799.33 $* |
| Jun-19-2025 | 2007.67 $* | 2107.26 $* |
| May-19-2025 | 1747.72 $* | 1834.56 $* |
| Apr-19-2025 | 1972.89 $* | 2071.77 $* |
| Mar-19-2025 | 1955.65 $* | 2053.89 $* |
| Feb-19-2025 | 1938.16 $* | 2035.89 $* |
| Jan-19-2025 | 1920.65 $* | 2016.44 $* |
Характеристики

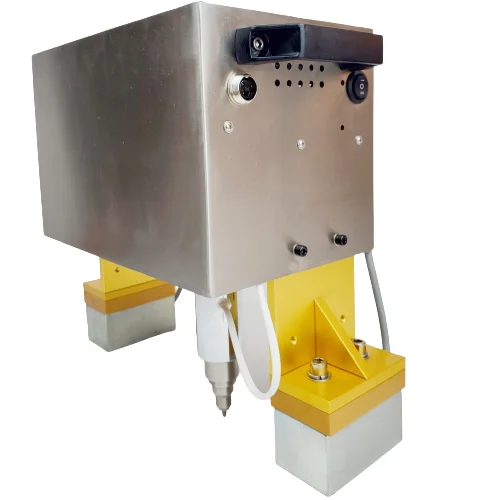

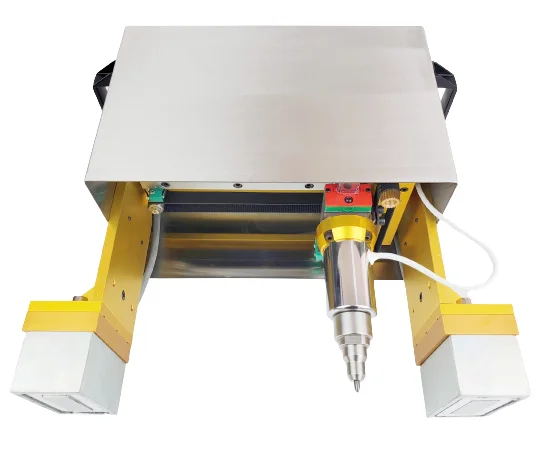

Electric touch screen marking machine
The portable dot peen marking machine is mainly used for cars and motorcycle parts vin number marking, Mechanical metal parts,engraving, and other industries medium and big size parts engraving and marking. It is very helpful for your product identification traceability.The whole machine adopts imported industrial components, ensure the marking accuracy, long service life.
Technical parameters.
1. Equipment model: ML-BX1460
2. Print range: 140×60mm
3. Printing depth: 0.01-2mm
4. Drive voltage: DC24V
5 power supply: lithium battery or a single AC 110-240V global universal
6. print content: any Chinese and English characters and numbers. Graphics
7. Print effect: clear and beautiful
8. equipment with 2 language options, Chinese or English
9. the device supports direct data reading from the U disk.
Product advantages.
1、The whole machine adopts imported industrial grade components, high marking accuracy, long service life.
2, control using industrial control system, strong anti-interference ability, strong environmental adaptability.
3、Marking head adopts double guide structure, long service life and good impact resistance.
4、Software design is in line with the production line design standards, data uploading and downloading can be done to achieve network management of printing data.
5、Equipped with special control signal line, and can remotely control the printing workpiece.
6、It can be marked in the production line (support online or independent marking).
7、Printing data can be viewed and saved at any time
8、Standard Windows design style, with good human-machine dialogue function, easy for the operator to quickly master.

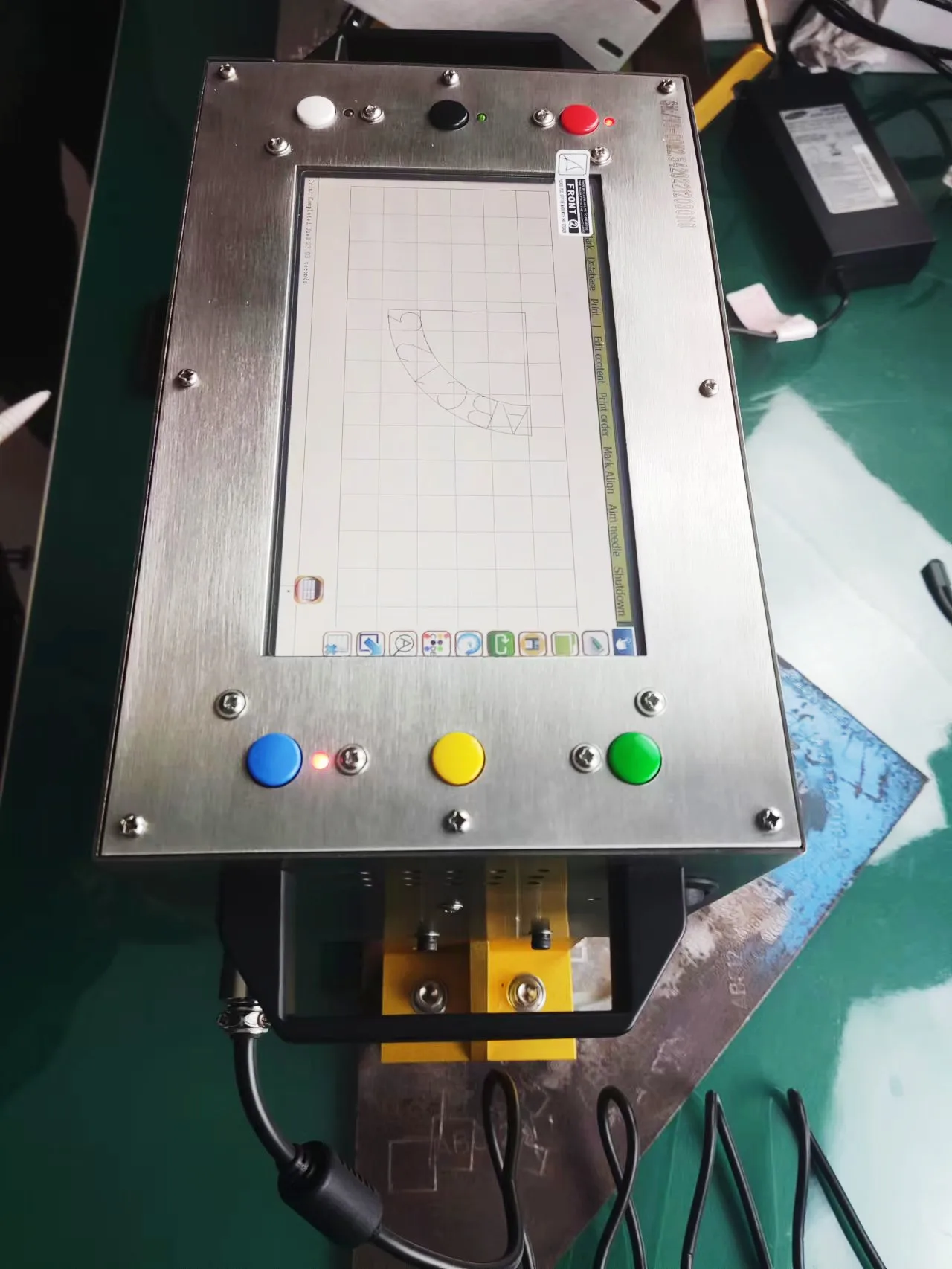

9、The marking effect can be directly observed on the screen, making debugging more convenient and comfortable, can track the marking on the screen into
10、Applicable workpiece: various shapes and materials.
11、Working time: can work continuously > 24 hours.
1. Equipment model: ML-BX1460
2. Print range: 140×60mm
3. Printing depth: 0.01-2mm
4. Drive voltage: DC24V
5 power supply: lithium battery or a single AC 110-240V global universal
6. print content: any Chinese and English characters and numbers. Graphics
7. Print effect: clear and beautiful
8. equipment with 2 language options, Chinese or English
9. the device supports direct data reading from the U disk.
Product advantages.
1、The whole machine adopts imported industrial grade components, high marking accuracy, long service life.
2, control using industrial control system, strong anti-interference ability, strong environmental adaptability.
3、Marking head adopts double guide structure, long service life and good impact resistance.
4、Software design is in line with the production line design standards, data uploading and downloading can be done to achieve network management of printing data.
5、Equipped with special control signal line, and can remotely control the printing workpiece.
6、It can be marked in the production line (support online or independent marking).
7、Printing data can be viewed and saved at any time
8、Standard Windows design style, with good human-machine dialogue function, easy for the operator to quickly master.
9、The marking effect can be directly observed on the screen, making debugging more convenient and comfortable, can track the marking on the screen into
10、Applicable workpiece: various shapes and materials.
11、Working time: can work continuously > 24 hours.
Minglun Electric Touch Screen Marking Machine | ||
Standard Marking Area | 140mm x 60mm | |
Marking Speed | 10~180 characters/minute | |
Power | Electromagnetic type Or Pneumatic Type | |
Impact Frequency | 240 times/s | |
Precise Repeatability | <0.02mm | |
Marking Depth | 0.1mm~1.2 mm(according to the material) | |
Working voltage | AC 100V~240V 50HZ60HZ | |
Energy Consumption | < 200W | |

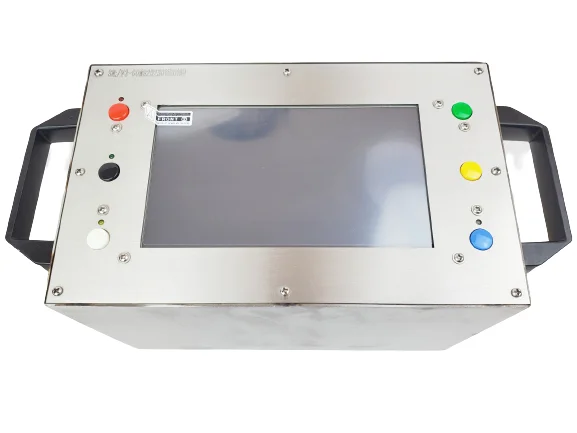

Controller Type | Integrated 3.5inch, 7 inch touch screen Or Computer controller | |
Marking Type | Automation | |
Marking Machine Type | Handheld, Portable, Desktop | |
Marked content | All English Characters, All Numbers,Variety of Graphics outlines, Logos, Dot Matrix 2D codes, Circle Letters, Serial Numbers, etc. | |
Usage | various metals (hardness below HRC60), all kinds of hard materials (PVC film, plastic, bakelite, etc.) | |
Marking Materials | Metal or nonmetals with hardness under HRC 60 | |
Technology | Support some uneven surface marking (height differ within 3mm) | |
Other device request | No need connect other outside device like computer or air compressor (Electrical type), just plug and play. | |
Applications
More Features:
The portable handheld metal engraving machine uses hard tungsten alloy marker pins, which last for more than a year with normal usage, even after marking hard metals like steel.Simple, portable design and high-end technology provide reliable, efficient and quick marking with these part marking work devices.
Optional battery configuration is available with a standby battery, for you to work with the portable tool when power is not available. The marking system will work perfectly on a battery with hard metals like steel too.
Clear and deep marking code that creates permanent marks that last for the lifetime of the product.
Available with a strong electromagnet base for marking large components and Frame Window bracket for support. This makes the marker vibration-free and high impact-resistant marking machines.
The portable dot peen marking pin can be used to mark on uneven surfaces such as metal tubes and rods. Furthermore, the marking tools are highly customized and can even work on steel.
The marking content code includes English letters and numerals, graphics, logos, dot matrix 2D codes, bar code, circled text and special symbols.
The portable handheld engraving machines can be used for marking Part identification, part numbering, lot/shift/batch code, nameplate engraving, date & time marking, etc. and made on surfaces as hard as steel.
Related Products Display
Packing & Delivery
Exquisite aluminum foil box packaging
No minimum order quantity required, container orders available~
Jinan minglun machinery co., ltd. is a professional machine manufacturer. located in Jinan city, Shandong Province, China and near to Qingdao port. Our main product is Industrial machinery.Such as,marking machine,hand pallet truck,electric trolley,electric tricycle,sling,cranes,fog machine,feed pellet machine,feed processing machines,small feed production line,wood pellet stove,wood pellet mill,stainless steel mixer,fiberglass mixer,etc. High quality, standard-tested, long-term foreign buyers such as: Europe and America, Africa, Southeast Asia,and South America etc.We can support OEM at the same time. We have a mature, first-class production team, hoping to give each other an opportunity to meet our own needs. Looking forward to establish business with you!
