Jqlaser экономически эффективным 3-в-1 1000W лазерными сварочными аппаратами очистки станок для резки углеродистой
- Категория: Laser Welders >>>
- Поставщик: Jinan,Jinqiang,Laser,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 5950.50 $* | 6248.55 $* |
| Aug-20-2025 | 5900.0 $* | 6195.87 $* |
| Jul-20-2025 | 4950.41 $* | 5198.91 $* |
| Jun-20-2025 | 5800.74 $* | 6090.72 $* |
| May-20-2025 | 5050.44 $* | 5303.80 $* |
| Apr-20-2025 | 5700.31 $* | 5985.48 $* |
| Mar-20-2025 | 5650.55 $* | 5933.12 $* |
| Feb-20-2025 | 5600.3 $* | 5880.48 $* |
| Jan-20-2025 | 5550.40 $* | 5828.85 $* |
Характеристики

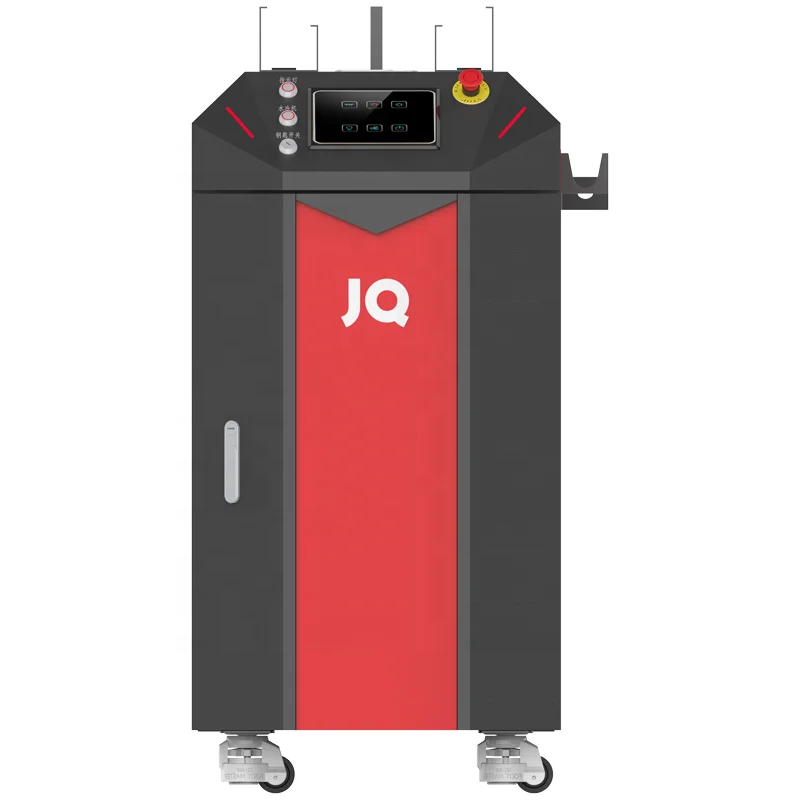

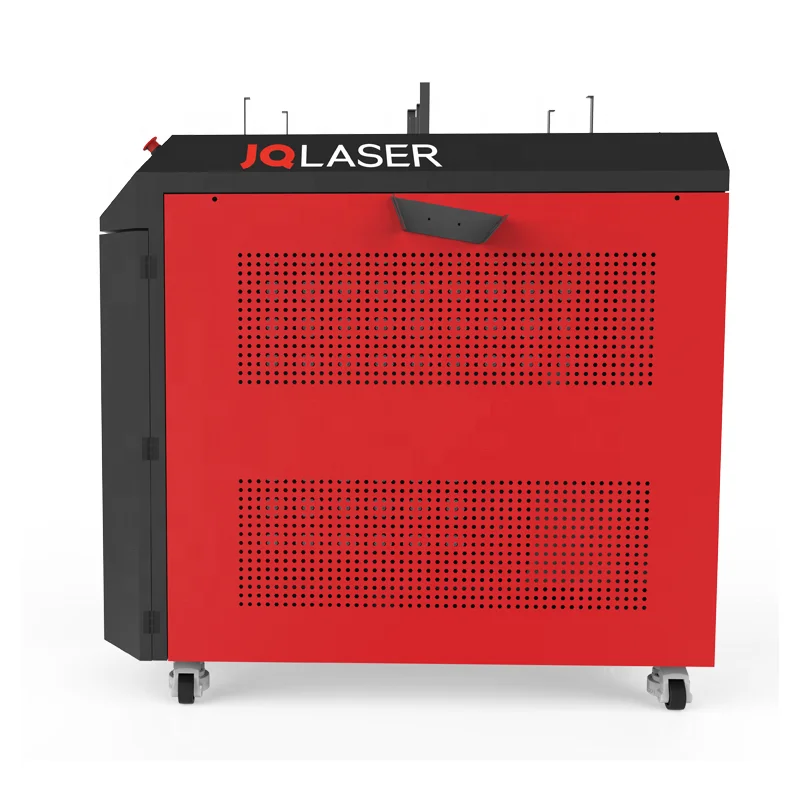

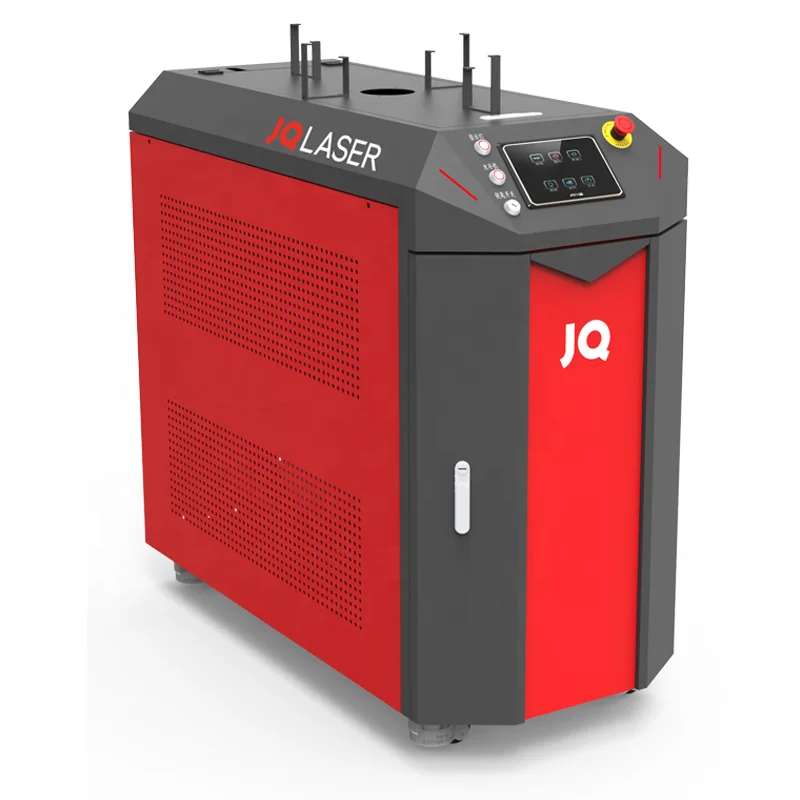

Product Description
Adopting hand - held swing welding head, the welder can be easily used without professional welding skills, which is suitable for small volume and multiple batches welding work.
Product Show
Fiber Laser
1500W BWT'S laser, long warranty of three years
High quality beam, high power stability, stable system
20μm fiber core diameter, higher electro-optical conversion efficiency
High quality beam, high power stability, stable system
20μm fiber core diameter, higher electro-optical conversion efficiency
Oscillating welding head
Customizable 2mm, 2.5mm, 3mm weld channel width
Special welding nozzle, can achieve any part, angle welding
Infrared positioning, more accurate welding position
Special welding nozzle, can achieve any part, angle welding
Infrared positioning, more accurate welding position
Dual temperature chiller
Intelligent temperature control, compressor cooling
LED screen, temperature display at all times
Simple to operate, stable performance, energy-saving and efficient
LED screen, temperature display at all times
Simple to operate, stable performance, energy-saving and efficient
Wire feeding device (optional)
Optional automatic wire feeding device
Software controlled, adjustable wire feed speed
Filling the welding seam and increasing the welding strength
Software controlled, adjustable wire feed speed
Filling the welding seam and increasing the welding strength
Overall size
Laser welding is a kind of processing method of welding materials with high energy density laser beam as heat source. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables.
Product Paramenters
NO. | Item | Parameter | Unit |
1 | Model name | Handle laser welding machine | |
2 | Model type | JQ-HW-1500W | |
3 | Laser Power | 1500 | W |
4 | Laser wavelength | 1070 | nm |
5 | Fiber core diameter | 50 | μm |
6 | Fiber length | 10 | m |
7 | Laser working mode | Continuous / Modulation | |
8 | Galvanometer width | 0.5-6 | mm |
9 | Galvo scan speed | ≤8000 | mm/s |
10 | Welding speed | 0-120 | mm/s |
11 | Refrigeration unit | Intelligent dual temperature chiller | |
12 | Working environment temperature range | 15-35 | ℃ |
13 | Humidity range of working environment | ＜ 70% non-condensing | |
14 | Welding material thickness | ≤2 | mm |
15 | Welding gap requirements | ≤0.5 | mm |
Sample
Company Profile
LASER CHANGE THE WORLD
Jinan Jinqiang laser numerical control equipment Co., Ltd., established in 2006, is a high-tech industry focusing on the R & D, production and sales of laser application and sheet metal automation equipment, with 11 years of professional manufacturing experience in laser pipe cutting machine. At present, the company has two production bases in Jinan and Foshan and three standard factories.
The company's products are divided into: three chuck laser pipe cutting machine, full-automatic laser pipe cutting machine, high-speed laser pipe cutting machine, heavy-duty laser pipe cutting machine, economical laser pipe cutting machine, etc., covering a wide range and complete subdivision types.
"Making a good product is customer-centered" listen to customer needs and make changes quickly. JQ Laser currently has more than 400 employees, technology research and development and after-sales service account for more than 50%; we have a professional quick response customer service team, providing 24-hour online and offline technical services in 12 languages. Now JQ Laser exports to more than 180 countries and regions around the world relies on reliable product quality, reasonable price and perfect after-sales service system.
Adhering to the spirit of craftsman, casting Chinese brands. We have carefully polished and deliberated every link from pre-sales, in-sales and after-sales. After years of hard work, Jinqiang has its own technical strength and brand advantages in the field of laser cutting. Standing at the tuyere of the times, we look forward to landing intelligent manufacturing with you and talking about the future of laser!
The company's products are divided into: three chuck laser pipe cutting machine, full-automatic laser pipe cutting machine, high-speed laser pipe cutting machine, heavy-duty laser pipe cutting machine, economical laser pipe cutting machine, etc., covering a wide range and complete subdivision types.
"Making a good product is customer-centered" listen to customer needs and make changes quickly. JQ Laser currently has more than 400 employees, technology research and development and after-sales service account for more than 50%; we have a professional quick response customer service team, providing 24-hour online and offline technical services in 12 languages. Now JQ Laser exports to more than 180 countries and regions around the world relies on reliable product quality, reasonable price and perfect after-sales service system.
Adhering to the spirit of craftsman, casting Chinese brands. We have carefully polished and deliberated every link from pre-sales, in-sales and after-sales. After years of hard work, Jinqiang has its own technical strength and brand advantages in the field of laser cutting. Standing at the tuyere of the times, we look forward to landing intelligent manufacturing with you and talking about the future of laser!
Exhibition
Exhibition
Listening carefully to customers' needs and making laser tube cutting machines that meet the needs of most customers is the product direction that Jinqiang Laser has been pursuing.
JQ adopts the twin-engine power model of coming from the customer site and going to the customer site, driving R&D with the market and driving the market with R&D.
Jinqiang laser R & D technical team accounts for more than 20% of the total number of people in the whole division.
JQ adopts the twin-engine power model of coming from the customer site and going to the customer site, driving R&D with the market and driving the market with R&D.
Jinqiang laser R & D technical team accounts for more than 20% of the total number of people in the whole division.
Details&Parts
Certifications
New Outlook New Experience
Suitable for all kinds of industrial sheet metal processing.
FAQ
10% DISCOUNT IPG Sheet Metal 1000W 2000W Laser Cutter Machine Steel pipe Tube Fiber Laser Cutting Machine For 10mm Carbon Steel
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you
CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not
include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you
CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not
include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
24H Online Service
Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival.
Combination of online cloud classroom and offline door-to-door service to meet customer needs in multiple irections and at multiple levels.
Multi-batch customer return visits, timely discovery of problems to solve and improve.
Combination of online cloud classroom and offline door-to-door service to meet customer needs in multiple irections and at multiple levels.
Multi-batch customer return visits, timely discovery of problems to solve and improve.
