Высокотемпературная теплоизоляция неорганическая плита керамическое волокно алюминий силикат для
- Категория: Ceramic Fiber Boards >>>
- Поставщик: Henan,Pyrocore,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.38 $* | 0.28 $* |
| Aug-18-2025 | 0.21 $* | 0.3 $* |
| Jul-18-2025 | 0.44 $* | 0.89 $* |
| Jun-18-2025 | 0.80 $* | 0.34 $* |
| May-18-2025 | 0.54 $* | 0.17 $* |
| Apr-18-2025 | 0.38 $* | 0.66 $* |
| Mar-18-2025 | 0.91 $* | 0.81 $* |
| Feb-18-2025 | 0.2 $* | 0.50 $* |
| Jan-18-2025 | 0.9 $* | 0.31 $* |
Характеристики
Product Description
1000.C -1900.C Lab Furnace and Industrial Furnace Refractory Insulation Material Ceramic Fiber Board

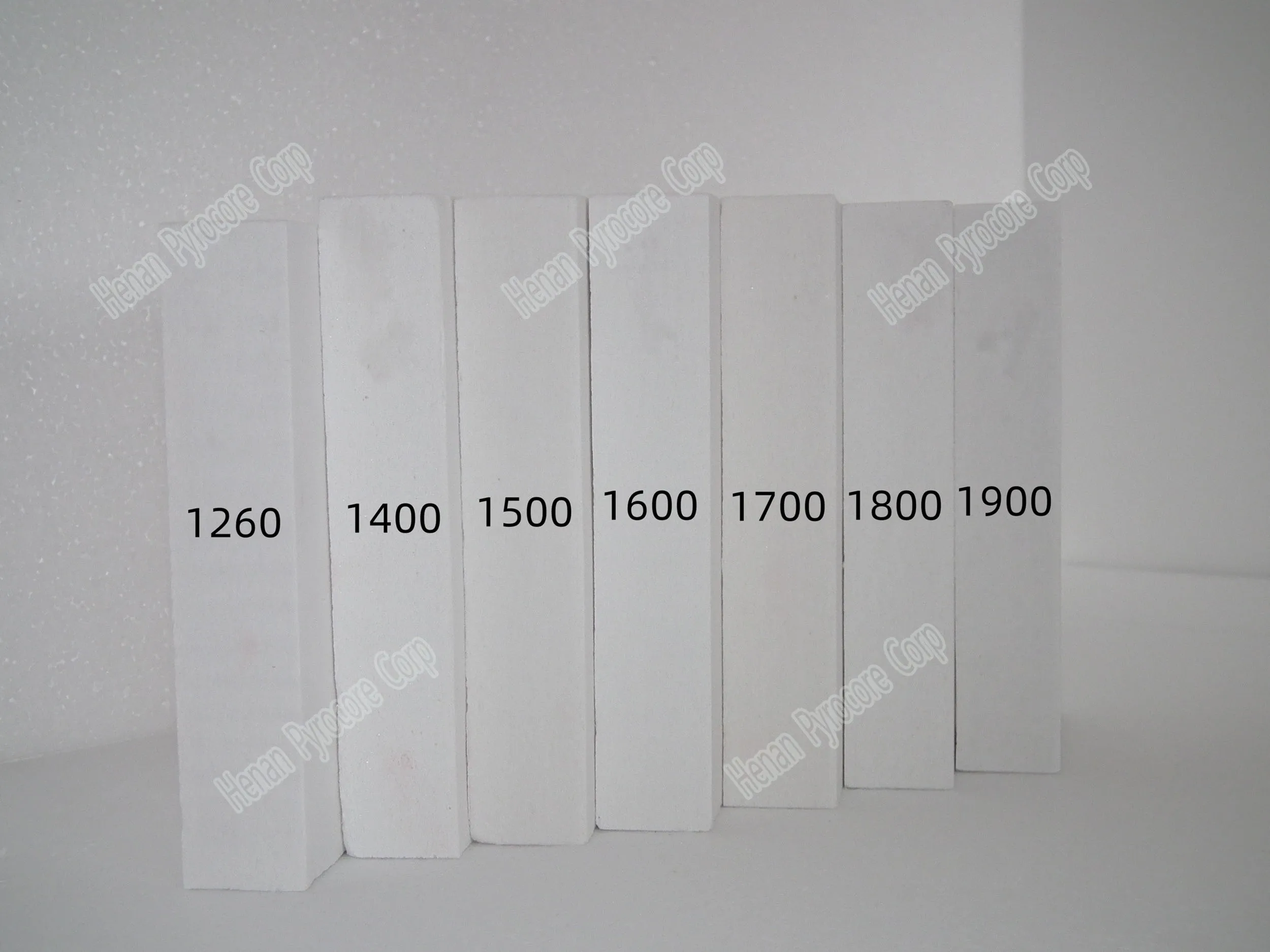

Ceramic fiber board is made by using ceramic fiber bulk and a little binding agent through vacuum forming. ceramic fiber board can maintain its mechanical strength after high-temperature heating, and the board includes 6 levels: , 1260, 1400, 1500, 1600, 1700°C, 1800, 1900. ceramic fiber board can resist the scouring of airflow for its high strength, so it can be the material of internal linings.
Specification
Type | PYR-1260 | PYR-1400 | PYR-1500 | PYR-1600 | PYR-1700 | PYR-1800 | PYR-1900 | ||
Classification Temperatuer (℃) | 1260 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | ||
Working Temperature(℃) | 1000 | 1200 | 1350 | 1500 | 1600 | 1700 | 1750 | ||
Density(kg/m³) | 250-400 | 250-400 | 300-400 | 400 | 400 | 400-500 | 700 | ||
Thermal Conductivity (w/mk) | 400℃ | 0.09 | - | - | - | - | - | - | |
600℃ | 0.12 | 0.12 | 0.12 | - | - | - | - | ||
800℃ | 0.16 | 0.15 | 0.16 | 0.14 | 0.15 | 0.17 | 0.2 | ||
1000℃ | - | 0.23 | 0.23 | 0.17 | 0.19 | 0.24 | 0.3 | ||
1200℃ | - | - | 0.25 | 0.23 | 0.25 | 0.28 | 0.33 | ||
Chemical Composition (%) | Al2O3 | 43 | 45 | 60 | 64 | 75 | 80 | 87 | |
Al2O3+SiO2 | 98 | 98 | 98 | 98 | 99 | 99.5 | 99.5 | ||
BaO | <0.2 | <0.2 | <0.2 | <0.1 | <0.05 | <0.05 | <0.05 | ||
Fe2O3 | <1.2 | <1.2 | <0.5 | <0.5 | <0.2 | <0.1 | <0.1 | ||
Shrinkage(%) | 1100-*-24h-3 | 1200*24h-2.5 | 1400*24h-1 | 1500*24-1 | 1600*24h-0.5 | 1700*24h-0.40 | 1750-24h+0.1~0.4 | ||
Combustion Loss(%) | ≤5% | ≤5% | ≤4.5% | ≤4.5% | ≤5% | ≤3.5% | ≤4% | ||
Compresssive Strength(MPa) | 0.3 | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | ||
Standard Size:1200*1000*20-100mm/1000*600*20-100mm
Other shapes and sizes can be made according to your requirements!
NOTE: Above working temperature is under the long-term oxidizing atmosphere,while special working enviroment needed,please make technical communication first.
Other shapes and sizes can be made according to your requirements!
NOTE: Above working temperature is under the long-term oxidizing atmosphere,while special working enviroment needed,please make technical communication first.
Applications
Fireproof material for many scenarios
Applications: various furnaces, high-temperature pipelines and containers heat insulation and thermal insulation; furnace doors, valves, flange sealing, fire doors and fire shutter materials, high-temperature furnace door Min curtain; engine and instrument insulation, fireproof cable covering materials, high-temperature fireproof materials; thermal insulation cover with fabric, high-temperature expansion seam filler, flue lining; metallurgy, machinery, chemical industry, environmental protection and other industries thermal insulation materials for thermal equipment; high-temperature resistant labor protection products, fireproof clothing, high-temperature filtration, sound absorption and other applications instead of asbestos
Company Profile
Henan Pyrocore Corporation is a comprehensive company in the refractory industry. We have been trading overseas for decades and you can find our refractory products in many industries around the world. We have our own workshop with advanced production lines, experienced workers and strict inspection processes to provide you with quality products at low prices. Our philosophy is "dedication to customer service", based on our excellent knowledge and service attitude, to provide timely and effective service to our customers.
Customer visit
In addition to the production plant, we also have a professional sales and after-sales service team. Our sales team has rich experience in multi-lingual communication and can accurately understand your problems and propose corresponding solutions, and we will contact you within 12 hours with the fastest speed once you contact us.
The after-sales service team provides customers with a full range of services such as product application, construction and installation, and technical training for operation. They can provide you with specific video installation tutorials or very detailed instructions to help you use the products, and will conduct video phone instruction with you when necessary. They will also respond quickly within 12 hours of your request.
The after-sales service team provides customers with a full range of services such as product application, construction and installation, and technical training for operation. They can provide you with specific video installation tutorials or very detailed instructions to help you use the products, and will conduct video phone instruction with you when necessary. They will also respond quickly within 12 hours of your request.
More pictures
Packing & Delivery
We have rich experience in exporting, you can see our products all over the world, so there is no need to worry about shipping and packaging, we can ensure you receive quality products within the specified time by sea, air, express, etc.
FAQ
1.Is your company accepting customization?
We have our own factory and excellent technical team, and we accept OEM service.
2.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
3.Can you provide samples?
Of course, we can provide free samples for you to test, and we will refund the courier fee to you when we receive your order.
4. What is the delivery time?
10-25 days after receiving the deposit
5.How do you package your products?
For ceramic fiber blocks, blankets, boards, paper, modules, etc., we pack them in high-silica step woven bags and cartons filled with cushioning material inside.
6. What's your regular practice concerning terms of payment?
A: Payment terms: T/T 30%-50% deposit after order confirmation, the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
We have our own factory and excellent technical team, and we accept OEM service.
2.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
3.Can you provide samples?
Of course, we can provide free samples for you to test, and we will refund the courier fee to you when we receive your order.
4. What is the delivery time?
10-25 days after receiving the deposit
5.How do you package your products?
For ceramic fiber blocks, blankets, boards, paper, modules, etc., we pack them in high-silica step woven bags and cartons filled with cushioning material inside.
6. What's your regular practice concerning terms of payment?
A: Payment terms: T/T 30%-50% deposit after order confirmation, the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
