Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
12V/24V DC задатчик линейного перемещения с концевой выключатель солнечной энергии двумя осями высокой точности приводом IP66 IP68 водонепроницаемый 120 Вт
- Категория: Motors >>>
- Поставщик: Anhui,Risesat,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 189.12 $* | 193.16 $* |
| Jul-19-2025 | 153.46 $* | 156.91 $* |
| Jun-19-2025 | 186.86 $* | 190.38 $* |
| May-19-2025 | 185.73 $* | 189.88 $* |
| Apr-19-2025 | 148.56 $* | 151.53 $* |
| Mar-19-2025 | 182.1 $* | 186.31 $* |
| Feb-19-2025 | 180.92 $* | 184.4 $* |
| Jan-19-2025 | 179.3 $* | 183.28 $* |
Характеристики
Products Description
We are factory. We can OEM and ODM.
Features:
Voltage: 12V / 24V DC
Max. force: 6000N max.
Speed: 3 ~ 88mm/s
Stroke: 20mm-500mm
Diameter of the outer tube: 52mm
Material of outer tube: Aluminium / 304 stainless steel
Protection Class: IP68
Color: Black,stainless steel color
Duty Cycle: 10%
Limited Switches: built in (not adjustable)
Ambient temperature -35°C to +70°C
Options: low noise, Hall Sensor, over current protection
Voltage: 12V / 24V DC
Max. force: 6000N max.
Speed: 3 ~ 88mm/s
Stroke: 20mm-500mm
Diameter of the outer tube: 52mm
Material of outer tube: Aluminium / 304 stainless steel
Protection Class: IP68
Color: Black,stainless steel color
Duty Cycle: 10%
Limited Switches: built in (not adjustable)
Ambient temperature -35°C to +70°C
Options: low noise, Hall Sensor, over current protection
Product Paramenters

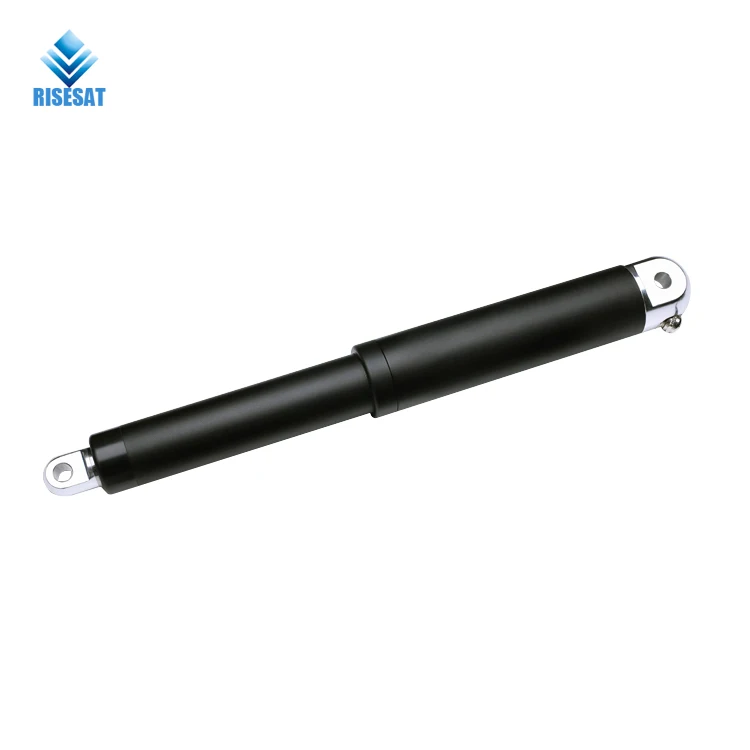

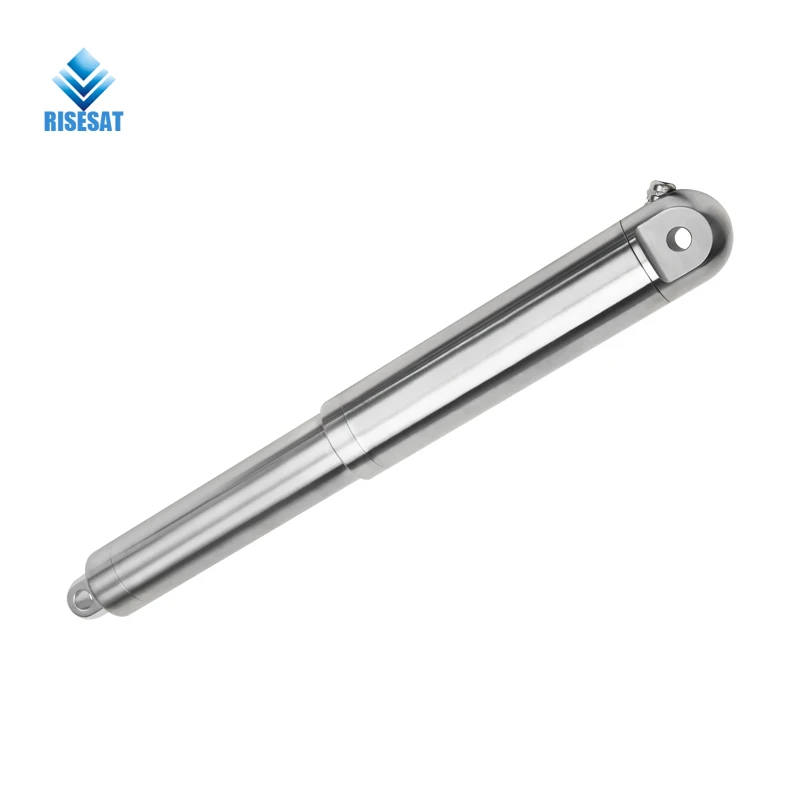

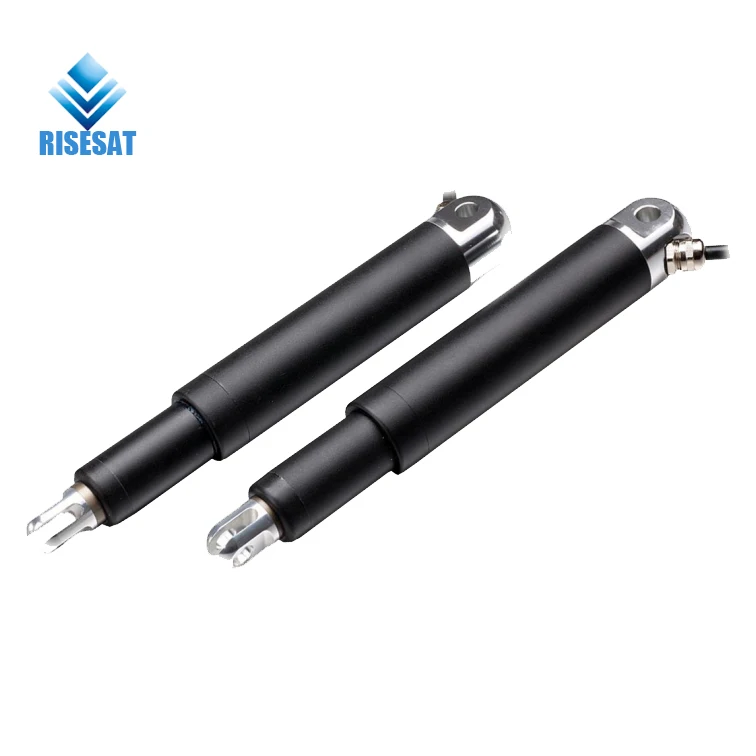

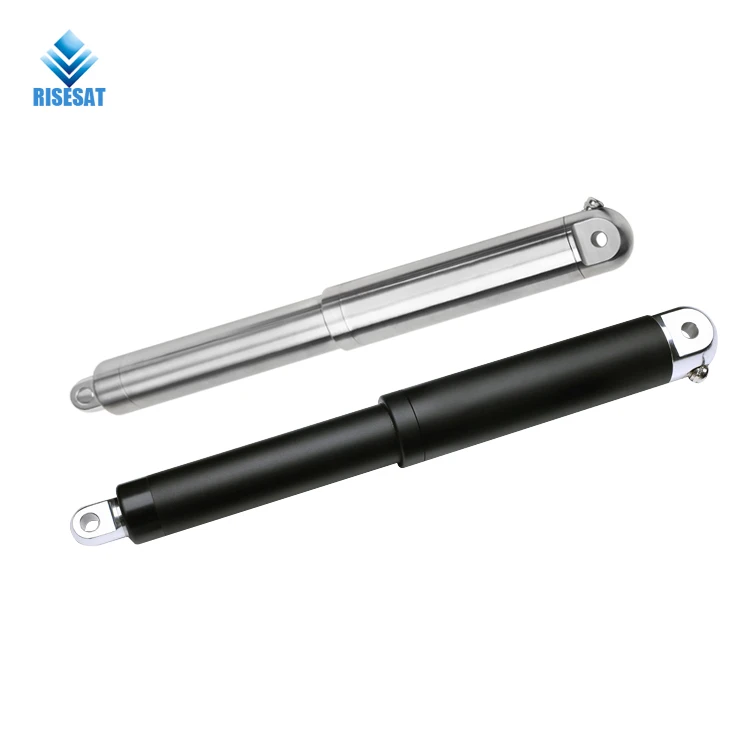

RS-L8-52 is a powerful compact in-line linear actuator, with max. load capacity 6000N.
It is ideal for outdoor applications where the actuators will be visible, such as skylight, smoke vent system, yacht automation, agriculture machine.
Model | RS-L8-52 | Power | 120W |
Brand | RISESAT | Color | Black/ stainless steel color |
IP Grade | IP68 | Noise on load(dB) | <75dB |
Duty cycle | 10% 2min. ON 18min. OFF | Stroke | Customized Stroke Available (50~400mm) |
No-load Current | <=1.6A (12v DC) <=0.8A (24v DC) | Full load Current | <=10A (12V DC) <=5A (24v DC) |
End mounting | O Type | Operation temperature | -20℃~+65℃ |
Max. Load(N) | 300 | 1200 | 1800 | 3000 | 4500 | 5000 | 6000 |
Self-locking Force(N) | 600 | 2400 | 3600 | 6000 | 8000 | 7500 | 8000 |
No-load speed(mm/s) | 88 | 25 | 18 | 10 | 8 | 5 | 5 |
Full load speed(mm/s) | 55 | 18.5 | 12 | 7 | 5 | 4 | 3 |
Details Images
Certifications
Company Profile
Order Process
By Sea | Delivery from Shanghai or Ningbo seaport | ||||
By Air | Departure from Shanghai Pudong Airport | ||||
By Express | By FEDEX, UPS, TNT, DHL, EMS , etc. | ||||
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CNF | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 1)7~10days for sample 2)10~18days after receiving payment for bulk order | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Contact us
