Безвентиляторная Встраиваемая компьютеры 11th Gen процессор Core i7 1165G7 2*2 5G Lan 24V DC 6COM мини РС автоматическое кассового модуль HD-MI +
- Категория: Industrial Computer & Accessories >>>
- Поставщик: Xuzhou,Venoen,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.17 $* | 0.90 $* |
| Aug-18-2025 | 0.74 $* | 0.53 $* |
| Jul-18-2025 | 0.57 $* | 0.49 $* |
| Jun-18-2025 | 0.39 $* | 0.40 $* |
| May-18-2025 | 0.21 $* | 0.84 $* |
| Apr-18-2025 | 0.96 $* | 0.82 $* |
| Mar-18-2025 | 0.0 $* | 0.68 $* |
| Feb-18-2025 | 0.43 $* | 0.40 $* |
| Jan-18-2025 | 0.42 $* | 0.39 $* |
Характеристики
Related Products
Product Description

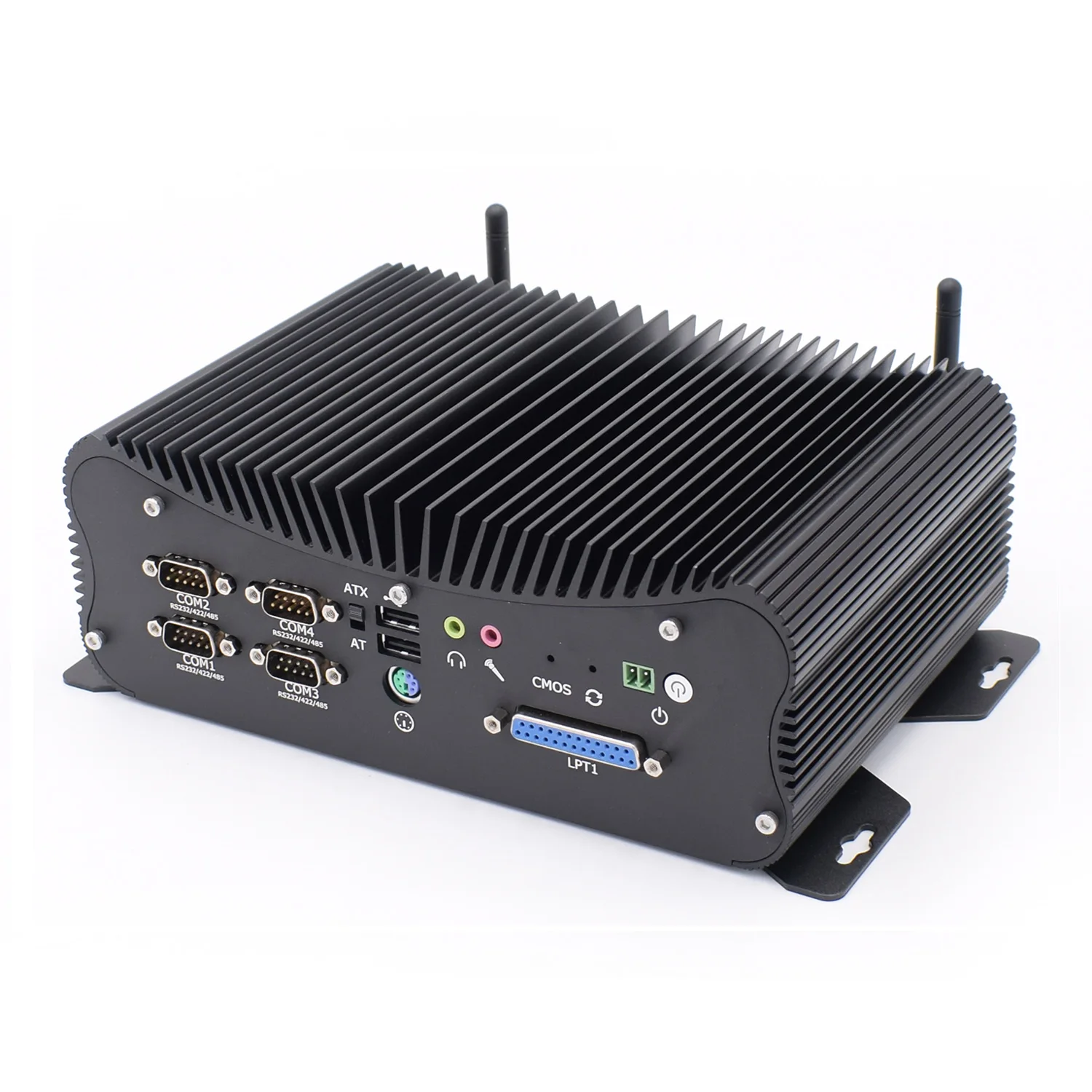

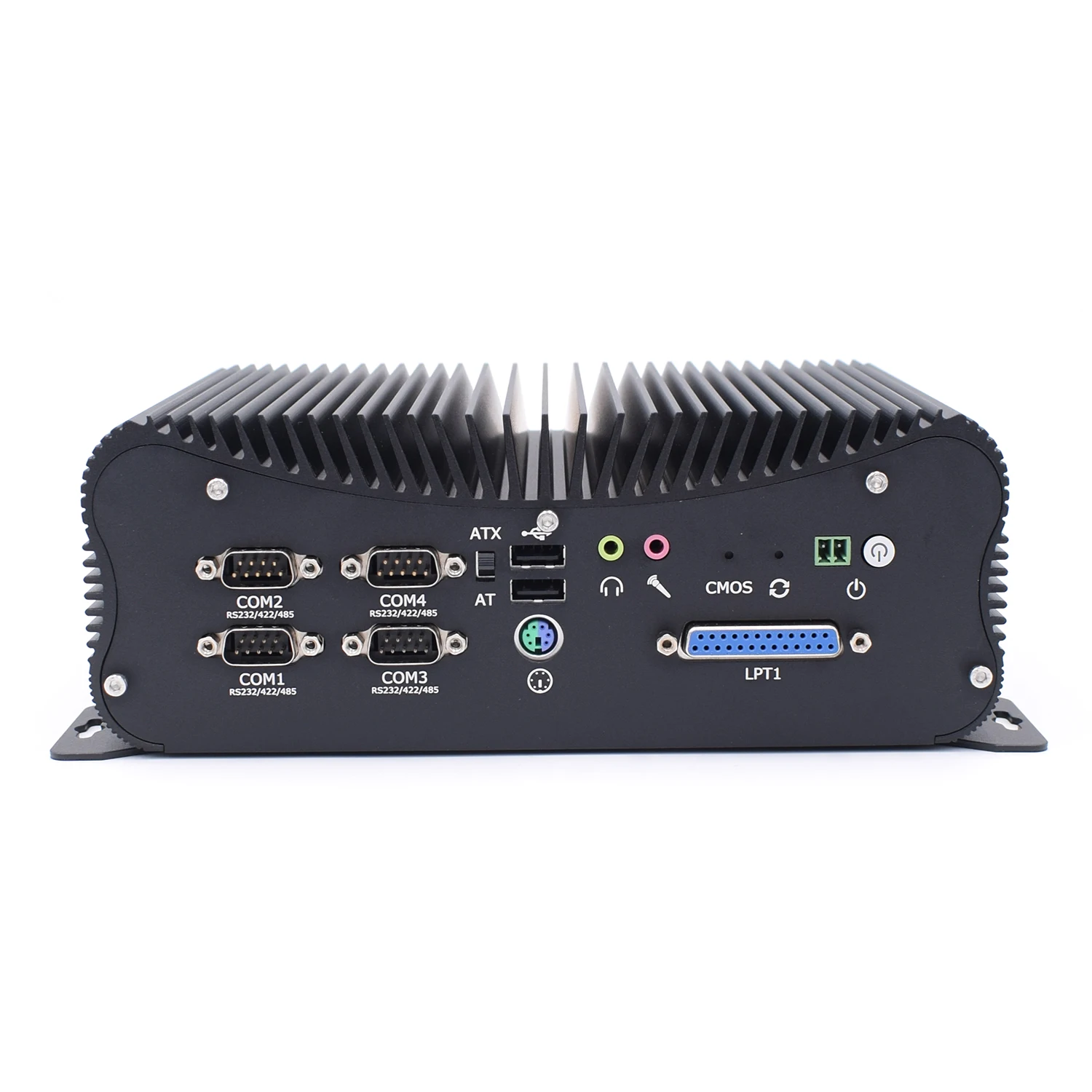

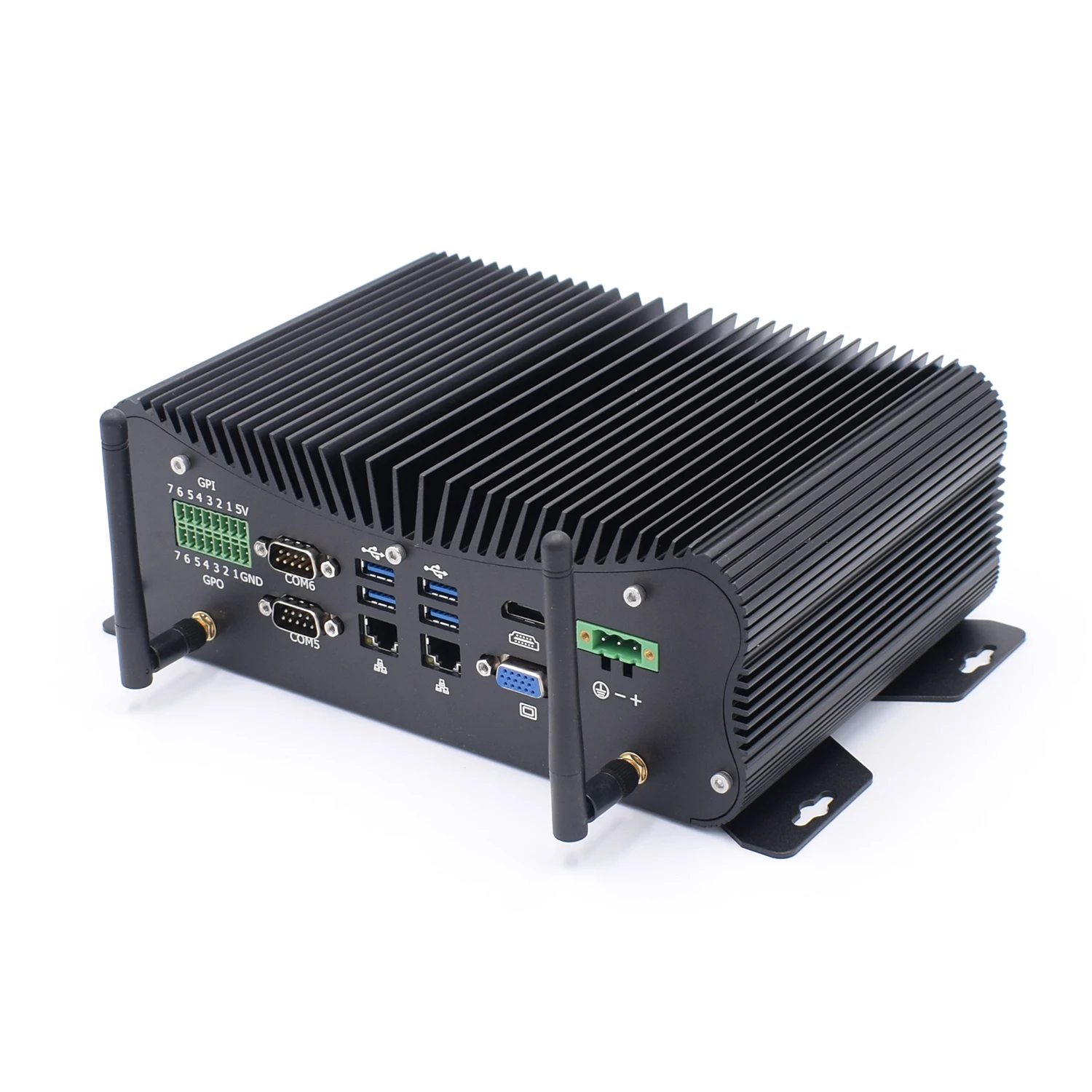

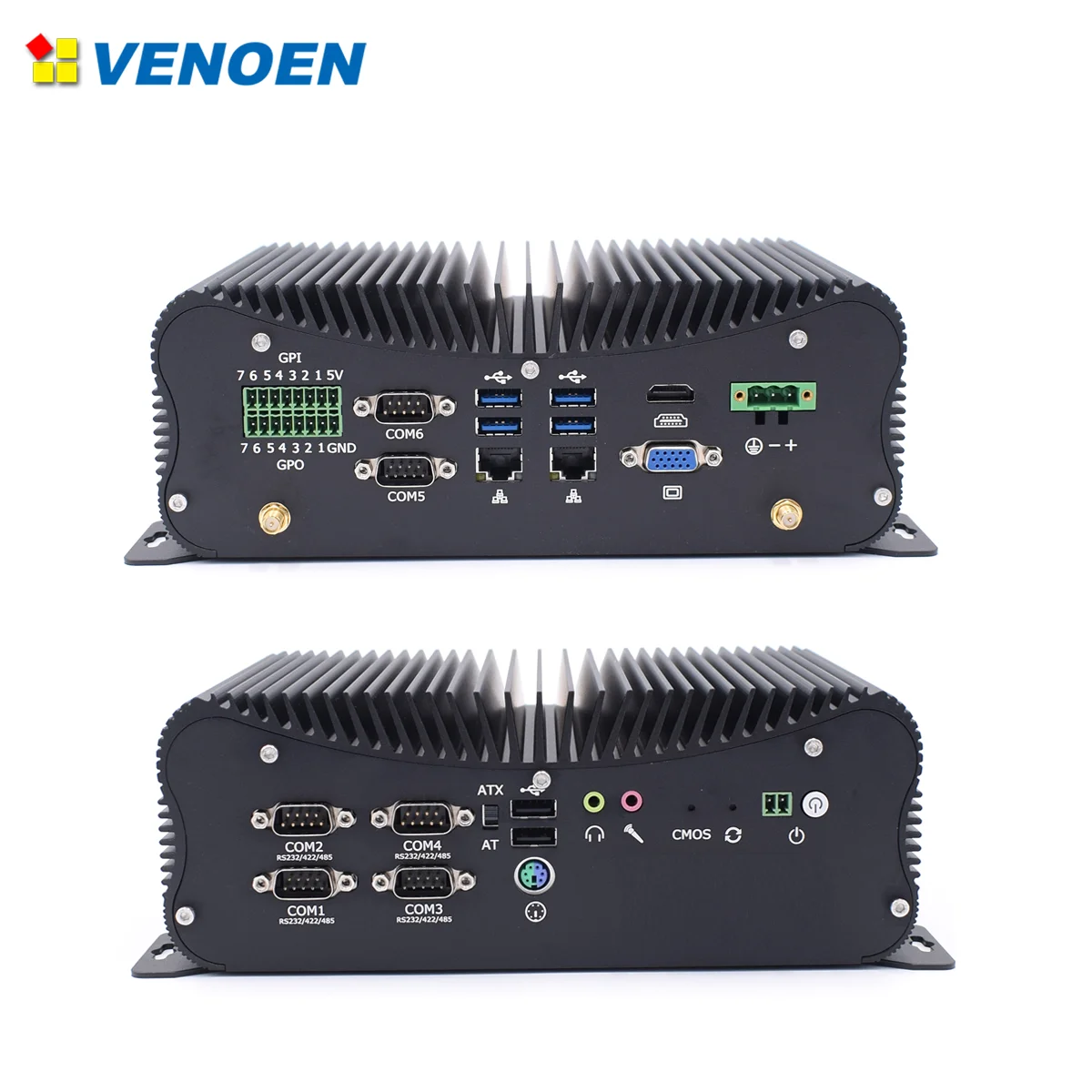

RS232/422/485 COM 2 Gigabit LAN 9-36V Industrial Mini PC Intel Core i5 i7 Compact Fanless Computer Win10 pro Dual band WIFI
Processor Performance:
Intel Core i5 1135G7, 8M Cache, 4 cores 8 threads, 2.40GHz up to 4.20GHz;
Intel Core i7 1165G7, 12M Cache, 4 cores 8 threads, 2.80GHz up to 4.70GHz;
Intel Core i5 1135G7, 8M Cache, 4 cores 8 threads, 2.40GHz up to 4.20GHz;
Intel Core i7 1165G7, 12M Cache, 4 cores 8 threads, 2.80GHz up to 4.70GHz;
Product Highlight
- Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably.- Brushed Full Aluminum Alloy Silver/Black color shell for heat dissipation, Exquisite production craft on outside design.

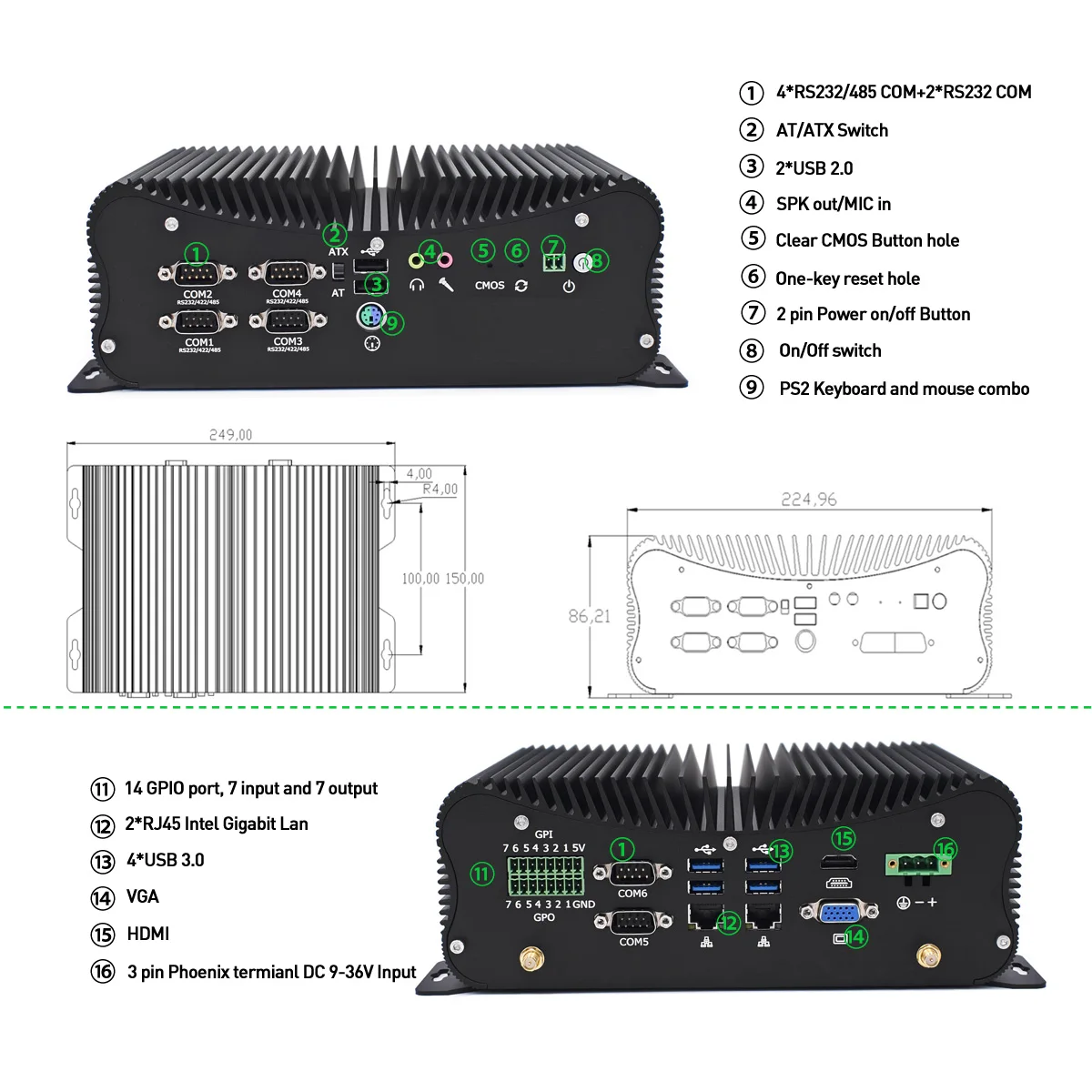

- 2xIn-tel i201/i211AT Gigabit RJ45 LANs, 6xDB9 COM(4xRS232/422/485), 8xUSB(2xUSB inside), PS/2, GPIO etc rich ports for different
equipments.
- 3xStorage: 1*MSATA SSD+1*M.2 SATA/NVME SSD+1*2.5''SATA installation together;
- Fit for 9-36V 3pin phoenix terminal power input, ATX/AT quick switch.
- Support VGA + HD dual display output synchronously.
- One embedded SIM card slot onboard for 3G/4G Wi-Fi.
- Support Watchdog, AWAL, RTC, WOL(ATX mode), PXE, Reset functions.
- Low consumption TDP only 15W and can be mounted on the wall.
Basic Information: | ||
CPU | Onboard Intel Core i5 7267U/8250U/i7 7660U/I5 10210U/I7 10710U | |
TDP | 15W | |
Memory | Core i5 7267U/8250U support 2xSODIMM DDR4-2133/2400/2666MHz memory slot up to 64GB | |
OS | Win/10/Linux | |
PXE | YES | |
Audio | Intel High Definition Audio Controller | |
Network | 2 x Onboard Intel i211/210 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN | |
Video | Intel HD Graphics | |

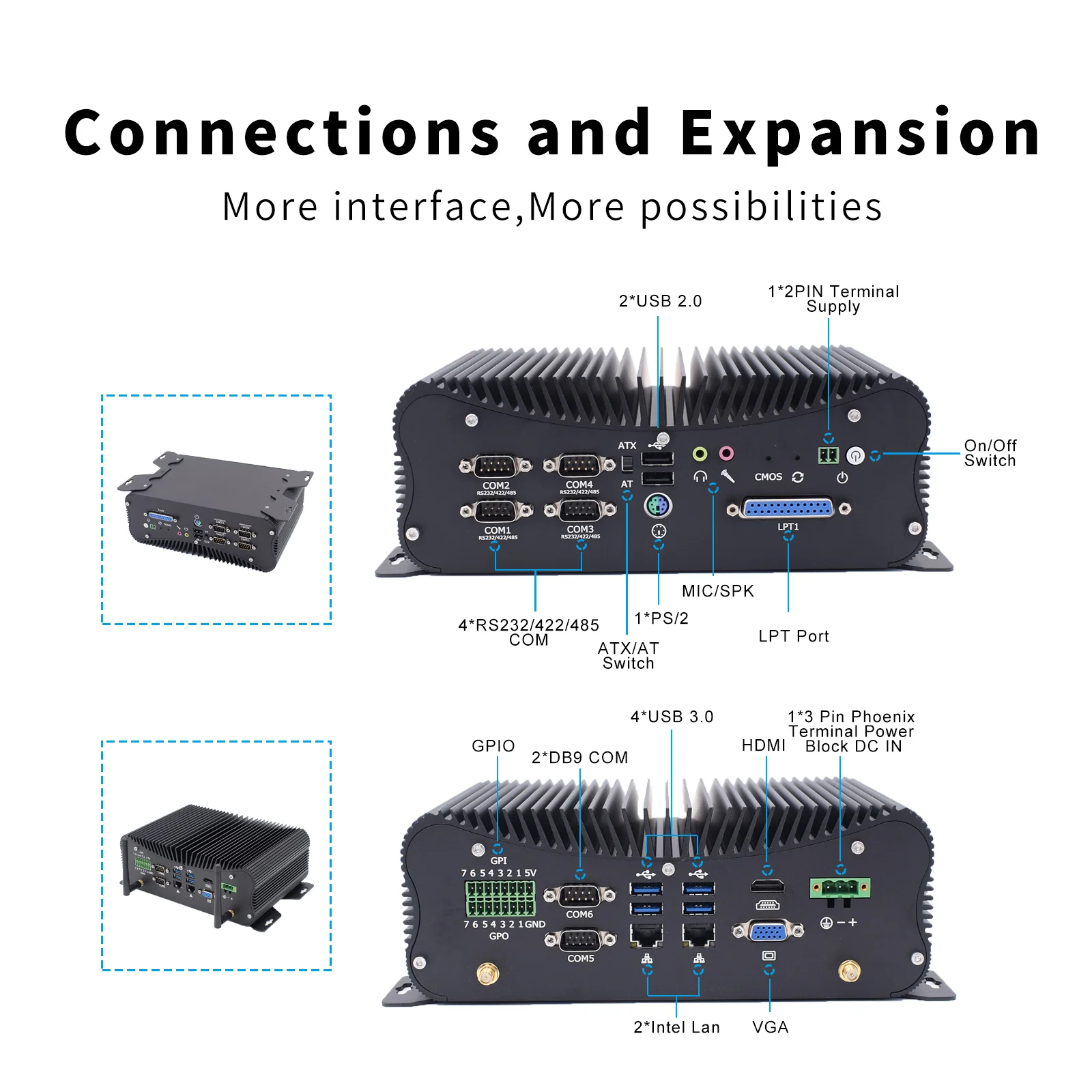

Input/output port | ||
Switch | 1 x Power On/Off Switch | |
Power | 1 x 3Pin phoenix terminal DC 9-36V input | |
USB | 2 x USB2.0, 4 x USB3.0,internal 2 x USB2.0 | |
COM | 6 x DB9 Serial Port (4 of them support RS422/485) | |
Reset | One key reset hole | |
Display | 1 x VGA, 1 x HDMI, support 4K HD | |
LAN | 2 x RJ45 Giga LAN | |
GPIO | 14 GPIO port, 7 output, 7 input | |
Audio | 1 x MIC, 1 x SPK | |
Storage | ||
M.2 | 1 x M.2 slot for NGFF/NVMe/PCIe SSD 32Gb/s | |
MSATA | 1 x MSATA3.0 slot for MSATA SSD | |
SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install) | |
Wi-Fi | ||
Module | 1 x MPCIe slot for Wi-Fi module | |
Antenna | 2 x inner RF cables and without external antenna | |
Power and Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | DC +9V~+36V, recommend 12V/5A | |
Operating Temperature | -30/70 Centigrade | |
Relative Humidity | 10%~90% | |
Product Dimension & Details | ||
Size | 249*150*86mm | |
Weight | Net 2.3kg, Gross 3.5kg | |
Cooling Mode | Fanless design, Alluminum alloy case. | |
Functions | AWAL, PXE, Wake On LAN, RTC | |
Package Content | ||
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 4xMount Screws, 1xHDMI cable,1xUser Manual | |
Packing&Shipping
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
OEM&ODM Service
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
Company Introduction
VENOEN Technology Co., Limited was founded in 2013 in XuZhou as a mini computer developer and wholesaler, our factory is located in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
