CNC завод 80W распродажа золотистые серебристые лазерный сварочный аппарат для пайки украшений 200 Вт YAG ювелирных
- Категория: Laser Welders >>>
- Поставщик: Shenzhen,KBF,Laser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1856.20 $* | 1949.11 $* |
| Aug-16-2025 | 1841.34 $* | 1933.65 $* |
| Jul-16-2025 | 1544.0 $* | 1621.89 $* |
| Jun-16-2025 | 1810.68 $* | 1901.13 $* |
| May-16-2025 | 1576.72 $* | 1655.85 $* |
| Apr-16-2025 | 1778.46 $* | 1867.99 $* |
| Mar-16-2025 | 1763.59 $* | 1851.20 $* |
| Feb-16-2025 | 1747.67 $* | 1834.57 $* |
| Jan-16-2025 | 1732.98 $* | 1819.59 $* |
Характеристики

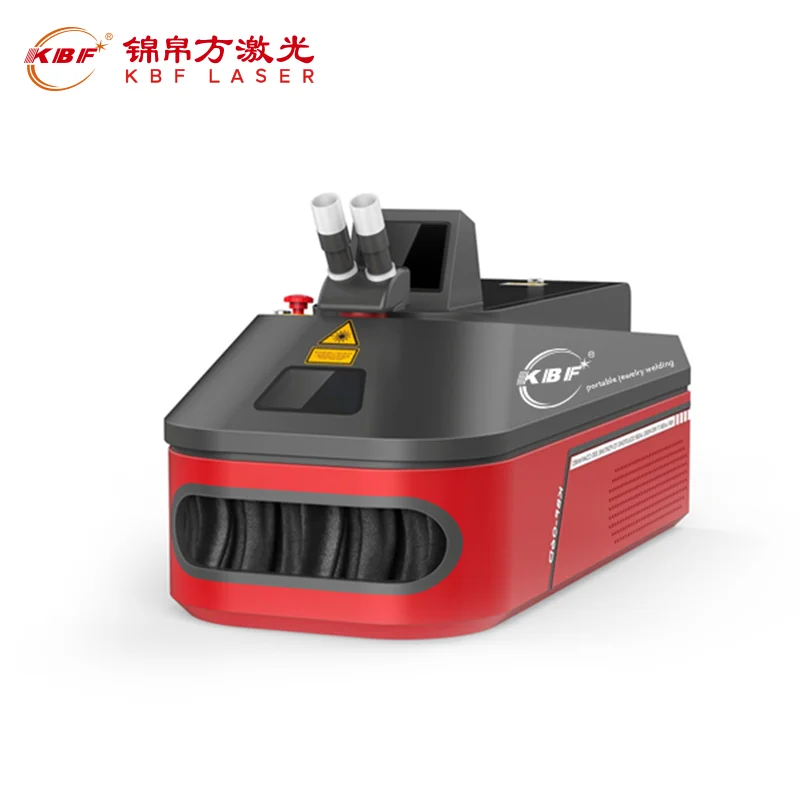

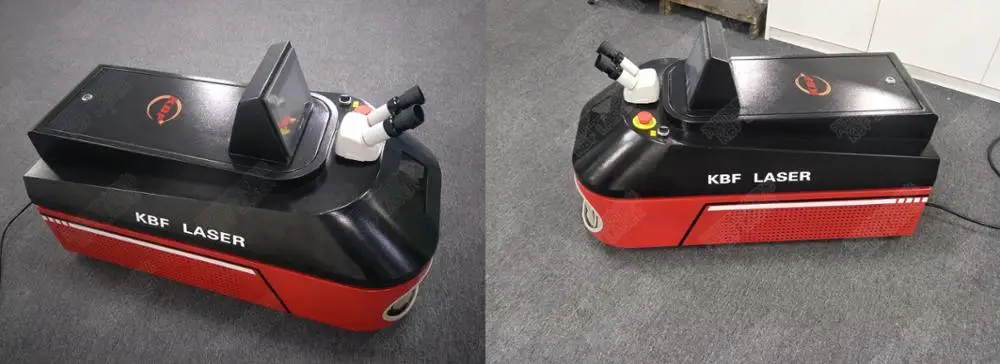

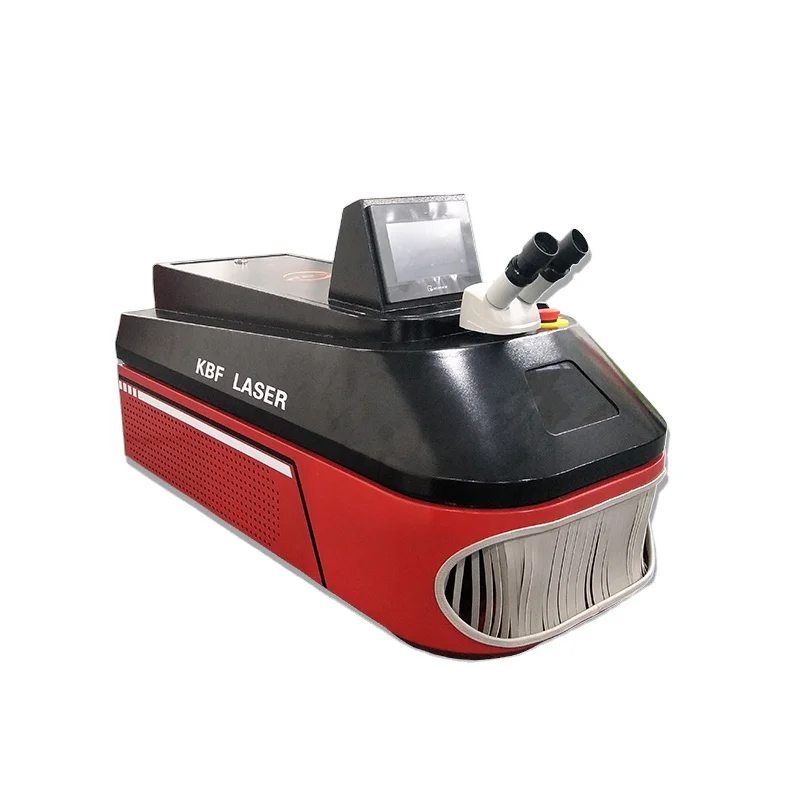

100W 150W The new pure gold and sterling silver portable mini jewelry soldering laser welding machine
Aplication materials:

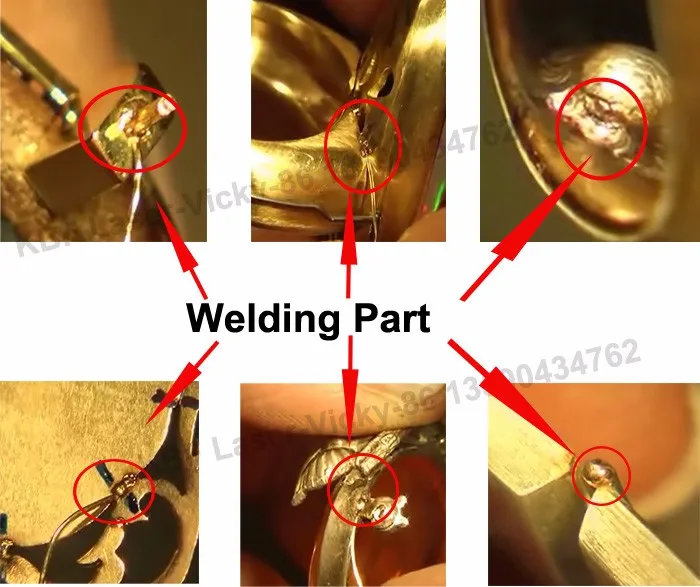

Suitable for gold, silver, copper, titanium, stainless steel and other metals' patch welding, spot welding, pocket repairing and jaw hand welding when mount parts.
The single point has more energy and can weld pure gold and silver
Aplication industries:
Jewelry laser welding machine widely used in aviation, aerospace, sports goods, jewel, golf head, medical instrument, electronics, mechanical process, car industries.
Advantage:
1 .Professional for silver welding, up to 2.0mm.
2.The heat affected zone is small, does not lead to the deformation of the precision instruments.
3.Unit cost reductions, material versatility, suitable for a variety of venues all kinds of mold repair.
4.Cleaner than electric arc or gas welding, low heat input, minimal distortion in heat affected zones.
5.Excellent weld quality, no tooling to wear out or change over.
6.High energy density, high weld speeds.
2.The heat affected zone is small, does not lead to the deformation of the precision instruments.
3.Unit cost reductions, material versatility, suitable for a variety of venues all kinds of mold repair.
4.Cleaner than electric arc or gas welding, low heat input, minimal distortion in heat affected zones.
5.Excellent weld quality, no tooling to wear out or change over.
6.High energy density, high weld speeds.
| Power | 200W/100W/60W(optional) |
| Input power | AC220V50/60HZ |
| Maximum Input power | 7KW |
| Pulse width | 0.3-20ms |
| Maximum single pulse energy | 75J |
| Power stability | 1% |
| LCD | Color three-dimensional user-friendly interface |
| Control system | PC |
| Aim at positioning | Microscope |
| Alarm | All error alarms can be displayed and queried |
| Wavelength | 1064nm |
| Working medium | Nd:YAG |
| Frequency | 1-20HZ |
| Cooling system | Internal/external water cooling (optional) |
| Electro-optical conversion efficiency | More than 3% |
O
Packing :
International standard packing.
Firstly, packed the machine with plastic sheet for clearing and damp proofing.
Secondly, put the machine in the wooden case for safety and clashing.
Then, transport the wooden case into the container.
Depends on different situation (weight, volume, country...), the shipping method could be different and its negotiable.
