Характеристики
Short Description

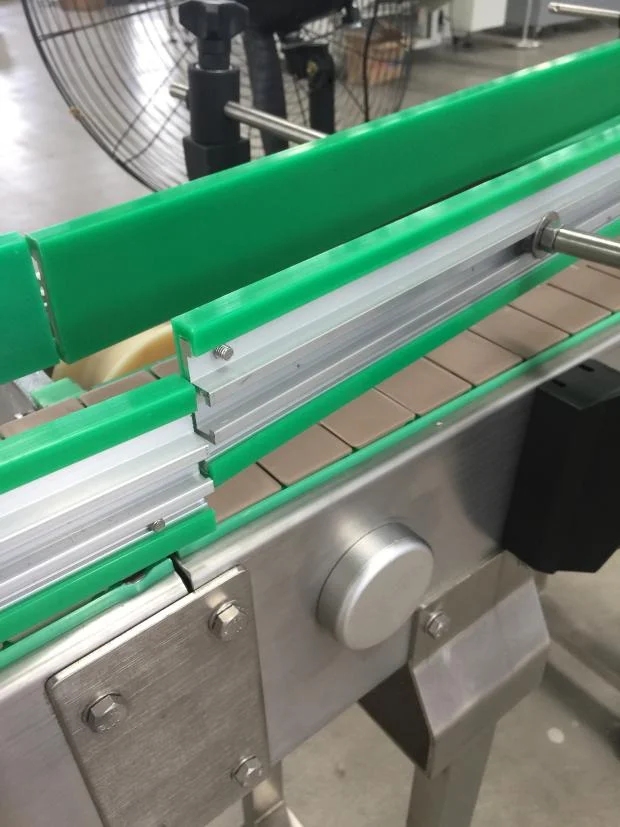

UHMWPE Wear strips are used to support and guide roller chains, product and conveyor belts, which provides high wear resistance and a low coefficient of friction. They are designed to prevent chain or belt movement and cut back vibration which may increase bearing and motor loads. Wear bends also can be provided usually used to guide conveyor belts around corner tracks.
uhmwpe wear strips and profiles are extruded from virgin uhmwpe and are available in a wide range of shapes and sizes to suit different applications. These cut-to-length profiles, with the ability to hold close tolerances, are a viable alternative to
custom-machined components, as they offer significant cost reductions.
custom-machined components, as they offer significant cost reductions.

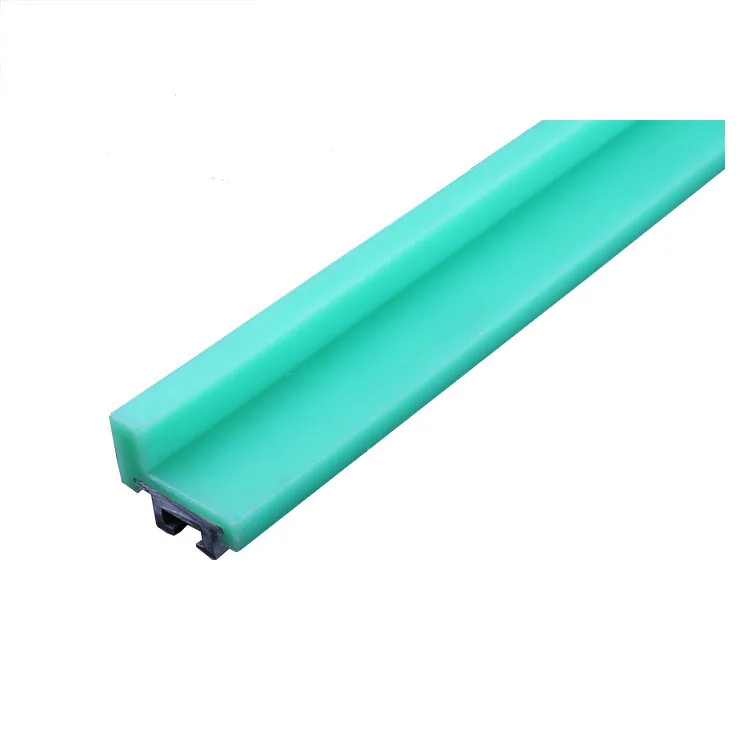

Code | Item | Material | Color | Length L |
901A/901B | 20 Chain Guide | UHMW-PE A- alloyA/SS304 | Green | 3M/PC |
Code | Item | Material | Color | Length L |
902A/902B | 40L Chain Guide | 902A:UHMW-PE A-alloyA 902B:UHMW-PE Stainless Steel | Green | 3M/PC |
Code | Item | Material | Color | Length L |
903A/903B | 40 Chain Guide | 903A:UHMW-PE A-alloy/SS304 904B:UHMW-PE A-alloyA | Green | 3M/PC |
Code | Item | Material | Color | Length L |
907A/907B | T Shape Chain Guide | 907A:UHMW-PE Stainless steel 907B:UHMW-PE A-alloyA | Green | 3M/PC |

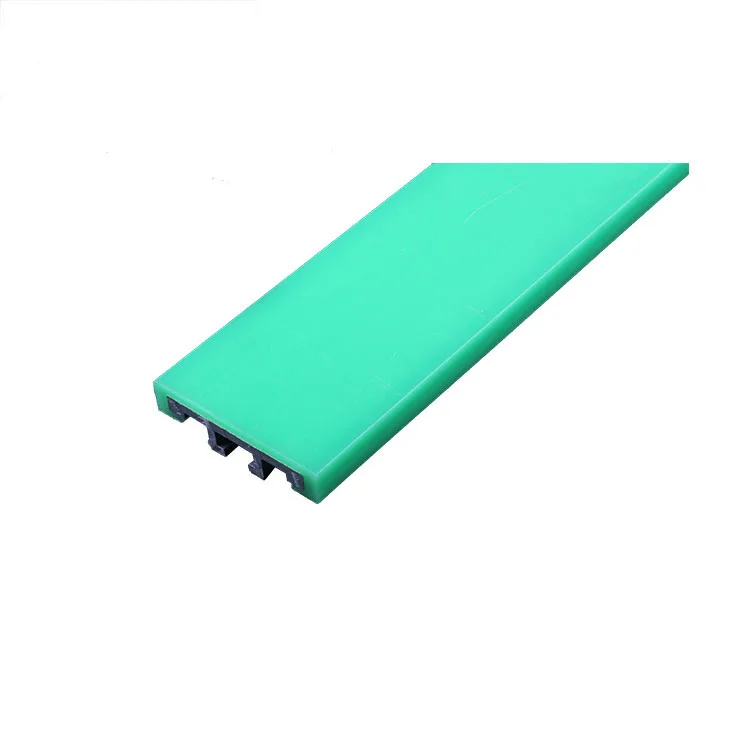

Code | Item | Width (mm) | Color | Length L | ||||
904 | 60 Chain Guide | 60 | Green | 3M/PC | ||||
Material: side guide: UHMW-PE Profile:A- alloyA | ||||||||
It is suitable for blocking on both sides of the conveying product, and the fitting surface is large. Sheath self-lubrication, small friction coefficient, not easy to damage the transport. Groove fitting bolt to connect the fixing bracket | ||||||||
Code | Item | Width (mm) | Color | Length L | ||||
905 | 38 Chain Guide | 38 | Green | 3M/PC | ||||
Material: side guide: UHMW-PE Profile:A- alloyA | ||||||||
Code | Item | Color | Length L | |||
908 | Round Cap Chain Guide A | Green | 3M/PC | |||
Material: side guide: UHMW-PE Profile:stainless steel | ||||||
Material
Base：Reinforced Polyamide with Rubber Pad
Spindle and Nut: Carbon Steel Nickle Plated, or Stainless Steel
With rubber pad acts as anti-slip and shockproof
Application Industries
1. Runners and Tracks
2. Sidewall guides and cleats
3.Cable tracks, diverter guides
4. Under-chain wear guides
5. High moisture environments
6. Bottling line guide rails
7. Protective edge covers
2. Sidewall guides and cleats
3.Cable tracks, diverter guides
4. Under-chain wear guides
5. High moisture environments
6. Bottling line guide rails
7. Protective edge covers
Advantage
uhmwpe is an exceptional profile material for high impact, wear and sliding applications and will perform under the most extreme conditions of wear and environment. It has the best impact strength of any modern thermoplastic, is highly resistant to abrasion and has a very low co-efficient of friction. It absorbs virtually no water, which enables it to be used in high moisture environments.
