Винтовой воздушный компрессор Atlas Copco AQ15 AQ22 AQ30 AQ37 AQ45 AQ55
- Категория: Industrial Compressors & Parts >>>
- Поставщик: Yiwu,Vialvv,Machine,Equipment,Co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.60 $* | 0.92 $* |
| Aug-20-2025 | 0.0 $* | 0.24 $* |
| Jul-20-2025 | 0.20 $* | 0.79 $* |
| Jun-20-2025 | 0.73 $* | 0.75 $* |
| May-20-2025 | 0.37 $* | 0.73 $* |
| Apr-20-2025 | 0.9 $* | 0.8 $* |
| Mar-20-2025 | 0.4 $* | 0.15 $* |
| Feb-20-2025 | 0.34 $* | 0.40 $* |
| Jan-20-2025 | 0.86 $* | 0.0 $* |
Характеристики
Oil-free Water-injected Atlas Screw Compressors
AQ 15-55VSD/AQ 30-55 (15-55 kW / 20-75 hp)
Zero risk of contamination
Whether your activities are in pharmaceutical production, food & beverage, critical electronics or in a similarly exacting
industry, air quality is paramount for your end product and production process. Atlas Copco’s AQ oil-free compressors
eliminate the risks of oil contamination.Reduced energy costs
Renowned expertise
Drawing on vast experience and continuous technological innovations, Atlas Copco has been leading the industry in
oil-free compressed air technology for over sixty years. With the protection of your application in mind, Atlas Copco
has designed its AQ range to offer the superb 100% oil-free quality air you are in need of.
POWERFUL OIL-FREE AIR
When it comes to clean, oil-free compressed air, you cannot afford to compromise on quality.
Over the past decades, Atlas Copco has pioneered oil-free water-injected screw technology, resulting
in a broad range of compressors delivering 100% oil-free, clean air. Setting the standard through
ISO 8573-1 CLASS 0 certifcation, theAQ meets your need for pure oil-free air while offering best in class
energy effciency.
When it comes to clean, oil-free compressed air, you cannot afford to compromise on quality.
Over the past decades, Atlas Copco has pioneered oil-free water-injected screw technology, resulting
in a broad range of compressors delivering 100% oil-free, clean air. Setting the standard through
ISO 8573-1 CLASS 0 certifcation, theAQ meets your need for pure oil-free air while offering best in class
energy effciency.

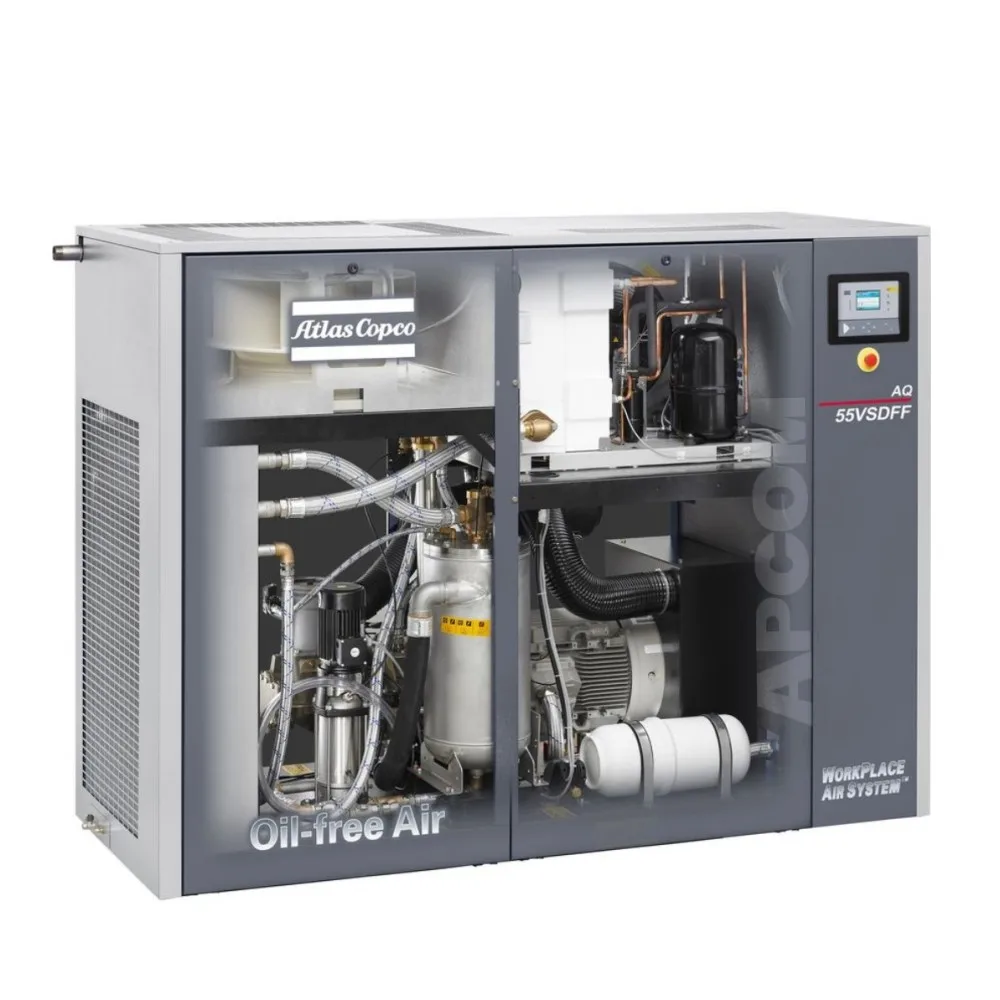

ENGINEERED TO MEET YOUR NEEDS
At Atlas Copco we aim to provide you with compressors that fulfll and even exceed your expectations and demands. Built as the result of decades of experience in oil-free design and manufacturing, the AQ range of oil-free screw compressors gives you all of this experience and knowledge in a class leading package.
1.Water-injected screw element | 7.Air-cooled fan and water-cooler |
2.Water flter | 8.Integrated highly effcient dryer |
3.Heavy-duty air flter | 9.Elektronikon® Graphic |
4.Separator vessel | 10.Sound insulated canopy |
5.Induction motor | 11.Electronic no-loss water drain |
6.Reverse osmosis system |

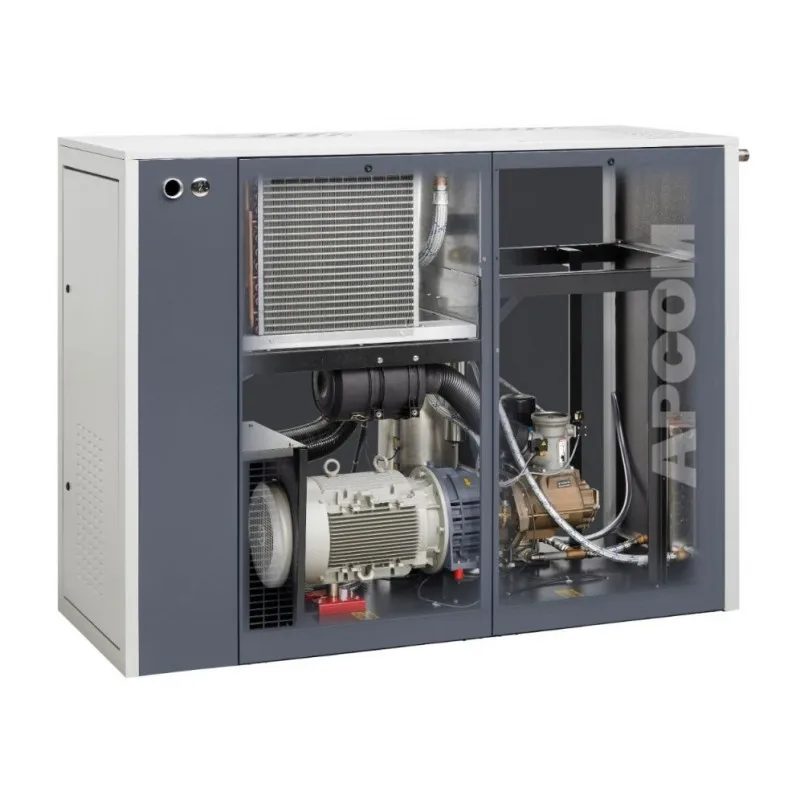

Water-injected Oil Free Compressor Head
PROVEN TECHNOLOGY
At the heart of the new AQ range is a unique water-injected screw element working highly effcient near isothermal compression.
The polymer ceramic rotors with their optimized rotor profle are supported by
water-lubricated bearings,
ensuring that no oil whatsoever can contaminate the compression element,
there by producing pure oil-free air.
The polymer ceramic rotors with their optimized rotor profle are supported by
water-lubricated bearings,
ensuring that no oil whatsoever can contaminate the compression element,
there by producing pure oil-free air.
Online 24 Hours
WhatsAp: +86-181-6701-6615
WhatsAp: +86-189-6700-9313
WhatsAp: +86-137-0579-6425
WhatsAp: +86-137-0579-6425
Product parameters
AQ30-55(50HZ Versions)
Model Click on | Pressure | Capacity FAD | Motor power | Noise | Weight | |||||||||||||
bar | psig | L/s | m³/min | cfm | kW | hp | dB(A) | kg | ||||||||||
Air Cooled | ||||||||||||||||||
7.5 | 109 | 81.8 | 4.9 | 173.4 | 30 | 40 | 68 | 1320 | ||||||||||
10 | 10 | 145 | 70.6 | 4.2 | 149.7 | 30 | 40 | 68 | 1320 | |||||||||
13 | 13 | 189 | 61.0 | 3.7 | 129.3 | 30 | 40 | 68 | 1320 | |||||||||
7.5 | 109 | 102.3 | 6.1 | 216.9 | 37 | 50 | 69 | 1395 | ||||||||||
10 | 10 | 145 | 88.5 | 5.3 | 1876 | 37 | 50 | 69 | 1395 | |||||||||
13 | 13 | 189 | 75.4 | 4.5 | 159.8 | 37 | 50 | 69 | 1395 | |||||||||
7.5 | 109 | 122.2 | 73 | 259.1 | 45 | 60 | 71 | 1416 | ||||||||||
10 | 10 | 145 | 100.8 | 6.0 | 213.7 | 45 | 60 | 71 | 1416 | |||||||||
13 | 13 | 189 | 88.2 | 5.3 | 1870 | 45 | 60 | 71 | 1416 | |||||||||
7.5 | 109 | 138.6 | 8.3 | 293.8 | 55 | 75 | 72 | 1497 | ||||||||||
10 | 10 | 145 | 119.3 | Z2 | 252.9 | 55 | 75 | 72 | 1497 | |||||||||
13 | 13 | 189 | 102.1 | 6.1 | 216.5 | 55 | 75 | 72 | 1497 | |||||||||
Water Cooled | ||||||||||||||||||
7.5 | 109 | 88.1 | 5.3 | 186.8 | 30 | 40 | 65 | 1215 | ||||||||||
10 | 10 | 145 | 70.8 | 4.2 | 150.1 | 30 | 40 | 65 | 1215 | |||||||||
13 | 13 | 189 | 54.7 | 3.3 | 116.0 | 30 | 40 | 65 | 1215 | |||||||||
7.5 | 109 | 106.8 | 6.4 | 226.4 | 37 | 50 | 66 | 1290 | ||||||||||
10 | 10 | 145 | 90.9 | 5.5 | 192.7 | 37 | 50 | 66 | 1290 | |||||||||
13 | 13 | 189 | 72.6 | 4.4 | 153.9 | 37 | 50 | 66 | 1290 | |||||||||
7.5 | 109 | 128.2 | 77 | 2718 | 45 | 60 | 67 | 1313 | ||||||||||
10 | 10 | 145 | 1076 | 6.5 | 228.1 | 45 | 60 | 67 | 1313 | |||||||||
13 | 13 | 189 | 89.6 | 5.4 | 190.0 | 45 | 60 | 67 | 1313 | |||||||||
7.5 | 109 | 152.4 | 9.1 | 323.1 | 55 | 75 | 68 | 1392 | ||||||||||
10 | 10 | 145 | 130.8 | 78 | 2773 | 55 | 75 | 68 | 1392 | |||||||||
13 | 13 | 189 | 108.7 | 6.5 | 230.4 | 55 | 75 | 68 | 1392 | |||||||||
Flow diagram AQ air-cooled pack
1.Intake air
2.Reverse osmosis water
3.Water supply reverse osmosis
4.Drain water reverse osmosis
5.Compressed air
6.Primary water fow
2.Reverse osmosis water
3.Water supply reverse osmosis
4.Drain water reverse osmosis
5.Compressed air
6.Primary water fow
Oil Free Air Compressor
Oil-injected Compressors Atlas Copco
