Характеристики

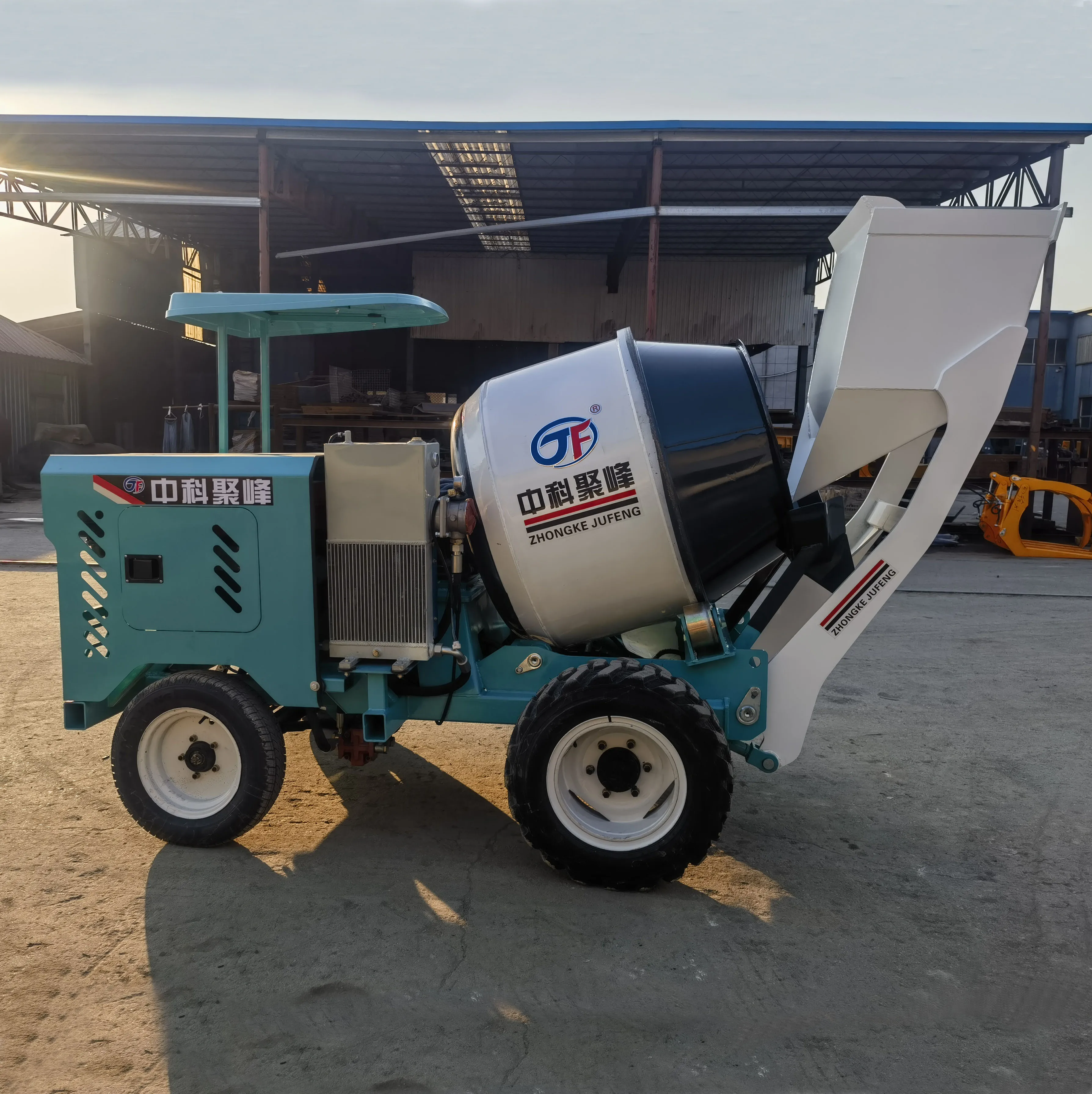

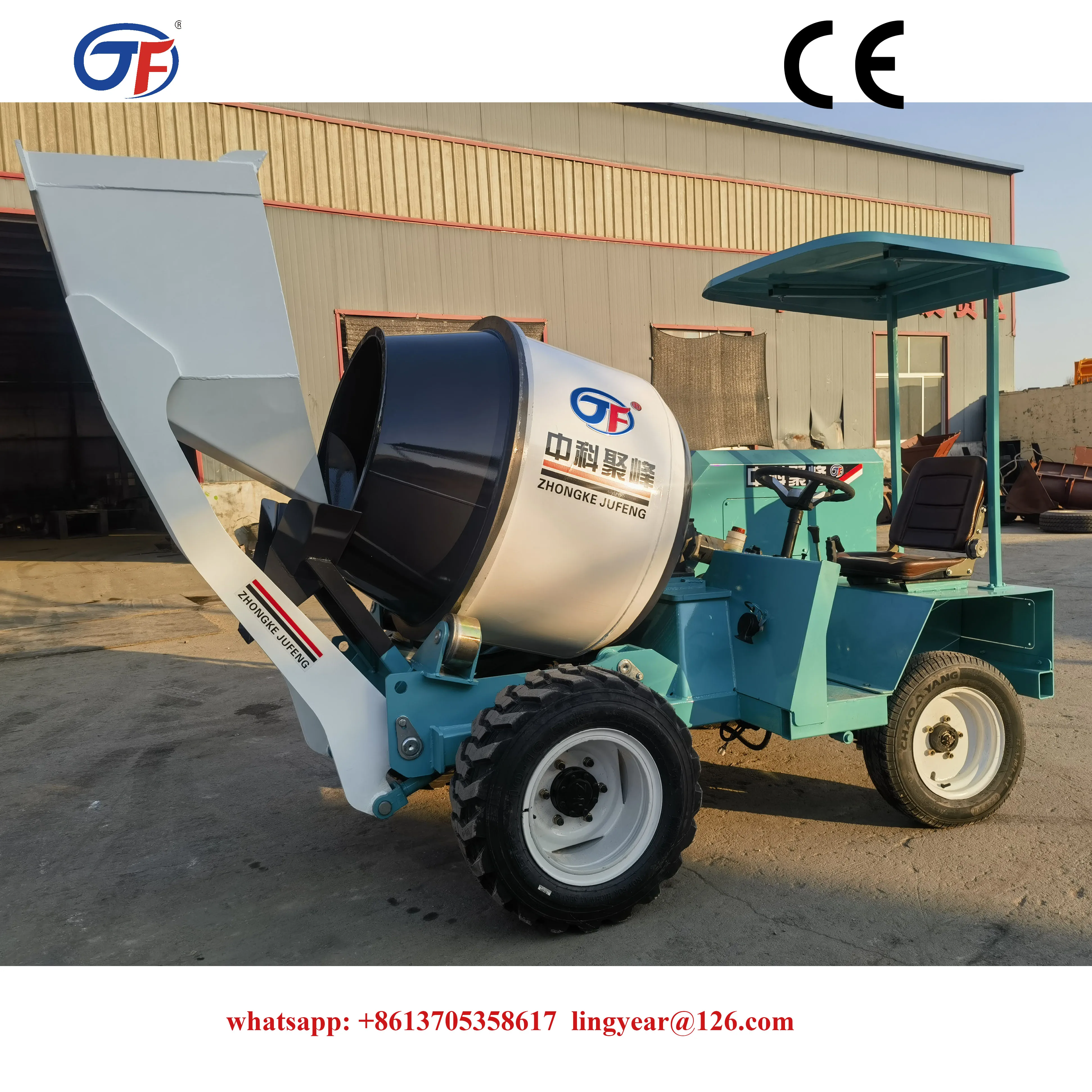

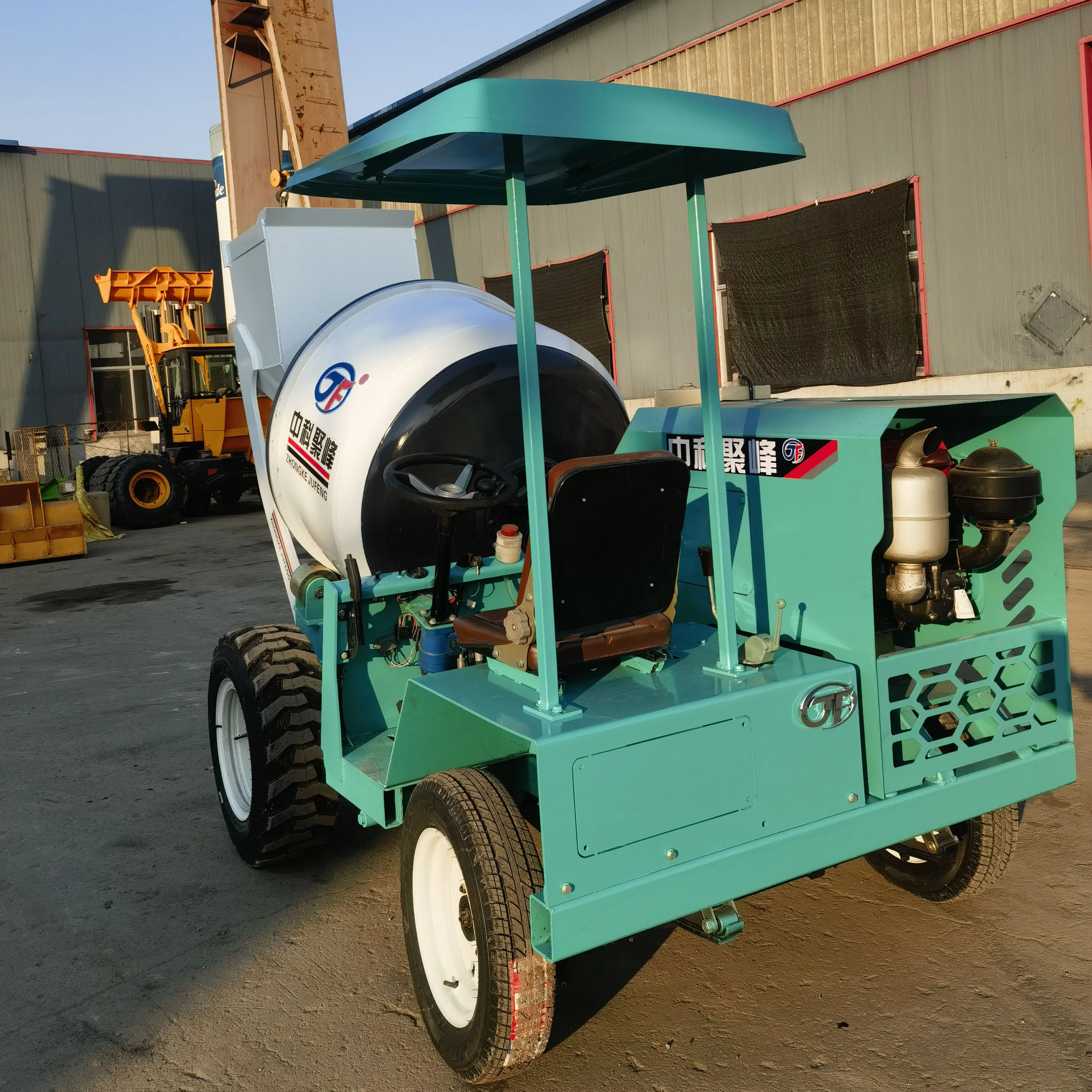

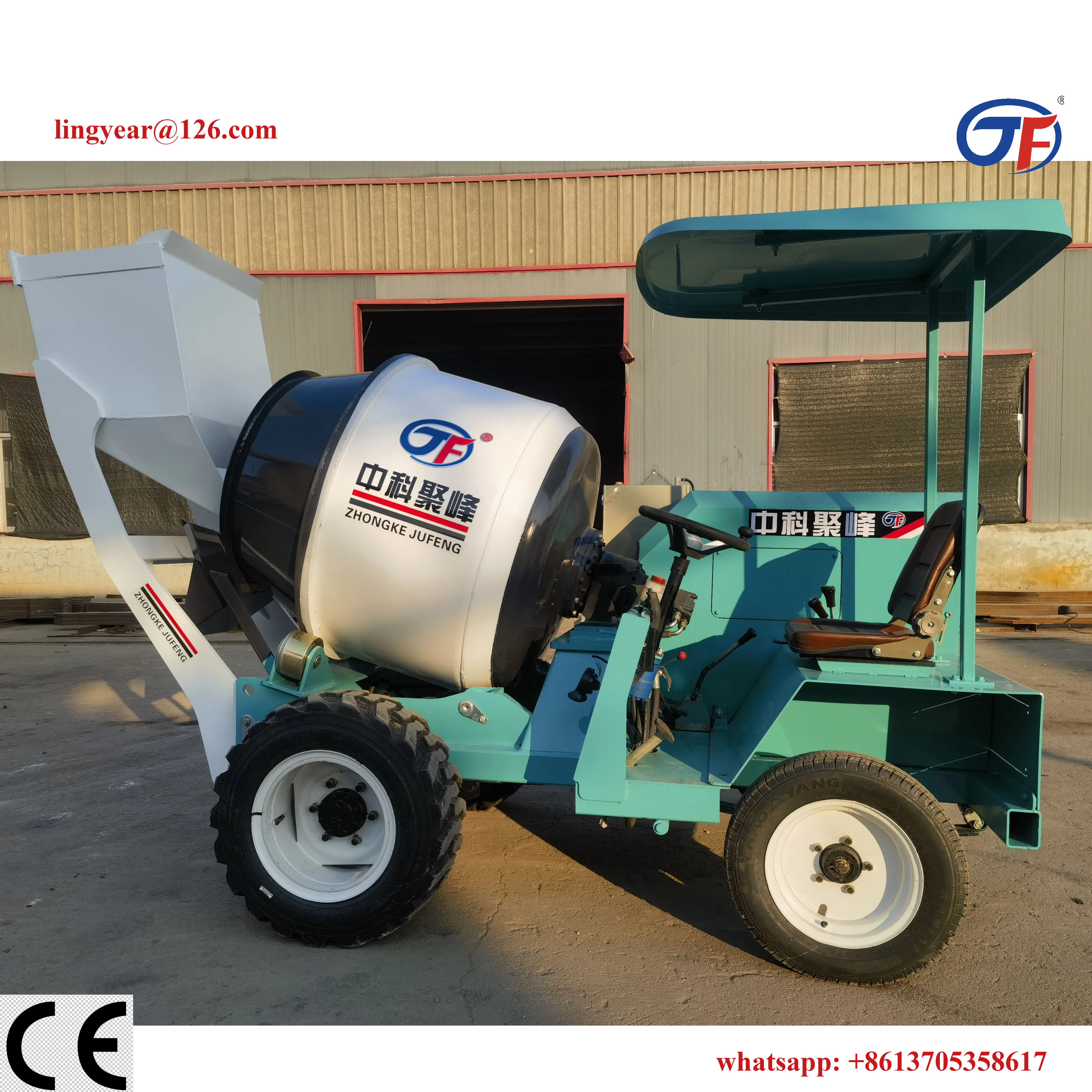

MODEL CMT500 SELF LOADING CONCRETE MIXER TRUCK (0.5 CBM)

Product Introduction

Model CMT500 Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. The concrete output ability is 2 cube meters per hour. The wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 20 km/hour, and the min. turning radius is 4.0 meters only.

\tThe vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

\tHigh strength steel plate, which enhances the load capacity and high stability of vehicle.

\tThe material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.

\tMixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.



Main Features



Product Description


China TOP Brand Changfang single cylinder Diesel Engine


CMT500 is driven by Changfang single cylinder, 16 kW (22 HP), Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption.



300L Shovel

300L Loading shovel is fitted with teeth in front and completed with hydraulic opening gate. It can fulfill the drum around 2 times of loading.



Mixing Drum
Mixing volume
0.5 M3
Geometrical volume
0.7 M3
Concrete output
0.5M3 / batch,2 M3 / hour
Drum rotation speed
20 rpm


Engine
Brand
Changfang single cylinder Diesel Engine
Model
CF25
Type
1-Cylinder,  Water Cooled,
Rated power
16KW 22HP @ 2300 rpm
Max torque:
130 N.M @2000 rpm
Emission standard
Euro II


Loading Shovel & Chute
Volumetric capacity
300L
Number of shovel loading times of full drum
Around 3 times
Chute
2 pcs. of discharging chute extensions. Manually rotating at 90 degree.


Electric system
Alternator
24V-750W
Battery:
2x12V-80AH


Vehicle
Max. Driving speed
20.0km/h
Gradient
Fully loaded 40%
Min. turning radius
4.0m
Operating weight
1,600 Kg
Max. payload
1,200 Kg
Max. gross weight
2,800 Kg
Overall size (L×W×H)
4200*1600*2350 mm


Service refill capacities
Fuel tank:
18L
Total hydraulic system capacity:
20L
Engine oil:
3L


Overal Dimensions

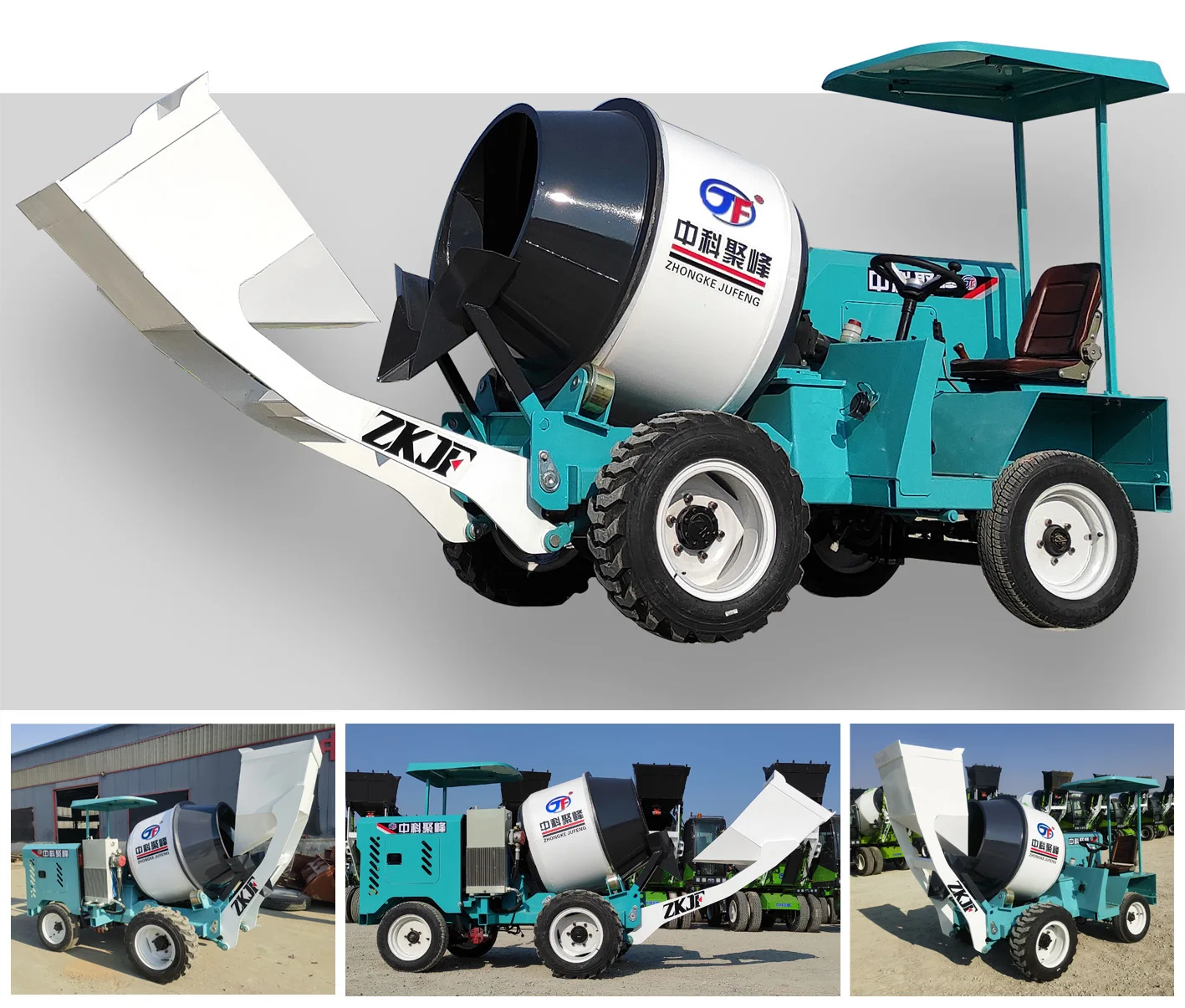

Detailed Image










Packing & Delivery




FAQ




Our Company


Company Brief Introduction


Laizhou Jufeng Machinery Co., Ltd. is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.

The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.

We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.

In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.







High Production Capacity





Advanced Laser Cutting, Robot Welding, Painting & Other Processing Equipments





High Level Quality Control & Neat Assembling Workshop
