Видеорегистратор AZDOME M560 2023 дюйма 64 ГБ eMMC
- Категория: Car Black Box >>>
- Поставщик: Shenzhen,Intersonic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 108.69 $* | 110.48 $* |
| Jul-16-2025 | 88.80 $* | 90.30 $* |
| Jun-16-2025 | 106.2 $* | 108.86 $* |
| May-16-2025 | 105.10 $* | 107.71 $* |
| Apr-16-2025 | 84.50 $* | 86.73 $* |
| Mar-16-2025 | 104.47 $* | 106.38 $* |
| Feb-16-2025 | 103.48 $* | 105.56 $* |
| Jan-16-2025 | 102.75 $* | 104.43 $* |
Характеристики
Details Images
Drive safely with the 4-inch IPS touch screen AZDOME M560 Three channels dash camera in your car!

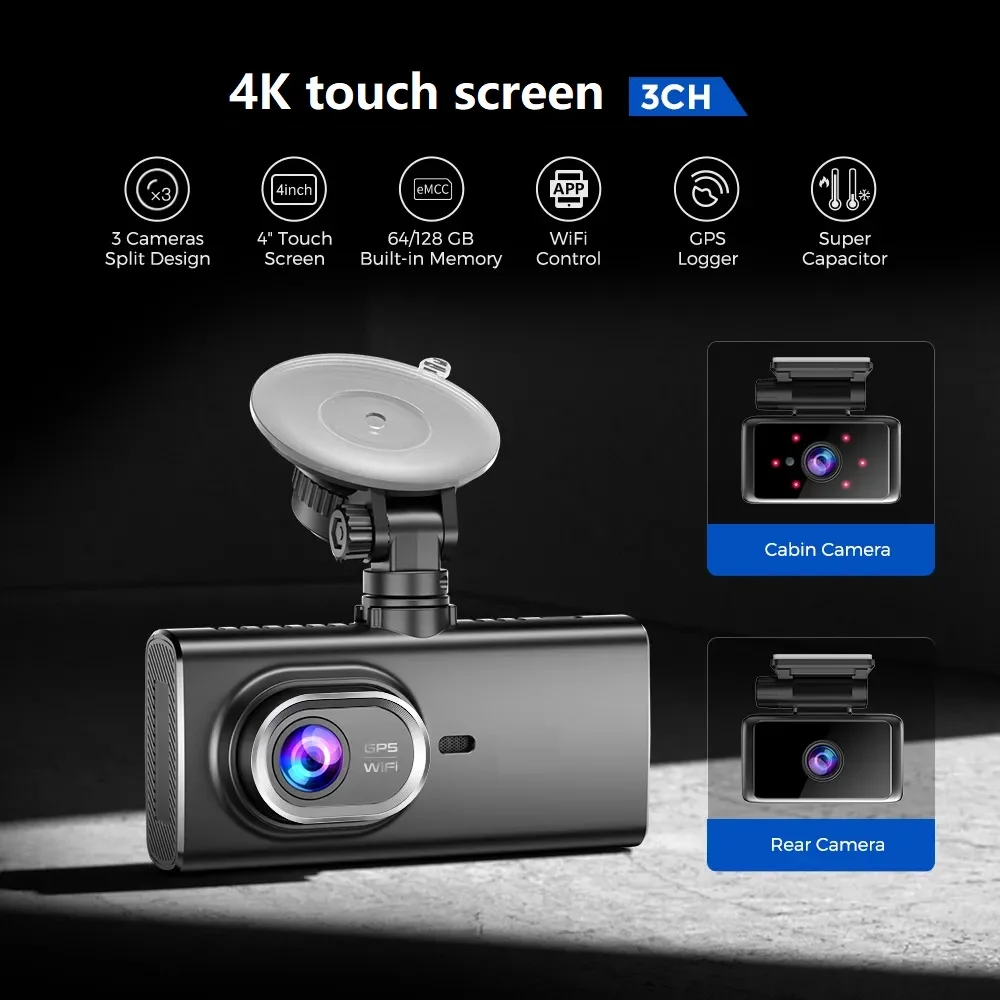

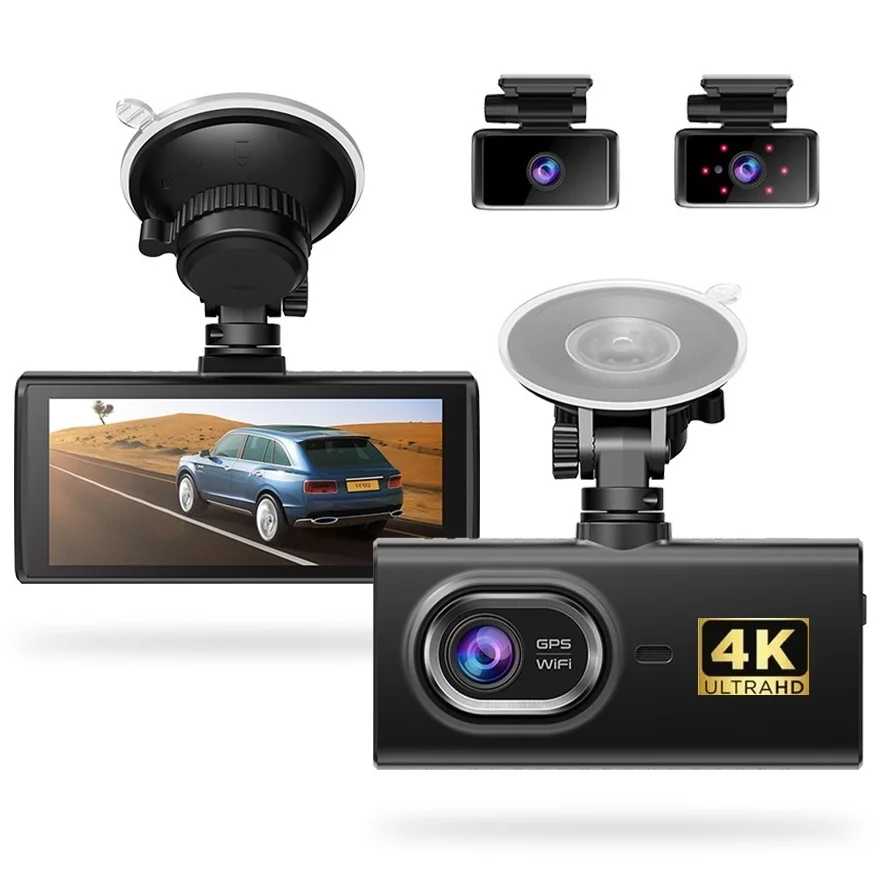

AZDOME M560 Three channels dash cam
Three Channel Dash Cam: 3 Channel Front & Cabin & Rear Camera 1080P+1080P+1080P. Experience next level recording with 4K UHD videos at 2880x2160p, backed by Novatek NT96565B Processor and Ultra-low light capture sensor. High resolution plus the powerful processor, the dash cam can absolutely capture the license plate clearly and bring you clearer videos, definitely reliable for restoring powerful evidence of any unexpected accident.
Warm Tips:
1. No battery, it is built in Super Capacitor (Only has a 1 mAh Lithium Metal Battery used to memorize time). Please always connect Dash Cam M560 to external power while it is in use, the output current needs to reach 2.5A. Please use the included car charger to ensure the best performance.
2. The 64GB eMMC (Embedded Multi Media Card) is built in the Dash Cam M560 for storage. You can find the memory capacity information on the label of the dash cam and product box. It has no micro SD card slot and doesn't need to use a micro SD card.
3. The camera is designed to power up and record automatically when it receives power. Then saves the video record and turns off automatically when the car shuts off.
4. All icons will be automatically hidden after 8 seconds if there is no operation. Click on a blank area of the screen to manually hide all icons. Swiping left or right on the screen can change camera picture in picture (PIP) view.
5. The available distance of the WIFI connection is 10FT, and it will be automatically disconnected if out of the range.
6. Do not remove or insert Cabin camera / Rear camera when the camera is powered on which may damage the camera. To improve stability, the dashcam reboots automatically once if it detects that there are different cameras connected.
7. 24-Hour Parking Monitor requires continuous power and AZDOME 3-Lead Type-C Hardwire Kit, not included in the packaging, search ASIN: B0BML1DK8W
8. AZDOME provides updates for dash cam Firmware, and camera accessory.
2. The 64GB eMMC (Embedded Multi Media Card) is built in the Dash Cam M560 for storage. You can find the memory capacity information on the label of the dash cam and product box. It has no micro SD card slot and doesn't need to use a micro SD card.
3. The camera is designed to power up and record automatically when it receives power. Then saves the video record and turns off automatically when the car shuts off.
4. All icons will be automatically hidden after 8 seconds if there is no operation. Click on a blank area of the screen to manually hide all icons. Swiping left or right on the screen can change camera picture in picture (PIP) view.
5. The available distance of the WIFI connection is 10FT, and it will be automatically disconnected if out of the range.
6. Do not remove or insert Cabin camera / Rear camera when the camera is powered on which may damage the camera. To improve stability, the dashcam reboots automatically once if it detects that there are different cameras connected.
7. 24-Hour Parking Monitor requires continuous power and AZDOME 3-Lead Type-C Hardwire Kit, not included in the packaging, search ASIN: B0BML1DK8W
8. AZDOME provides updates for dash cam Firmware, and camera accessory.
Built-in 64GB storage (Embedded Multi Media Card)
You can find the memory capacity information on the label of the dash cam and product box. It doesn't need to use a micro SD card.

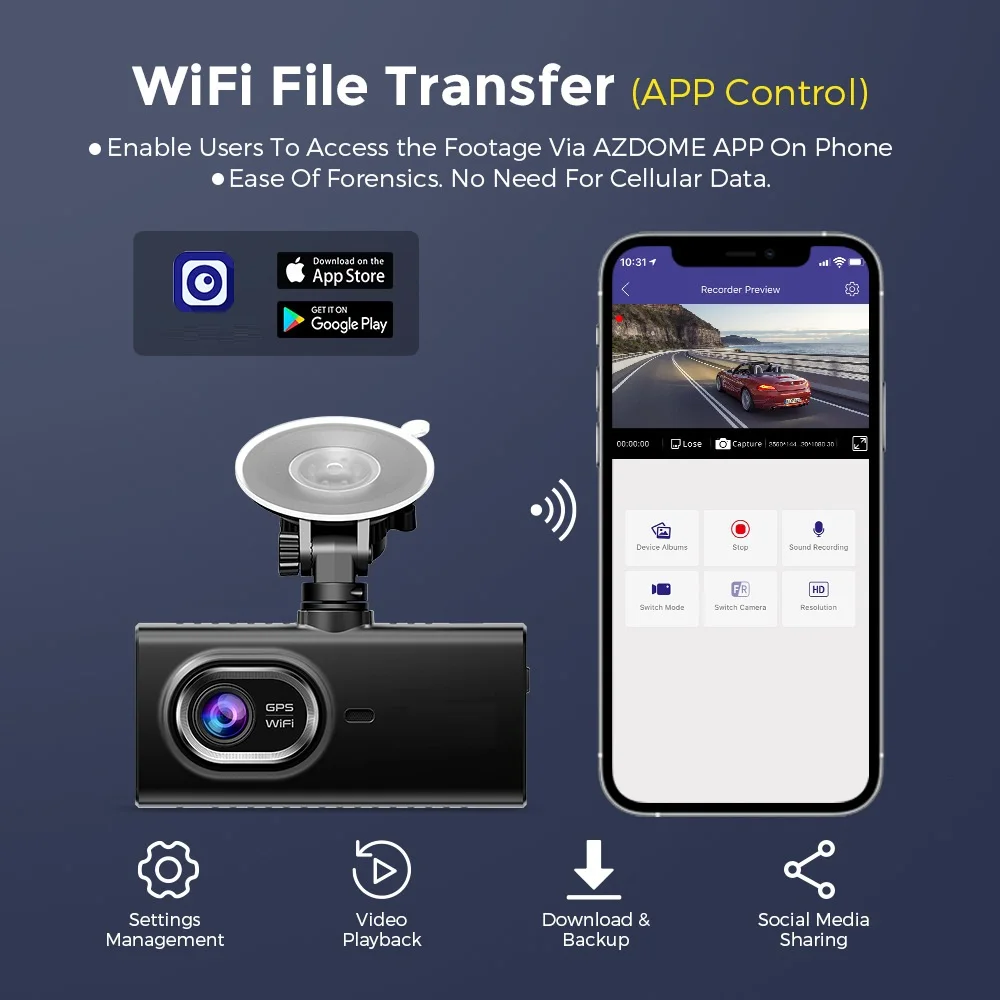

Built‒In Wi-Fi / Track Driving Route with GPS-Tracking
AZDOME M560 Dash cam comes with built-in GPS. The GPS dash camera records the driving trajectory and speed accurately for you to view later. With the built-in Wi-Fi function and the free AZDOME app, you can view real-time videos on your iPhone or Android device while on the drive. Also, view and share recorded videos with friends and family in just a few clicks, via the AZDOME application without being in the car and looking at the camera.

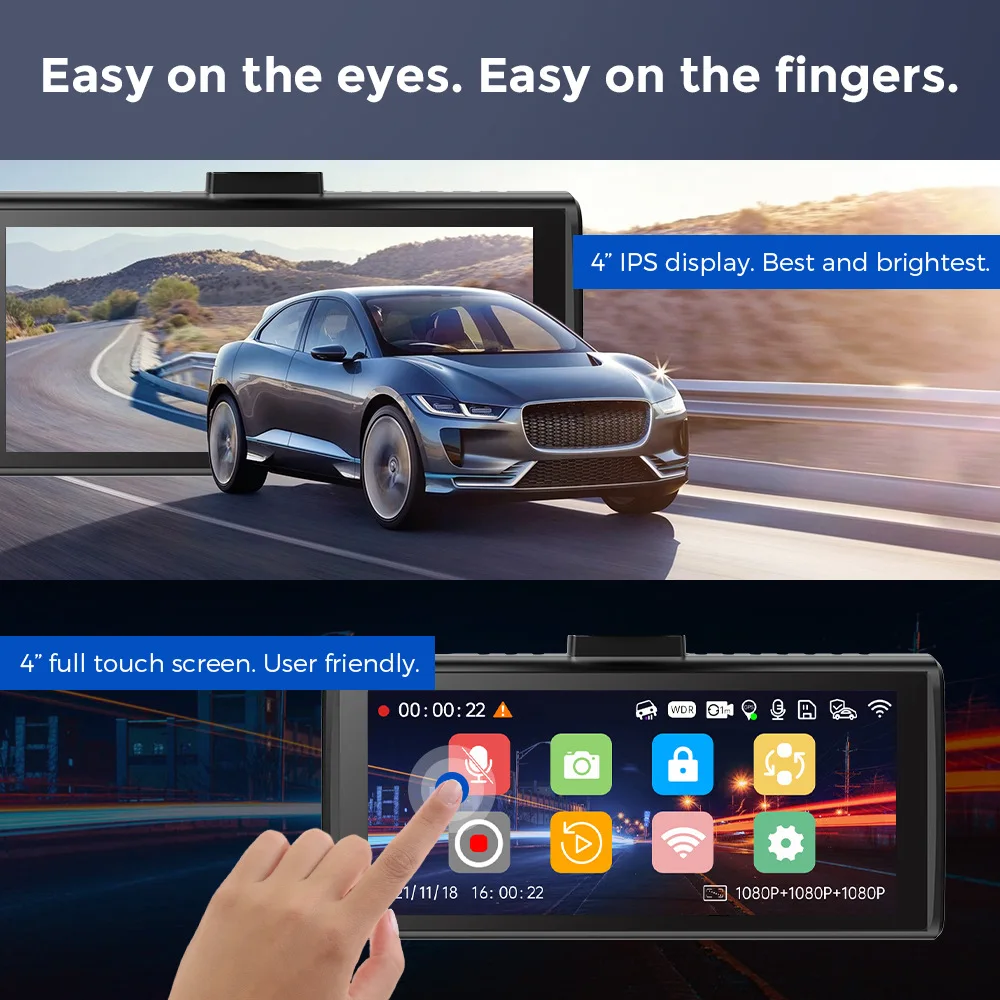

One-hand Operation 4" Touchscreen
The 4.0 inch sensitive touchscreen displays whatever icons are relevant to the task in hand, making it easy to read and operate with a finger touch, faster, more convenient and accurate response. No more fumbling with side tiny buttons, just selecting on the screen.
Super Night Vision
Wide Dynamic Range (WDR) technology compensates for light/dark spots and balances exposure, which ensures no overexposure during the day and brings greater clarity at night for best performance under varying light conditions. The combination of F1.8 large aperture and 6-glass lens, professional WDR technology ensures the clear footage and images you need to record, so that car license plates can be easily captured at night.
Hidden infrared LED light
Hidden 6 IR LED lights on cabin camera that greatly enhance the image quality in the car. F/1.8 wide aperture allows superior images, be it day or night. Proprietary focal length technology facilitated by 6-Glass wide-angle lens helps in capturing smaller details like number plates with more accuracy even in low light.
AUTO turn off & Impact Detection Parking Mode:
It is built-in G-SENSOR (Gravitational Sensor) which is a 3-axis impact gravitational accelerometer designed to detect physical and gravitational forces on the camera.
1. When you turn OFF the car's engine and turn the key to the lock position. Then the camera will STOP the continuous video recording and it will go into the collision detection mode and the camera will turn OFF.
2. If someone hits your car and if the impact reaches the set G-Sensor level, then the camera will turn ON > then it will start to record 1-min continuous video, save & lock that video in EMR folder > then the camera will turn OFF.
3. When you start your car for the next time, the camera will automatically go back into normal video mode to start the continuous video recording automatically .
Note: 3-Lead Type-C Hardwire Kit is required to use this feature, not included in the packaging.
1. When you turn OFF the car's engine and turn the key to the lock position. Then the camera will STOP the continuous video recording and it will go into the collision detection mode and the camera will turn OFF.
2. If someone hits your car and if the impact reaches the set G-Sensor level, then the camera will turn ON > then it will start to record 1-min continuous video, save & lock that video in EMR folder > then the camera will turn OFF.
3. When you start your car for the next time, the camera will automatically go back into normal video mode to start the continuous video recording automatically .
Note: 3-Lead Type-C Hardwire Kit is required to use this feature, not included in the packaging.
Time Lapse & Impact Detection Parking Mode:
Time Lapse - Continuously records at 1FPS (one frame per second)，1-minute Time lapse video = 30 minutes real time coverage.
1. When you turn OFF the car’s engine and turn the key to the lock position. Then the camera will STOP the continuous video recording and it will go into the timelapse 1fps recording mode automatically.
2. If someone hits your car and if the impact reaches the set G-Sensor level, then the camera will stop the timelapse video > then the camera will start to lock the current looping time lapsevideo clip,save & lock that video in EMR folder > then return to the timelapse 1fps recording.
3. When you start your car for the next time, the camera will automatically STOP the timelapse parking mode. Then it will go into normal video mode automatically to start the continuous video recording.
Note: 3-Lead Type-C Hardwire Kit is required to use this feature, not included in the packaging
1. When you turn OFF the car’s engine and turn the key to the lock position. Then the camera will STOP the continuous video recording and it will go into the timelapse 1fps recording mode automatically.
2. If someone hits your car and if the impact reaches the set G-Sensor level, then the camera will stop the timelapse video > then the camera will start to lock the current looping time lapsevideo clip,save & lock that video in EMR folder > then return to the timelapse 1fps recording.
3. When you start your car for the next time, the camera will automatically STOP the timelapse parking mode. Then it will go into normal video mode automatically to start the continuous video recording.
Note: 3-Lead Type-C Hardwire Kit is required to use this feature, not included in the packaging
Loop Recording & G-sensor
Seamless Loop Recording overwrites the oldest footage with the newest upon filling a card to capacity; to make your safety and legal rights be always under protection, the built-in G-Sensor monitors and detects unusual impacts or vibration and automatically triggers the Emegency Video Protection, locking the footage to EMR folder to prevent the video from being overwritten.
Product Paramenters
Main control processor | Novatek96670 | ||
Display Screen | 4.0 inch 2.5D touch screen | ||
Storage | 64G eMMC/128G eMMC for your choice | ||
Front camera module | Imaging chip | IMX415 | |
aperture | 1.8 | ||
visual angle | D:165° H:125° V:65° | ||
Lens specification | 6G | ||
Interior camera module | Imaging chip | GC2053_MIPI | |
aperture | 2.2 | ||
visual angle | D:124° H:105° V:60° | ||
Lens specification | 6G | ||
fill-in light | φ5 * 4 940 infrared lamps | ||
Rear camera module | Imaging chip | GC2053 | |
aperture | 1.8 | ||
visual angle | D:124° H:110° V:65° | ||
Lens specification | 4G | ||
Speaker | 8Ω/0.5W Size 20*14mm | ||
Extended Memory | Class 10 or above micro SD card the max support of 128GB | ||
WIFI | built-in 2.4G WiFi module | ||
GPS Module | built-in GPS module | ||
Video Resolution | Front Camera | 2K 2560 * 1440p / 30fps, 4K 3840*2160P/25FPS | |
Rear Camera | 2K 2560 * 1440p / 30fps, 2K difference | ||
PhotoPhoto Resolution | Front Camera | 3840×2160@Dynamic photo | |
Rear Camera | 2560×1440@Dynamic photo | ||
Video Format | H.265@MP4 Encoding Format | ||
Audio Format | AAC,160HZ,64kbps | ||
Photo Format | JPG | ||
Loop Recording | Support | ||
Video Lock | Support | ||
ParkingMonitor | Support | ||
Time-lapse Record | Support | ||
Auto-Recording | Support | ||
Audio recording | Support | ||
HDR | Not Support | ||
WDR | Support | ||
Screen Display | Support: 3CH Display/Display in painting/Single screen display | ||
Language | Support Language:English/简体中文/繁体中文/Français/Español/Deutsch/Italiano/日本/한국어/Русский/عربي | ||
Working Light | Video indicator and Power indicator light | ||
power | DC 5V_1A | ||
Interface | Mini USB (5V Power/GPS Data Interface), Micro SD (Memory Card), Type-C (ETH_Rear) | ||
Bracket | Standard (Suction Cup) optional Paste | ||
Temperature | Working : - 10 ℃ - + 60 ℃/Storage: - 20 ℃ - + 80 ℃ (non condensing) | ||
Host Size (MM) | (W x H x D): 205*180*64 | ||
Host Weight (G) | 750g | ||
