RS485 к Ethernet конвертер M0 серии 32-битный процессор ARM легко общаться между и RJ45 порт
- Категория: Other Telecommunications Products >>>
- Поставщик: Shenzhen,Funkey,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 19.2 $* | 20.20 $* |
| Aug-19-2025 | 19.19 $* | 20.1 $* |
| Jul-19-2025 | 16.26 $* | 17.46 $* |
| Jun-19-2025 | 19.17 $* | 20.72 $* |
| May-19-2025 | 16.28 $* | 17.86 $* |
| Apr-19-2025 | 18.43 $* | 19.29 $* |
| Mar-19-2025 | 18.47 $* | 19.97 $* |
| Feb-19-2025 | 18.94 $* | 19.39 $* |
| Jan-19-2025 | 18.92 $* | 19.32 $* |
Характеристики
Introduction
Our company specialized in electronic components, open source accessory, sensor, LCD, OLED, IoT and smart home device. Aim to provide high quality products and professional service. Welcome inquiry!
Product Description
RS485 to Ethernet Converter High-stability Upgradable Cortex-M0 Processor 5~7V Power Supply
TheRS485 TO ETHmodule provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via webpage.
Features
Specifications
Features
* M0 series 32-bit ARM processor, fast speed, high efficiency
* 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
* Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
* Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
* Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
* Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
* Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
* Supports customized webpage, allows user to customize the module configuration page
* Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
* KeepAlive mechanism, detects broken connection, auto re-connecting
* Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
* Supports DNS domain name resolution, configurable DNS server
* Supports DHCP, auto-obtained IP or static IP
* Firmware is upgradable via the network
* Restore to factory settings via software and/or hardware
* Comes with default MAC address, which is customizable
* Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
* Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.
* 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
* Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
* Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
* Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
* Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
* Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
* Supports customized webpage, allows user to customize the module configuration page
* Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
* KeepAlive mechanism, detects broken connection, auto re-connecting
* Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
* Supports DNS domain name resolution, configurable DNS server
* Supports DHCP, auto-obtained IP or static IP
* Firmware is upgradable via the network
* Restore to factory settings via software and/or hardware
* Comes with default MAC address, which is customizable
* Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
* Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.
Specifications
* Ethernet:
* Connector: 4-pin RJ45
* Communication rate: 10/100Mbps
* Interface protection: 1.5KV electromagnetic isolation
* Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
* TX cache: 6Kbyte
* RX cache: 4Kbyte
* RS485:
* Connector: screw terminal (A+, B-, GND)
* Data bit: 5bit, 6bit, 7bit, 8bit
* Stop bit: 1, 2
* Parity bit: None, Odd, Even, Mark, Space
* Baudrate: 600bps~230.4Kbps
* RX cache: 800byte
* Hardware flow control: none
* Interface protection:
* 2KV ESD protection
* RS485 pull up/down registers: 2.2KΩ
* Power:
* Power supply: 5.0~7.0V (5V recommended)
* Operating current: 150mA (@5V)
* Power consumption: <1W
* Interface protection: reverse-proof, ESD protection, anti-surge
* Environment:
* Operating temperature: -25~75°C
* Storage temperature: -40~105°C
* Connector: 4-pin RJ45
* Communication rate: 10/100Mbps
* Interface protection: 1.5KV electromagnetic isolation
* Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
* TX cache: 6Kbyte
* RX cache: 4Kbyte
* RS485:
* Connector: screw terminal (A+, B-, GND)
* Data bit: 5bit, 6bit, 7bit, 8bit
* Stop bit: 1, 2
* Parity bit: None, Odd, Even, Mark, Space
* Baudrate: 600bps~230.4Kbps
* RX cache: 800byte
* Hardware flow control: none
* Interface protection:
* 2KV ESD protection
* RS485 pull up/down registers: 2.2KΩ
* Power:
* Power supply: 5.0~7.0V (5V recommended)
* Operating current: 150mA (@5V)
* Power consumption: <1W
* Interface protection: reverse-proof, ESD protection, anti-surge
* Environment:
* Operating temperature: -25~75°C
* Storage temperature: -40~105°C

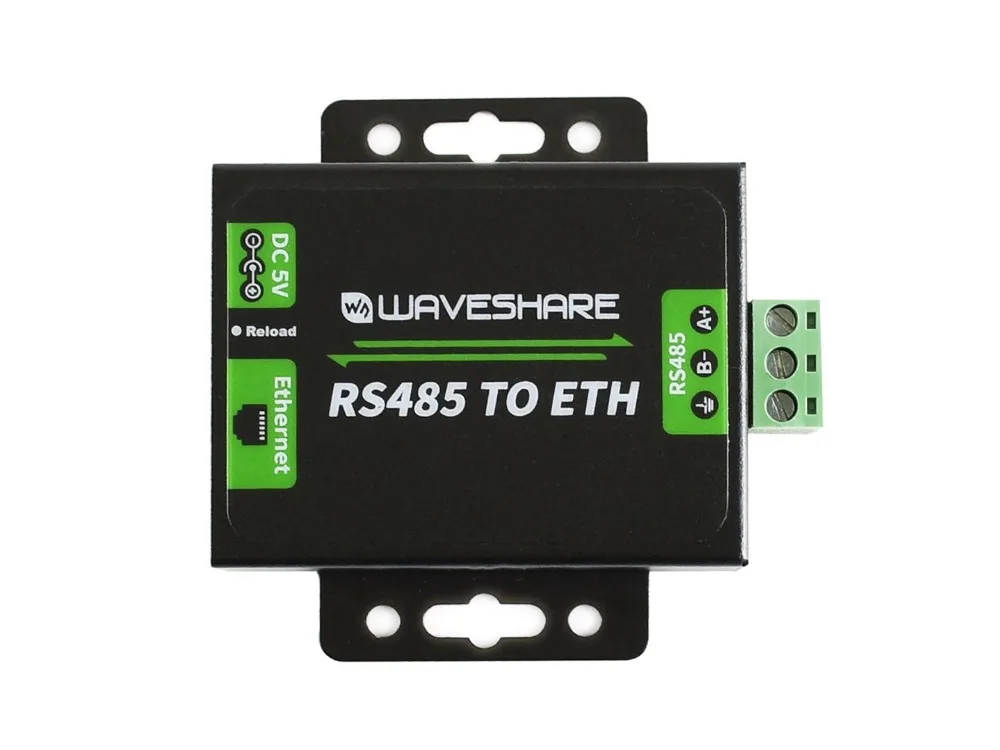

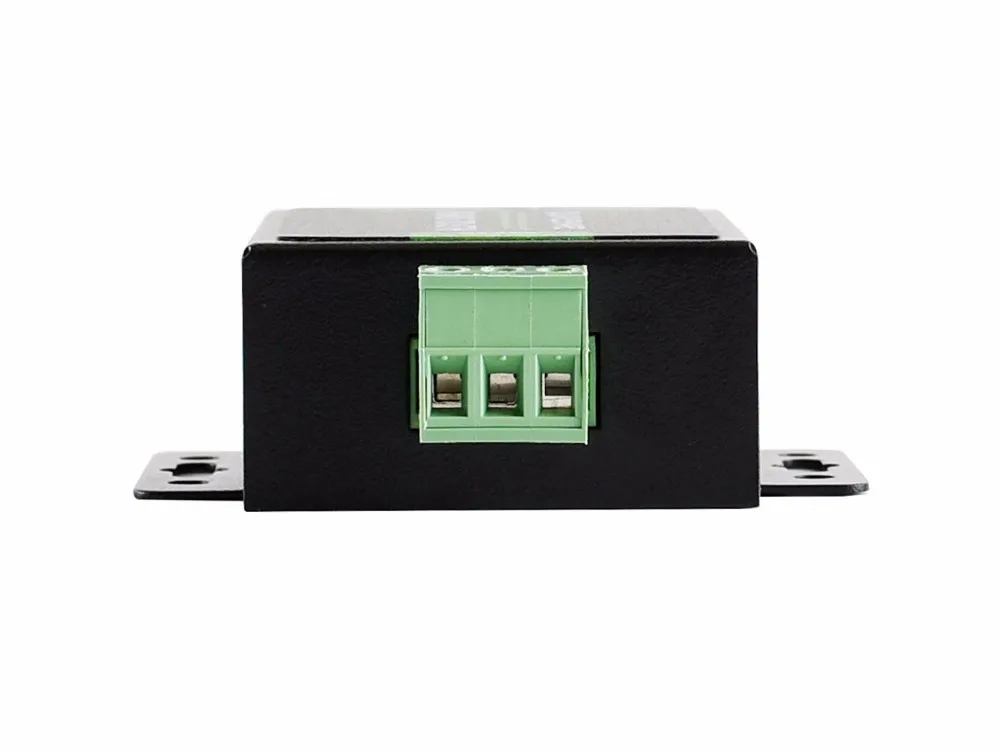

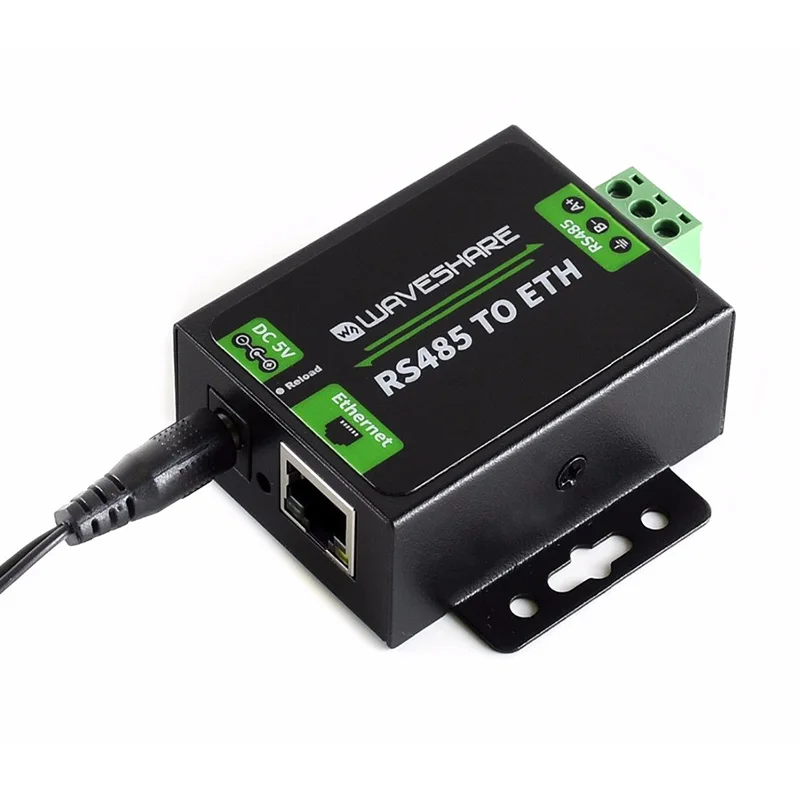

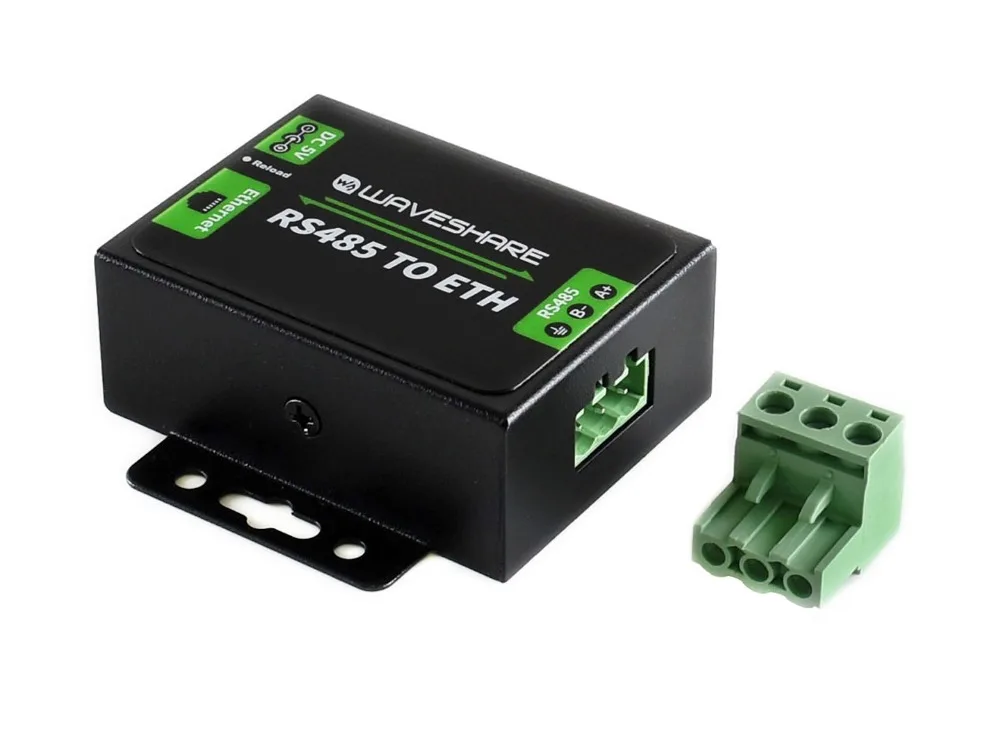

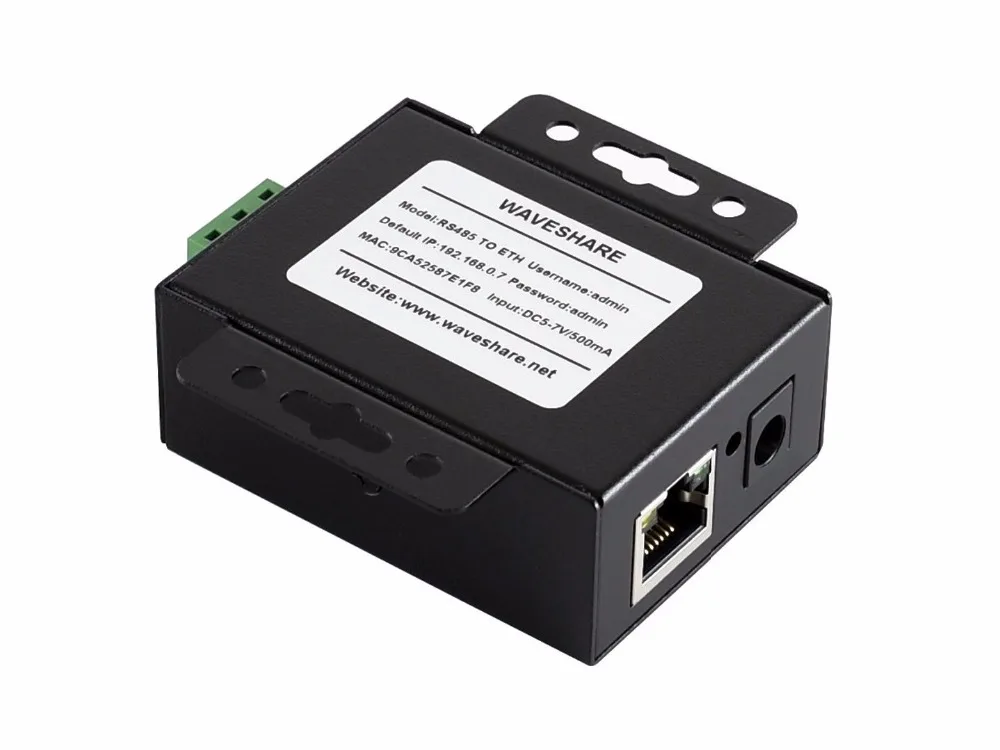

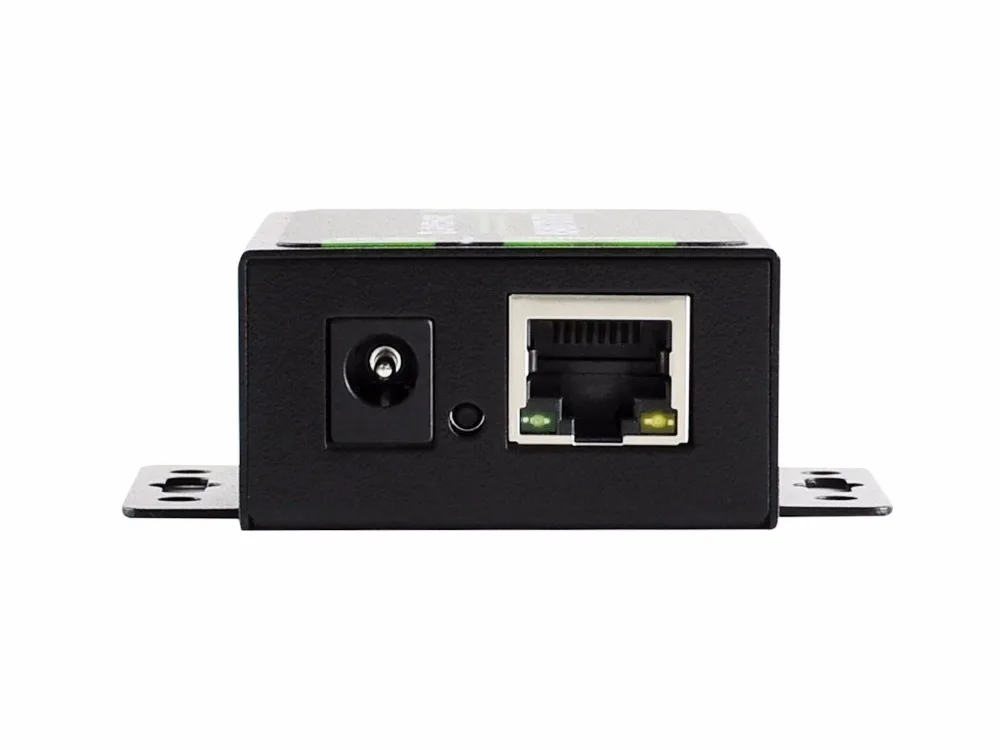

Details Images
Recommend Products
Payment & Shipping
Package:
Neutral gift box and standard export carton packing.
About Shipping:
1. DHL / UPS / FedEx / TNT.
2. By Air or by sea.
3. Customers specifying freight forwarders or negotiable shipping methods.
We choose the best and safe packaging material to make sure your orders won’t be damaged during delivery.
