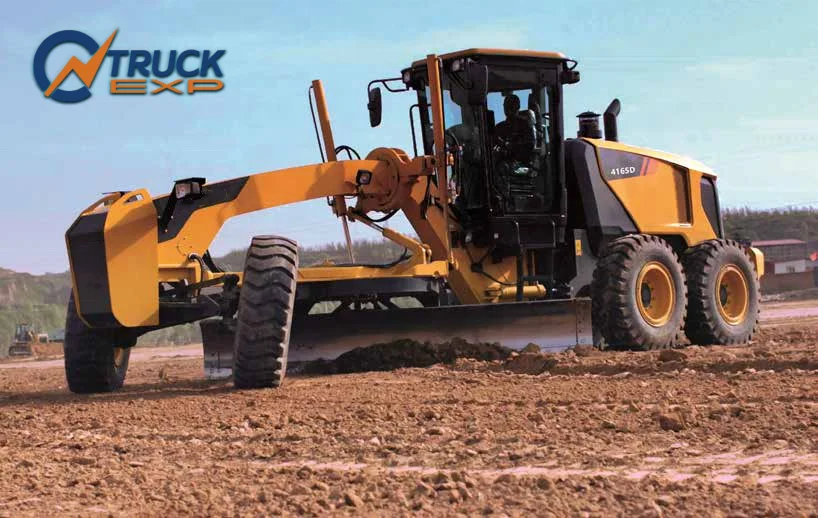

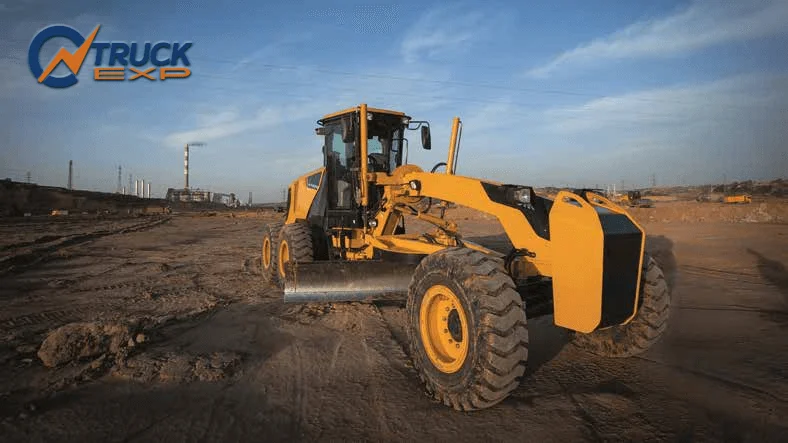

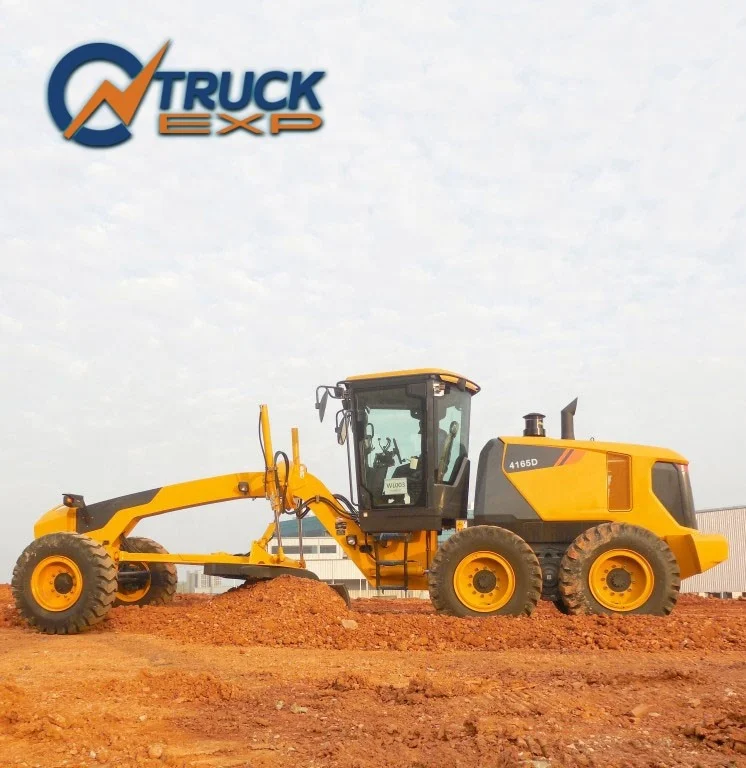

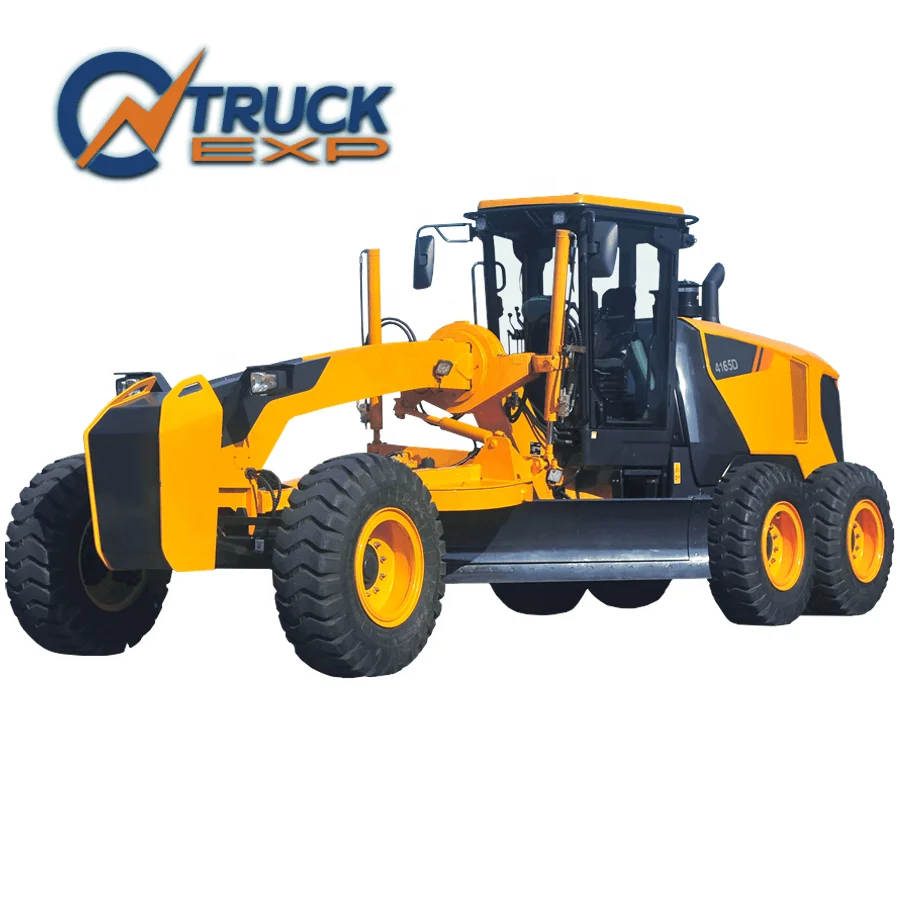

Автогрейдер 4165D Tier 2/Stage II 170HP с импортным

Description

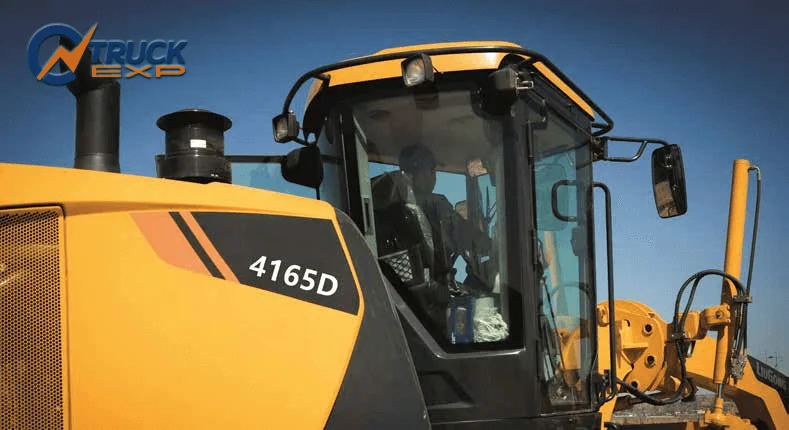

Instrumentation: All important information

is centrally located in the central instrument

panel and operator‘s field of vision.

Adjustable steering column, high back seat

and A/C with all-around air outlets.

SOUND & ENVIRONMENT

Sound Level in Cab
According to ISO 6396-2008

81 dB(A)

External Sound Level
According to ISO 6394-2008

111 dB(A)

Heating Capacity

5 kW

Air Conditioning

4.6 kW

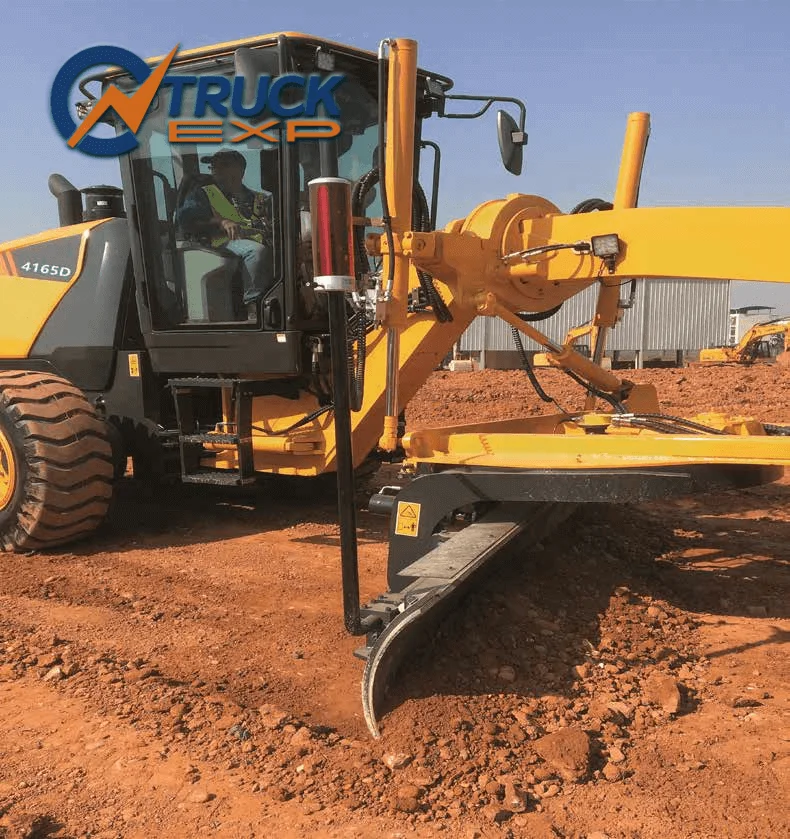

BLADE RANGE

Blade Width

610 mm

Blade Length

3,960 mm

Maximum Lift Above Ground

600 mm

Maximum Depth of Cut

680 mm

Blade Tilt Angle

90°

Circle Rotation

360°

Cutting Angle

28°–74°

Blade Ground Pressure

≥ 7,300 kg

DIMENSIONS

A Length – Between Tandem  Axles

1,538 mm

B Length – Front Axle to Mid Tandem

6,230 mm

C Length – Counterweight to Rear of Machine

9,090 mm

D Length – Counterweight to Ripper

10,280 mm

E Length – Dozer to Rear of Machine

10,080 mm

F Length – Dozer to Ripper

11,270 mm

G Width – Blade

3,960 mm

H Width – Outside Tires

2,600 mm

I Width – Tire Center Lines

2,150 mm

J Height – Top of Cab

3,380 mm

ATTACHMENTS

Dozer

option 1

option 2

Width

2,740 mm

2,740 mm

Depth Below Ground

215 mm

215 mm

Lift Above Ground

850 mm

850 mm

Weight

1,051 kg

1,012 kg

Ripper

Width

2,200 mm

Ripping Depth – Maximum

445 mm

Lifting Height

716 mm

Ripper Shank Holders, Quantity

5

Weight

1,147 kg

Scarifier

Working Width

1,655 mm

Scarifying Depth – Maximum

165 mm

Lifting Height

221 mm

Scarifier Shank Holders, Quantity

11

Weight

849 kg

Counterweight

Front

400 kg

Rear

660 kg
