IEC TUV CE SNDB-PV2/1 IP65 2 в 1 out ABS + PC DC 16A 1000V Солнечная pv распределительная коробка dc комбайнер с предохранителем SPD и
- Категория: Solar Related Products >>>
- Поставщик: Zhejiang,Shangnuo,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 37.8 $* | 38.57 $* |
| Jul-19-2025 | 30.22 $* | 31.28 $* |
| Jun-19-2025 | 36.74 $* | 37.22 $* |
| May-19-2025 | 36.2 $* | 37.51 $* |
| Apr-19-2025 | 29.99 $* | 30.88 $* |
| Mar-19-2025 | 35.4 $* | 36.1 $* |
| Feb-19-2025 | 35.58 $* | 36.2 $* |
| Jan-19-2025 | 35.19 $* | 36.54 $* |
Характеристики

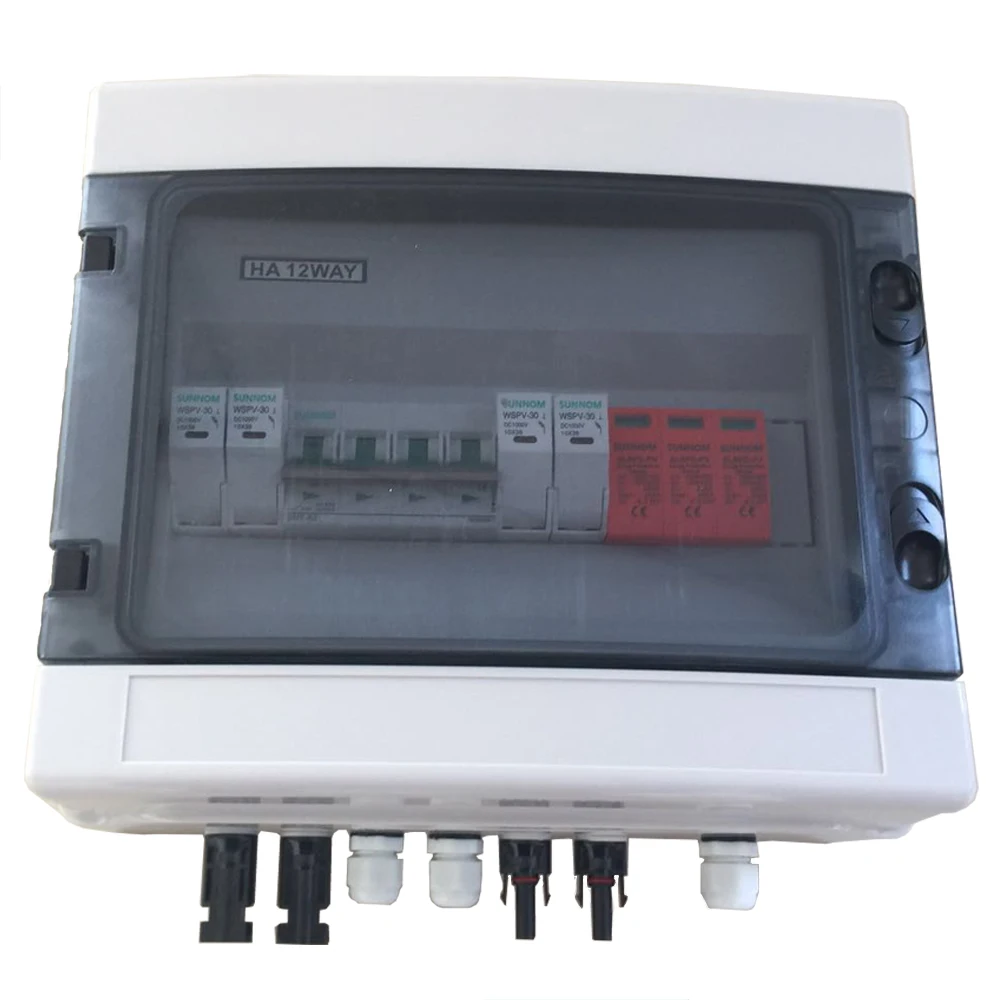

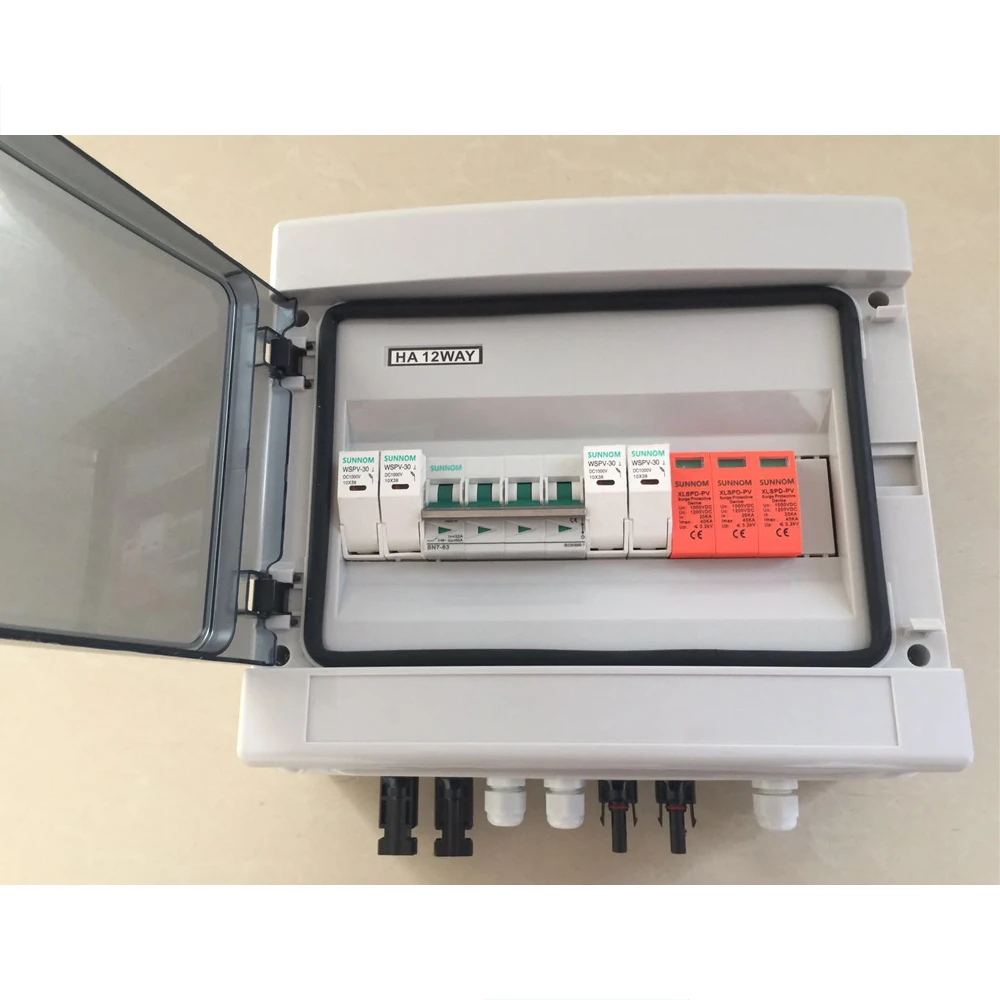

Details Images
Products Description
PV Combiner Box Advantage
Easy machining with normal tools IP66 Wide operation temperature range Fire Resistance Non-conductive Good resistance to chemical corrosion Light weight Excellent insulating properties Cost-effective material for harsh environment.
High reliability
With DC FUSE
With Surge Protection Device
With DC circuit breaker or DC load isolation switch.
Strong adaptability
IP65 design, waterproof, anti dust and anti ultraviolet.
IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
Flexible configuration
Used for single crystal silicon solar modules, poly crystalline silicon solar modules, thin film solar modules. Current rating
of the photostatic fuse, circuit breaker, load isolation switch is modified.
SOLAR CONNECTOR Specification
Used for single crystal silicon solar modules, poly crystalline silicon solar modules, thin film solar modules. Current rating
of the photostatic fuse, circuit breaker, load isolation switch is modified.
SOLAR CONNECTOR Specification
Pamameter | ||
Electrical Characteristics | ||
Type | SNDB PV1/1 | |
Input | 1 String | |
Output | 1 String | |
Maximum Voltage | DC 1000V | |
MAX DC Short Circuit Breaker Per Input(Ics) | 15A(changeable) | |
Maximum Current Output | 32A | |
Environment | ||
Operating Temperature | -25℃~+55℃ | |
Humidity | 99% | |
Altitude | 2000M | |
Installation | Wall Mounting | |
Enclosure | ||
Material Type | PC/ABS | |
Degree of Protection | IP65 | |
Dimension(WxHxD) | 296mmx255mmx140mm | |
Cable Input Entry | MC4 connector 1 Pairs | |
Ouput Cable Gland | PG21 Cable Gland（3 holes) | |
DC Miniature Circuit Beaker（MCB） | ||
Pieces | 1 pcs | |
Poles | 4 Poles | |
Related Voltage | DC 1000V | |
Related Current | 16A | |
Certification | CE | |
DC Surge Protection Device (SPD) | ||
Pieces | 1 pcs | |
Poles | 3 Poles | |
Max Operation Voltage | DC 1000V | |
Max Discharge Current | 40KA | |
Certification | TUV,CE | |
DC Fuse Holder | ||
Pieces | 2 pcs | |
Poles | 1 Pole | |
LED Indicator | Yes | |
Related Working Voltage | DC 1000V | |
Fuse Link | 10x38mm 15A | |
Certification | CE | |
Shipment
Combiner Box Packing Details
5 PCS PER CARTON:75cmx32cmx34cm/14.2KG
Combiner Box Delivery Time
1-10 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Combiner Box Shipping
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
5 PCS PER CARTON:75cmx32cmx34cm/14.2KG
Combiner Box Delivery Time
1-10 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Combiner Box Shipping
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
FAQ
Q: what is a dc pv combiner box ？
A:In the photovoltaic power generation system, the combiner box is a wiring device to ensure the orderly connection and confluence function of photovoltaic modules. The device can ensure that the photovoltaic system is easy to cut off the circuit during maintenance and inspection, and reduces the scope of power failure when the photovoltaic system fails.The combiner box means that the user can connect a certain number of photovoltaic cells with the same specifications in series to form a photovoltaic series, and then connect several photovoltaic series in parallel to the photovoltaic combiner box. After converging in the photovoltaic combiner box, through the control The inverter, DC power distribution cabinet, photovoltaic inverter, and AC power distribution cabinet are used together to form a complete photovoltaic power generation system and realize grid connection with the mains.
Q:What is the pv combiner box price ?
A:Our combiner box prices are absolutely competitive in the market, with the characteristics of high quality and low price. Not only do we produce the combiner box ourselves, but we also produce the accessories inside, DC circuit breakers, DC surge DC fuses, solar connectors, and boxes. Our product specifications are complete, and we understand that only by producing all our own products can we better control costs, To create higher business value for you
Q:How many types of combiner boxes do you have ?
A:We have made combiner boxes from 1 String to 24 String, and of course, we also support customization of combiner boxes. As long as you have any needs, we can meet them on our end, which is very easy for us because we have already made thousands of combiner boxes
Q:When can the combiner box be delivered ?
A:If you require samples, we can ship them to you in one day at the earliest. For bulk orders, we can ship less than 100 boxes within a week. We can produce 40000 combiner boxes per month,As all products are produced by ourselves, our production efficiency is higher than that of other peers
A:In the photovoltaic power generation system, the combiner box is a wiring device to ensure the orderly connection and confluence function of photovoltaic modules. The device can ensure that the photovoltaic system is easy to cut off the circuit during maintenance and inspection, and reduces the scope of power failure when the photovoltaic system fails.The combiner box means that the user can connect a certain number of photovoltaic cells with the same specifications in series to form a photovoltaic series, and then connect several photovoltaic series in parallel to the photovoltaic combiner box. After converging in the photovoltaic combiner box, through the control The inverter, DC power distribution cabinet, photovoltaic inverter, and AC power distribution cabinet are used together to form a complete photovoltaic power generation system and realize grid connection with the mains.
Q:What is the pv combiner box price ?
A:Our combiner box prices are absolutely competitive in the market, with the characteristics of high quality and low price. Not only do we produce the combiner box ourselves, but we also produce the accessories inside, DC circuit breakers, DC surge DC fuses, solar connectors, and boxes. Our product specifications are complete, and we understand that only by producing all our own products can we better control costs, To create higher business value for you
Q:How many types of combiner boxes do you have ?
A:We have made combiner boxes from 1 String to 24 String, and of course, we also support customization of combiner boxes. As long as you have any needs, we can meet them on our end, which is very easy for us because we have already made thousands of combiner boxes
Q:When can the combiner box be delivered ?
A:If you require samples, we can ship them to you in one day at the earliest. For bulk orders, we can ship less than 100 boxes within a week. We can produce 40000 combiner boxes per month,As all products are produced by ourselves, our production efficiency is higher than that of other peers
Q:What is the quality of your combiner box ?
A:Our combiner box casing is made of ABS new material, transparent face shield PC new material, waterproof and dustproof. The circuit breaker casing is made of nylon pa66 flame-retardant new material, and the internal copper price is red copper. The coil is thickened, and the contacts are silver contacts. The surge is made of PBT flame-retardant, brass Brass, and standard chip MOV chips 20-40ka are encapsulated. The DC fuse PBT flame-retardant, red copper, and the cap copper is silver plated; Silver band; 95 porcelain, solar fuse body flame retardant PC, hat flame retardant, paw flame retardant PC, flame retardant grade V0, isolation switch PC new material (note: flame retardant needs to be customized) nylon flame retardant copper, all accessories are of high quality, combined with our rich experience in production of combiner boxes, what do you think of the quality of our products?
