60kva 115v 400 Гц источника электропитания 3 фазы 48kw статический


Поделиться:


Цена:9 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 10710.57 $* 11246.15 $*
Aug-16-2025 10620.53 $* 11151.88 $*
Jul-16-2025 8910.37 $* 9356.54 $*
Jun-16-2025 10440.4 $* 10962.17 $*
May-16-2025 9090.83 $* 9545.12 $*
Apr-16-2025 10260.95 $* 10773.2 $*
Mar-16-2025 10170.8 $* 10679.54 $*
Feb-16-2025 10080.83 $* 10584.65 $*
Jan-16-2025 9990.79 $* 10490.8 $*

Характеристики



Products Description


Intelligent frequency converter of ERD/S60 adopt ARM, MCU, DSP, FPGA as core processor. Single polarity double frequency SPWM modulation technology. DDS frequency synthesis technology. Unit capacity could reach to 0.5KVA - 1000KVA. The output could simulate the power grid voltage and frequency of different countries. Requirements of starting up could be satisfied for various industry.

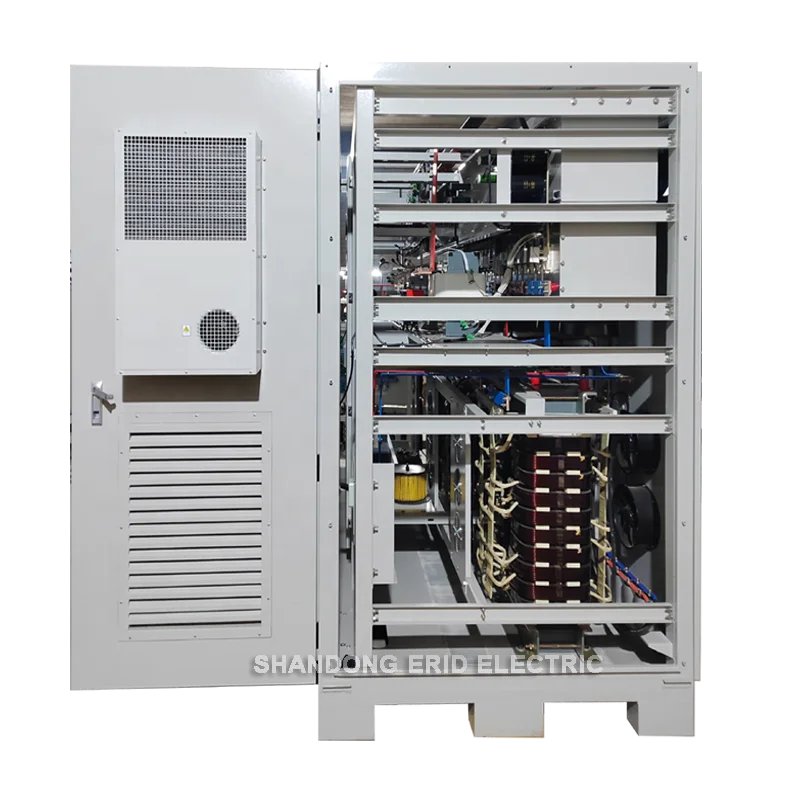

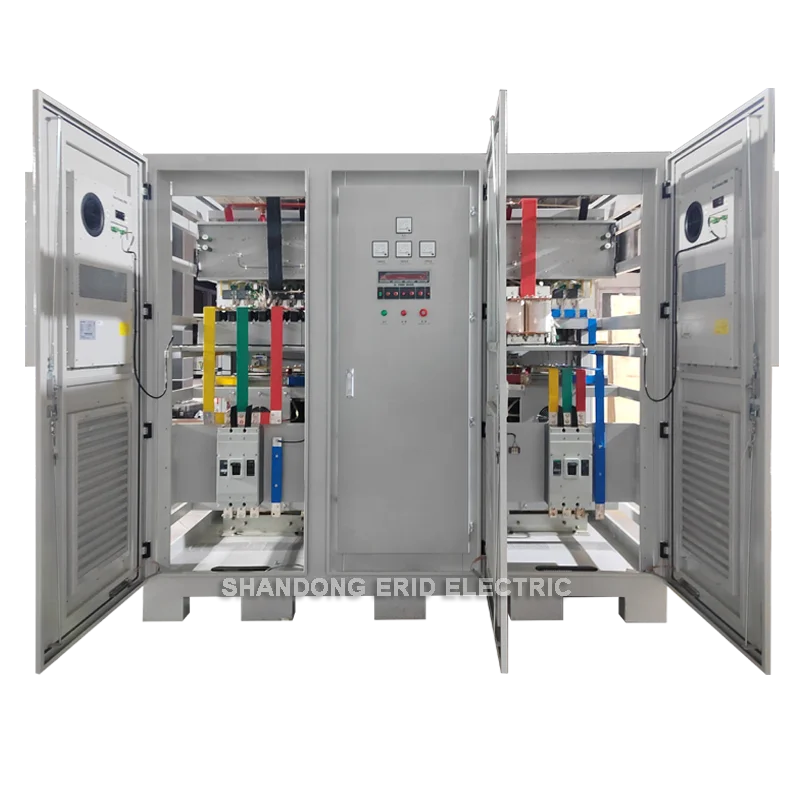

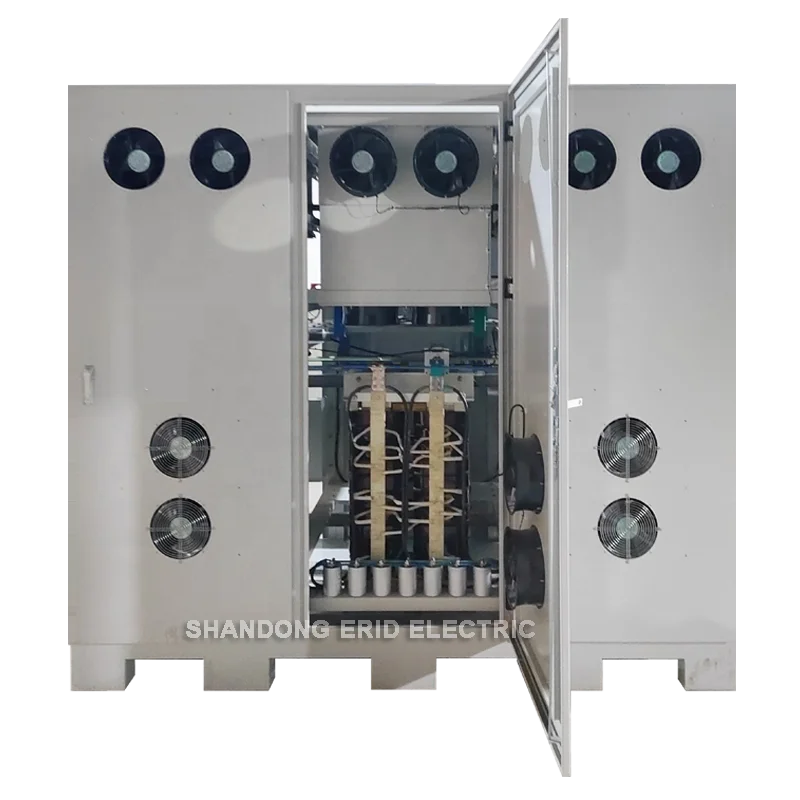

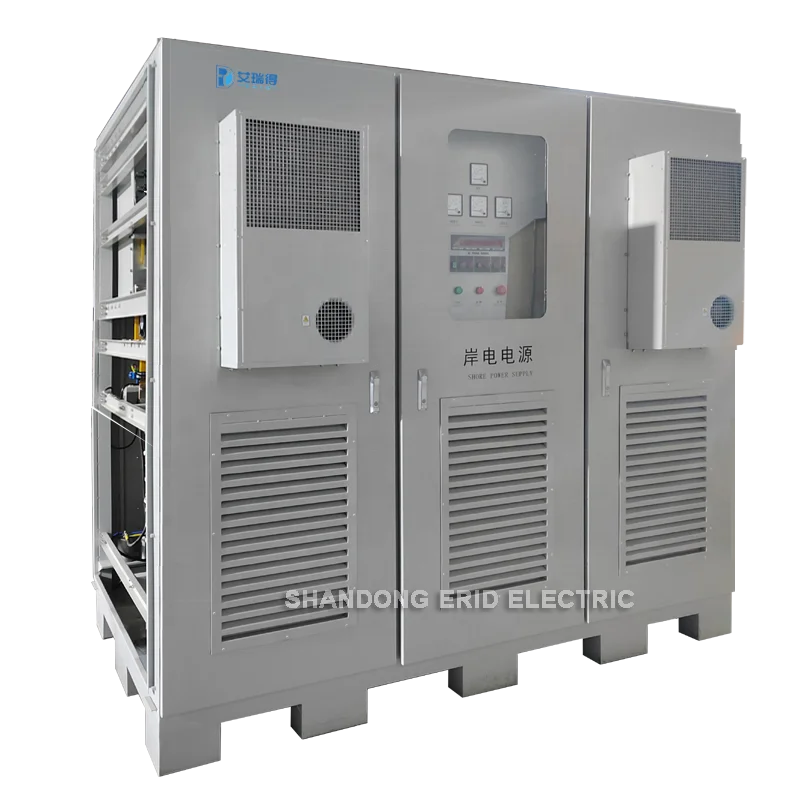

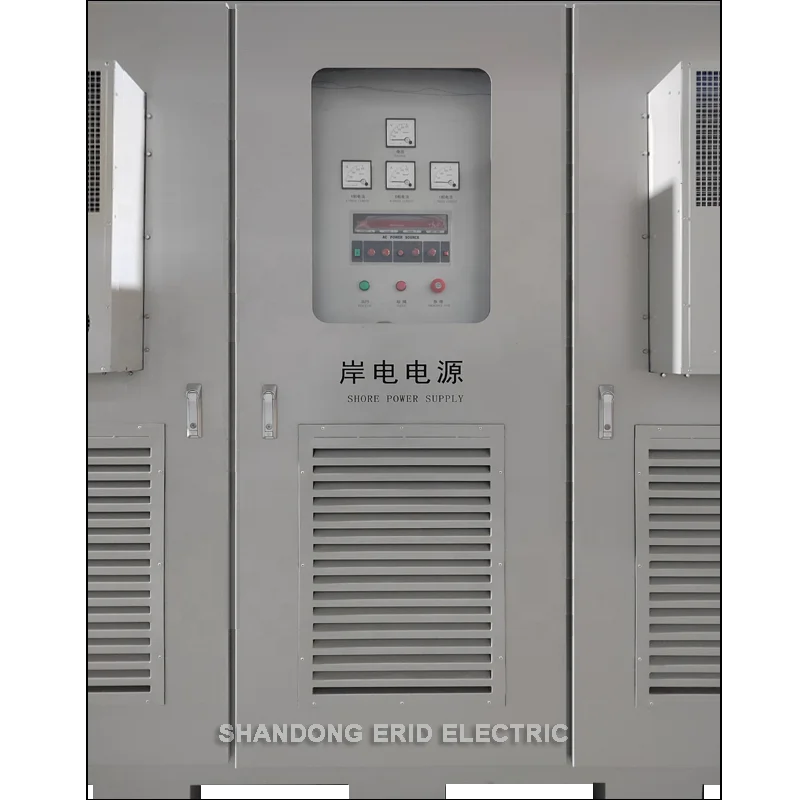

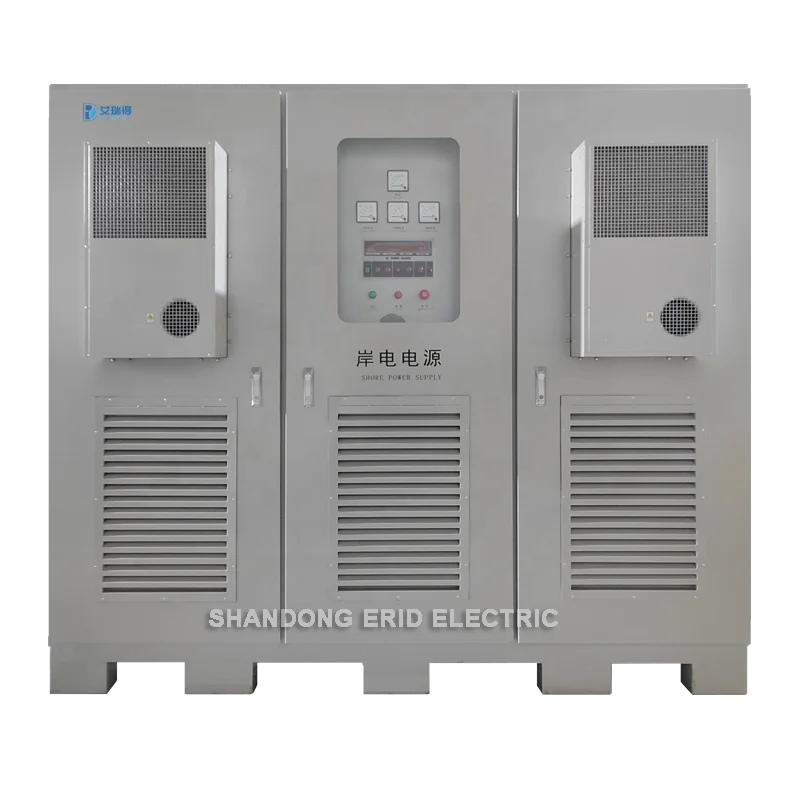

Details Images






Product Paramenters


* The DSP adopted is from Texas Instruments (TI). high processing speed and integrated.
* Frequency synthesis is realized by DDS technology, high resolution and more stable.
* Full digital control and feedback technology. Control arithmetic is dual closed-loop for output voltage and load current.
more fast, accurate and stable.
* Proven technology SPWM modulation. Exactly same switching frequency to reduce components and harmonic
distortion.
* The traditional circuit hardware is replaced by FPGA chip from ALTERA company to assist in DSP control. More flexible,
extendable and reliable.
* Starting up: direct starting, step-down starting, VVVF starting(Variable Voltage and Variable Frequency starting).
Customer could choose starting method according to actual need on site.
* Independent 3 phase H bridge inverter and 3 phase output voltage design makes the 3 phase output control
independent with its electric. no interference with each other.
* Interface is 7"/10" touching screen. Parameters of current, voltage, power, etc, could be displayed with many languages.
Control mode and parameters could be set by touching screen. Alarm information could be recorded and checked
anytime.
* Protect function of over current, over load, over temperature and IGBT fault. Protection time and value could be set by
touching screen. Protect function could be switched freely.
* Standard RS232, RS485 serial communication interface and ModBus Protocol.
* Driven by science and technology. Strive for top one by quality.


ITEM
PARAMETER
Model
ERDf-800
INPUT
Input Voltage
3 x 380VAC ± 15% (3Ph, 3Ph + N) or Customized)
Power Factor
≥0.8
OUTPUT
Output Voltage
3 x 380VAC ± 15% (3Ph, 3Ph + N) or Customized
Output Frequency
50/60/100/200Hz fixed, 45-65Hz continuously adjusted
Voltage Stability
± 1%
Frequency Stability
± 0.01%
Crest Factor
1.414+0.1
THD
≤3%(Linar load)
Load Range Adapted
No load type limited. Inductive load and capacitive load need to be derated
Display accuracy
Voltage display: ± 1%
Current Display: ± 2%
Frequency Display: ± 0.1%
Working Environment
Working Temperature
-10℃~50℃
Storage Temperature
-20℃~60℃
Humidity
0-90% (non-condensing)
Altitude
<2000m
Protection Class
IP20/IP32/IP54
Front Panel Display
LCD or LED Digital display
Protection
Over voltage protection
Short circuit protection
Over load protection
Over heat protection
Reliability & Efficiency
Mean Time Between Failures(MTBF)
>50000 h
Mean Time to Repair(MTTR)
<30 min
Efficiency
≥85%






Product packaging




Our Advantages


As a true manufacturer. we only choose and adopt high level electric components for our prodcuts to guarantee stable and reliable quality. It is convinced that our products could work reliably for a long time and customers could avoid worry and trouble in using of them.




Certifications






Company Profile


ShanDong Erid Electric Co., Ltd. is a scientific and technological company which was established in 2009 according to the joint stock company system. Registered capital 2 millions dollars. Headquarter in High-Tech Development Zone of Jinan city, many years of experience in exporting. Erid devotes to modern electric power technology and research, manufacture, sales, after-sale service of electric products. Its main products are voltage stabilizer/regulator, frequency converter power suppy, inverter, CVCF power supply, shore electric power supply, outdoor power bank, UPS, EPS, etc.

Since the establishment, Erid had obtained dozens of talent and related certifications, such as ISO9001, Computer software copyright, Environmental management system, The State Technological Invention Award, etc. Our products are widely adopted in industry of electric power, port, laboratory, railway, financial, gas, electric power, bank, education, government projects, etc.

Meanwhile, to satsify different customer's requirement from various industries. Erid had built a professional R&D team which could provide customized products and solutions according to customer's requirement.






FAQ


Q1. Who are we?
A. We are ShanDong Erid Electric Co., Ltd. which is a scientific and technological company. Established in 2009 according to the joint stock company system. Registered capital 2 millions dollars. Headquarter in High-Tech Development Zone of Jinan city.

Q2. What's the delivery time?
A. Delivery time will be different for different model/quantity. Generally, it would be 20 days for 15 pieces order quantity.
Besides, we have some quantity of small models in stock whose delivery time is about 1-3 days. For more information, please directly contact our salesperson.

Q3. How can we guarantee quality?
A. To guarantee quality, we always produce and test pre-production sample before mass production as well as make final inspection for each equipment before shipment.

Q4. What can you buy from us?
A. Frequency converter, stabilizer, inverter, UPS, shore power supply, CVCF power supply, or other customized electric equipment.

Q4. Do you offer customized products, services, OEM?
A. Yes, we can manufacture according to your requirements and no limit of minimum order quanity(MOQ).

Q5. Can I order a sample before bulk order?
A. Yes, of course, sample order is supported.

Q6. What after-sale service you could provide?
A. Specilized personnels for after-sale service. on-line or on-site according to customer's requirement
