Редуктор конической коробки передач серии K/F/S/R Китай заводская цена редуктор
- Категория: Speed Reducers >>>
- Поставщик: Zhengzhou,Huiyinn,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.44 $* | 0.77 $* |
| Aug-18-2025 | 0.85 $* | 0.94 $* |
| Jul-18-2025 | 0.65 $* | 0.81 $* |
| Jun-18-2025 | 0.39 $* | 0.18 $* |
| May-18-2025 | 0.58 $* | 0.77 $* |
| Apr-18-2025 | 0.9 $* | 0.21 $* |
| Mar-18-2025 | 0.26 $* | 0.49 $* |
| Feb-18-2025 | 0.19 $* | 0.1 $* |
| Jan-18-2025 | 0.55 $* | 0.89 $* |
Характеристики
K/F/S/R series of helical bevel motor gearbox reducer China factory price with speed transmission gearbox reduction

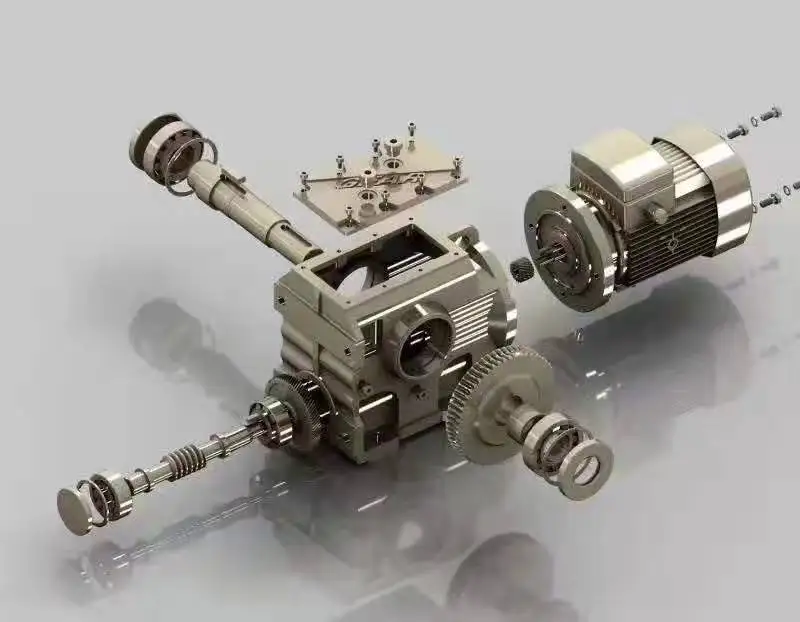

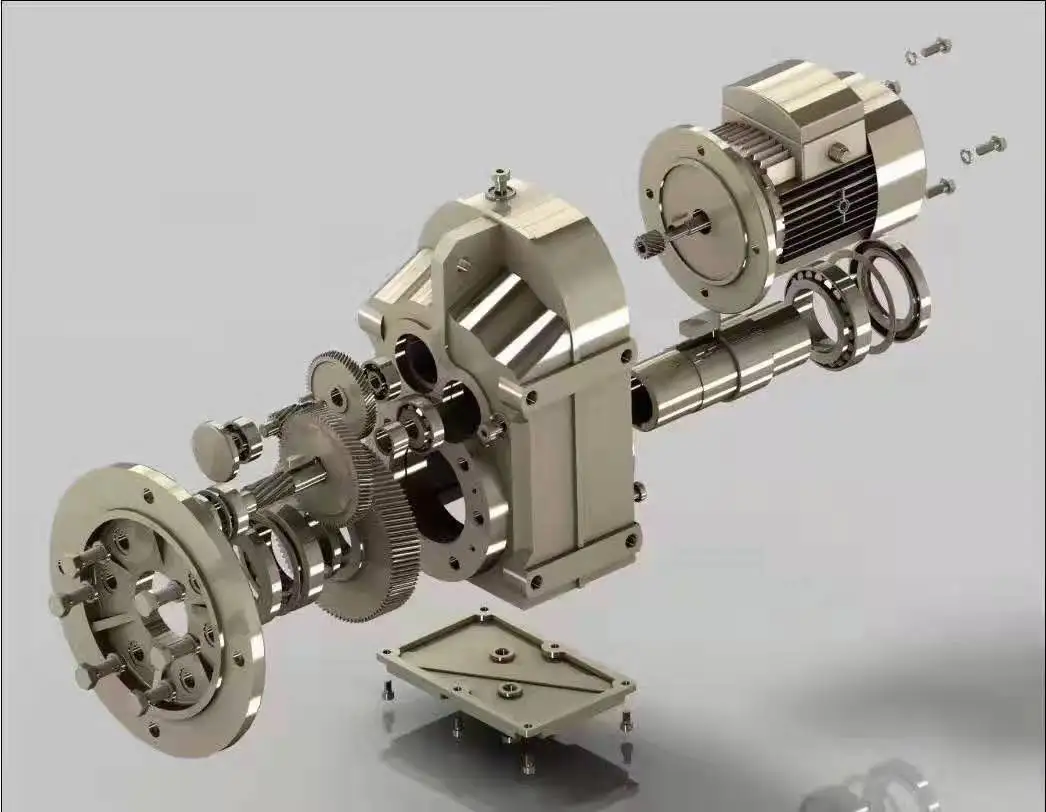

Product Structure
Gearbox Parameters
K Series | S Series | R Series | F Series | |
Gear Size | 37~167 | 37~157 | 17~187 | 37~167 |
Motor Power Range (KW) | 0.12~160 | 0.12~200 | 0.12~200 | 0.12~160 |
Ratio Range | 3.41~20,000 | 3.41~14,000 | 3.41~18,000 | 3.41~20,000 |
Output Speed (RPM) | 0.18~470 | 0.09~470 | 0.09~470 | 0.18~470 |
Output Torque (N.M) | 61~13,000 | 61~12,000 | 61~8,000 | 61~13,000 |
Product Name | K/F/S/R series of helical bevel motor gearbox reducer China factory price with speed transmission gearbox reduction |
Housing material | HT250 high-strength cast iron |
Gear material | 20CrMnTi alloy steel |
Surface hardness of gears | HRC58°~62 ° |
Input / Output shaft material | 42CrMo alloy steel |
Input / Output shaft hardness | HRC25°~30° |
Machining precision of gears | accurate grinding, 6~5 Grade |
Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
Heat treatment | tempering, cementiting, quenching, etc. |
Efficiency | 94%~96% (depends on the transmission stage) |
Noise (MAX) | 60~68dB |
Temp. rise (MAX) | 40℃ |
Temp. rise (Oil)(MAX) | 50℃ |
Vibration | ≤20µm |
Backlash | ≤20Arcmin |
Brand of bearings | China Top brand HRB,LYC,ZWZ or other brands requested, NSK….. |
Brand of oil seal | NAK--- Taiwan or other brands requested |

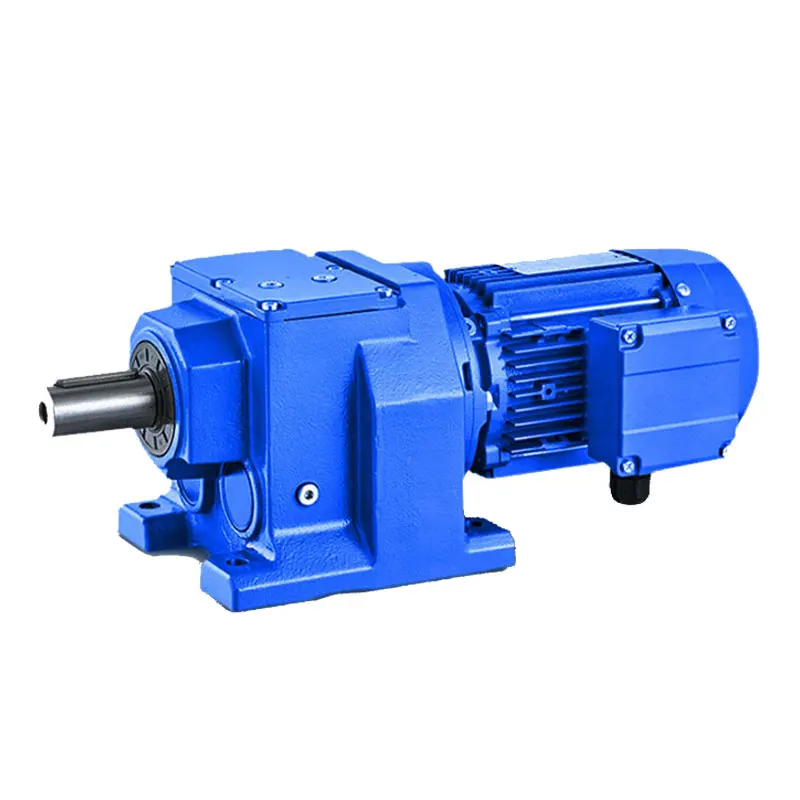

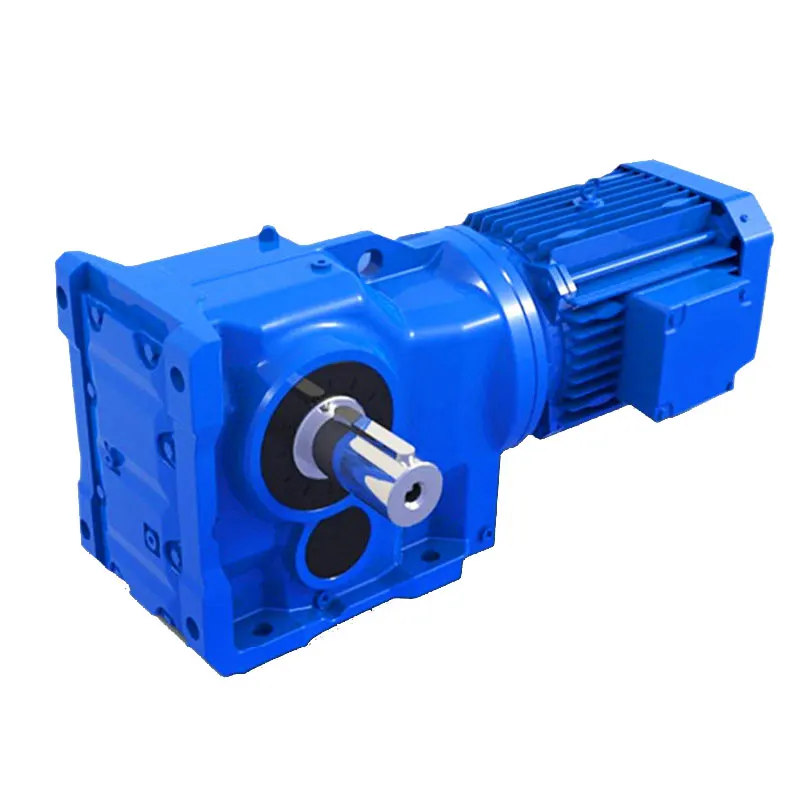

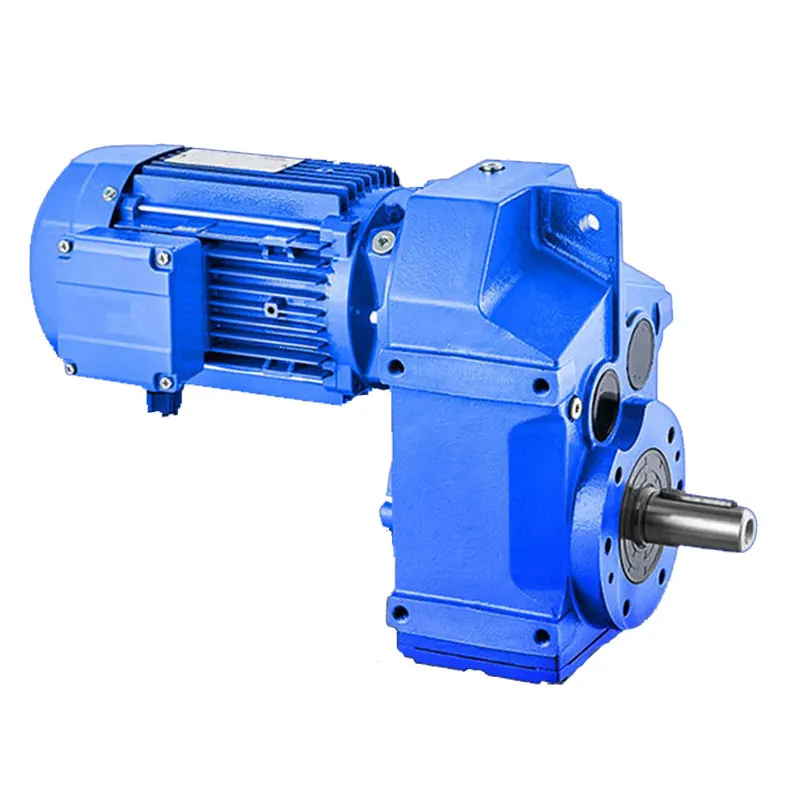

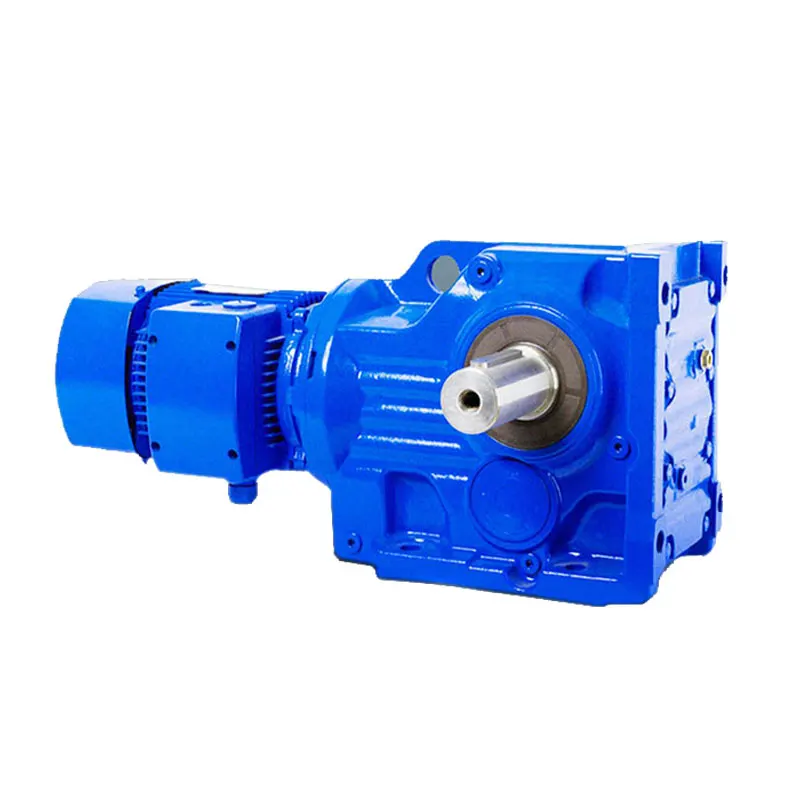

Product Show
Helical reducer gearbox with high torque load-bearing
Gearbox motor speed reducer with high efficiency stable operation
Reducer gear motor with low vibration low noise
Wide speed ratio fine grading
Various installation methods
Product Details
Product Paramenters
Why Choose Us
FAQ
Q: Are you a trading company or a manufacturer ?
A: We are a speed reducer gearbox manufacturer in Henan Province, China. Our company owns the ability of
manufacturing,processing, designing and R&D.
Q:What information should i tell you to confirm the worm gearbox?
A:Model/Size,B:Ratio and output torque, C:Power and flange type,D:Shaft Direction,E:Housing color,F:Order quantity.
Q: Can you customize according to our requirements?
A: Yes, we can design non-standard products according to customers' drawings and samples.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q: How long is the delivery date?
A: 10 - 20 business days.
A: We are a speed reducer gearbox manufacturer in Henan Province, China. Our company owns the ability of
manufacturing,processing, designing and R&D.
Q:What information should i tell you to confirm the worm gearbox?
A:Model/Size,B:Ratio and output torque, C:Power and flange type,D:Shaft Direction,E:Housing color,F:Order quantity.
Q: Can you customize according to our requirements?
A: Yes, we can design non-standard products according to customers' drawings and samples.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q: How long is the delivery date?
A: 10 - 20 business days.
