Шланг воздушного рассеивателя 16-30-C сельскохозяйственное оборудование для креветок
- Категория: Aquaculture Machine Aerators >>>
- Поставщик: Hangzhou,Juntai,Plastic,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.43 $* | 0.87 $* |
| Aug-16-2025 | 0.17 $* | 0.66 $* |
| Jul-16-2025 | 0.28 $* | 0.21 $* |
| Jun-16-2025 | 0.3 $* | 0.64 $* |
| May-16-2025 | 0.79 $* | 0.33 $* |
| Apr-16-2025 | 0.44 $* | 0.94 $* |
| Mar-16-2025 | 0.33 $* | 0.88 $* |
| Feb-16-2025 | 0.55 $* | 0.16 $* |
| Jan-16-2025 | 0.73 $* | 0.63 $* |
Характеристики

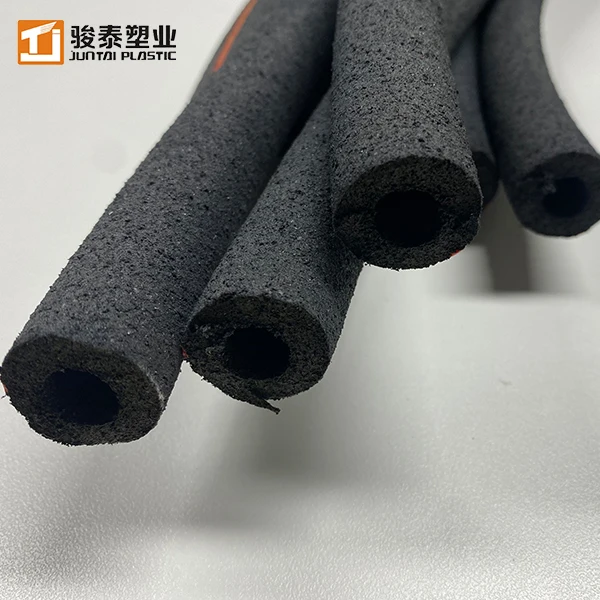

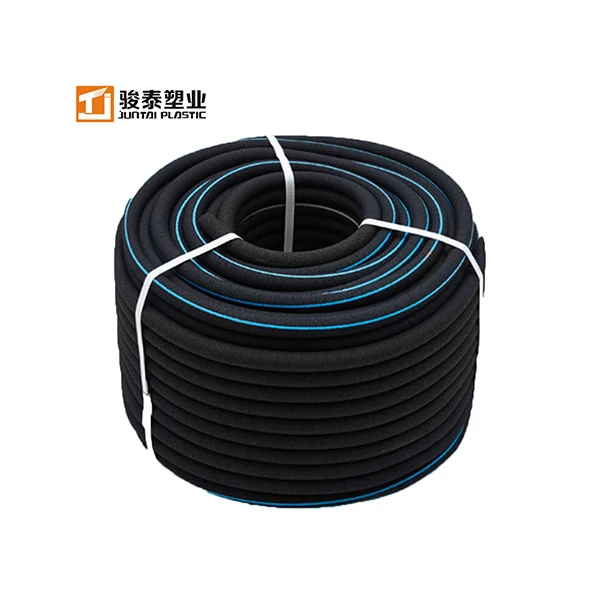

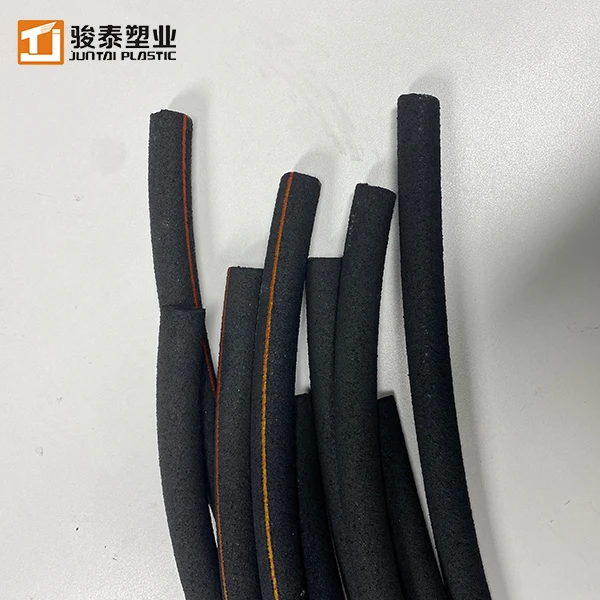

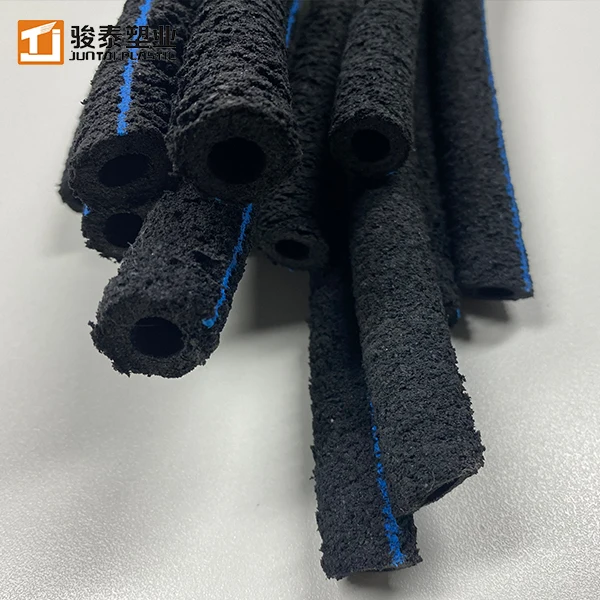

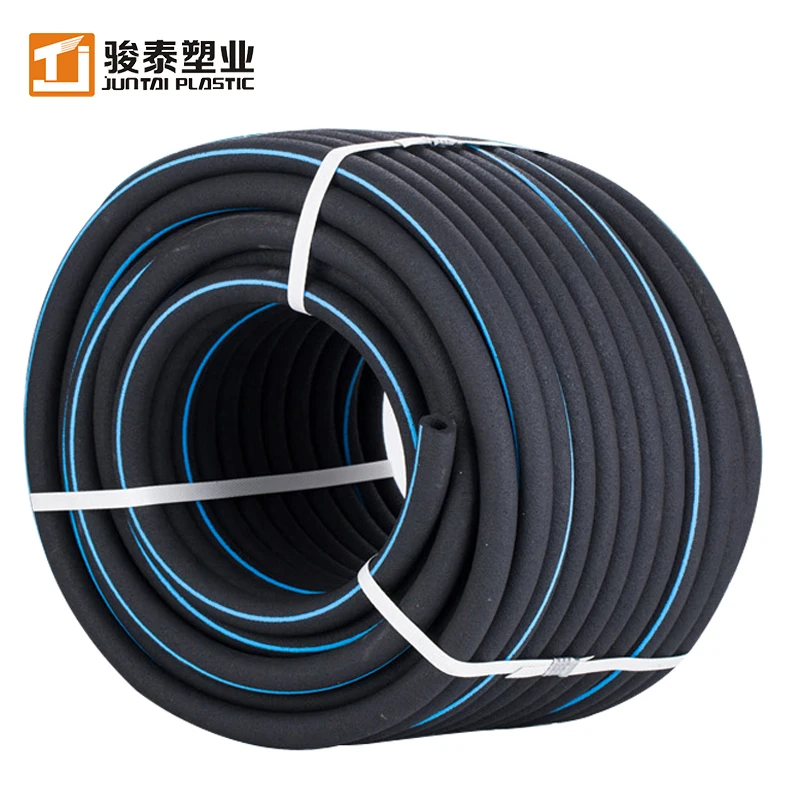

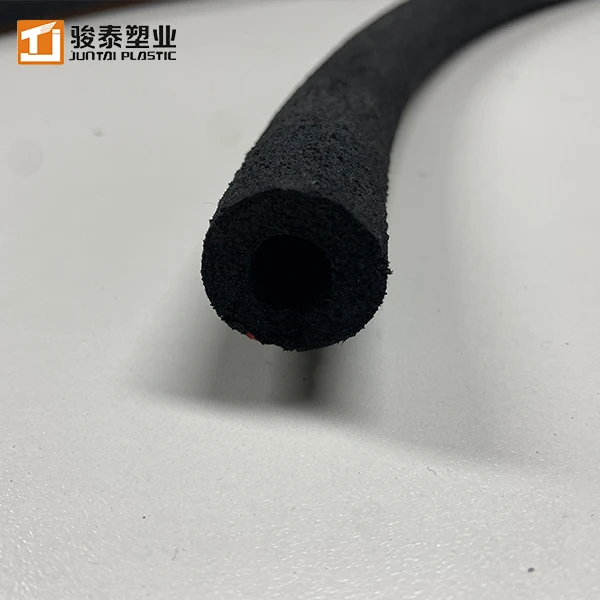

Micropore Bubble Aeration Hoses
Micropore Aeration Hoses (pond aeration hose) are used to make the dissolved oxygen in the water reach higher amount and enhance the stocking density. The Aeration hose has been tested for oxygenation of clean water and sewage by the china municipal engineering North China Design Institute. It is especially suitable for the construction and expansion of urban sewage and large-scale factories and the renovation of old aeration tanks.
Product Details Show
1.High Quality
This kind of aeration hose is made from high polymer material with special foamingtechnic.
2.Film Packaging
High Quality Exquisite Plastic Film Packaging
3.Anti Clogging
The resistance loss is small and the air flow is smooth.
4.Excellent Oxygen Conversion
Air bubbles float on the surface more slowly, the rate of oxygen transfer is much higher.
Product Advantages
Product Advantages
1.Reduce energy cost by up to 75%
2.Lack of moving parts provides a very low 3.Maintenance alternative
4.Maintains higher dissolved oxygen(DO) levels
5.Allows for higher stocking densities
6.Allows for higher feeding rates
7.Allows for more frequent feedings
8.Faster growth and reduced FCR
9.Low start up cost
10.Low replacement cost
11.Reduce algal blooms
4.Maintains higher dissolved oxygen(DO) levels
5.Allows for higher stocking densities
6.Allows for higher feeding rates
7.Allows for more frequent feedings
8.Faster growth and reduced FCR
9.Low start up cost
10.Low replacement cost
11.Reduce algal blooms
Main Application:
1. Oxygenation and aeration in sewage treatment process
2. Aeration in improving the water quality of rivers and lakes
3. Oxygenation aeration in aquaculture
2. Aeration in improving the water quality of rivers and lakes
3. Oxygenation aeration in aquaculture
How to use ?
Make a round ring or square shape elements by iron or steel or plastic pipe as same shape of nano tube, Then the nano tube is tie with plastic tie or rope or thick weir and connect aeration pipe with Nano tube, it is finished by immerse it in water. The pipe must be made in such a way that water enters it.
Product Description
Rubber aeration tube Spec | ||||||||
Applicable water depth | 0-5 meters | |||||||
Cold resistance(-40°C,8h) | Tensile length ≥2.2 Mpa | |||||||
Tensile elongation ≥130 percent | ||||||||
Hot empty aging (70°C 72h) | Tensile strength rate ≤20 percent | |||||||
Break elongation rate ≤20 percent | ||||||||
Resist 5% NaOH (23°C 72h) | Tensile strength rate ≤20 percent | |||||||
Break elongation rate ≤20 percent | ||||||||
Resist 5% HCl (23°C 72h) | Tensile strength rate ≤20 percent | |||||||
Break elongation rate ≤20 percent | ||||||||
16mm Aeration Hose Parameters | ||
Outer Diameter: φ16mm土1mm | Inner Diameter: φ10mm土1mm | |
Average Pore Diameter Of Micropores: | φ0.03~ p0.06mm | |
Micro Hole Arrangement Density: | 700~ 1200 Pieces/m | |
Matching Power: | Per 1Kw Motor Power≥200m | |
Effective Aeration Volume: | 0.02~0.006m3/min.m | |
Air Flow: | 0.1 ~0.4m3/h.m | |
Service Area: | 1~8m2/m | |
Bubble Diameter: | 0.5~1mm (F0resh Water) 0.8~2mm (Sea Water) | |
Pressure Loss: | ≤0.40kpa When 1Kw=200m,Underwater Loss < 5kp | |
Configuration: | Motor Power 1Kw Supporting 150~200m Microporous Aeration Hose | |
Packing: | 200m/roll | |
Aeration Pan: | 7m/80cm | |
Installation: | 3 Aeration Trays Per Acre Of Water Purification Surface | |
Power Efficiency: | Power Consumption Per Mu Is 0.15kw | |
Various Specifications Are Available | ||||||
Outer Diameter | Inner Diameter | Each Roll/m | Weight/kg | |||
25mm | 16mm | 100 | 22 | |||
25mm | 12mm | 100 | 30 | |||
25mm | 10mm | 100 | 34 | |||
20mm | 12mm | 100 | 20 | |||
20mm | 10mm | 200 | 21 | |||
Application Field
11.Main application scenarios
Bubble tube tubing pond microporous aeration hose for fishery farm/shrimp farm/o2 diffuser
Company Profile ：
About company
Hangzhou Juntai Plastic Products Co. Ltd. , was founded in 2013 in Hangzhou.After Three years,We established factory Anhui Juntai Technology Co., Ltd in Anhui. we won the National high-tech enterprise in 2019 and has 29 patents for MBBR and pvc profiles.Now we become one of leader manufacturer for MBBR Bio Filter Media and PVC profiles. With 21000 m2 factory in Yuexi Anhui; 105 High speed automatic extruded lines and 30 injection lines, The annual capacity of MBBR is more than 70000 CBM; the annual Capacity of PVC profiles and injection parts is more than 5000 tons. High quality with ISO9001-2015, SGS, ROHS and other certifications. With 63 young people with full of passion of Juntai company and try to offer the best plastic goods to the world. Here we have 11 engineers teams of plastic and water treatment, we can design the plastic items for customers. Juntai MBBR Biofilter media widely
used in waste water treatment; RAS and other field. With professional environmental engineers , cooperated with three China Universities to ensure high quality while ensuring better service. Juntai products have been exported more than 36 countries, including USA, Sweden, Malaysia, etc. The annual sale more is $15 million. Choose Juntai, and Juntai people will return back you full satisfied.
used in waste water treatment; RAS and other field. With professional environmental engineers , cooperated with three China Universities to ensure high quality while ensuring better service. Juntai products have been exported more than 36 countries, including USA, Sweden, Malaysia, etc. The annual sale more is $15 million. Choose Juntai, and Juntai people will return back you full satisfied.
Equipments Exhibition
Product
FAQ
1.Can we get samples?
We can offer free sample for test, and customer needs to pay the freight charge.
2.What's Your Delivery Time?
Normally 15-20days after order confirm.
3.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
4. Can you produce goods with special specification ?
First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
We can offer free sample for test, and customer needs to pay the freight charge.
2.What's Your Delivery Time?
Normally 15-20days after order confirm.
3.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
4. Can you produce goods with special specification ?
First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
5. Could we pay a visit to your factory ?
Yes, you are always welcome to visit our factory.
Yes, you are always welcome to visit our factory.
Hangzhou Juntai Plastic Product Co.ltd
Address: #907,Building 1, XIC International, Linping, Hangzhou, Zhejiang, China
Web:www.juntaiplastic.com
E-mail:sales6@juntaiplastic.com
