Гидравлический высококачественный гибкий прочный гибочный промышленный резиновый шланг высокого давления с
- Категория: Rubber Products >>>
- Поставщик: Hengshui,Maoji,Import,And,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.11 $* | 0.3 $* |
| Aug-17-2025 | 0.60 $* | 0.37 $* |
| Jul-17-2025 | 0.47 $* | 0.84 $* |
| Jun-17-2025 | 0.29 $* | 0.97 $* |
| May-17-2025 | 0.27 $* | 0.76 $* |
| Apr-17-2025 | 0.59 $* | 0.94 $* |
| Mar-17-2025 | 0.69 $* | 0.97 $* |
| Feb-17-2025 | 0.83 $* | 0.73 $* |
| Jan-17-2025 | 0.85 $* | 0.62 $* |
Характеристики
Product Description
Applcations: For delivery of hydraulic or water-basrdliquids.
Feature: Made pf excellent oil-resistant and anti-aging rubber.The cover is corrugeted finish, the hose is made in conformiyt with
DIN EN857, working temperature range is with -40℃～+100℃
DIN EN857, working temperature range is with -40℃～+100℃
Applications: This Section covers hose for use with petroleum base hydraulic fluids within a temperature rang of
-40℃~+121℃(-40℉~+250℉).
-40℃~+121℃(-40℉~+250℉).
Features:This hose shall consist of cr inner tube of oil resistant synthetic rubber, four plies of steel wire wrapped in
alternating directions and oil and weather resistant synthetic rubber cover. The hose is made in conformity with SAE 100R12 and
GB/T10544-2013.
alternating directions and oil and weather resistant synthetic rubber cover. The hose is made in conformity with SAE 100R12 and
GB/T10544-2013.
hose high pressure 15000 psi producer high pressure oil hose SAE100 R1 R2 4SP 4SH
A hydraulic hose is also called high pressure hose, wire braided hydraulic hose, flexible pressure hose, hydraulic fuel oil hose,rubber hose. it is used anywhere in a hydraulic system requiring a flexible connection between two fluid ports. A hydraulic hose is a synthetic rubber tube surrounded by some sort of flexible strength enhancing winding, such as metal or fiber, and then covered in another rubber carcass
MAOJI products are analyzed for quality assurance and specifications at many points of the manufacturing process to insure thatwe ship the very best finished products to our customers. In addition, we perform hydraulic pressure testing and impulse testing To ensure that our products perform to rated specifications.

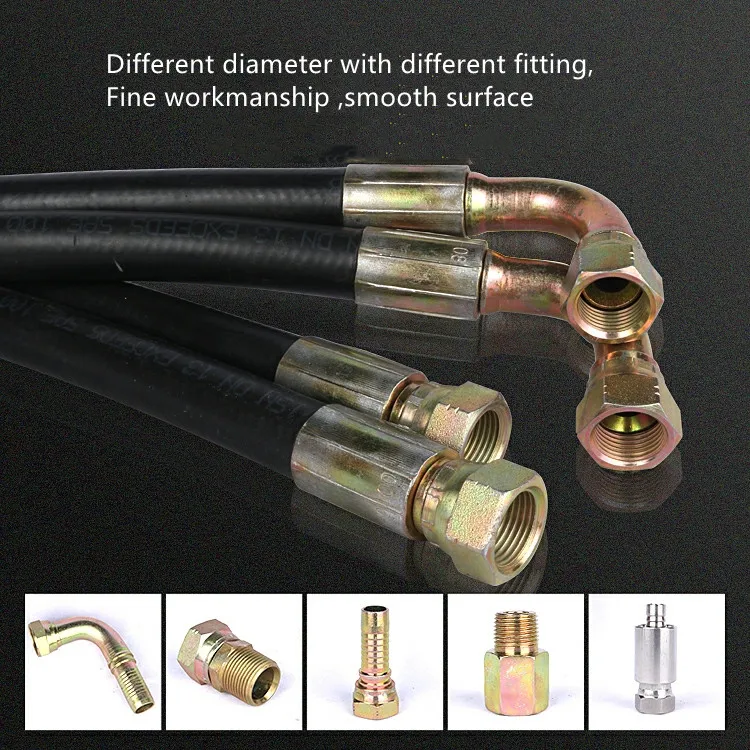

To compliment our hose products, choose from a variety of accessories, such as steel, brass, and stainless steel hydraulic
adapters and split flange kits. To enhance hose life and performance we have spring guards, nylon hose sleeving, and spiral-guard hose sleeving. These products are manufactured from the same sources as the largest hose manufacturing names at a significant price savings..
A hydraulic hose is also called high pressure hose, wire braided hydraulic hose, flexible pressure hose, hydraulic fuel oil hose,rubber hose. it is used anywhere in a hydraulic system requiring a flexible connection between two fluid ports. A hydraulic hose is a synthetic rubber tube surrounded by some sort of flexible strength enhancing winding, such as metal or fiber, and then covered in another rubber carcass
MAOJI products are analyzed for quality assurance and specifications at many points of the manufacturing process to insure thatwe ship the very best finished products to our customers. In addition, we perform hydraulic pressure testing and impulse testing To ensure that our products perform to rated specifications.
To compliment our hose products, choose from a variety of accessories, such as steel, brass, and stainless steel hydraulic
adapters and split flange kits. To enhance hose life and performance we have spring guards, nylon hose sleeving, and spiral-guard hose sleeving. These products are manufactured from the same sources as the largest hose manufacturing names at a significant price savings..

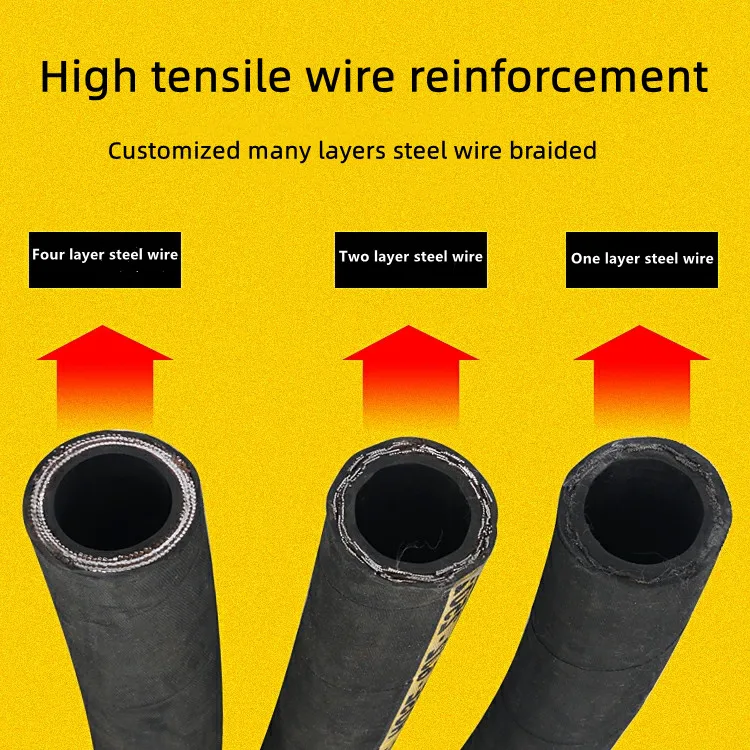

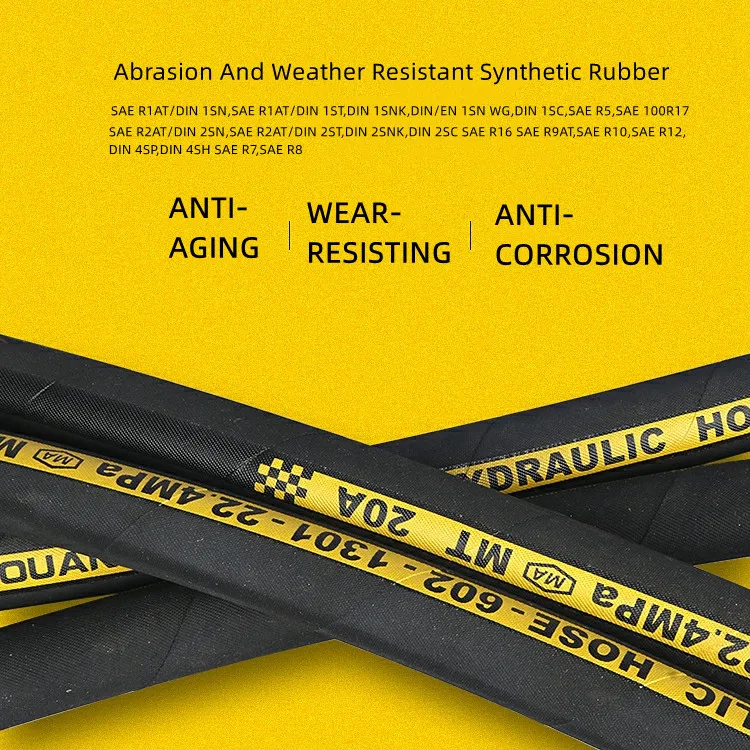

Reinforcement | Number |
One steel wire braided | SAE R1AT/DIN 1SN.SAE R1AT/DIN 1ST,DIN 1SNK DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17 |
Two steel wire braided | SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC |
One/two wire braided | SAE R16 |
Four steel wire spiral | SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH |
High flexibility nylon or thermoplastic | SAE R7,SAE R8 |
Descriptions:
Applications: This Section covers hose for use with petroleum base hydraulic fluids within a temperature rang of
-40℃~+121℃(-40℉~+250℉).
Features:
Inner Tube: Oil Resistant Synthetic Rubber
Reinforcement:High Tensile Steel Wire Spiraled or Braided
Cover : Oil and Weather Resistant Synthetic Rubber
Flame Resistant Cover Available Upon Request
Temperature: From-40°C to +100°C ( -40° F to 212° F ) with petroleum base hydraulic fluids.
Specifications:
1-Recommended for: High pressure hydraulic oil lines(flexible hydraulic rubber hose prices)
2-TUBE: Black synthetic rubber seamless and resistant to oils
3-COVER: Black oil & abrasion resistant synthetic rubber
4-Reinforcement: two Braids of High Tensile Steel Wire
TEMP. RANGE: minus 40 deg to 250 deg F
5-Size of inner diameter: 1/4"; 5/15"; 3/8"; 1/2"; 5/8"; 3/4"; 1"; 1 1/4"; 1 1/2"; 2"
6-Application: High Pressure Hose suitable for use with Petroleum based hydraulic fluids, lubricating oils, water, water emulsion
hydraulic fluids, and Compressed Air.
Package Included:
Applications: This Section covers hose for use with petroleum base hydraulic fluids within a temperature rang of
-40℃~+121℃(-40℉~+250℉).
Features:
Inner Tube: Oil Resistant Synthetic Rubber
Reinforcement:High Tensile Steel Wire Spiraled or Braided
Cover : Oil and Weather Resistant Synthetic Rubber
Flame Resistant Cover Available Upon Request
Temperature: From-40°C to +100°C ( -40° F to 212° F ) with petroleum base hydraulic fluids.
Specifications:
1-Recommended for: High pressure hydraulic oil lines(flexible hydraulic rubber hose prices)
2-TUBE: Black synthetic rubber seamless and resistant to oils
3-COVER: Black oil & abrasion resistant synthetic rubber
4-Reinforcement: two Braids of High Tensile Steel Wire
TEMP. RANGE: minus 40 deg to 250 deg F
5-Size of inner diameter: 1/4"; 5/15"; 3/8"; 1/2"; 5/8"; 3/4"; 1"; 1 1/4"; 1 1/2"; 2"
6-Application: High Pressure Hose suitable for use with Petroleum based hydraulic fluids, lubricating oils, water, water emulsion
hydraulic fluids, and Compressed Air.
Package Included:
1.Transparent PVC film packing,
2.Colour woven bag
3.pallet package
4.Carton packaging
5.reel packing
According to the packing form required by the customer, please tell our sales staff what kind of packing you like
2.Colour woven bag
3.pallet package
4.Carton packaging
5.reel packing
According to the packing form required by the customer, please tell our sales staff what kind of packing you like
Hydraulic Hose SAE 100 R1 AT/DIN EN 853 1SN | ||||||||||||||||||
Hose ID | Wire OD | Hose OD | W.P | B.P | Min Bend Radius | Weight | ||||||||||||
Inch | mm | mm | mm | Mpa | Psi | Mpa | Psi | mm | kg/m | |||||||||
3/16 | 4.8 | 9.5 | 11.8 | 25 | 3630 | 100 | 14280 | 90 | 0.19 | |||||||||
1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90 | 12840 | 100 | 0.21 | |||||||||
5/16 | 7.9 | 12.7 | 15 | 21.5 | 3120 | 85 | 12280 | 115 | 0.24 | |||||||||
3/8 | 9.5 | 15.1 | 17.4 | 18 | 3610 | 72 | 10280 | 130 | 0.33 | |||||||||
1/2 | 12.7 | 18.3 | 20.6 | 16 | 2320 | 64 | 9180 | 180 | 0.41 | |||||||||
5/8 | 15.9 | 21.4 | 23.7 | 13 | 1890 | 52 | 7420 | 200 | 0.45 | |||||||||
3/4 | 19 | 25.4 | 27.7 | 10.5 | 1530 | 42 | 6000 | 240 | 0.58 | |||||||||
1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35 | 5020 | 300 | 0.88 | |||||||||
1-1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25 | 3600 | 420 | 1.23 | |||||||||
1-1/2 | 38.1 | 46.8 | 50.6 | 5 | 730 | 20 | 2860 | 500 | 1.51 | |||||||||
2 | 50.8 | 30.2 | 64 | 4 | 580 | 16 | 2280 | 630 | 1.97 | |||||||||
Hydraulic Hose SAE 100 R2 AT/DIN EN 853 2SN | ||||||||||||||||||
Hose ID | Wire OD | Hose OD | W.P | B.P | Min Bend Radius | Weight | ||||||||||||
Inch | mm | mm | mm | Mpa | Psi | Mpa | Psi | mm | kg/m | |||||||||
3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 165 | 23720 | 90 | 0.31 | |||||||||
1/4 | 6.4 | 12.7 | 15 | 40 | 5800 | 160 | 22840 | 100 | 0.33 | |||||||||
5/16 | 7.9 | 14.3 | 16.6 | 36 | 5250 | 140 | 20000 | 115 | 0.39 | |||||||||
3/8 | 9.5 | 16.7 | 19 | 33.1 | 4800 | 132.4 | 18840 | 130 | 0.5 | |||||||||
1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 180 | 0.59 | |||||||||
5/8 | 15.9 | 23 | 25.4 | 25 | 3630 | 100 | 14280 | 200 | 0.71 | |||||||||
3/4 | 19 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 240 | 0.86 | |||||||||
1 | 25.4 | 34.9 | 38 | 16.5 | 2400 | 65 | 9420 | 300 | 1.28 | |||||||||
1-1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 420 | 2.02 | |||||||||
1-1/2 | 38.1 | 50.8 | 54.6 | 9 | 1310 | 36 | 5140 | 500 | 2.23 | |||||||||
2 | 50.8 | 63.5 | 67.3 | 8 | 1160 | 32 | 4560 | 630 | 2.85 | |||||||||
Hydraulic Hose EN856 4SC,4SH/4SP,GB/T | ||||||||
Specification inch/mm | OD | Working pressure Mpa / PSI | Bar | |||||
1/4" | 6 | 19 | 100/14500 | 1000 | ||||
5/16" | 8 | 20.5 | 80/11600 | 800 | ||||
3/8" | 10 | 24 | 70 / 10150 | 700 | ||||
1/2" | 13 | 27 | 60 / 8700 | 600 | ||||
5/8" | 16 | 30 | 55 / 7975 | 550 | ||||
3/4" | 19 | 33 | 42 / 6090 | 420 | ||||
1" | 25 | 39 | 35 / 5075 | 350 | ||||
1-1/4" | 32 | 49 | 32.5 / 4713 | 325 | ||||
1-1/2" | 38 | 56 | 29 / 4205 | 290 | ||||
2" | 51 | 69 | 25 / 3625 | 250 | ||||
Factory Photo
Certifications
Company Profile
Recommend Products
Product packaging
Customer Photos
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below:
