0 1 мм Высокоуглеродистый натуральный графитовый лист для рассеивания тепла и электрической
- Категория: Graphite Sheets >>>
- Поставщик: Suzhou,Guile,New,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 1.83 $* | 1.4 $* |
| Jul-20-2025 | 1.38 $* | 1.31 $* |
| Jun-20-2025 | 1.29 $* | 1.69 $* |
| May-20-2025 | 1.53 $* | 1.19 $* |
| Apr-20-2025 | 1.14 $* | 1.65 $* |
| Mar-20-2025 | 1.89 $* | 1.31 $* |
| Feb-20-2025 | 1.97 $* | 1.54 $* |
| Jan-20-2025 | 1.8 $* | 1.77 $* |
Характеристики
Products Description

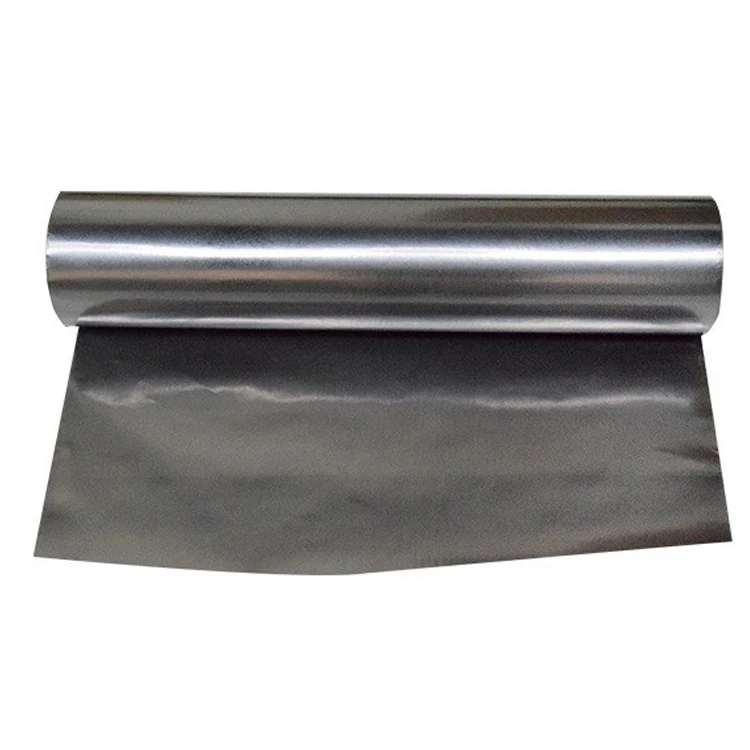

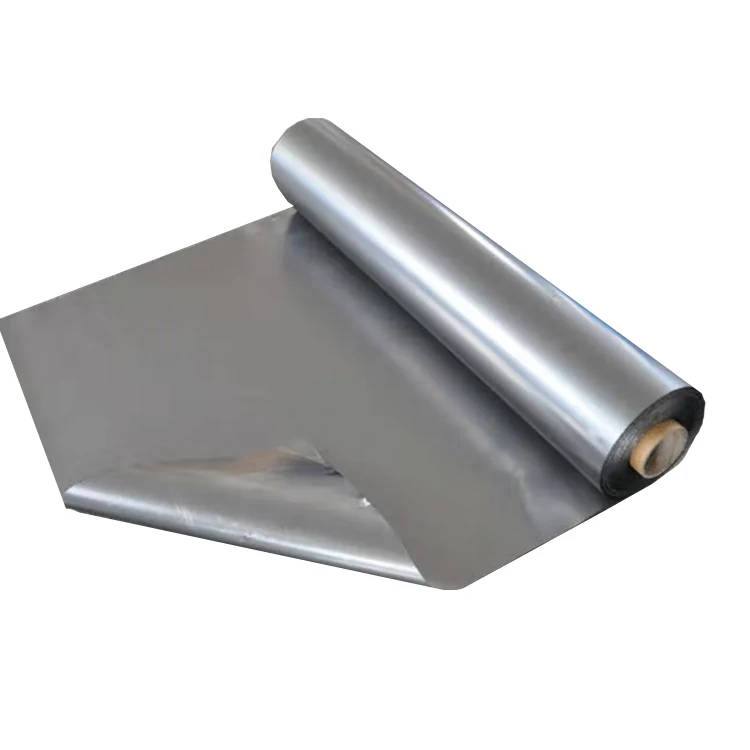

Graphite sheet:
The flexible graphite heat spreader materials are a unique line of products capable of cooling a hot component, protecting a temperature-sensitive component, reducing a thermal gradient, or preventing a surface hot spot.
Graphite sheet is a thermal material ideal for a wide range of electronics applications, from the thinnest and lightest smartphones to high-power devices.

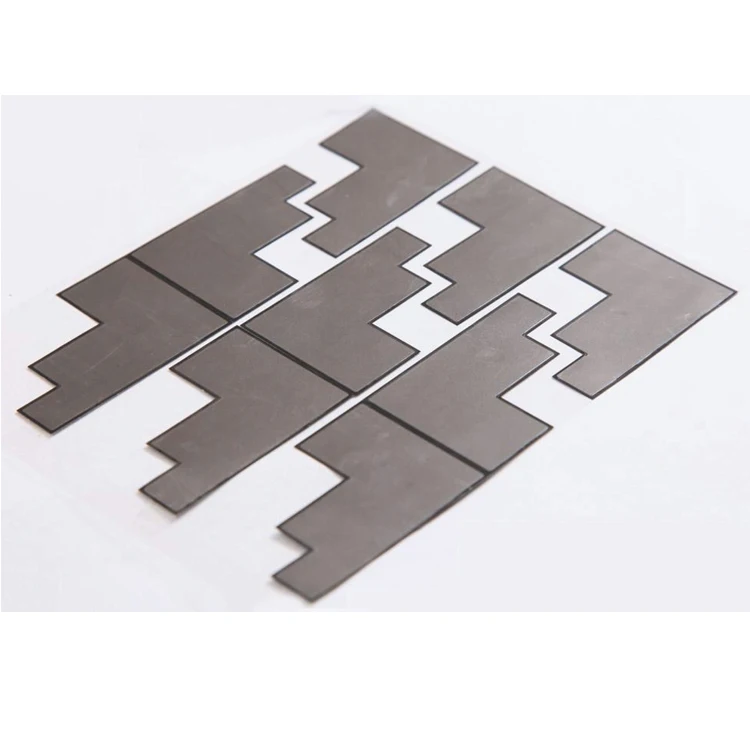

It is available with an adhesive backing, which can significantly improve the thermal resistance. A wide range of die-cut shapes & components are manufactured to customer specifications on request.
• Natural Graphite
A variety of in-plane thermal conductivity options from 100 to 500 W/mK and through-plane thermal conductivity from 2.5 to 4.0 W/mK
A broad range of thicknesses from 0.03mm to 1.0mm
• Synthetic Graphite
A variety of in-plane thermal conductivity options from 800 to 1900 W/mK and through-plane thermal conductivity of 5 W/·K
Thinner than natural graphite with a broad range of thicknesses from 0.017mm to 0.1mm
Graphite sheet is a thermal material ideal for a wide range of electronics applications, from the thinnest and lightest smartphones to high-power devices.
It is available with an adhesive backing, which can significantly improve the thermal resistance. A wide range of die-cut shapes & components are manufactured to customer specifications on request.
• Natural Graphite
A variety of in-plane thermal conductivity options from 100 to 500 W/mK and through-plane thermal conductivity from 2.5 to 4.0 W/mK
A broad range of thicknesses from 0.03mm to 1.0mm
• Synthetic Graphite
A variety of in-plane thermal conductivity options from 800 to 1900 W/mK and through-plane thermal conductivity of 5 W/·K
Thinner than natural graphite with a broad range of thicknesses from 0.017mm to 0.1mm
Construction, e.g. 25um:
GL-GS25 | GL-GS25-A | GL-GS25-AP |
PET tape | ||
Graphite sheet | Graphite sheet | |
Graphite sheet | 2-sided adhesive | 2-sided adhesive |
Release film | Release film | Release film |
Parameters of synthetic graphite sheet
Item No. | GL-SG17 | GL-SG25 | GL-SG32 | GL-SG40 | GL-SG50 | GL-SG70 | GL-SG100 |
Thickness | 17um | 25um | 32um | 40um | 50um | 70um | 100um |
Thermal conductivity | 1600~1800 | 1500~1700 | 1400~1600 | 1300~1500 | 1200~1400 | 1100~1300 | 800~1000 |
In-plane Thermal Diffusivity (mm²/s) | 920~1030 | 930~1010 | 860~980 | 790~910 | 840~960 | 770~890 | 610~770 |
Density (g/cm³) | 2.1±0.1 | 2.05±0.10 | 2.00±0.1 | 1.90±0.1 | 1.85±0.1 | 1.80±0.1 | 1.60±0.1 |
Heat capacity (J/g/K) | 0.87±0.01 | 0.87±0.01 | 0.87±0.01 | 0.87±0.01 | 0.87±0.01 | 0.87±0.01 | 0.87±0.01 |
Operation temperature (℃) | -40~400 | -40~400 | -40~400 | -40~400 | -40~400 | -40~400 | -40~400 |
Bending (angle180, R5) | 50000 | 50000 | 50000 | 50000 | 50000 | 20000 | 20000 |
Parameters of natural graphite sheet
Item No. | GL-NG30 | GL-NG50 | GL-NG80 | GL-NG100 | GL-NG130 | GL-NG150 |
Thickness | 0.03mm | 0.05mm | 0.08mm | 0.1mm | 0.13mm | 0.15mm |
Thermal conductivity | 400-500 | 400-500 | 350-450 | 300-400 | 300-400 | 250-350 |
Thermal Resistance @100pis (℃-in²/w) | 0.07 | 0.08 | 0.09 | 0.1 | 0.16 | 0.2 |
Density (g/cm³) | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 |
Item No. | GL-NG200 | GL-NG300 | GL-NG500 | GL-NG800 | GL-NG1000 | GL-NG2000 |
Thickness | 0.2mm | 0.3mm | 0.5mm | 0.8mm | 1mm | 2mm |
Thermal conductivity | 250-350 | 250-350 | 200-300 | 200-300 | 150-250 | 100-200 |
Thermal Resistance @100pis (℃-in²/w) | 0.25 | 0.3 | 0.37 | 0.5 | 0.6 | 0.77 |
Density (g/cm³) | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.0±0.1 | 1.0±0.1 | 1.0±0.1 |
Features & Benefits of graphite sheet:
Anisotropic ratio up to 300:1
Ultra-thin —the thickness can be from 0.017mm to 1.0mm
30% lighter than Aluminum and 80% lighter than Copper

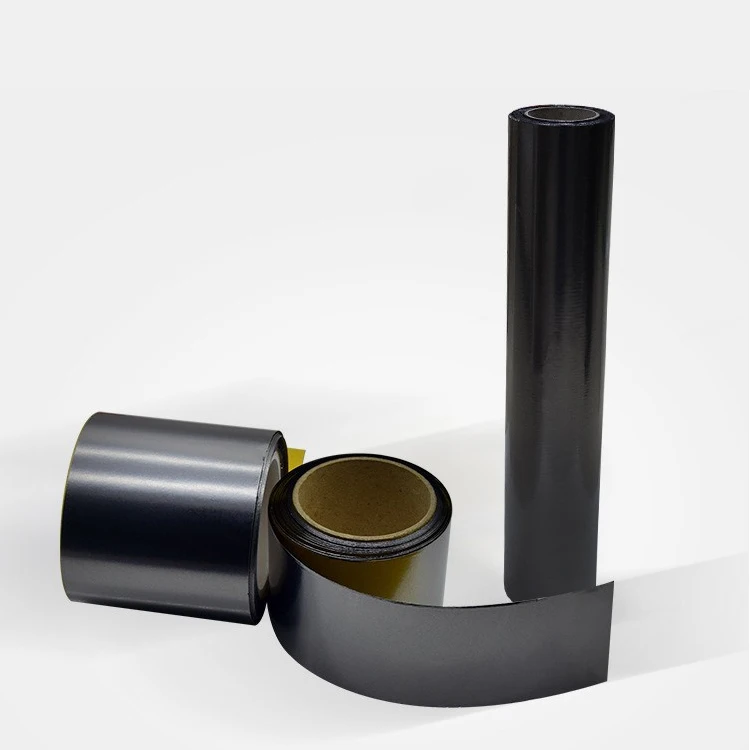

Continuous reel-to-reel format
Spreads heat up to 4x of Copper and 7x of Aluminum
Eliminates hot spots and protects temperature-sensitive components
Enables the slimmest device designs
Saves weight compared to metal alternatives
Ideal for high volume production, can be die-cut into different sizes, shapes.
Can be attached smoothly to any flat and curved surface
Ultra-thin —the thickness can be from 0.017mm to 1.0mm
30% lighter than Aluminum and 80% lighter than Copper
Continuous reel-to-reel format
Spreads heat up to 4x of Copper and 7x of Aluminum
Eliminates hot spots and protects temperature-sensitive components
Enables the slimmest device designs
Saves weight compared to metal alternatives
Ideal for high volume production, can be die-cut into different sizes, shapes.
Can be attached smoothly to any flat and curved surface

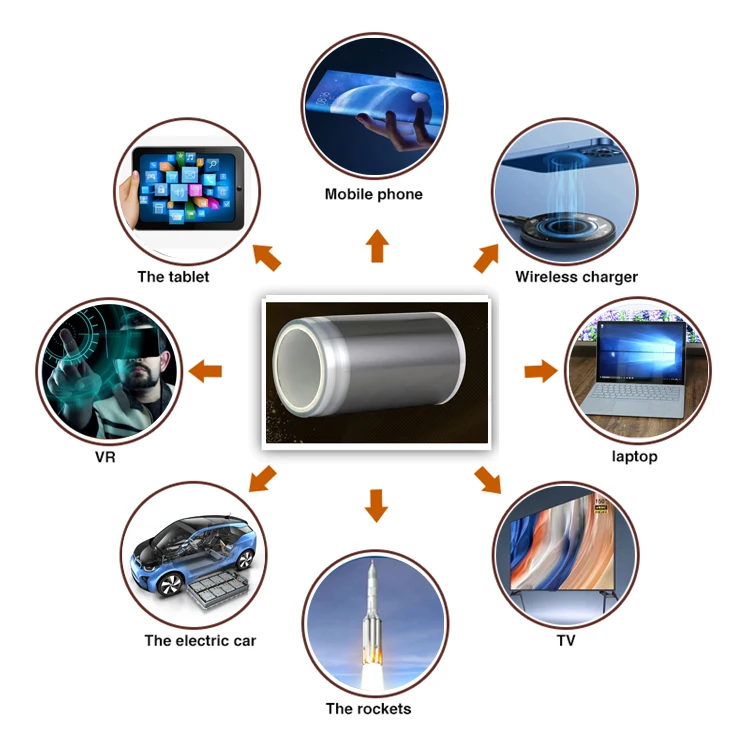

Application of graphite sheet:
Graphite sheet is ideal for a wide range of electronics applications, including smartphones, tablets, and displays, set-top boxes, enclosed electronics, and medical devices. You will also find the materials in transportation and aerospace applications such as satellites, drones, xEV, marine and grid storage batteries, and automotive electronics.
Click here for samples!
Recommend Products
Thermal pad
Areogel pad
Graphite product
Product packaging
Packaging:
1. Shockproof foam and PET film covered - protection. 2. Standard export carton or customized. 3. Marked with customer's information or customized. 4. QC department will check if the packing is strong enough.
Shipping:
1. Through express delivery, such as DHL, FEDEX, etc. It is door-to-door and usually takes 5-7days to reach its destination.
2. The flight to the airport usually takes 5-7 days.
3. Usually the transportation will take 15 to 20 days to reach the customer's factory.
1. Shockproof foam and PET film covered - protection. 2. Standard export carton or customized. 3. Marked with customer's information or customized. 4. QC department will check if the packing is strong enough.
Shipping:
1. Through express delivery, such as DHL, FEDEX, etc. It is door-to-door and usually takes 5-7days to reach its destination.
2. The flight to the airport usually takes 5-7 days.
3. Usually the transportation will take 15 to 20 days to reach the customer's factory.
FAQ
Q1: What’s the different between Natural Graphite Sheet & Synthetic Graphite Sheet?
A1: 1.Natural graphite sheet color darker than Synthetic graphite sheet.
2. Natural graphite sheet price lower than Synthetic graphite sheet.
3. Synthetic graphite sheet has less impurities and density, thermal conductivity can reach at 1900W/mK, higher than Natural graphite sheet.
4. Natural graphite sheet is softer.
Q2: Do you provide samples?
A1: 1.Natural graphite sheet color darker than Synthetic graphite sheet.
2. Natural graphite sheet price lower than Synthetic graphite sheet.
3. Synthetic graphite sheet has less impurities and density, thermal conductivity can reach at 1900W/mK, higher than Natural graphite sheet.
4. Natural graphite sheet is softer.
Q2: Do you provide samples?
A2: Yes, we do, and could delivery in 24 hours after confirmation for stock. And we can offer free samples. Just please pay the shipping fee.
Q3: Do you have MOQ?
Q3: Do you have MOQ?
A3: No MOQ for the standard product.
Q4: What is the lead time for mass production?
Q4: What is the lead time for mass production?
A4: The lead time of mass production is about 5 - 7 days.
Accurate delivery date depends on the quantity and season.
Q5: Can you provide finished product processing service?
Accurate delivery date depends on the quantity and season.
Q5: Can you provide finished product processing service?
A5: Yes, we can provide the finished product after die-cutting.
