Характеристики

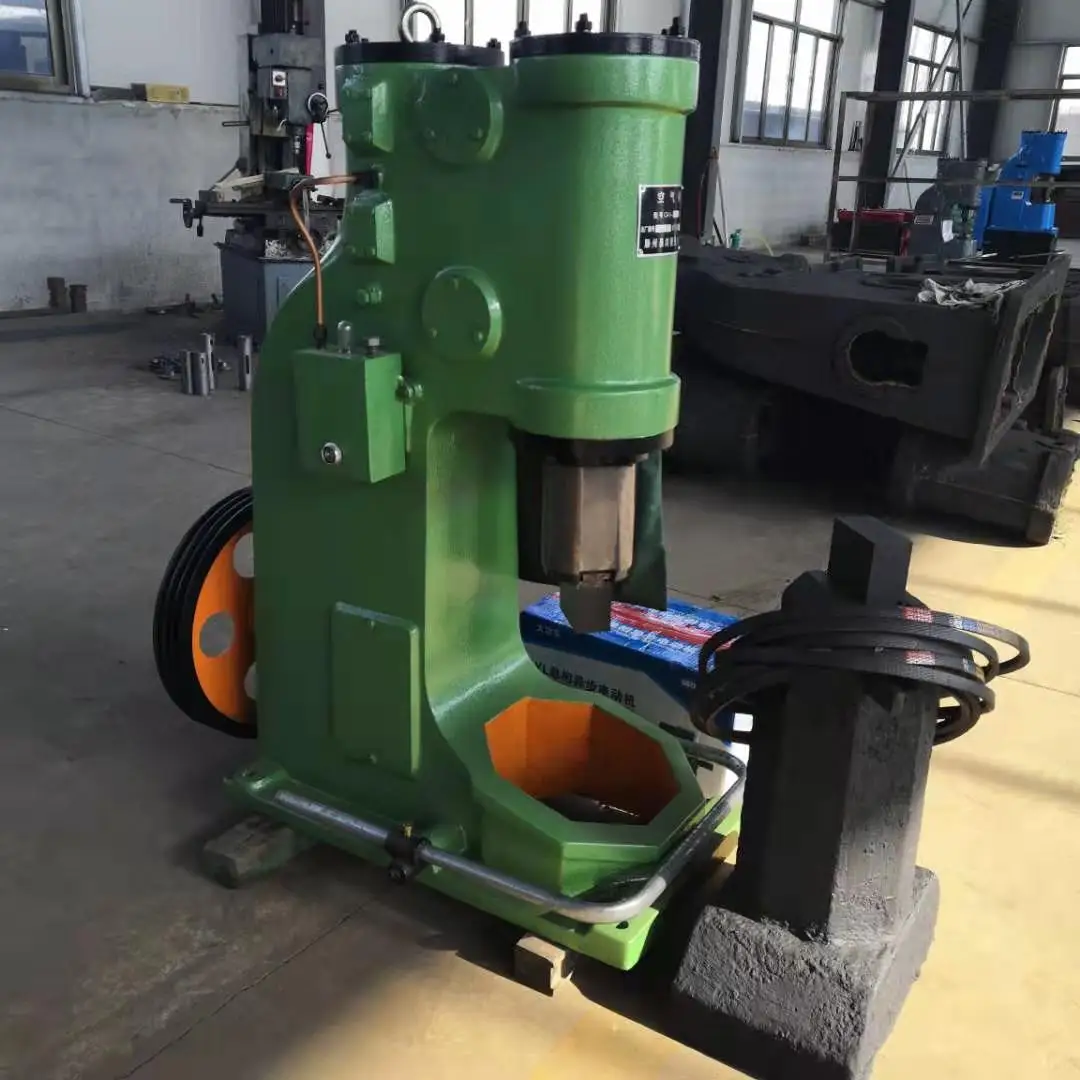

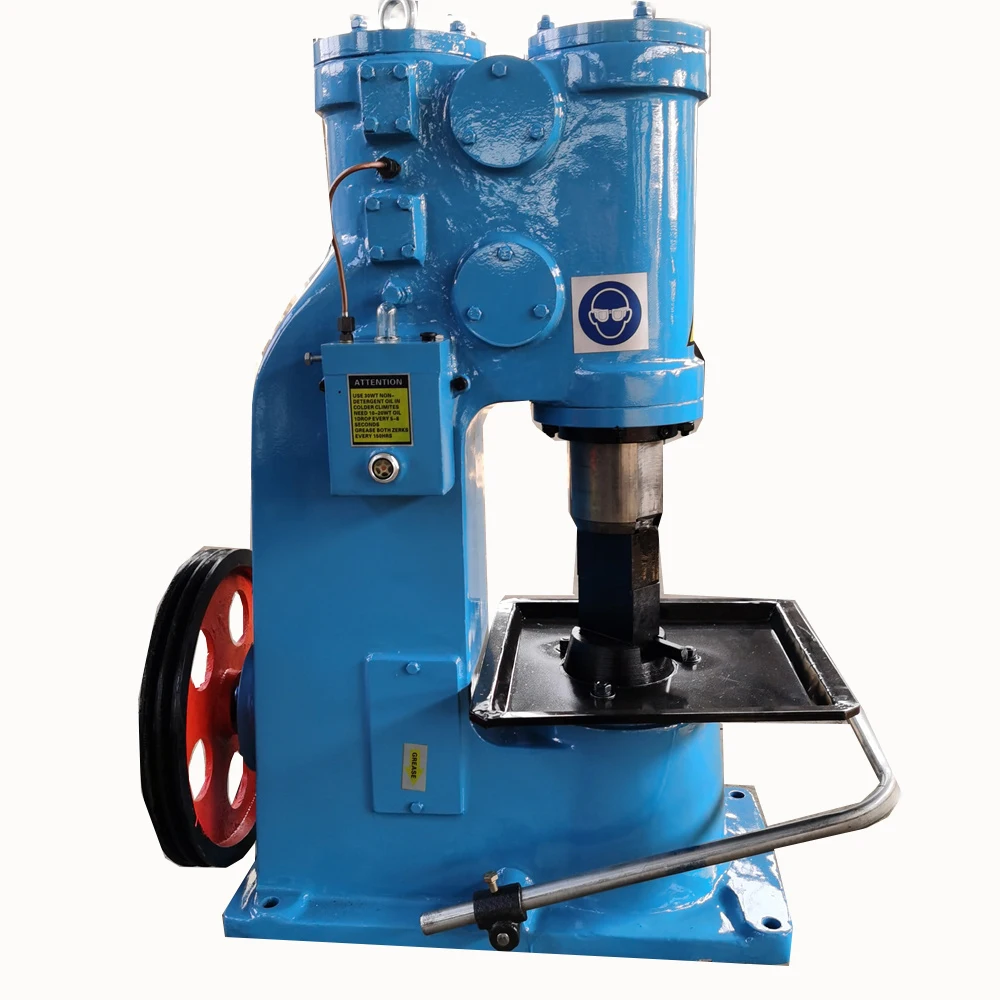

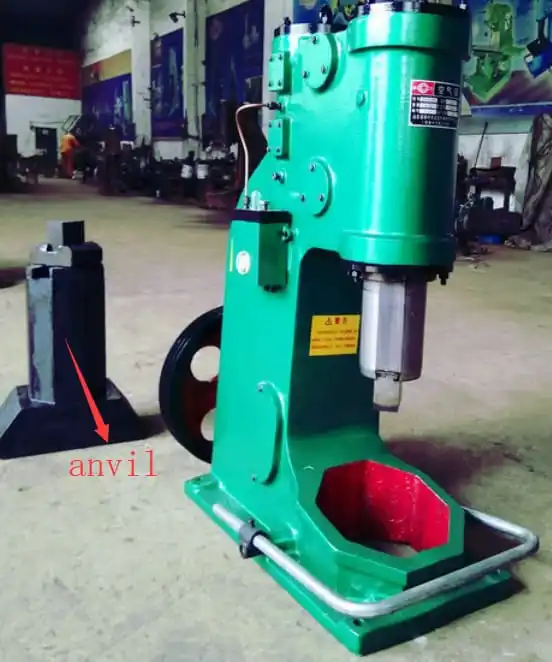

China Hydraulic Air Hammer C41-25KG Split Blacksmith Air Hammer 25KG Forging Casting Equipment
Product Description
Feature
Smallflembodi, Istokarian Dmov
Resona Pur Tur Andrees Noyce, Isto Operat
Repulas Hammer Butterfly, Fettofuchis Mohr Walker Picche
Stabul Finktionand, Durabul Freim
Main feature
1. The air hammer is used for forging and shaping work pieces
2. The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 75KG
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and twisting
5. It is also used for forging in bolster dies
C41 25kg/40kg/65kg/75kg Pneumatic Hammer Power Hammer Forging Hammer
Blacksmith forging hammer introduction: It is a kind of free forging equipment. The air is compressed by the compressor cylinder and sent to the working cylinder through the distribution valve to drive the piston and the hammer head to move up and down for hammering. The operation is flexible. This model is suitable for various free forging, such as extension, upsetting, punching, shearing, forging welding, torsion, bending, etc. It can be used for various open die forging. The characteristics are as follows:
1. Driven by compressed air, the striking force and frequency can be controlled by adjusting the air pressure to meet the needs of safety production
2. The machine body is made of cast iron, and the large tonnage air hammer anvil is made of cast steel
3. The mechanism is simple and not easy to be damaged
Model | C41-16KG | C41-20KG | C41-25KG | C41-40KG | C41-55KG |
Weight of failling parts(KG) | 16 | 20 | 25 | 40 | 55 |
Max.hit energy(KJ) | 0.18 | 0.22 | 0.27 | 0.53 | 0.7 |
Height of working area(mm) | 180 | 200 | 240 | 245 | 265 |
Hit number(min) | 258 | 255 | 250 | 245 | 230 |
Dimension of top and bottom die surface(LxW mm) | 70x40 | 90x50 | 100x50 | 120x50 | 120x55 |
Max. square steel can be forged(Diameter mm) | 20x20 | 30x30 | 40x40 | 52x52 | 52x52 |
Max. round steel can be forged(Diameter mm) | 22 | 35 | 45 | 68 | 68 |
Rate power(kw) | 1.5 | 2.2 | 3/2.2 | 4 | 5.5 |
Speed of motor(r.p.m) | 1440 | 1440 | 1440 | 1440 | 1440 |
Total weight(kg) | 240 | 380 | 560 | 880 | 1700 |
Overall dimensions(L x W x H mm) | 660x420x970 | 820x460x1110 | 980x510x1200 | 1080x600x1430 | 1320x670x1620 |
Features Of The Blacksmith Forging Power Hammer.
The pneumatic hammer is strong power, low noise, simple structure, convenient operation, flexible motion, and convenient
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
2, the air cyclinder has the lubricating device , before starting the machine , just shake the lubricating shank to lubricate.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.

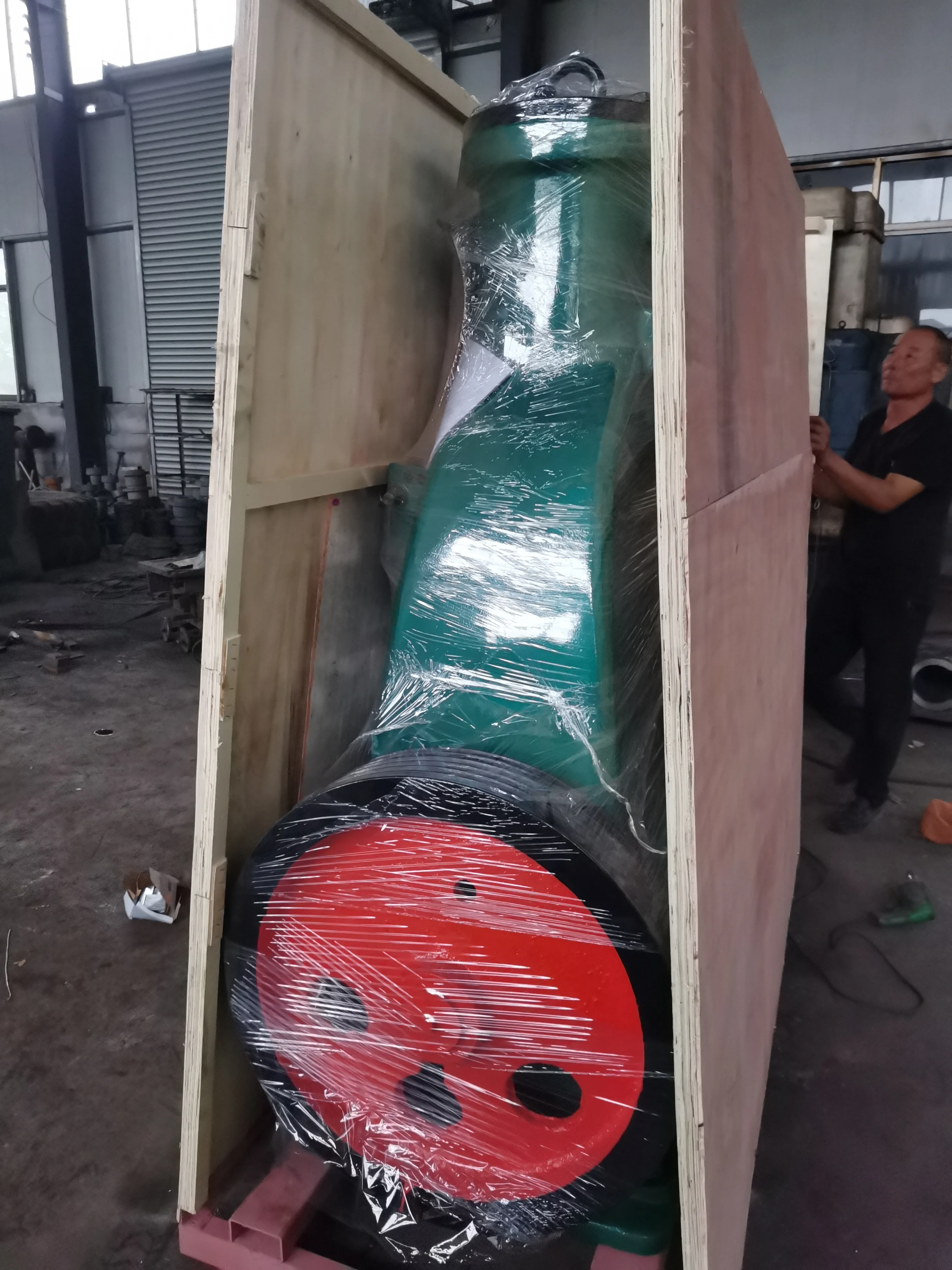

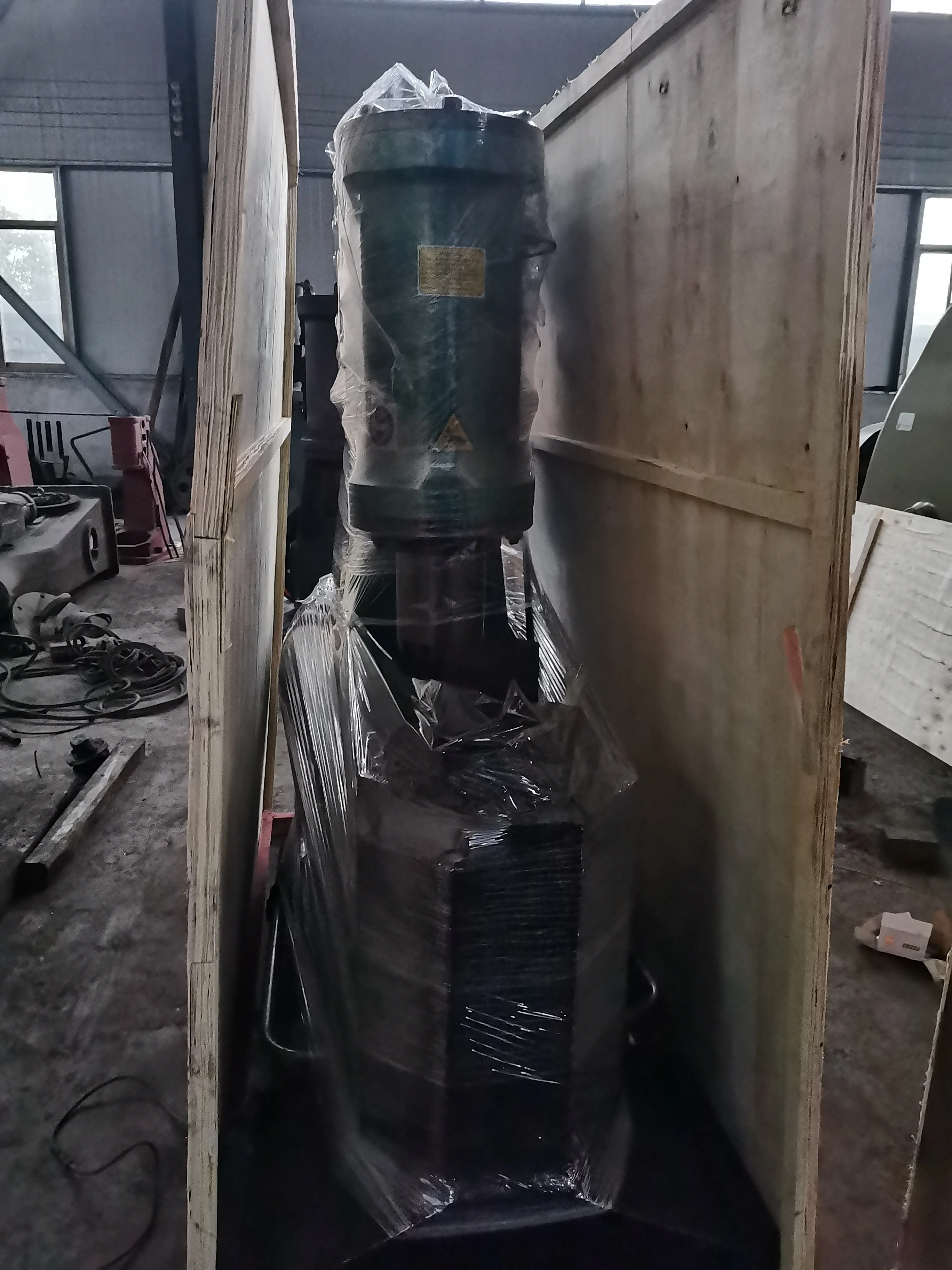

Packaging & Shipping
Tenomal Pacachiis Woodenbox (four: Louis Wilhelm Ha). Yves Expot Toyurope Ankontris, Terwood Boxwell Befo Migartde. Yves Contayna, Eastutag, Wevelus, Pefilm, Fopakin, Orpak, Itakotinto, Castomus, Pesciar, Rexter.
Company Information
Henan Fantai Machinery Equipment Co. Ltd, is a supplier of machinery.We have exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc . Our products provide customer more convenient in their business and expect to have more cooperate in future.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
