Идеальная лазерная маркировка с указанием даты логотипа VIN peen/поставщики контактных машин/Портативная маркировочная машина
- Категория: Metal Engraving Machinery >>>
- Поставщик: Perfect,Laser,(Wuhan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1269.78 $* | 1294.21 $* |
| Jul-19-2025 | 1029.4 $* | 1050.83 $* |
| Jun-19-2025 | 1249.89 $* | 1274.41 $* |
| May-19-2025 | 1239.58 $* | 1264.80 $* |
| Apr-19-2025 | 989.98 $* | 1009.82 $* |
| Mar-19-2025 | 1219.97 $* | 1243.7 $* |
| Feb-19-2025 | 1209.91 $* | 1233.48 $* |
| Jan-19-2025 | 1199.54 $* | 1223.52 $* |
Характеристики

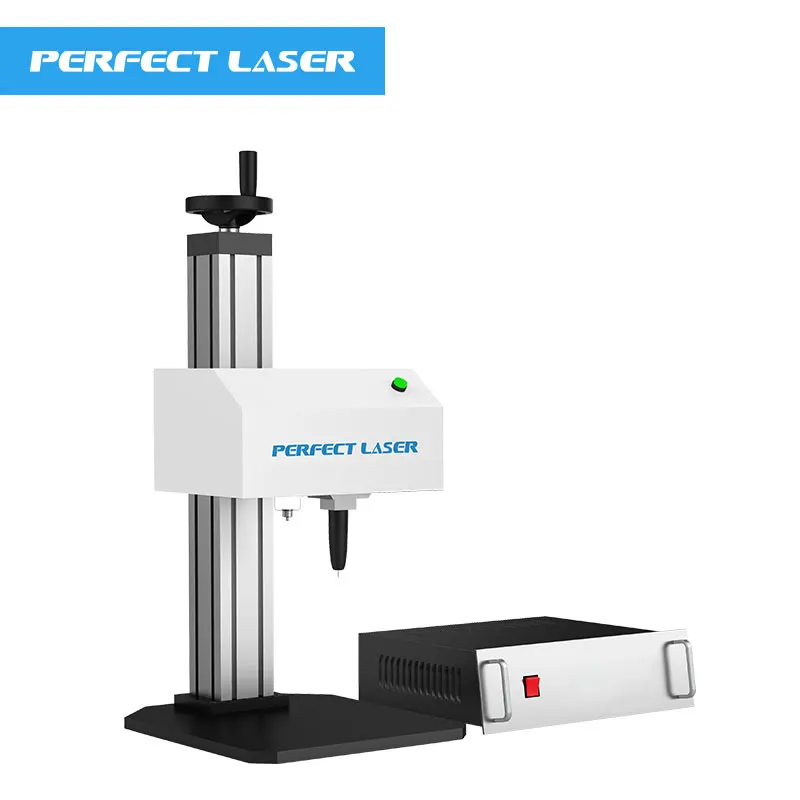

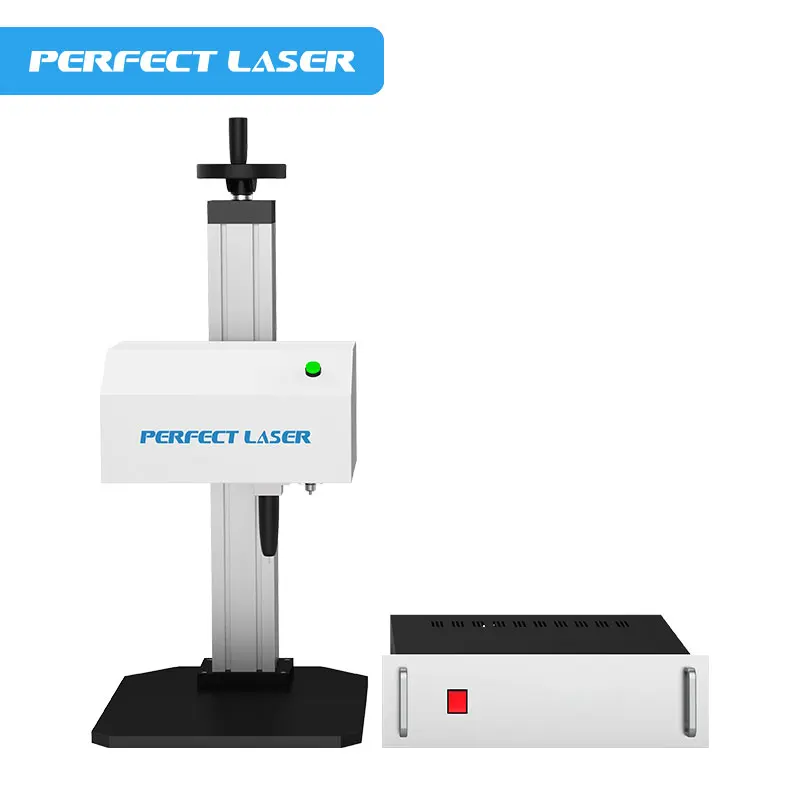

Perfect Laser- numbers date logo VIN peen marking/pin machine suppliers/portable marking machine for steel
(Model:PEQD-100）
Contact: Sara Wechat/Whatsapp: +8613971657490 Email :sales021(@)perfectlaser.net
Product Description
Perfect Laser peen marking machine, our PEQD-100 dot peen marking machine is suitable for flat marking on metals and some hard plastics . The dot peen marking machine is an industrial marking machine which can make permanently logo，letters，numbers，graph and date on workpiece with direct part marking.
Main Features:
1.The peen marking machine enables flat surface marking of the metal and hard plastic work piece.2.The direct part mark use of the currently used lifting structure to achieve the multi-function machine.
3.The portable marking machine for steel editing function is very powerful, not only can automatically mark logos, characters and letters but also identify VIN codes, graphics and engine numbers.
4. Can support DXF format design logos and graphics.
5.pin machine suppliers can support multiple fonts such as MG fonts, SHX fonts and TTF.
6.Automatically save the contents of the mark to prevent damage caused by power failure of the machine.
7.Rotary fixture is an optional item available for you.
Application

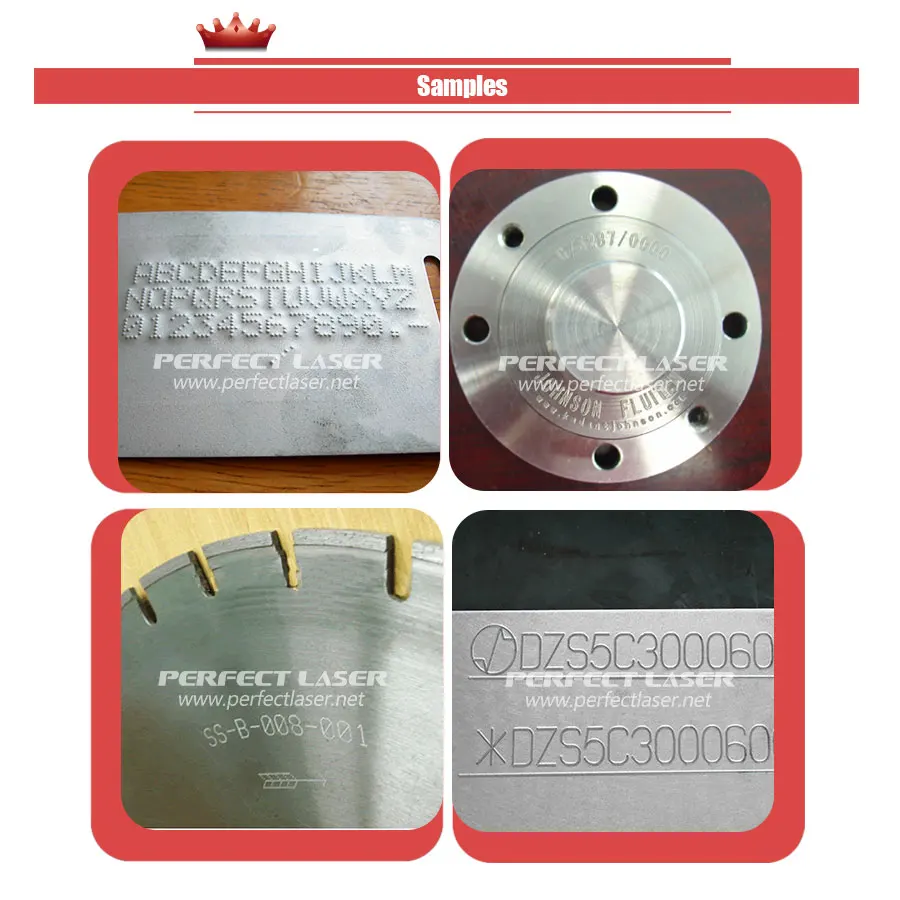

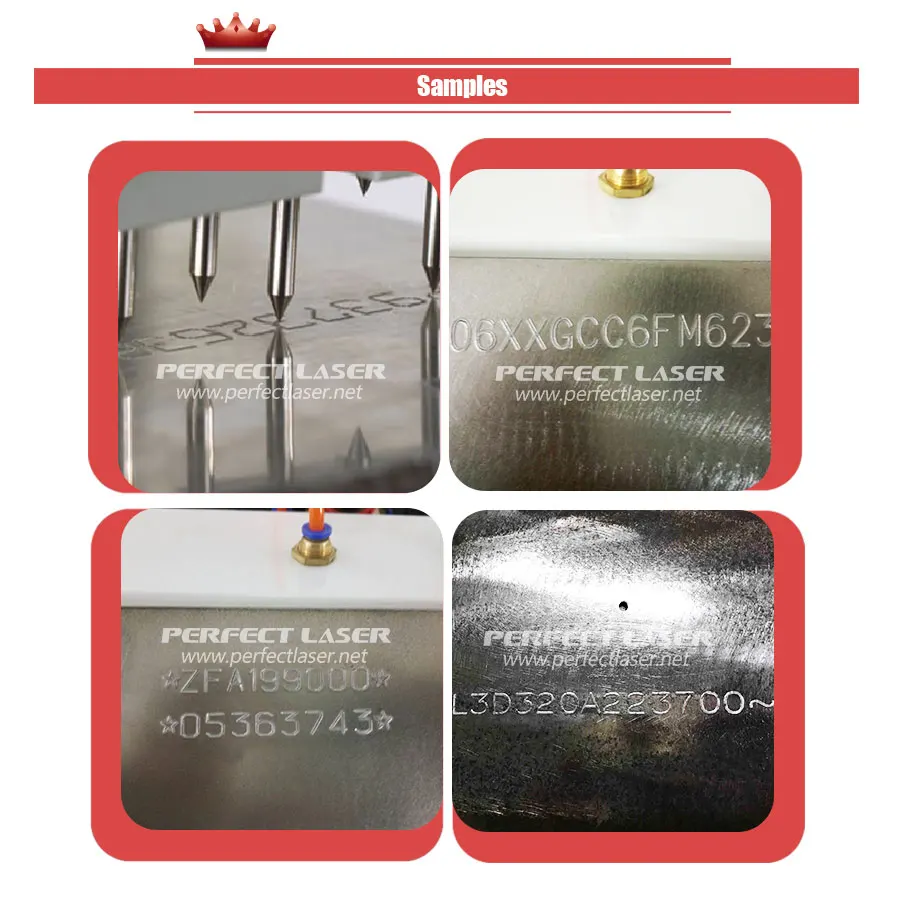

peen marking Can be used for connecting rods, engines, various mechanical parts, machine tools, hardware products, various metal signs, metal pipe fittings, gears, pumps, valves, solid parts and a variety of hard plastic products surface numbering, name, trademark logo etc.
Machine Details
Technical Data

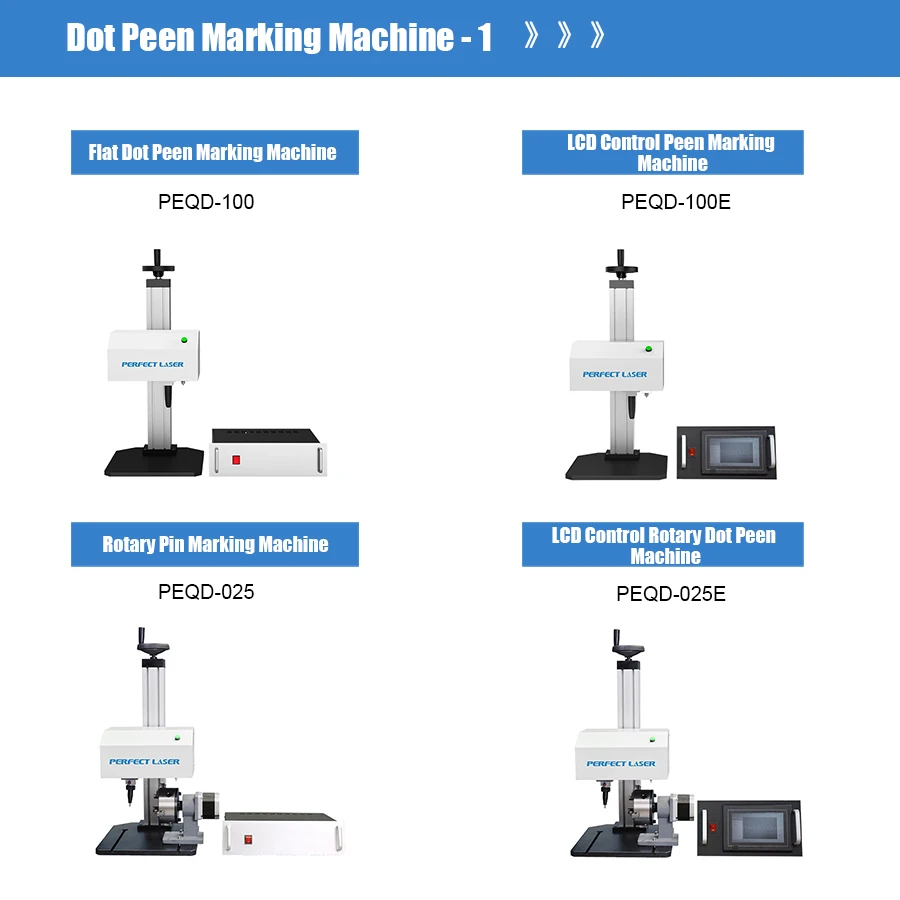

Description | Dot Peen Marking Machine | ||||||||
Model | PEQD-100 | PEQD-025 | PEQD-030 | ||||||
Machine Type | Flat Marking | Flat + Rotary Marking | Portable Type | ||||||
Rotary Function | No | Yes | No | ||||||
Chuck Diameter (Standard) | - | 125mm | - | ||||||
Chuck Diameter (Optional) | - | 160mm/200mm/300mm | |||||||
Working Area | 150×100mm/300×200mm/ 400×300mm/200×100mm | 135×20mm/125×20mm 90×20mm/150×100mm 200×100mm | |||||||
Marking Accuracy | 0.01 mm | ||||||||
Marking Depth | 0.01~2mm | ||||||||
Marking Speed | ≤50mm/s (for 3mm letter height/ 3-4 numbers/second) | ||||||||
Lifting Range | 0-300 mm | ||||||||
Machine Power | ≤400 W | ||||||||
Pin Hardness | HRC 92 | ||||||||
Power Supply | 220V±10％, 50HZ | ||||||||
Air Pressure | 0.2-0.6 Mpa | ||||||||
Working Environment | -5～40 ℃ | ||||||||
Whole Machine Weight | 60 Kgs | 70 kgs | 25 kgs | ||||||
Related Product
Packing and Delivery
Our service
Company Introduction
Perfect laser is an industrial laser and cnc equipment manufacturer since 1995, our machine has been exported to more than 180 countries and regions. Due to our machines' reliable quality and affordable price, we have been certified by European CE, ISO9001:2000 quality system.
