Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
HW настраиваемый горячая Распродажа 8 0 мм медное покрытие алюминиево-магниевый провод
- Категория: Control Cables >>>
- Поставщик: Jiangsu,Huawang,Advanced,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.57 $* | 0.58 $* |
| Aug-15-2025 | 0.39 $* | 0.33 $* |
| Jul-15-2025 | 0.81 $* | 0.97 $* |
| Jun-15-2025 | 0.6 $* | 0.14 $* |
| May-15-2025 | 0.86 $* | 0.37 $* |
| Apr-15-2025 | 0.47 $* | 0.4 $* |
| Mar-15-2025 | 0.86 $* | 0.56 $* |
| Feb-15-2025 | 0.49 $* | 0.59 $* |
| Jan-15-2025 | 0.25 $* | 0.59 $* |
Характеристики
Company Profile
Products Description

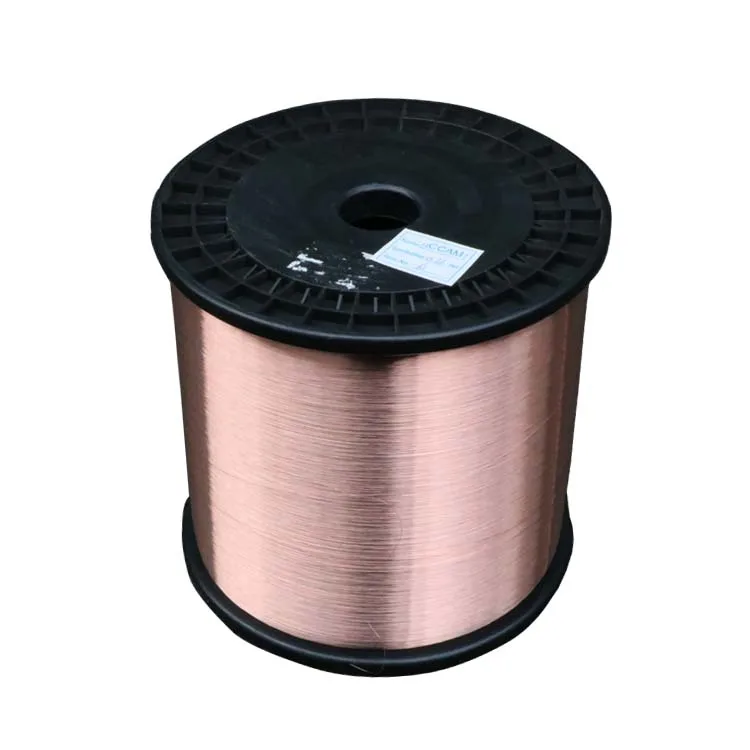

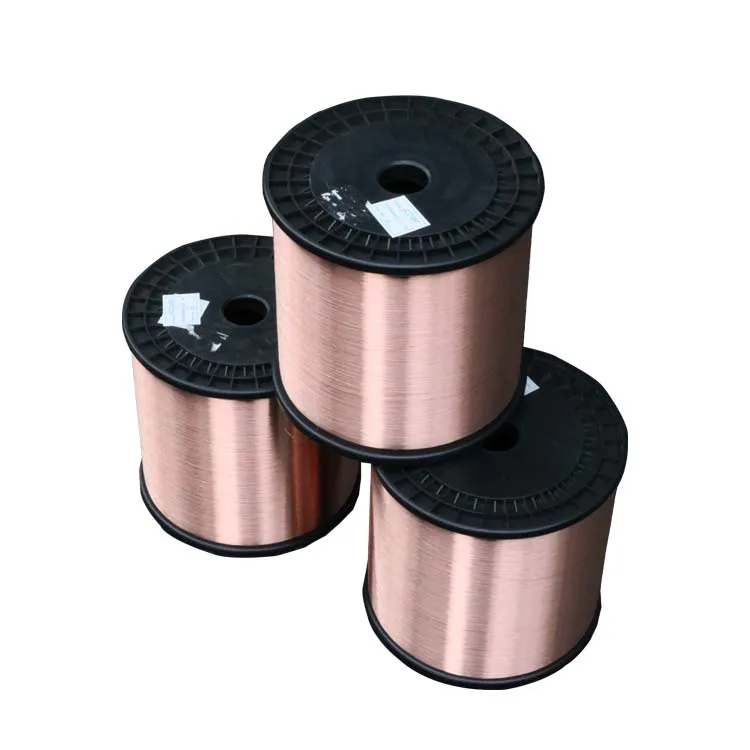

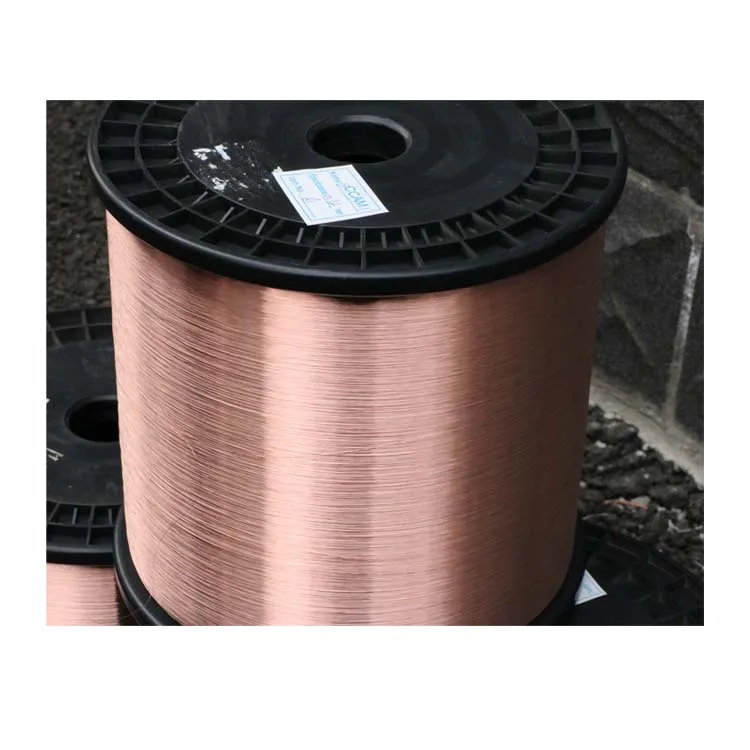

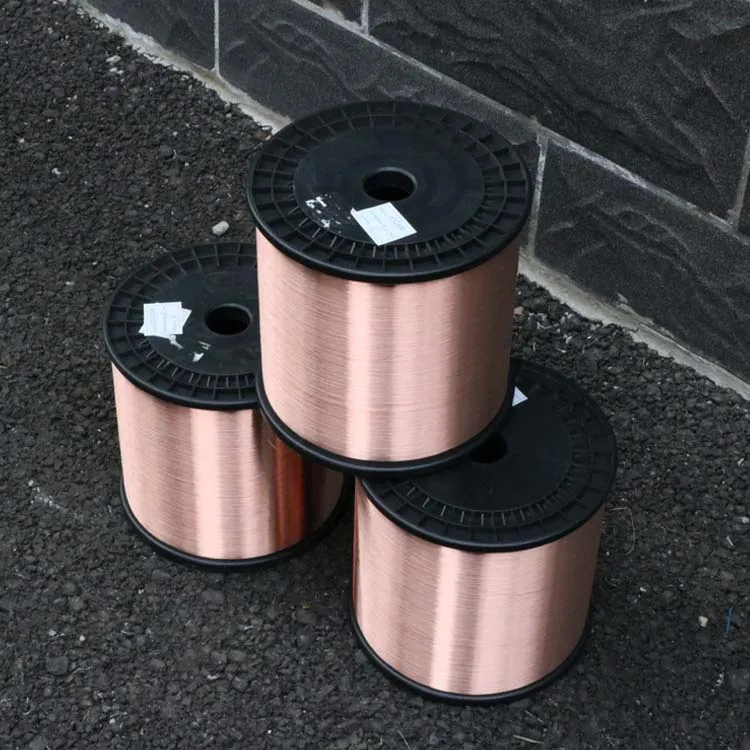

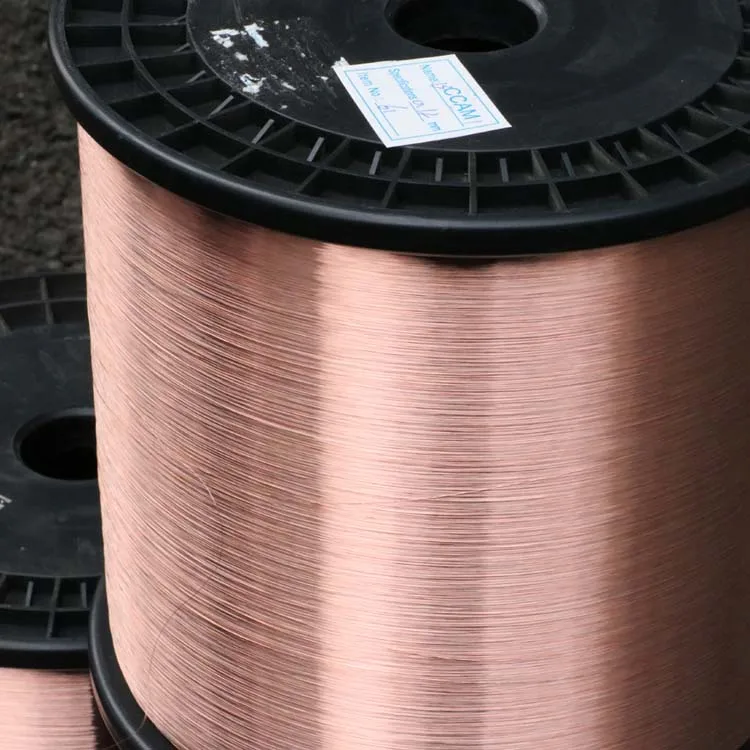

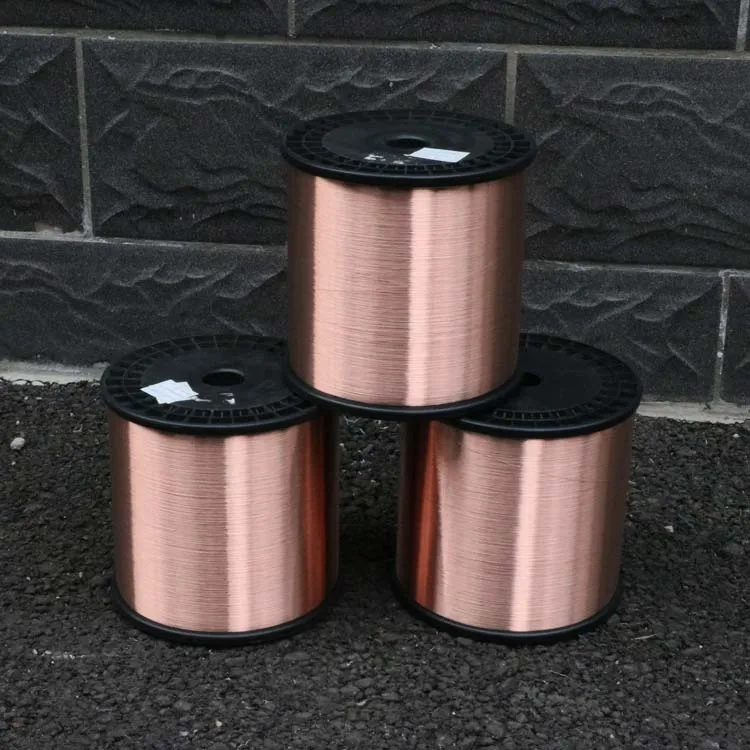

CCAM [ Copper Clad Aluminum Magnesium ] Wire
Diameter Specification: 0.08mm -8.00mm
Our CCAM wire used the most advanced welding and copper plating process to produce, copper layer used 99.9% purity copper with high density and better conductivity, and ours metallurgical bonding echnique assures that the copper cladding is evenly distributed around the Aluminum magnesium coil along the wire for excellent concentricity, Mechanical properties accord with US ASTM B566-93 Standard.
Our company developed the second generation of CCAM wire is made of high strength of aluminum magnesium core, copper layer is made of pure copper, light weight but boasts higher intensity of 180-250 Mpa， and the density is only 2.85g/cm3 the second generation CCAM is 30% longer than its first genera tion CCAM competitor of the same weight Buyer can take 30% cost reduction of using ours second generation CCAM, at the same time overcome the low-intensity antecedent that breaks easily. Annual output is more than 15 thousand tons.
Our company developed the second generation of CCAM wire is made of high strength of aluminum magnesium core, copper layer is made of pure copper, light weight but boasts higher intensity of 180-250 Mpa， and the density is only 2.85g/cm3 the second generation CCAM is 30% longer than its first genera tion CCAM competitor of the same weight Buyer can take 30% cost reduction of using ours second generation CCAM, at the same time overcome the low-intensity antecedent that breaks easily. Annual output is more than 15 thousand tons.
Technical Parameters
Technical Characteristics | CCAM wire | |||||||||
Clad type | Plated type | |||||||||
15H | 10A | 15A | 15A | |||||||
Size range (mm) | 0.08-8.00 | 0.15-8.0 | 0.08-8.00 | 0.08-8.0 | 0.10-6.0 | |||||
Copper content (% by weight) | 35-40 | 22.5-31 | 35-40 | 32-40 | 6-15 | |||||
Tensile Strength (Mpa) | ≥220 | 110-172 | ≥150 | 110-172 | 180-250 | |||||
Elongation （%） | 1 | 10 | ≥5 | 10 | ≥5 | |||||
Conductivity （%） | ≥55 | ≥64 | ≥55 | ≥66.5 | ≥33.4 | |||||
DC resistivity （Ω.mm²/m） | ≤0.030859 | ≤0.0268 | ≤0.030859 | ≤0.0260 | ≤0.0515 | |||||
Density （g/cm³） | 3.63±0.1 | 3.3±0.1 | 3.63±0.1 | 3.63±0.1 | 2.76-2.93 | |||||
Products can be customized according to special requirements. | ||||||||||
Application
High-frequency signal transmission
1.The preferred cable TV coaxial cable conductor material;
2.50Ω RF cable conductor material;
3.Telephone lines, electronic wire, computer printing line network cable USB and other data cables;
4.Micro coaxial cable inner conductor material;
5.Audio and video cable;
6.Power transmission;
7.Power cable conductor material;
8.Control cable inner conductor;
9.Cars, locomotives dedicated cable inner conductor；
10.Architectural the cloth wire conductor material；
1.The preferred cable TV coaxial cable conductor material;
2.50Ω RF cable conductor material;
3.Telephone lines, electronic wire, computer printing line network cable USB and other data cables;
4.Micro coaxial cable inner conductor material;
5.Audio and video cable;
6.Power transmission;
7.Power cable conductor material;
8.Control cable inner conductor;
9.Cars, locomotives dedicated cable inner conductor；
10.Architectural the cloth wire conductor material；
Packing And Shipping
Spool size of Normal Package
DIN 130，DIN 160，DIN 185，DIN200，DIN250，DIN400，DIN 500，DIN630，DIN 780;
Certifications
Exhibition
Why Choose Us
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team ?
A2: Yes, we can customize products as your requirements.
Q3: Do you provide free samples ?
A3: Yes, we provide free sample for weight within 1Kg. Customer need to take the international express freight.
Q4: How about the quality ?
A4: We have the best professional engineer and strict QA and QC system.
A1: We are manufacturer.
Q2: Do you have your own R&D team ?
A2: Yes, we can customize products as your requirements.
Q3: Do you provide free samples ?
A3: Yes, we provide free sample for weight within 1Kg. Customer need to take the international express freight.
Q4: How about the quality ?
A4: We have the best professional engineer and strict QA and QC system.
We have more than 17 years experience.
Q5: Can we be your distributor ?
A5: We are looking for distributor and agent all over the world.
Q6: How’s the package ?
A6: Normally are cartons, but also we can pack it according to your requirements.
Q7: How’s the delivery time ?
A7: It depends on the quantity you need, 1-25 days usually.
Q5: Can we be your distributor ?
A5: We are looking for distributor and agent all over the world.
Q6: How’s the package ?
A6: Normally are cartons, but also we can pack it according to your requirements.
Q7: How’s the delivery time ?
A7: It depends on the quantity you need, 1-25 days usually.
