Автоматический гофрокороб высечки резки резак печати печатная машина
- Категория: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Поставщик: Zhengzhou,Zomagtc,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 41650.12 $* | 43733.82 $* |
| Aug-19-2025 | 41300.2 $* | 43365.74 $* |
| Jul-19-2025 | 34650.46 $* | 36383.21 $* |
| Jun-19-2025 | 40600.68 $* | 42630.81 $* |
| May-19-2025 | 35350.43 $* | 37118.81 $* |
| Apr-19-2025 | 39900.26 $* | 41895.6 $* |
| Mar-19-2025 | 39550.82 $* | 41528.72 $* |
| Feb-19-2025 | 39200.83 $* | 41160.77 $* |
| Jan-19-2025 | 38850.85 $* | 40793.32 $* |
Характеристики
Product Description

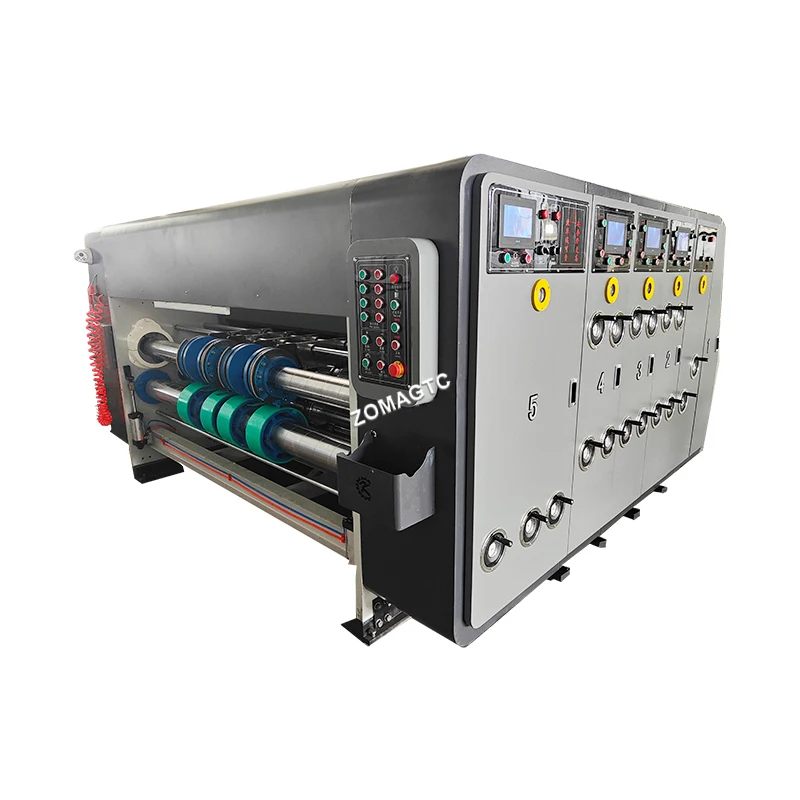

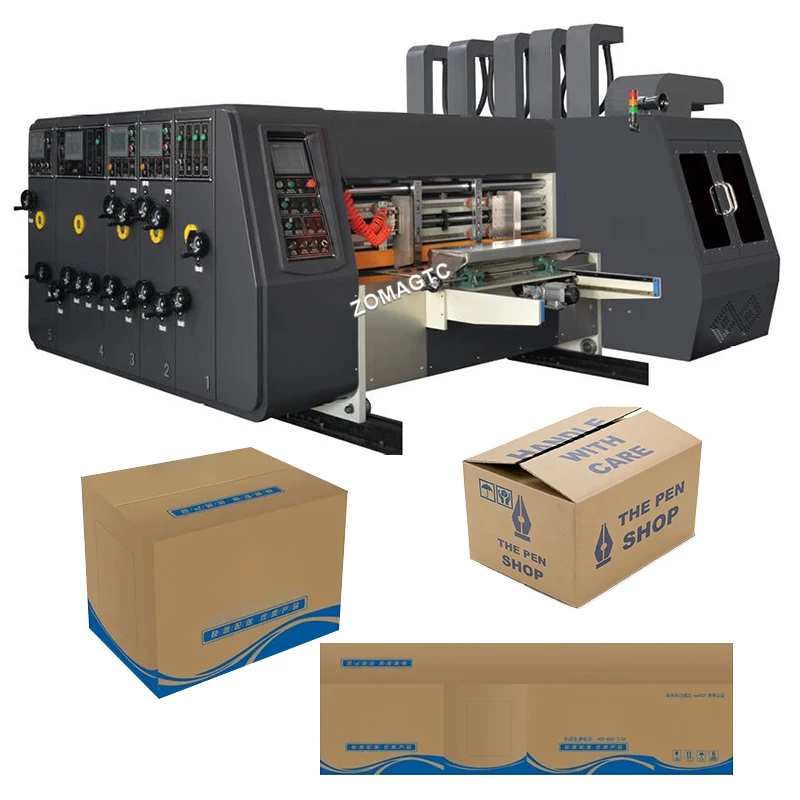

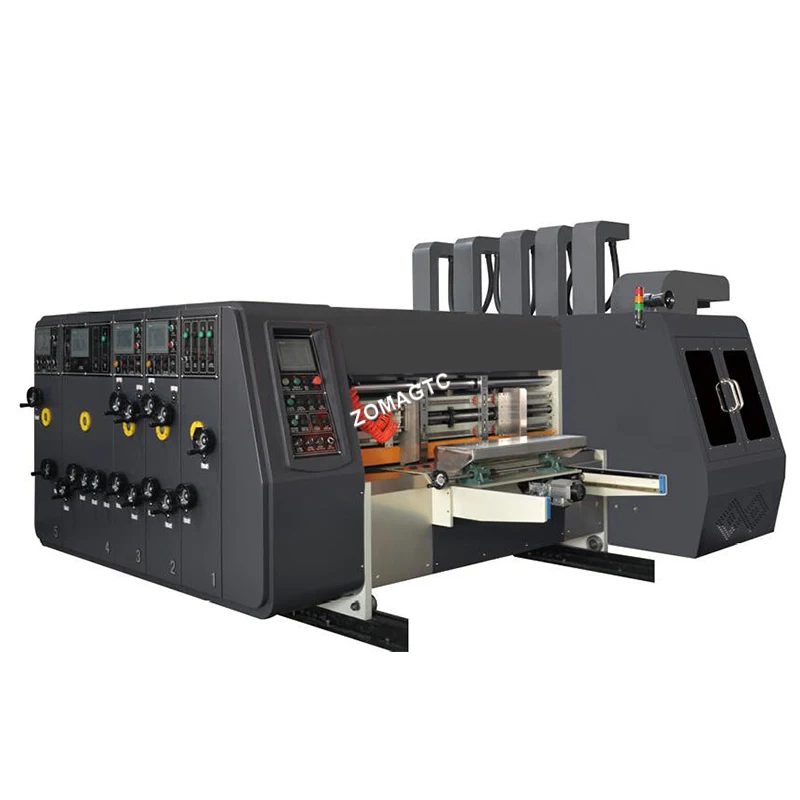

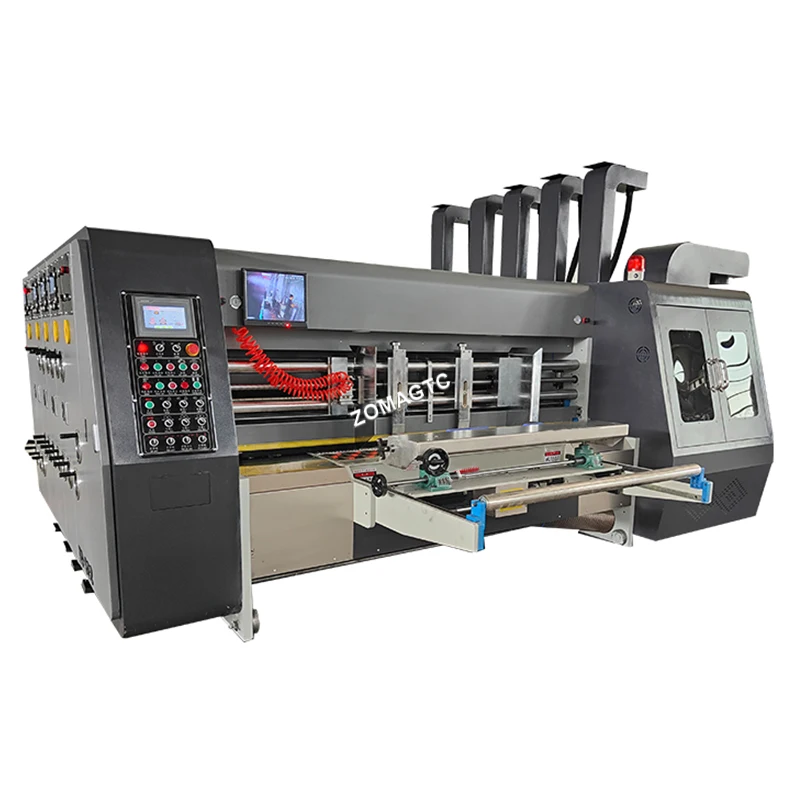

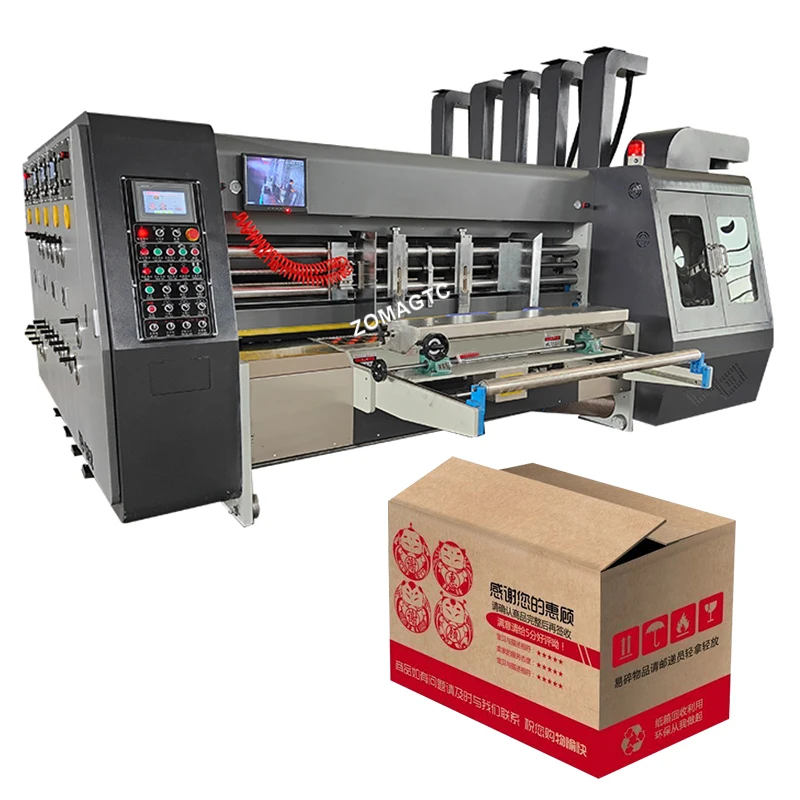

Automatic corrugated box die cut cutting cutter print printing machine corrugated box making machine
Model | Ink Corrugated Carton Printing Slotting Die-cutting Machinery |
Machine inner Width | 2000mm |
Effective printing width | 1700*1570mm |
Highest speed | 120 pieces/minute |
Economic speed | 80-120 pieces/minute |
Main motor power | 11KW |
Weight | ≈15 ton |
Printing Registration accuracy | ±0.5mm |
Slotting/die cutting accuracy | ± 1.5mm |
Automatic Double-walled Corrugated Polar Box Printing Machine Ink Corrugated Carton Printing Slotting Die-cutting Machinery
1. Printing roller (plate roller)
a. The outer diameter is ¢490 mm
b. The surface of the steel pipe is ground and plated with hard chrome.
c. Balance correction.
2. Printing pressure roller
a.outer diameter of ¢176 mm.
b.Steel pipe surface grinded, hard chrome plated.
c.Balance correction to ensure smooth running.
d.Printing pressure roller gap is adjustable manually with dial, adjustment range 4 ~ 15 mm.
3. Upper and lower paper feeding roller.
a.Upper roller: The outer diameter of the paper feed ring is ¢144 mm, with three rings.
b.Lower roller: thick-walled steel pipe with an outer diameter of ¢156 mm, surface grind, plated with hard chrome.
c.Paper feed roller gap is adjustable manually with dial, adjustment range 0 ~12 mm.
a. The outer diameter is ¢490 mm
b. The surface of the steel pipe is ground and plated with hard chrome.
c. Balance correction.
2. Printing pressure roller
a.outer diameter of ¢176 mm.
b.Steel pipe surface grinded, hard chrome plated.
c.Balance correction to ensure smooth running.
d.Printing pressure roller gap is adjustable manually with dial, adjustment range 4 ~ 15 mm.
3. Upper and lower paper feeding roller.
a.Upper roller: The outer diameter of the paper feed ring is ¢144 mm, with three rings.
b.Lower roller: thick-walled steel pipe with an outer diameter of ¢156 mm, surface grind, plated with hard chrome.
c.Paper feed roller gap is adjustable manually with dial, adjustment range 0 ~12 mm.
Recommend Products
Contact us
Packaging & Shipping
PACKAGING
Packaging Details | Stong wooden box package | ||
Port | The main ports in China, depends customers choice | ||
Lead Time | 1 pc | 35 days | |
>1 pcs | To be negotiated | ||
SHIPPING
1.By air, sea or combined transportation.
2.Express via FEDEX, TNT, UPS, DHL, EMS(AS your request)
3.Tracking Number will offer you immediately after delivery
3.Tracking Number will offer you immediately after delivery
4.Shipping cost depends on the shipping method, product quantity,weight, carton size and your area.
Company Profile
Certificate
FAQ
Q1: Are you a manufacturer ?
Yes.We are a professional manufacturer of machine for more than15 years.
Yes.We are a professional manufacturer of machine for more than15 years.
Q2:Can your machine be customized?
Yes, almost all of our products can be customized, including the sizes,color, logo, package and so on.
Q3: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
Q4:How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
Q5:What's the delivery time?
Within 15-35 days after get the payment
Q6: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service...
Q7:Does it easy to operate and what can ido if it doesn't work?
First, our machine is stable and easy to operate by one man. What you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video.we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong,you can call us video-chat email us. And we will give solutions within 36 hrs.
Q8:If the machines spare parts broken,where can I get ?
Yes, almost all of our products can be customized, including the sizes,color, logo, package and so on.
Q3: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
Q4:How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
Q5:What's the delivery time?
Within 15-35 days after get the payment
Q6: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service...
Q7:Does it easy to operate and what can ido if it doesn't work?
First, our machine is stable and easy to operate by one man. What you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video.we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong,you can call us video-chat email us. And we will give solutions within 36 hrs.
Q8:If the machines spare parts broken,where can I get ?
We will give you the spare parts which is vulnerable, and some critical parts like gear box our quality is good, in case it broken within one year ,we will sent you for free.
