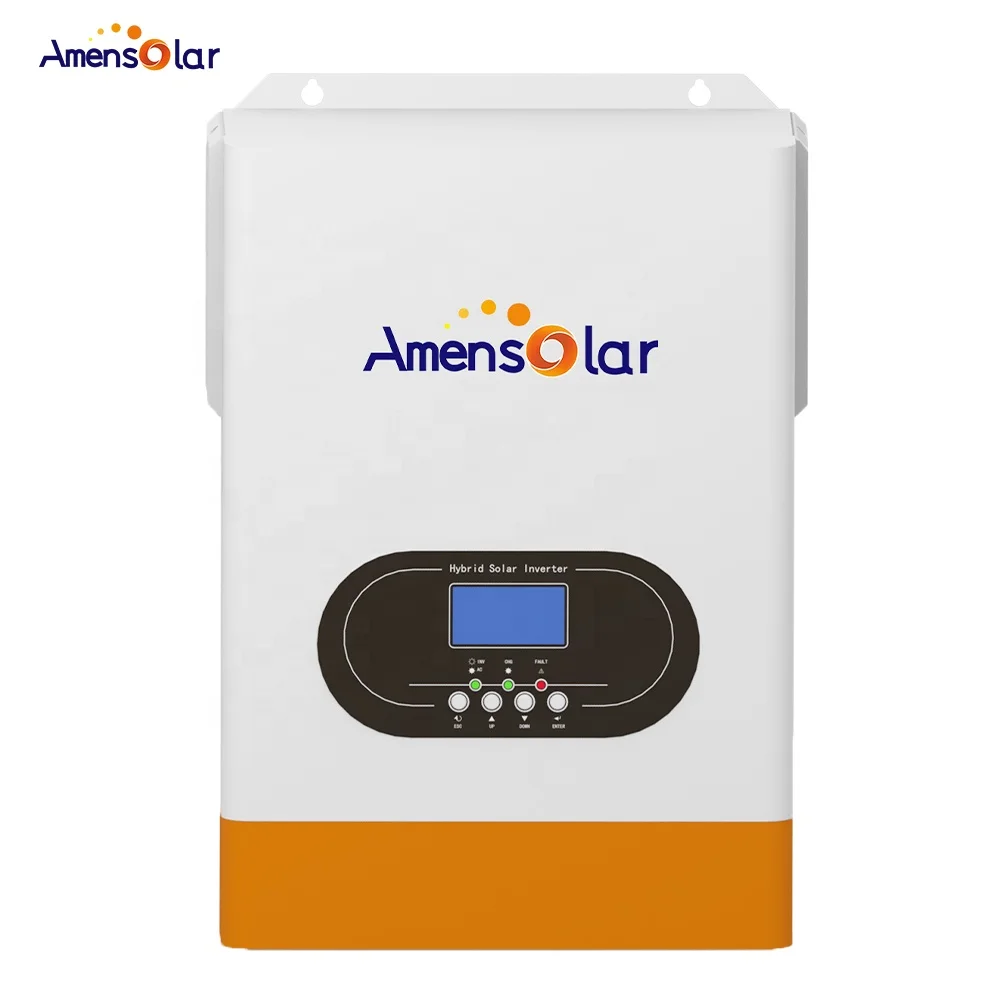

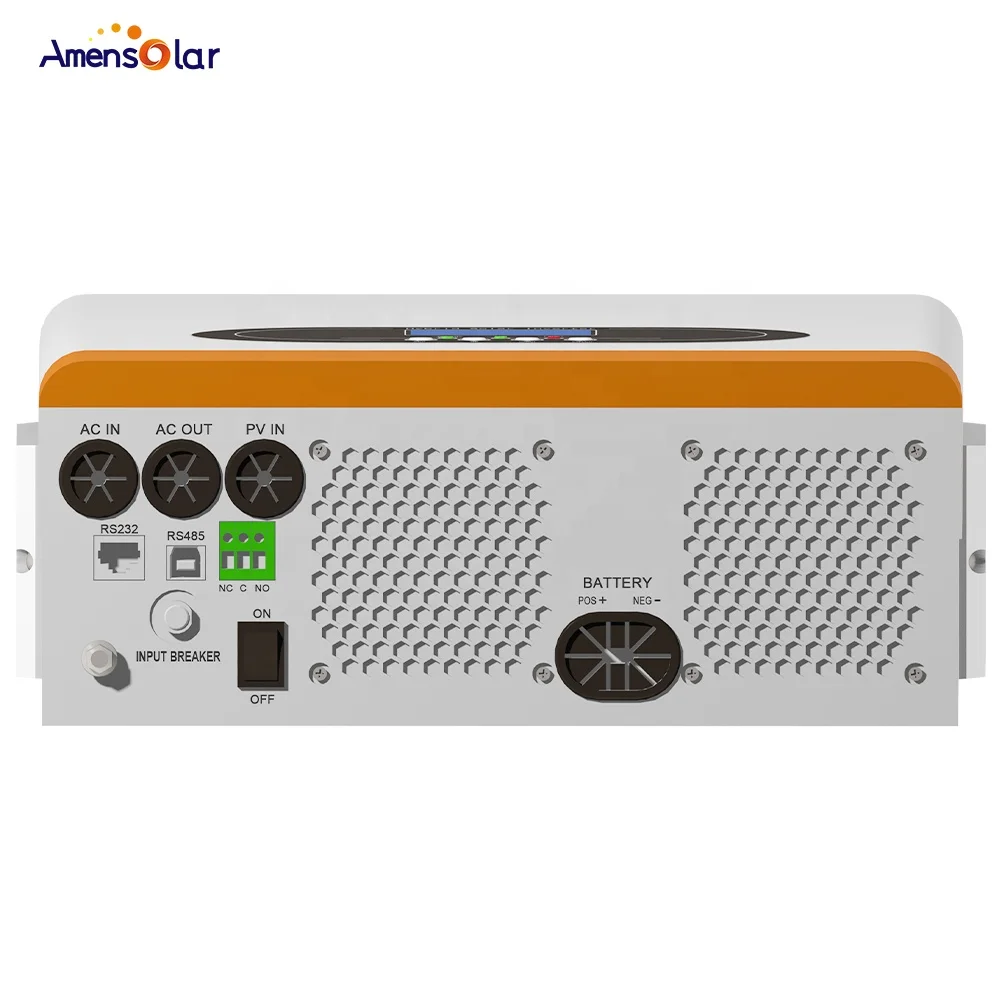

MODEL | N1F-A3.5/24 | N1F-A5.5P | ||
CAPACITY | 3.5KVA/3.5KW | 5.5KVA/5.5KW | ||
Parallel Capability | NO | YES,12 UNITS | ||
INPUT | ||||
Nominal Voltage | 230VAC | |||
Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) | |||
Frequency | 50/60 Hz(Auto sensing) | |||
OUTPUT | ||||
Nominal Voltage | 220/230VAC±5% | |||
Surge Power | 7000VA | 11000VA | ||
Frequency | 50/60HZ | |||
Waveform | Pure Sine wave | |||
Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) | |||
Peak Efficiency(PV to INV) | 96% | |||
Peak Efficiency(Battery to INV) | 93% | |||
Overload Protection | 5s@> = 150% load; 10s@110%~150% load | |||
Crest Factor | 2:01 | |||
Admissible Power FACTOR | 0.6-1 (inductive or capacitive) | |||
BATTERY | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27VDC | 54VDC | ||
OverCharge Protection | 33VDC | 63VDC | ||
Charging Method | ||||
Solar Charger & AC Charger | ||||
Solar Charger TYPE | MPPT | |||
Max.PV Array Power | 4000W | 5500W | ||
Max.PV Array Open Circuit Voltage | 500VDC | |||
PV Array MPPT Voltage Range | 120VDC-450VDC | |||
Max.Solar Input Current | 15A | 18A | ||
Max.Solar Charge Current | 100A | 100A | ||
Max.AC Charge Current | 60A | 60A | ||
Max.Charge Current | 100A | 100A | ||
PHYSICAL | ||||
Dimensions,D x W x H(mm) | 448x295x120 | |||
Package Dimensions,D x W x H(mm) | 560x375x190 | |||
Net Weight(Kg) | 9 | 10 | ||
Communication Interface | Rs 485 / USB / Rs232 / Dry-contact | |||
ENVIRONMENT | ||||
Operating Temperature Range | (-10°Cto 50°C) | |||
Storage temperature | (-15°C ~ 50°C) | |||
Humidity | 5% to 95% Relative Humidity ( Non-condensing ) |

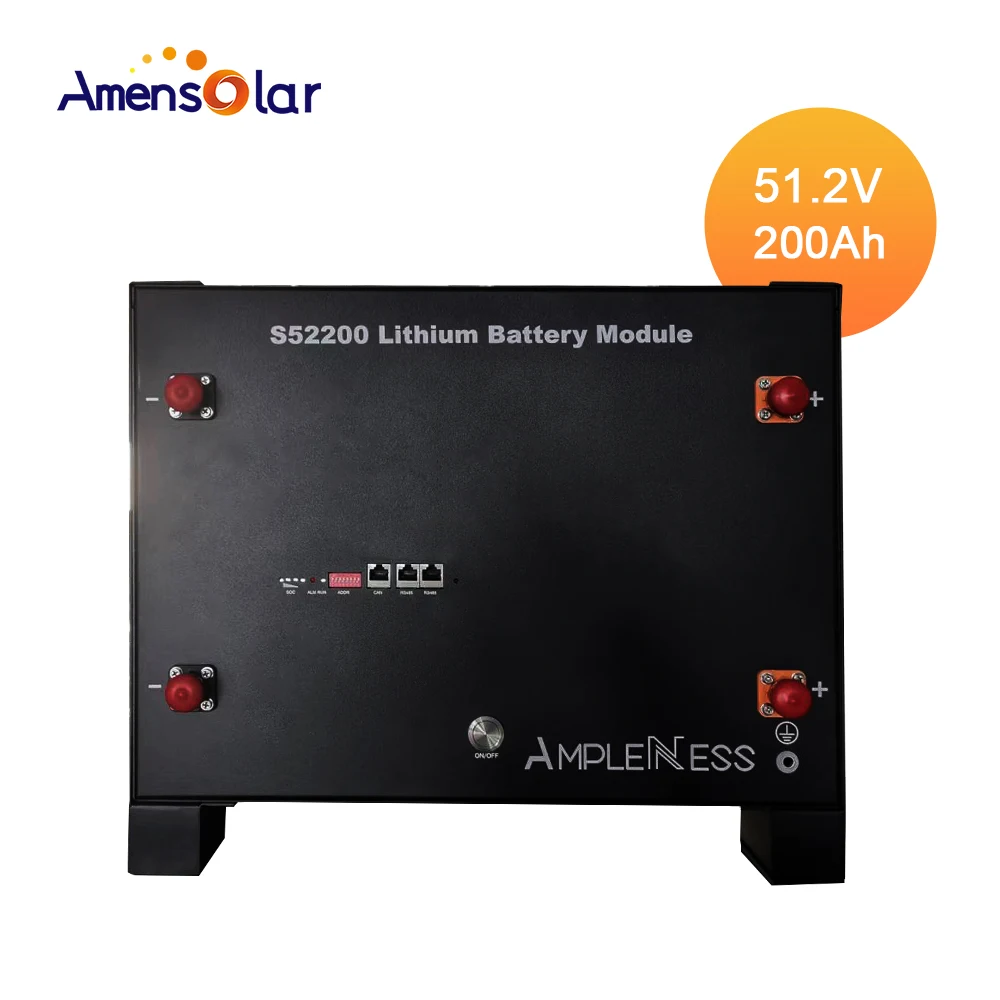

Type | S52200 Parameter | ||||||
Inverter Input (AC/DC) | Nominal Voltage | 54.4V | |||||
Input Voltage Range | 36V≤U≤60V | ||||||
Input Current | ≤100Ah | ||||||
Input Power | <6000W | ||||||
System Output (DC) | Output Voltage | 51.2V | |||||
Output Voltage Range | 44.8V<U<58.4V | ||||||
Output Power | ≤100A | ||||||
Output Overload | <6000W | ||||||
Output Overload | When the current is higher than 110A,the duration is 10S,and the protection board stops discarging. | ||||||
Short Circuit | System automatically shuts down | ||||||
Capacity Pack | 200Ah | ||||||
Protection Board Function | Overcharge,overdischarge,overcurrent,high temperature,short circuit protection,etc. | ||||||
Type of Battery Technology | Square Lithium Iron Phosphate | ||||||
Operating Temperature | Charge | 0℃-55℃ | |||||
Discharge | -10℃-55℃ | ||||||
Relative Temperature | ≤90% | ||||||
Size | 672mm(L)×489mm(W)×409.5mm(H) |
