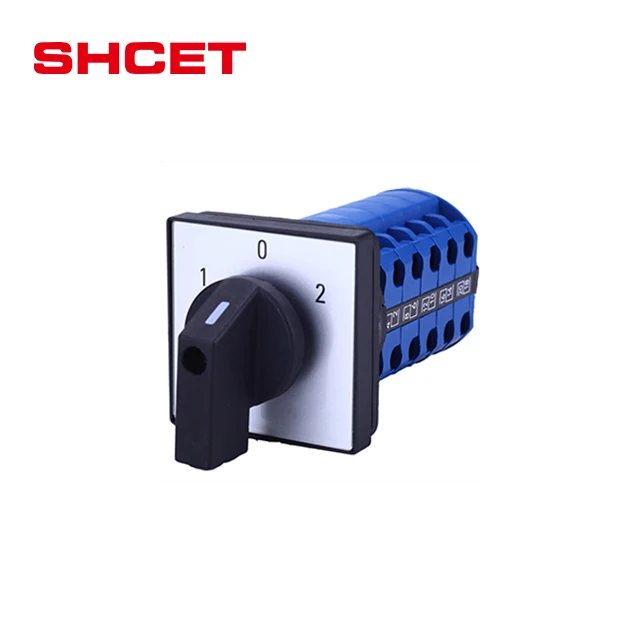

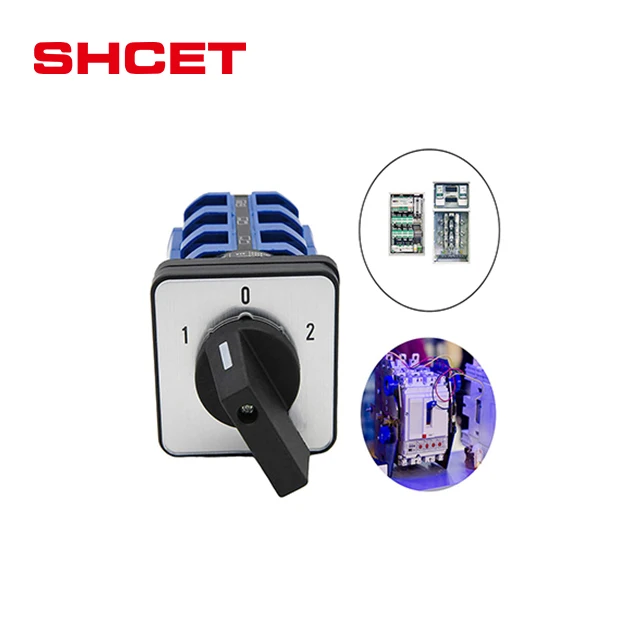

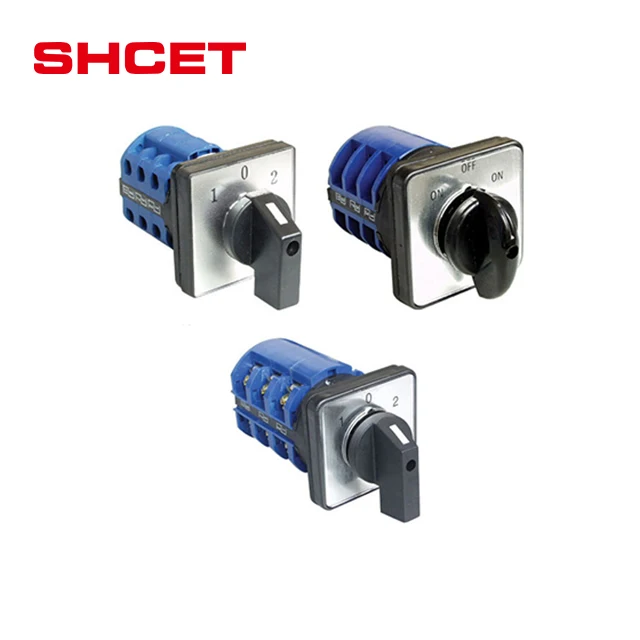

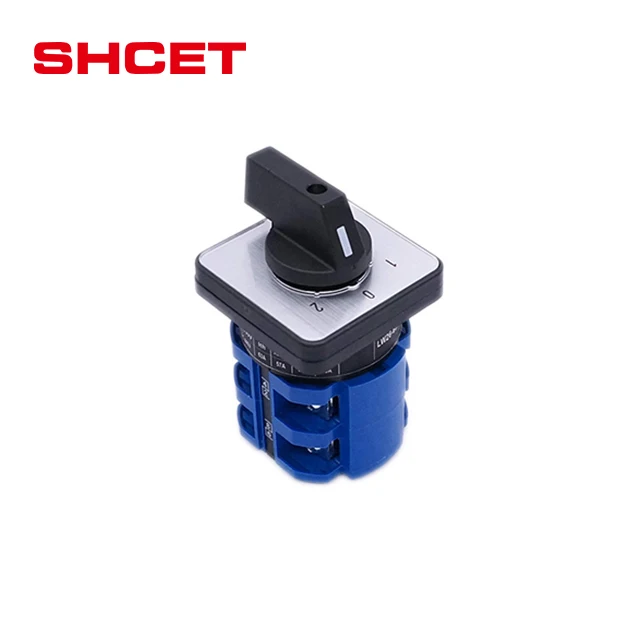

Высококачественный ручной Электрический универсальный переключатель CA10 поворотный кулачковый 20 А 25 32 63 660 В 3 P
- Категория: Rotary Switches >>>
- Поставщик: Shanghai,Cet,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 1.86 $* | 1.79 $* |
| Jul-20-2025 | 1.8 $* | 1.9 $* |
| Jun-20-2025 | 1.98 $* | 1.32 $* |
| May-20-2025 | 1.20 $* | 1.71 $* |
| Apr-20-2025 | 1.63 $* | 1.99 $* |
| Mar-20-2025 | 1.83 $* | 1.34 $* |
| Feb-20-2025 | 1.84 $* | 1.74 $* |
| Jan-20-2025 | 1.80 $* | 1.37 $* |
Характеристики
Products Specification
Type | CA10-20 | CA10-25 | CA10-32 | CA10-63 | CA10-125 | CA10-160 | CA10-200 | CA10-400 | |||||||||
Rated Insulation Voltage Ui(V) | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | |||||||||
Conventional Heating Current Ith(A) Ac10≤40° | 20 | 25 | 32 | 63 | 125 | 160 | 200 | 400 | |||||||||
Rated Working Voltage Ue(V) | 120 240 440 | 120 240 440 | 120 240 440 | 240 440 | 240 440 | 240 440 | 240 440 | 240 440 | |||||||||
Rated Working Current Ie(A) | AC-21A AC-22A | 20 20 | 25 25 | 25 32 32 | 63 63 | 100 100 | 150 150 | 180 180 | 360 360 | ||||||||
AC-23A | 15 15 | 22 22 | 22 30 30 | 57 57 | 90 90 | 135 135 | 150 150 | 360 360 | |||||||||
AC-2 | 15 15 | 22 22 | 22 30 30 | 57 57 | 90 90 | 135 135 | 150 150 | 360 360 | |||||||||
AC-3 | 11 11 | 15 15 | 15 22 22 | 36 36 | 75 75 | 95 95 | 110 110 | 140 140 | |||||||||
AC-4 | 3.5 3.5 | 6.5 6.5 | 6.5 11 11 | 15 15 | 30 30 | 55 55 | 70 70 | 110 110 | |||||||||
AC-15 | 5 4 | 8 5 | 5 14 6 | - - | - - | - - | - - | - - | |||||||||
AC-13 | 5 1 | 9 1.5 | 25 11 | - - | - - | - - | - - | - - | |||||||||
Rated Control Power(KW) | AC-23A | 3.7/2.5 7.5/3.7 | 5.5/3 11/5.5 | 7.5/4 15/7.5 | 15/10 30/18.5 | 30/15 45/22 | 37/22 75/37 | 45/27 85/40 | 75/37 132/55 | ||||||||
AC-2 | 4 7.5 | 5.5 11 | 7.5 15 | 18.5 30 | 30 45 | 37 55 | 45 60 | 55 95 | |||||||||
AC-3 | 3/2.2 5.5/3 | 4/3 7.5/3.7 | 5.5/4 11/5.5 | 11/6 18.5/11 | 15/7.5 30/13 | 22/11 37/18.5 | 28/15 45/22 | 37/22 55/30 | |||||||||
AC-4 | 0.55/0.75 1.5/1.5 | 1.5/1.1 3/2.2 | 3.7/1.5 5.5/3 | 5.5/2.4 7.5/4 | 6/3 12/5.5 | 10/4 15/7.5 | 12.5/6 22/9 | 15/7.5 25/11 | |||||||||
Mechanical Life | 60 x 104 | ||||||||||||||||
Electrical Life | AC-15 20 x 104 DC-13 6 x 104 | ||||||||||||||||
High quality CA10 manual electrical universal changeover rotary cam transfer switch 20A 25A 32A 63A 660v 3P 3 position price
