Новый Huawei SmartAX EA5801 серии EA5801-GP08 EA5801E mini olt
US $389.00-$700.00
Сетевой комплект Huawei S7706 AC новый шасси ES0B00770600
- Категория: >>>
- Поставщик: XWITS,(Shenzhen),Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 443.38 $* | 452.28 $* |
| Jul-18-2025 | 359.90 $* | 366.69 $* |
| Jun-18-2025 | 436.78 $* | 445.80 $* |
| May-18-2025 | 433.94 $* | 442.16 $* |
| Apr-18-2025 | 346.13 $* | 353.16 $* |
| Mar-18-2025 | 426.99 $* | 435.12 $* |
| Feb-18-2025 | 422.25 $* | 430.64 $* |
| Jan-18-2025 | 419.10 $* | 427.75 $* |
Характеристики
Product Description

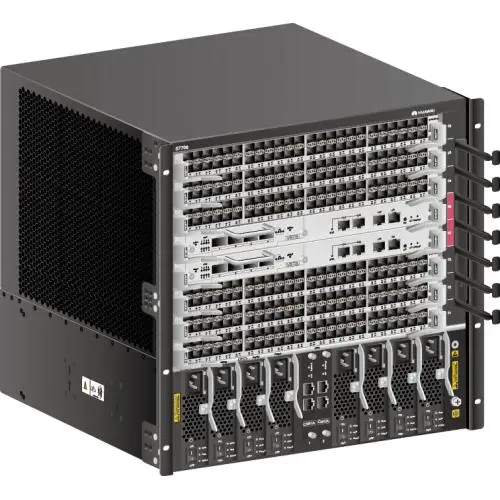

Huawei S7706 AC bundle including assembly chassis ES0B00770600
Huawei S7706 AC bundle including assembly chassis ES0B00770600
2xSRUA Main Board, 2x800W AC power moduleWith 6 service slots Forwarding perfomance: 2880Mpps
Switching capacity: 3.84TbpsNon-POE
The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next generation enterprise networks. The S7700 design is based on Huawei's intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching
services.
services.
Specification
Item | Description |
Switching capacity | 16.00/76.80Tbps |
Forwarding performance | 2880/21120Mpps |
SRU Slot | 2 |
Service Slot | 6 |
Maximum port density | V100R006C00 version: 288×FE,288×GE,72×10GE |
V200R001C00 version: 288×FE,288×GE,240×10GE | |
V200R002C00~V200R007C00 version: 288×FE,288×GE,240×10GE,12×40GE | |
V200R008C00~V200R009C00 version: 288×FE,288×GE,240×10GE,12×40GE,12×100~GE | |
V200R010C00 or later version: 288×FE,288×GE,288×10GE,48×40GE,24×100GE | |
Wireless network | Native AC |
management | AP access control, AP region management, and AP profile management |
Radio profile management, uniform static configuration, and centralized | |
dynamic management | |
Basic WLAN services, QoS, security, and user management | |
Deployment of ACs on different network layers | |
User management | Unified user management |
802.1x, MAC address, and Portal authentication | |
Traffic- and time-based accounting | |
User authorization based on user groups, domains, and time ranges | |
VLAN | Three types of interfaces: access, trunk, and hybrid |
Default VLAN | |
VLAN switching | |
QinQ and selective QinQ | |
MAC address-based VLAN assignment | |
MAC address | MAC address learning and aging. |
Static, dynamic, and blackhole MAC address entries | |
Packet filtering based on source MAC addresses | |
Limit on the number of MAC addresses learned on ports and VLANs | |
Ring Protection | STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) |
SEP | |
BPDU protection, root protection, and loop protection | |
BPDU tunnel | |
ERPS (G.8032) | |
IP routing | IPv4 routing protocols, such as RIPv1/v2, OSPF, BGP, and IS-IS |
IPv6 dynamic routing protocols, such as RIPng, OSPFv3, ISISv6, and BGP4+ | |
Multicast | IGMPv1/v2/v3 and IGMP v1/v2/v3 snooping |
PIM-DM, PIM-SM, and PIM-SSM | |
MSDP and MBGP | |
Fast leave | |
Multicast traffic control | |
Multicast querier | |
Multicast packet suppression | |
Multicast CAC | |
Multicast ACL | |
MPLS | Basic MPLS functions |
MPLS OAM | |
MPLS-TE | |
MPLS VPN/VLL/VPLS | |
Reliability | LACP and E-Trunk between devices |
VRRP and BFD for VRRP | |
BFD for BGP/IS-IS/OSPF/static route | |
NSF and GR for BGP/IS-IS/OSPF/LDP | |
TE FRR and IP FRR | |
ITU-Y.1731 | |
DLDP | |
QoS | Traffic classification based on Layer 2 protocol packet header, Layer 3 protocol |
information, Layer 4 protocol information, and 802.1p priority | |
ACL, CAR, re-mark, and scheduling | |
Queue scheduling algorithms including SP, WRR, DRR, SP+WRR, and SP+DRR | |
Congestion avoidance mechanisms, such as WRED and tail drop | |
H-QoS | |
Traffic shaping | |
Security and management | 802.1x authentication and portal authentication |
NAC | |
RADIUS and HWTACACS authentication | |
Different user levels for commands, preventing unauthorized users from using | |
certain command | |
Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, | |
broadcast storms, and heavy traffic attack | |
Ping and traceroute | |
RMON | |
Service Chain | |
Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
Supports LNP (Similar to DTP) | |
Supports VCMP (Similar to VTP) | |
Power supply | AC:90 V to 290 V |
Dimensions (mm) | 442 mm x 476 mm x 442 mm |
Weight | 15 kg |
Maximum power | 2200 W |
consumption of the entire | |
equipment | |
Maximum PoE power | 8800 W |
