Заводская цена NPT 1/2 Размер Метрическая резьба жидкий плотный соединитель для шланга SS304 PG фитинг гибкой трубы из нержавеющей
- Категория: Cable Glands >>>
- Поставщик: Yueqing,Jixiang,Connector,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.32 $* | 0.93 $* |
| Aug-18-2025 | 0.84 $* | 0.32 $* |
| Jul-18-2025 | 0.59 $* | 0.54 $* |
| Jun-18-2025 | 0.66 $* | 0.76 $* |
| May-18-2025 | 0.9 $* | 0.66 $* |
| Apr-18-2025 | 0.40 $* | 0.74 $* |
| Mar-18-2025 | 0.53 $* | 0.60 $* |
| Feb-18-2025 | 0.78 $* | 0.16 $* |
| Jan-18-2025 | 0.61 $* | 0.48 $* |
Характеристики
Products Description
Item Name | Brass Hose Connector Pipe Fittings | |
Matetrial | External Metal : Nickel Plated Brass Seal: NBR, PA6 Ferrule: Brass Sealing Ring: thermoplastic elastomer or PTEE | |
Approvals | IP65, ISO9000,CE | |
Working Temperature | Static : -40°C ~ 100°C, temporary to 120°C Dynamic: -20°C ~ 80°C, temporary to 100°C | |
Connectors are mainly for SPR-AS Or FEXAgraff-AS conduitsuswp Connectors are mainly for SOR-PVC-AS, SPR-PU-AS, FLEXAgraff-PU-AS metal conduits. | ||

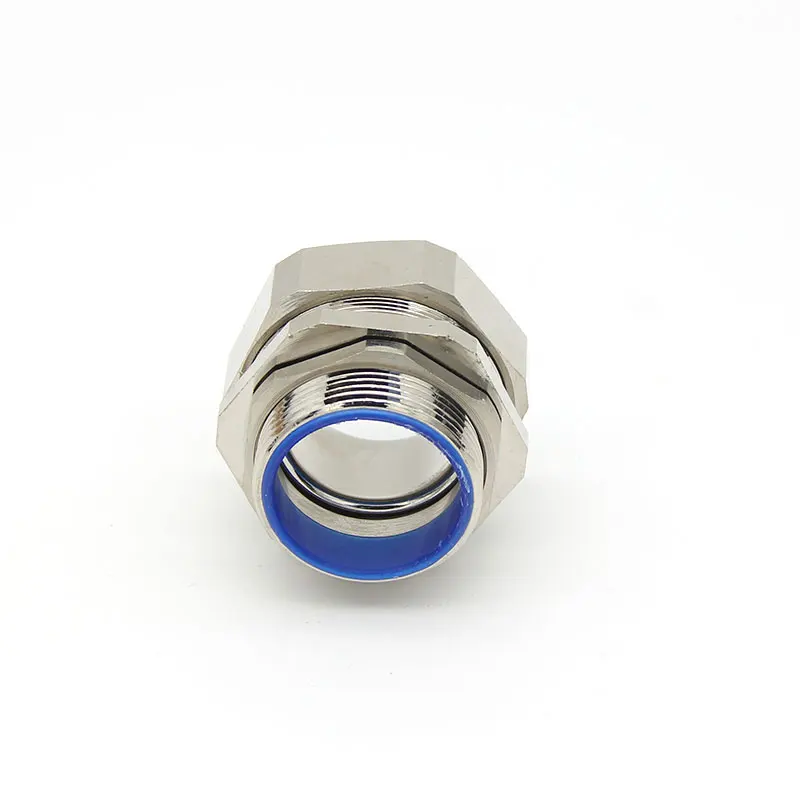

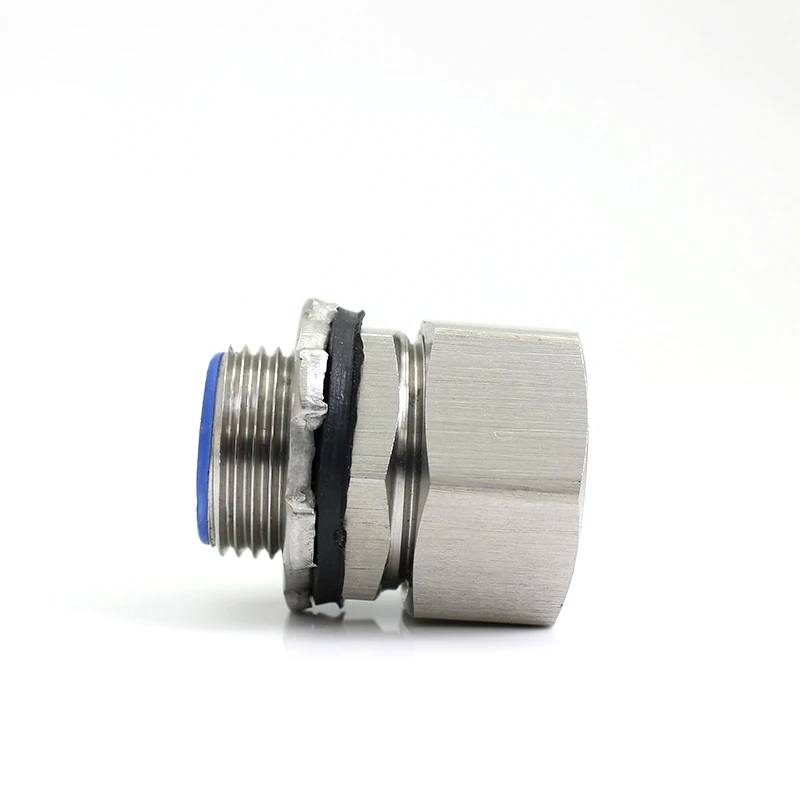

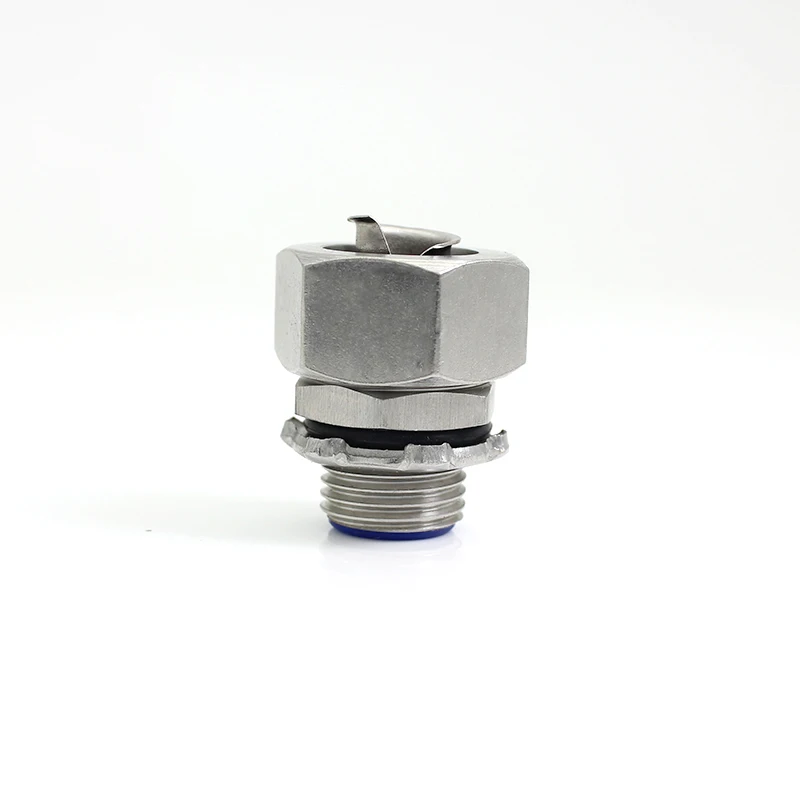

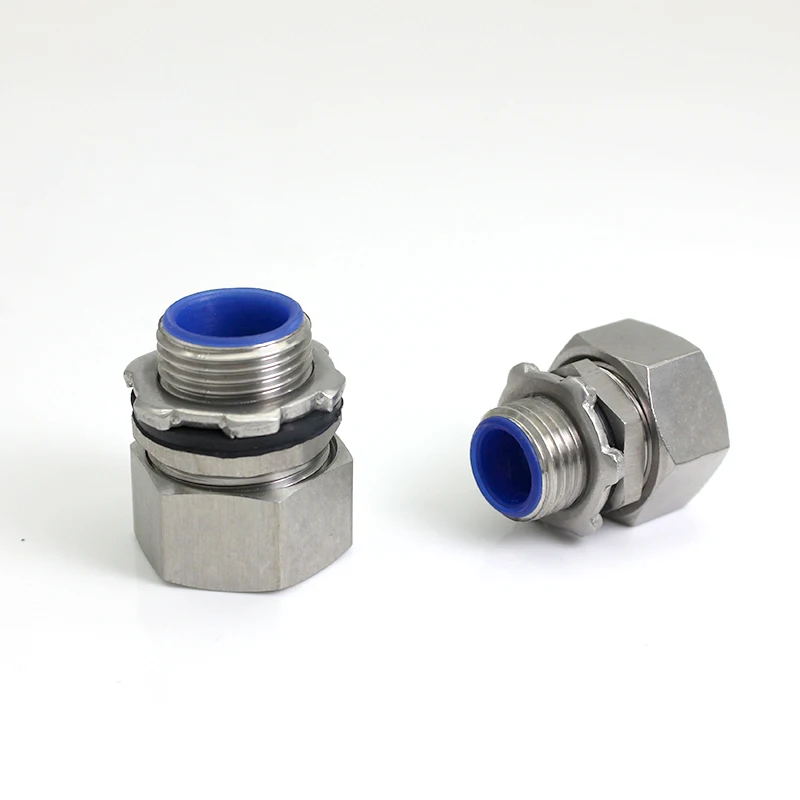

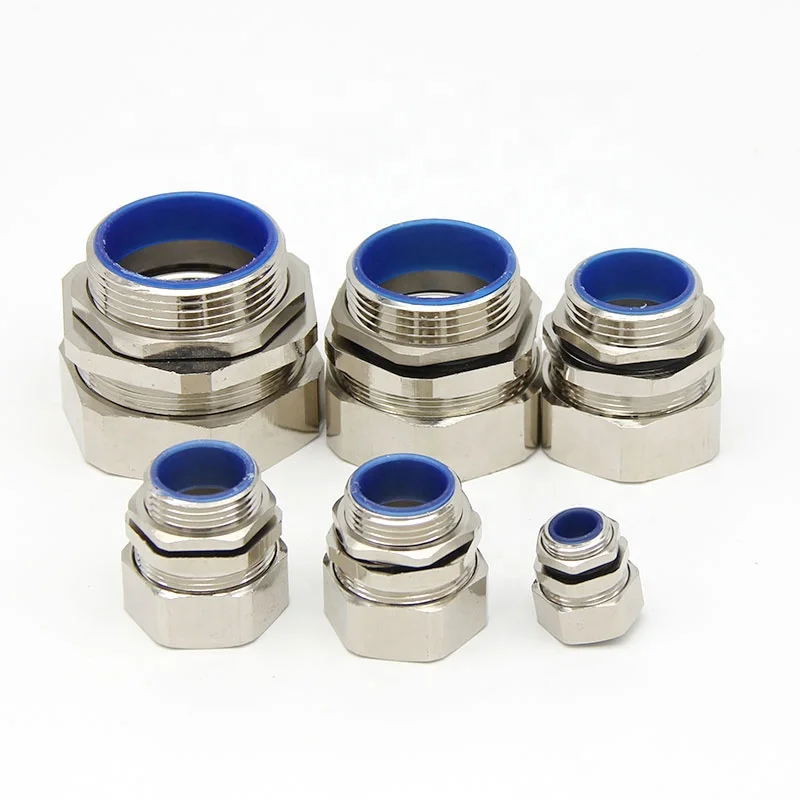

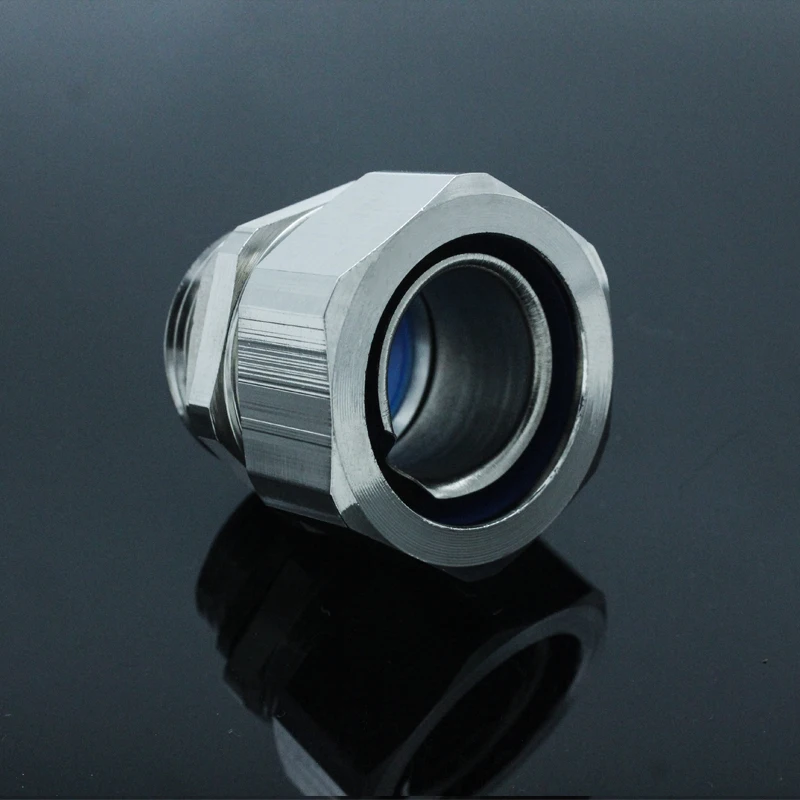

Details Images
Product Paramenters
Item No | Thread (mm) | Card Pin Range (mm) | Thread Length (mm) | Spanner Size (mm) | Fits to tubing size (Nominal inner) (mm) |
JX-M12-MH | M12*1.5 | 3-6.5 | 7 | 20 | φ6 |
JX-M16-MH | M16*1.5 | 4-8 | 8 | 22 | φ8 |
JX-M18-MH | M18*1.5 | 5-10 | 8 | 24 | φ10 |
JX-M20-MH | M20*1.5 | 6-12 | 8 | 26 | φ12 |
JX-M22-MH | M22*1.5 | 10-14 | 8 | 30 | φ15 |
JX-M24-MH | M24*1.5 | 10-14 | 9 | 30 | φ15 |
JX-M25-MH | M25*1.5 | 10-16 | 9 | 30 | φ15 |
JX-M27-MH | M27*2 | 13-18 | 9 | 36 | φ20 |
JX-M30-MH | M30*2 | 13-18 | 9 | 36 | φ20 |
JX-M32-MH | M32*1.5 | 15-22 | 10 | 36 | φ20 |
JX-M36-MH | M36*2 | 18-25 | 10 | 43 | φ25 |
JX-M40-MH | M40*1.5 | 22-30 | 11 | 52 | φ32 |
JX-M48-MH | M48*2 | 25-32 | 11 | 55 | φ32 |
JX-M50-MH | M50*1.5 | 32-38 | 12 | 60 | φ38 |
JX-M56-MH | M56*2 | 32-38 | 12 | 60 | φ38 |
JX-PG7-MH | PG7 | 3-6.5 | 7 | 20 | φ6 |
JX-PG9-MH | PG9 | 4-8 | 8 | 24 | φ8 |
JX-PG11-MH | PG11 | 5-10 | 8 | 26 | φ10 |
JX-PG13.5-MH | PG13.5 | 6-12 | 8 | 30 | φ12 |
JX-PG16-MH | PG16 | 8-16 | 8 | 30 | φ15 |
JX-PG21-MH | PG21 | 13-18 | 9 | 36 | φ20 |
JX-PG29-MH | PG29 | 18-25 | 11 | 43 | φ25 |
JX-PG36-MH | PG36 | 25-32 | 12 | 52 | φ32 |
JX-PG42-MH | PG42 | 32-38 | 13 | 60 | φ38 |
JX-PG48-MH | PG48 | 37-44 | 14 | 60 | φ38 |
More size information, kindly contact us directly!
We are cable gland manufacturer, we provide customization service!
We are cable gland manufacturer, we provide customization service!
Certifications
Product packaging & Shipping
Cable gland packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
Delivery Details: Normally 7 working days after received the payment.
Company Profile
YUEQING JIXIANG CONNECTOR CO.,LTD
We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research, production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle.
Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000. It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.
WORKSHOP
EXHIBITION
FAQ
Q: Are you trading company or manufacture?
A: We are manufacturer and have focus on cable glands for over 10 years.
Our advantage are lower prices and the ability to provide customized services compared to trading companies.
Q: What about the lead time for mass production?
A: Your goods can be delivered in 3-7 days if it is the standard models and in stock.
For special model or large order, you can negotiate the delivery date with us.
Q: Can you provide the free samples?
A: Yes, we can offer the samples for free charge, meanwhile, the cost of freight is on your account.
Q: Can I have a visit to your factory before the order?
A: Yes, welcome to our factory! You also can visit our factory by video for inconvenient time.
