Характеристики

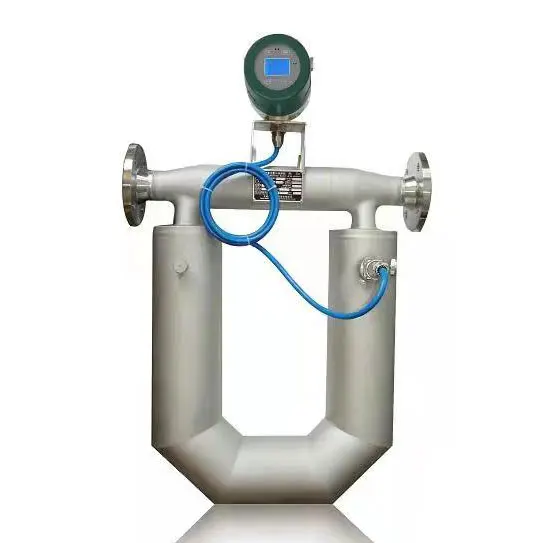

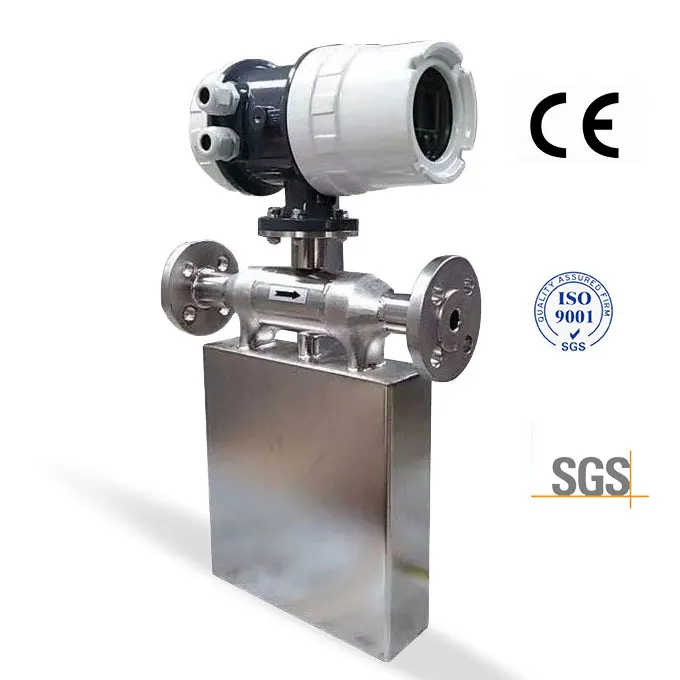

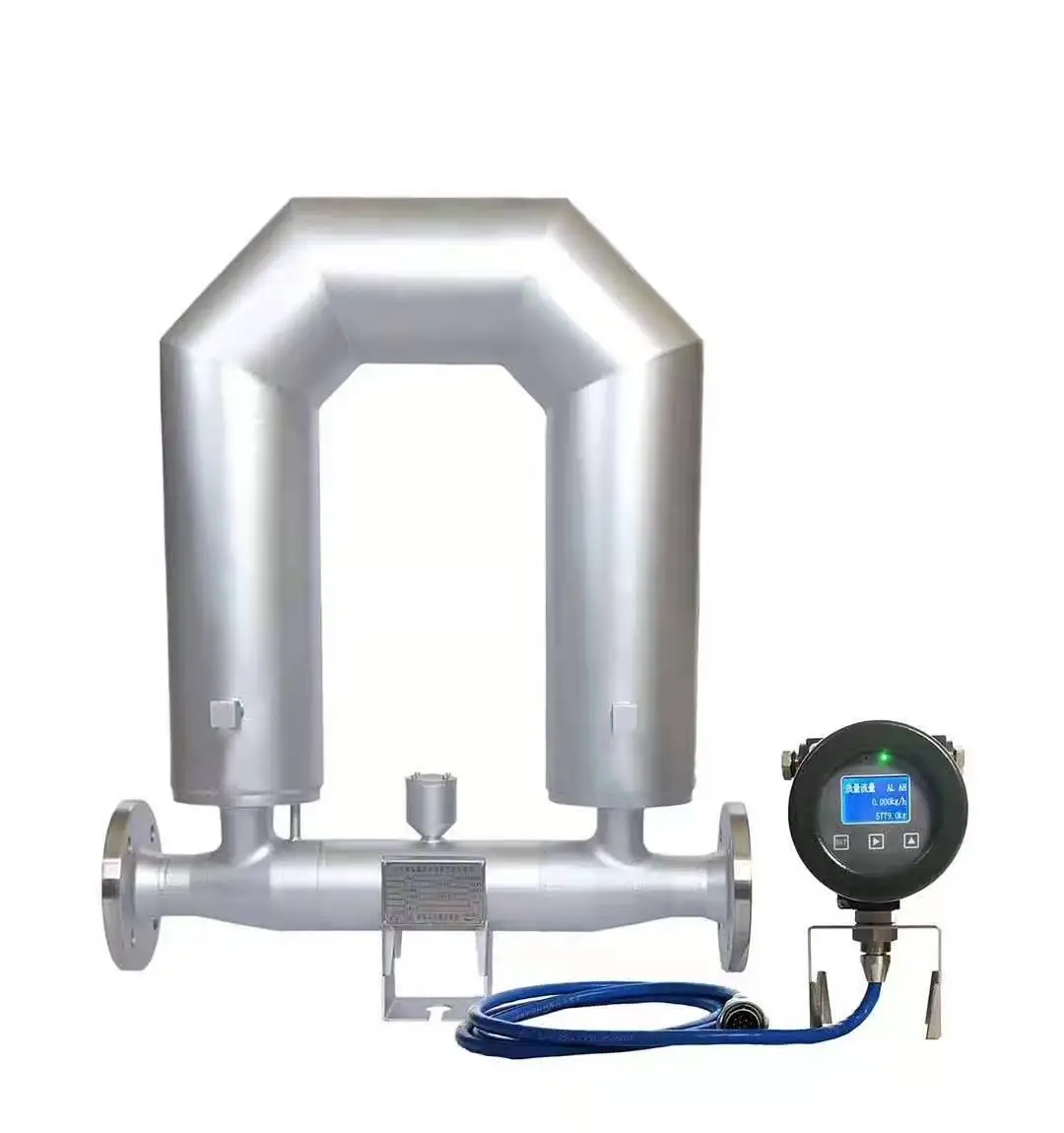

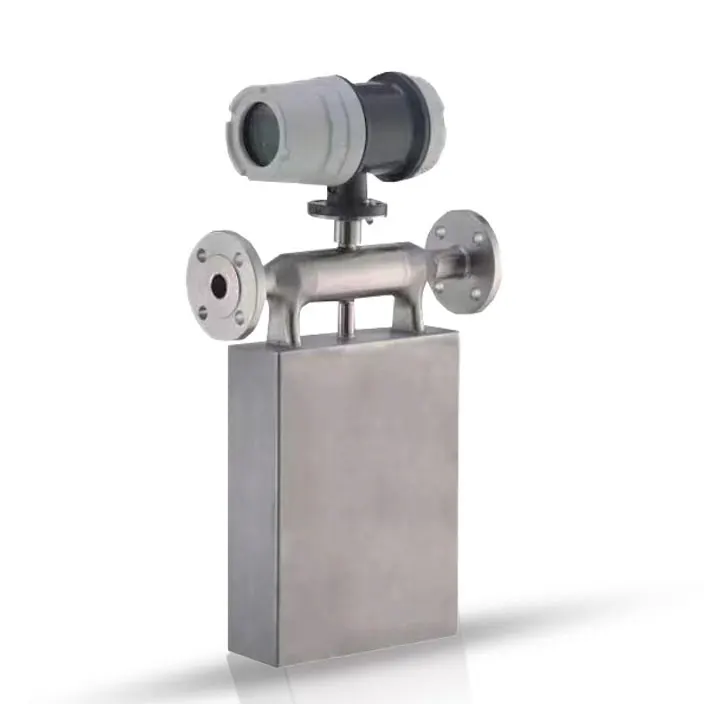

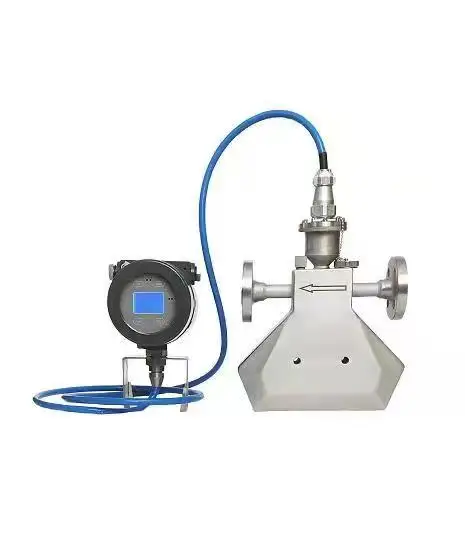

Product show
Hydrogen LPG Explosion Proof Slurry Liquide Micromotion Coriolis Mass Flow Meter Coriolis Gas Mass Flowmeter
Product parameter
Name | Coriolis Gas Mass Flowmeter |
Medium | Liquid, gas |
Diameter | 1mm~200mm |
Temperature | -200℃～+300℃ |
Signal output | 4～20mA、pulse、RS485、Hart |
Power supply | 24VDC |
Power supply | 24VDC/3V Battery |
Density | 0.2g/cm3~3.5g/cm3 |
Density accuracy | ±0.002g/cm3 |
Enclosure rating | IP67 |
Explosion-proof | ExibIICT4，ExdIICT4 |
Coriolis Gas Mass Flowmeter product features:
Coriolis Gas Mass Flowmeter patented and developed by our company are the leading meters for precision flow measurement. And with good reason, the meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop. The meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries — without the need for additional equipment, manual calculations, or estimations.

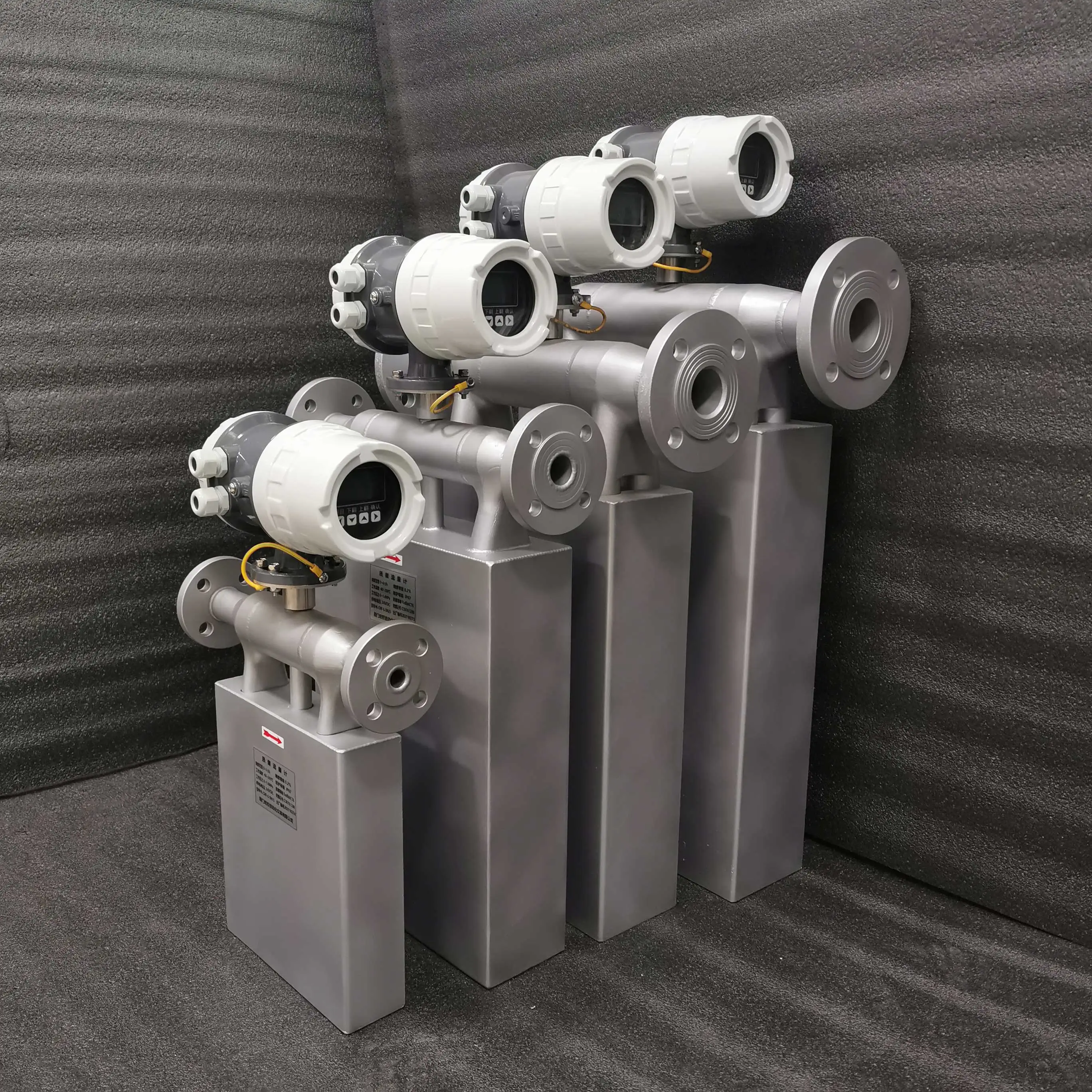

Product Details
Flange pipeline type (unit mm)
diameter(mm) | A | A1 | B | B1 | weight (kg） |
1/3/6/8/10 | 210 | 290 | 330 | 460 | 10 |
15 | 270 | 380 | 440 | 560 | 17 |
25 | 270 | 380 | 460 | 580 | 19 |
40 | 320 | 450 | 610 | 730 | 27 |
50 | 400 | 530 | 720 | 840 | 40 |
80/100 | 590 | 730 | 970 | 1090 | 96 |
150 | 810 | 850 | 1300 | 1420 | 182 |
200 | 850 | 1210 | 1410 | 1530 | 205 |
Flowmeter Installation Diagram:
Liquid flow measurement range selection
Nominal diameterDN(mm) | Maximum flow value(t/h) | Working pressure limit(Mpa) | Zero point stabilization (kg/h) |
1 | 0.05 | 4 | 0.01 |
3 | 0.2 | 4 | 0.04 |
6 | 0.5 | 4 | 0.1 |
8/10 | 1 | 4 | 0.15 |
15 | 3 | 4 | 0.4 |
25 | 6 | 4 | 0.6 |
40 | 16 | 4 | 1 |
50 | 40 | 4 | 3 |
80/100 | 100 | 4 | 10 |
150 | 300 | 4 | 30 |
200 | 600 | 4 | 60 |
Application fields
Excellent performance even in harsh working environments. There are no moving parts inside, no complicated installation, and no harsh requirements for working conditions. Each sensor is made of stainless steel, and the transmitter's variety of outputs can meet your various needs.
Related product
You can also choose other flowmeters, such as electromagnetic, vortex, turbine, thermal, ultrasonic flowmeters and more！！
