Лидер продаж бесплатный образец широкоугольный объектив 6G 4 Мп для видеорегистратора черный ящик самоуправляемый автомобильный 16-канального
- Категория: Camera Lenses >>>
- Поставщик: Shenzhen,Yunding,Optical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.52 $* | 2.91 $* |
| Aug-16-2025 | 2.70 $* | 2.44 $* |
| Jul-16-2025 | 2.54 $* | 2.26 $* |
| Jun-16-2025 | 2.6 $* | 2.25 $* |
| May-16-2025 | 2.57 $* | 2.50 $* |
| Apr-16-2025 | 2.18 $* | 2.69 $* |
| Mar-16-2025 | 2.34 $* | 2.36 $* |
| Feb-16-2025 | 2.28 $* | 2.26 $* |
| Jan-16-2025 | 2.18 $* | 2.91 $* |
Характеристики

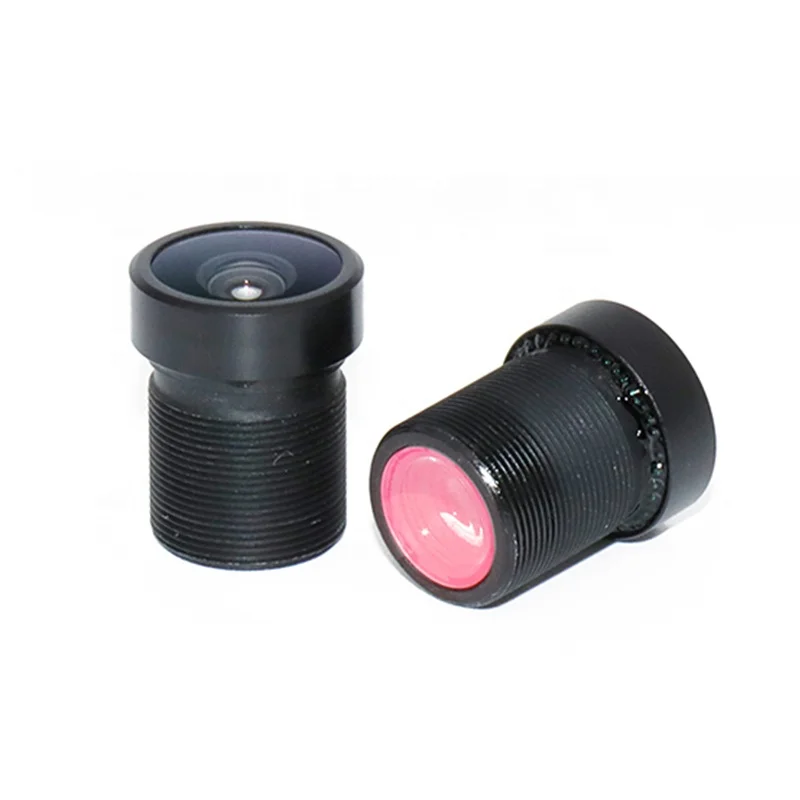

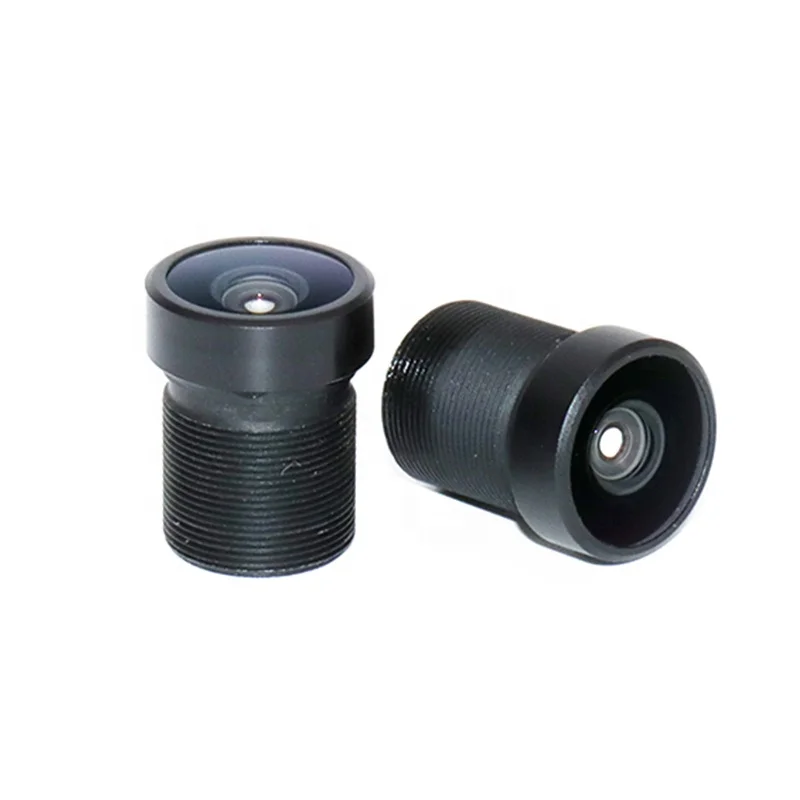

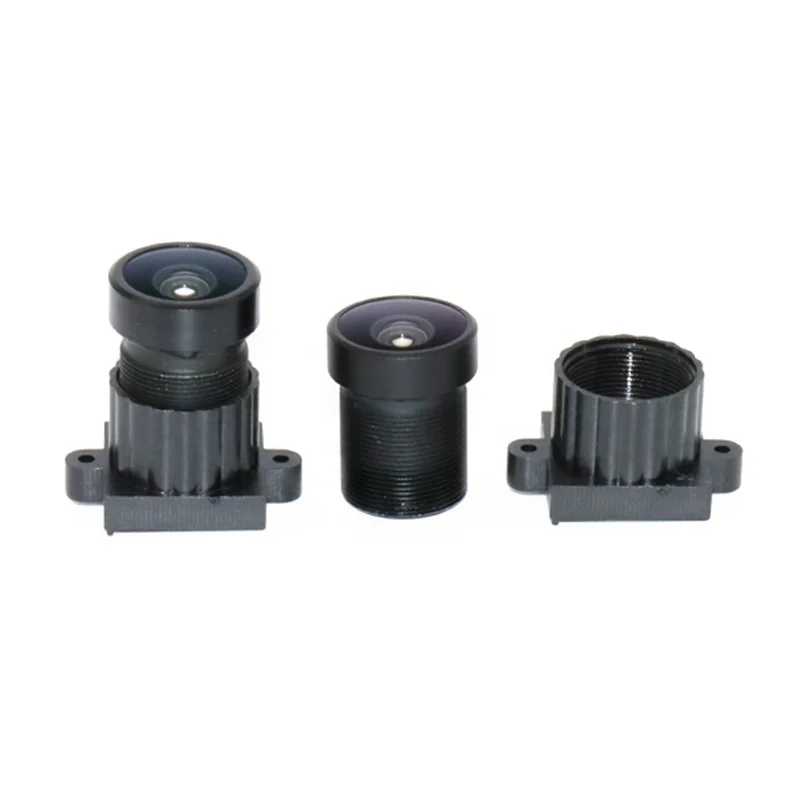

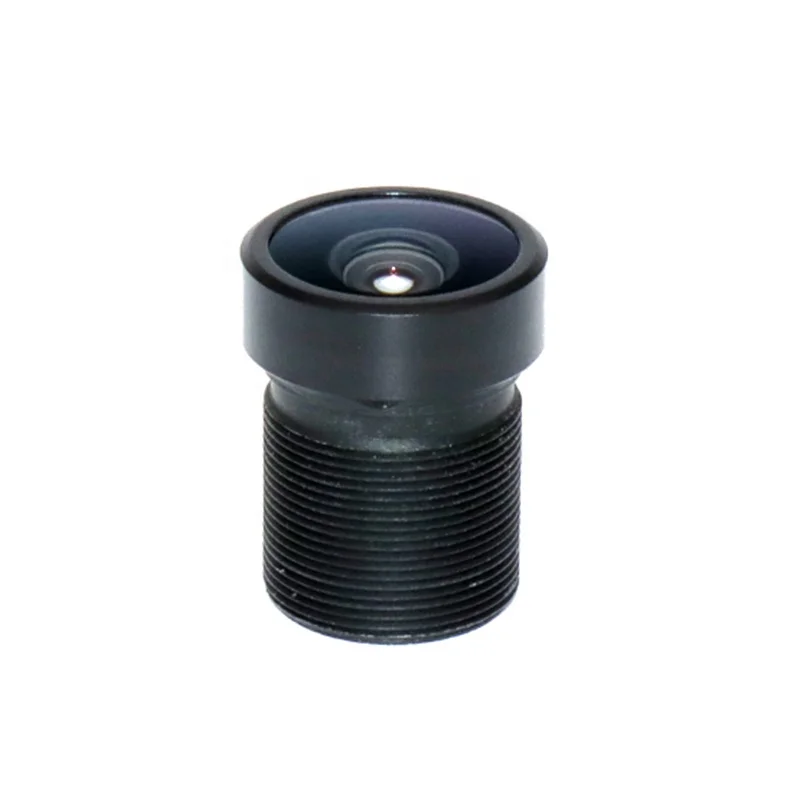

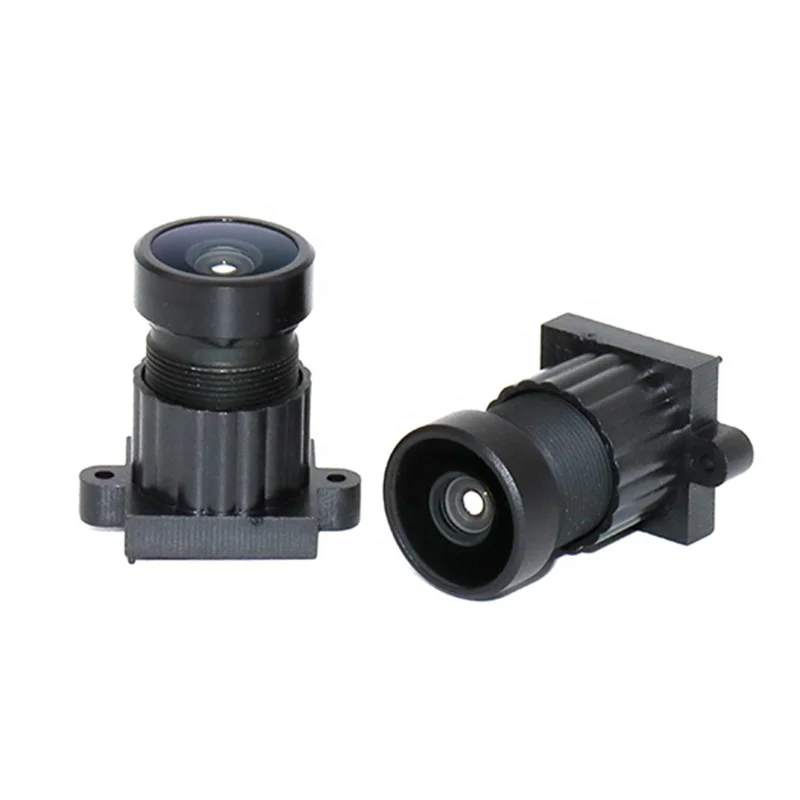

hot sell low price 6G 5mp Wide Angle Lens for Dash Camera Black Box Self-driving Car Lens for 16 Channel Ahd Dvr
Products Description
Products Description

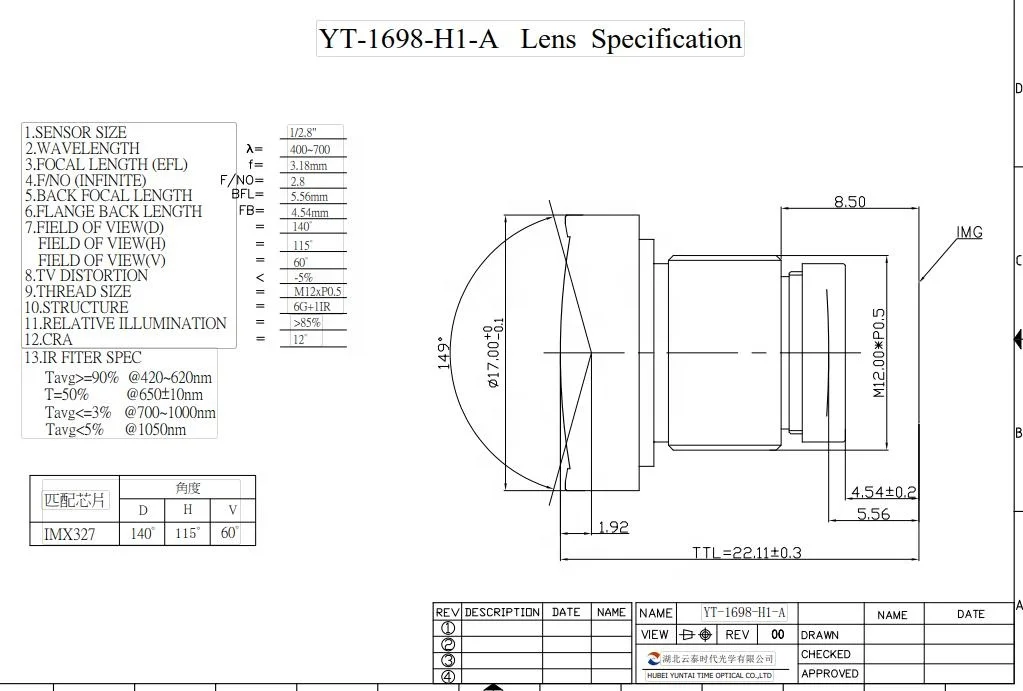

NAME: SPEC | YT-1698-H1-A |
MAX Img-Circle(mm) | dia 7.0 |
EFL(mm) | 3.18 |
F/NO. | 2.8 |
Optical TTL | 22.11 |
Mechanical TTL | 22.11 |
Back Focal Length | 5.56 |
Flange Back Length | 4.54 |
TV Distortion | <-5% |
Relative Illumination | >85% |
CRA | 12 degree |
Storage Temperature | -30℃~+80℃ |
Recent Camera Distance | 0.2M |
Dust Level | IP5X |
Company Profile
Company Profile
Inception in the year 2006
Shenzhen Wintop Optics was established in August,2006, which focuses on developing and manufacturing all kind of optical fixed lenses. Wintop has a production base of 12000 square meters in Hubei province and a research and development team with 16 years of in-depth professional experience in Shenzhen. We were the first factory to adopt waterproof gasket into lenses in China in 2008. This technology has still been copying by our competitors and never has been passed.
Our Factory
Hubei factory(Hubei Yuntai Era Optical Instrument Co., Ltd.) covers an area of 12000 square meters, glass grinding monthly output value reach 2 million pieces, lens assembly equipped with 1000-level dust-free workshop, which has 8 manual assembly lines and 3 automatic production lines, with monthly output approach 2 million sets optical lenses.
Grass grinding dept
Injection dept
Injection dept
Certifications
Certifications
Product packaging
Product packaging
Packing:
1,Selling Unit:Single item
2,Packing&Delivery:In plastic vacuum packaging , 50-100 pcs per bag and then in carton.
2,Packing&Delivery:In plastic vacuum packaging , 50-100 pcs per bag and then in carton.
Exhibition
Exhibition
FAQ
FAQ
Q1:What can you get from wintop Optics? |
A1:We are specializing in developing and producing all kind of optical fixed lens for 16years. You can get 1 to 1 professional services at any time here. |
Q2:Can I have some free samples? |
A2:Yes.We can provide several free samples for customers upon request. |
Q3:What is the MOQ? |
A3:We can accept sample orders within 100 pieces.Don't be hesitated to send us your request. |
Q4:When can I received the products I ordered? |
A4:Sample orders will be sent out within 3-5 working days after payment received. The delivery time of massive orders will be 15 working days after receiving 30% deposit. |
Shipping
Shipping
1,Sample orders will be sent out within 3-5 working days after payment received.
2,The delivery time of massive orders will be 15 working days after receiving 30% deposit.
2,The delivery time of massive orders will be 15 working days after receiving 30% deposit.
