Good Price 6X4 Vacuum Sewage Truck 18cbm 20cbm Sewage Suction Truck



The fecal suction truck mainly consists of a car chassis, a tank body and a suction device. Commonly used models are Dongfeng Furika, Dongfeng Dollyka, 140, 145, rear double bridge, front four rear eight models.
The composition of the suction truck: oil water separator, water gas separator, special vacuum suction pump, volume pressure gauge, pipe network system, suction pipe, gravity valve, vacuum tank, connector (visible window), fully automatic Overflow valve.
Scope of application
Mainly for the urban and rural sanitation departments to pump and transport manure and other sewage. Suitable for pumping manure, sewage, sludge and liquid mixed with small suspended debris, suitable for municipal sanitation, large and medium-sized industrial and mining enterprises, community, school, septic tank cleaning and transshipment, urban pipeline cleaning and dredging, factory marsh Liquid marsh cleaning, etc.



Function of suction truck: vacuum suction truck configuration: special part consists of power take-off, drive shaft, vacuum suction pump, water gas separator, oil separator, multi-way valve, boom, manure tank, dung Valve, suction gun, clean water tank, visual fecal window, vacuum pressure gauge, pipe network system and so on.
Suction truck This product is used to pump manure, sewage, sludge and liquid mixed with small suspended debris. It has the characteristics of high suction efficiency, self-priming, self-discharging and direct irrigation. It is widely used in large and medium-sized vehicles. Small town sanitation, municipal, agricultural, chemical, factory and mining enterprises, residential areas, vacuum suction pump can be self-priming.

Sewage Suction Vacuum Truck Technical Specification
Product Name	Sinotruck howo SEWAGE SUCTION TRUCK
Chassis Model	ZZ1250
Fuel type	Diesel
Emission Standard	Euro 2
Cabin	HW16
Whole Vehicle  main dimensions (mm)	Overall dimensions (LxWxH)	9500*2400*3300
	Wheel base	optional
	Min. ground clearance	480
Weight data (kg)	G.V.W	25000
	Curb weight	1200
	Max payload	16000
Whole vehicle  main performance	Max. speed (km/h)	95
	Max. slope of climb (%)	30
Engine	Model	WD615 47
	Maximum power	336HP
	Number of cylinders	6
	Displacement (ml)	9.726
Gear box	Model	9
	Number of gears	9 forward gears &1 reverse
Axle	Front Load capacity (ton)	7
	Rear Load capacity (ton)	18
Steering Wheel	left/right hand drive	LHD,RHD
Brake system	Service brake	Air braking
Electric device	Rated voltage	24V
Tyres&Quantity		10.00-20& 6+1
Sewage Suction Vacuum Truck Special Tank Description
Tank	Material:high quality carbon steel Structure:welding,vacuum tank,Cylindrical
	capacity(L)	16000
	thickness of material	6mm
pump	type	vacuum pump
	model	65QZ-40/45N
	flux(L/S)	65
	rating speed(r/min)	500
	shaft power(kw)	4
	features	Low speed,low fuel consumption,low noise,high vacuum,high efficiency
	manufacture	Hangzhou Weilong Pump Co.,Ltd,(Famous in China)
pipe	65-100mm suction and discharge pipe
special function	suction time ≤ 5min, effective suction range ≥ 8,  max vacuum degree ≤ 15 Kpa, dump angle ≥ 45
equipment	Equipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment Time for full suction less than 5min
	hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc

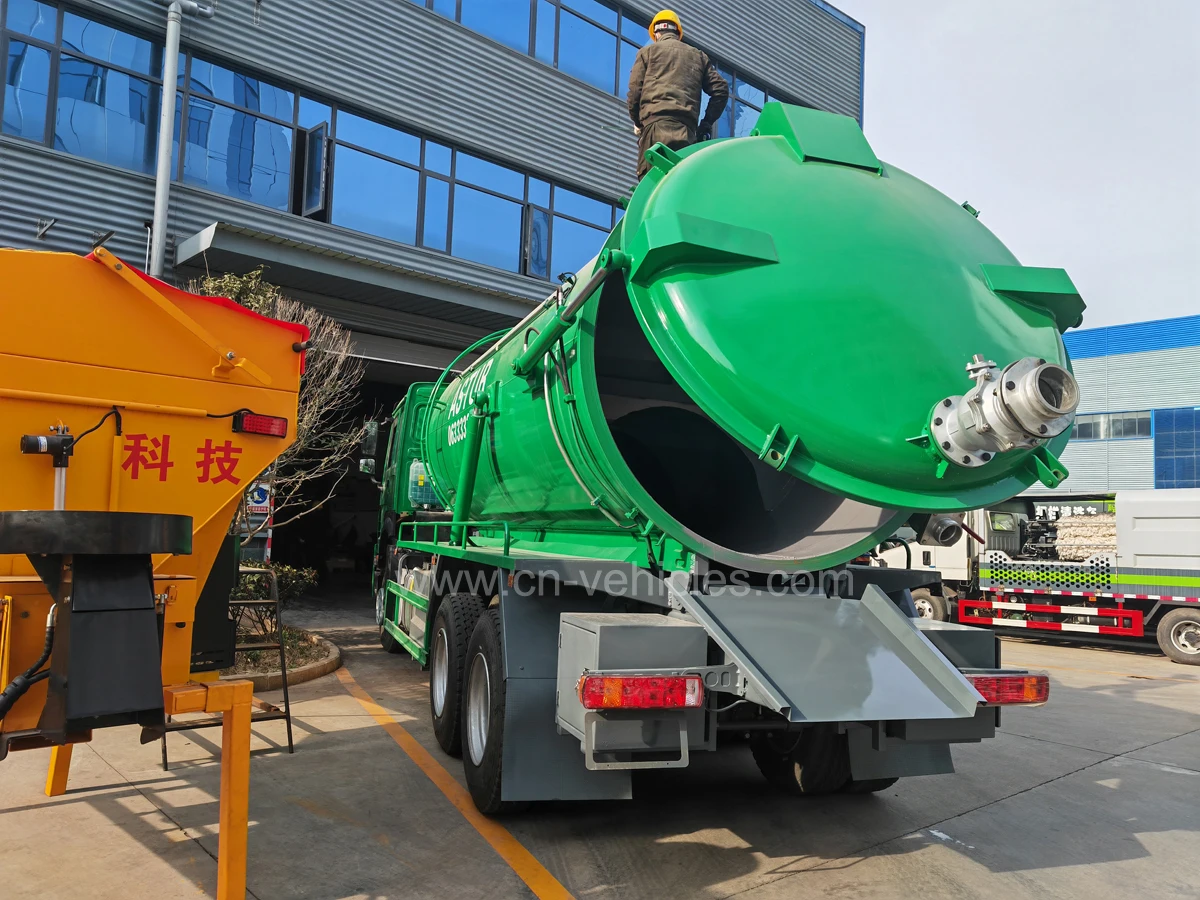

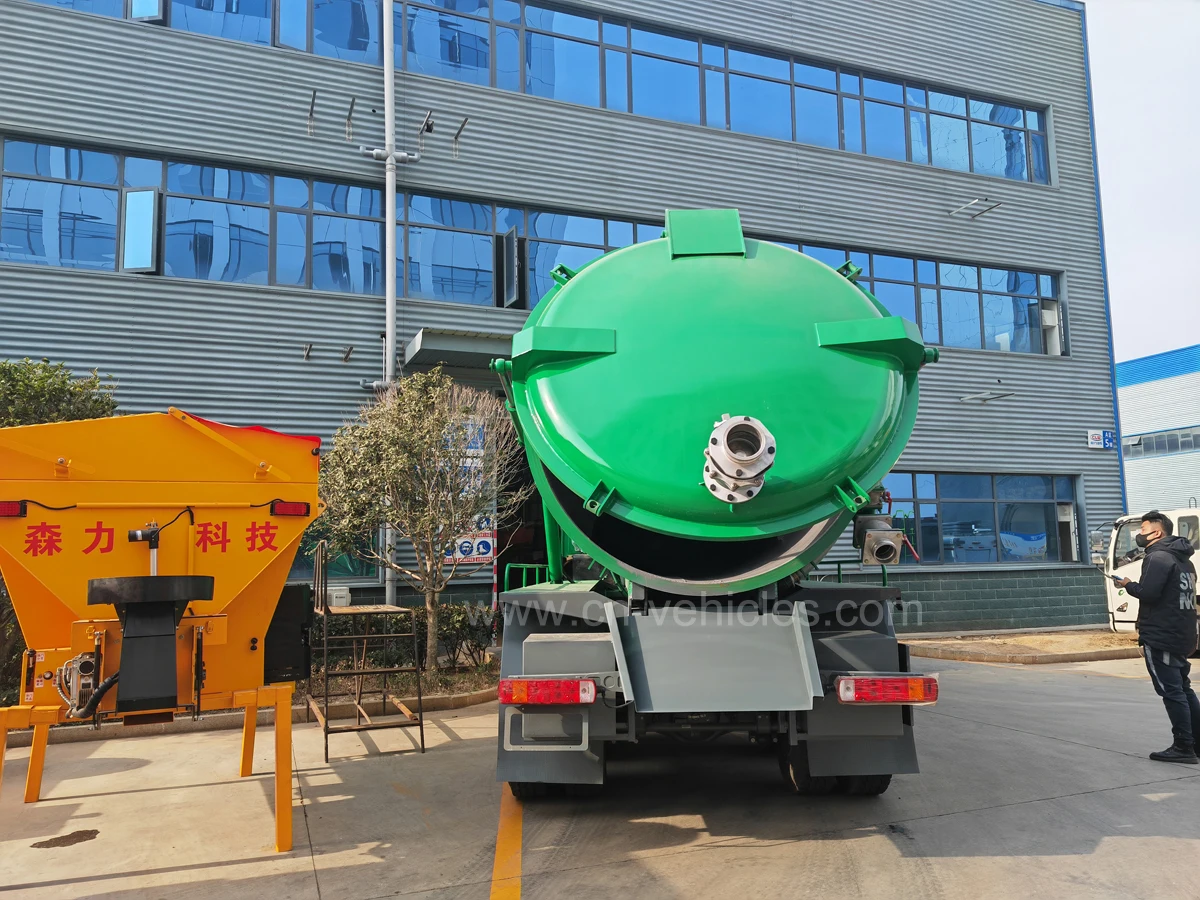

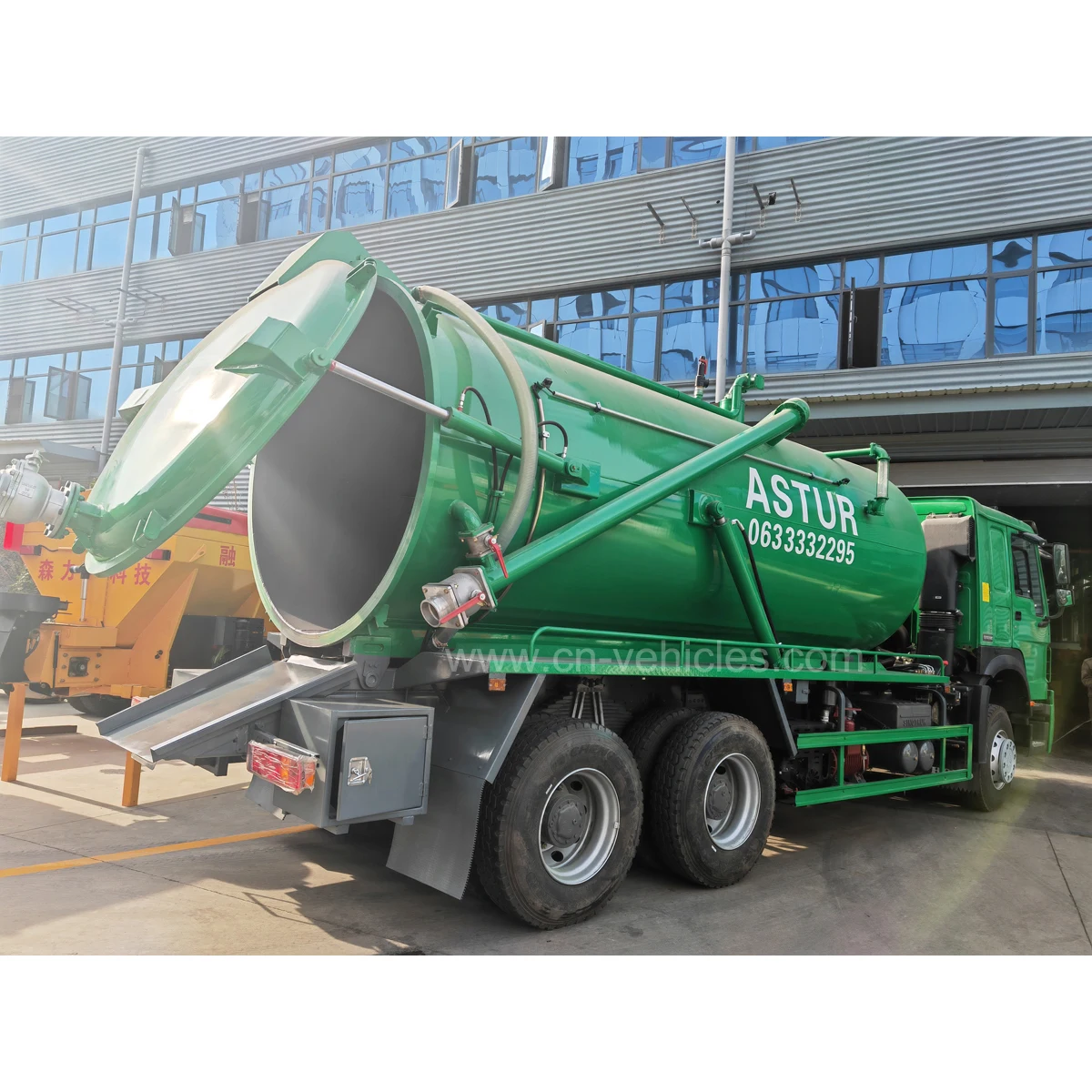

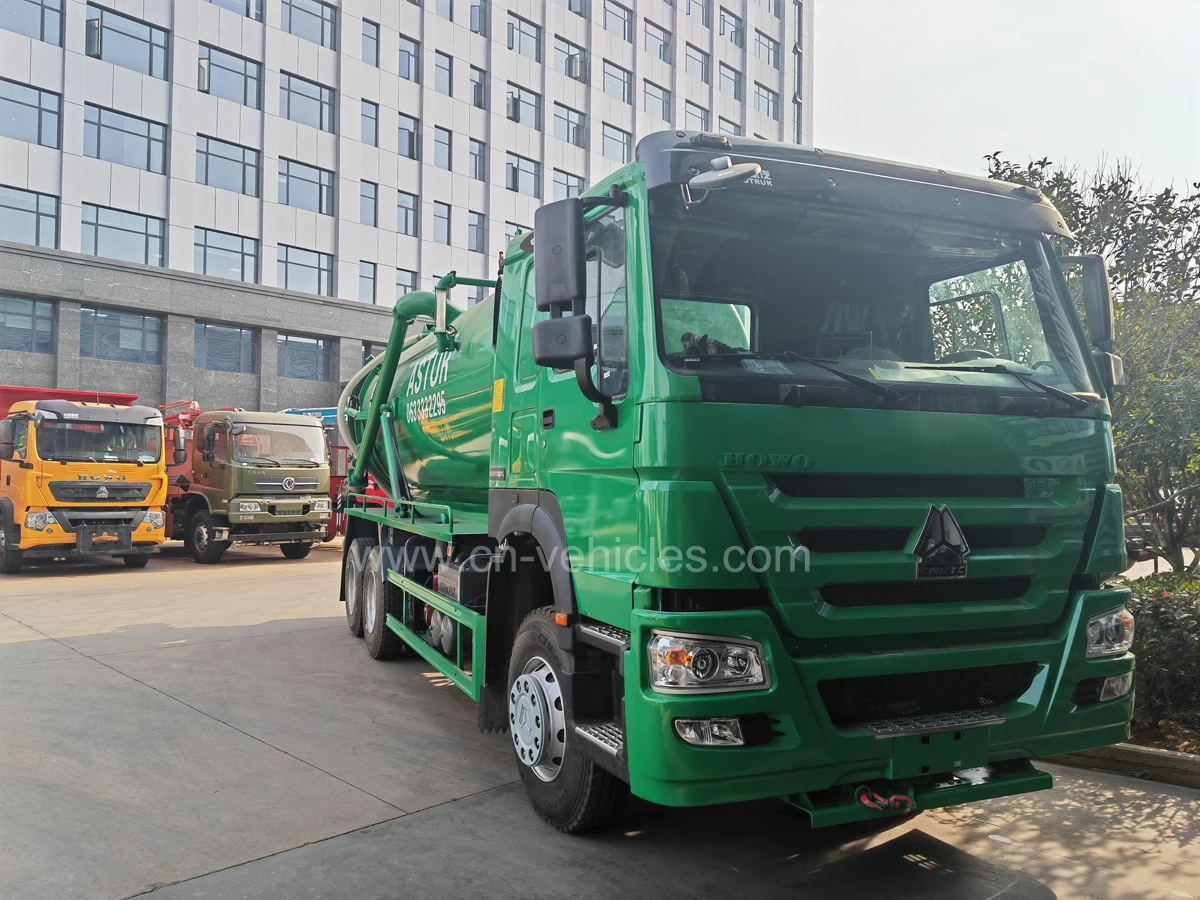

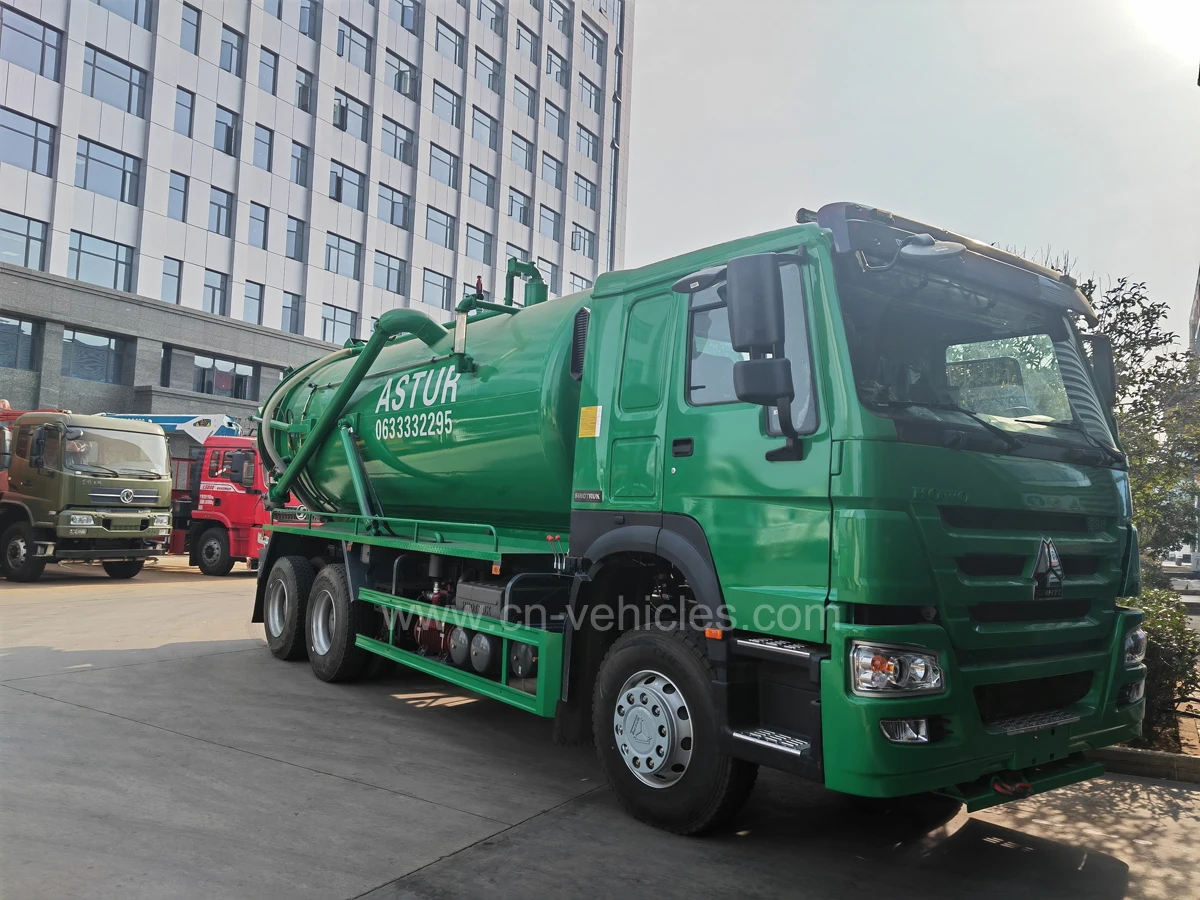

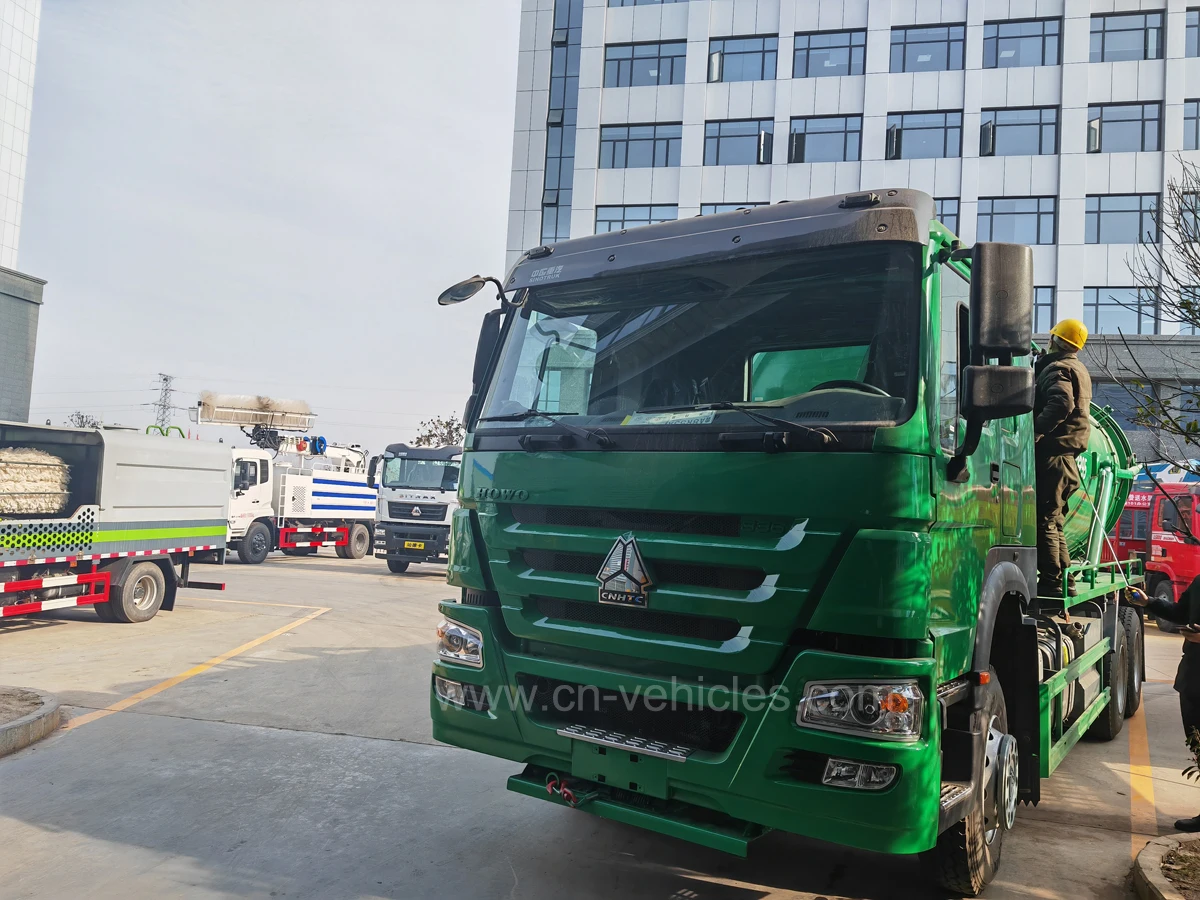

Sinotruck HOWO 16000L City Cleaning Sewage Fecal Vacuum Suction Truck picture:
