RUIAO нейлоновый PA66 гибкий пластиковый кабель-переноска кабельная

Principle for selecting cable carrier

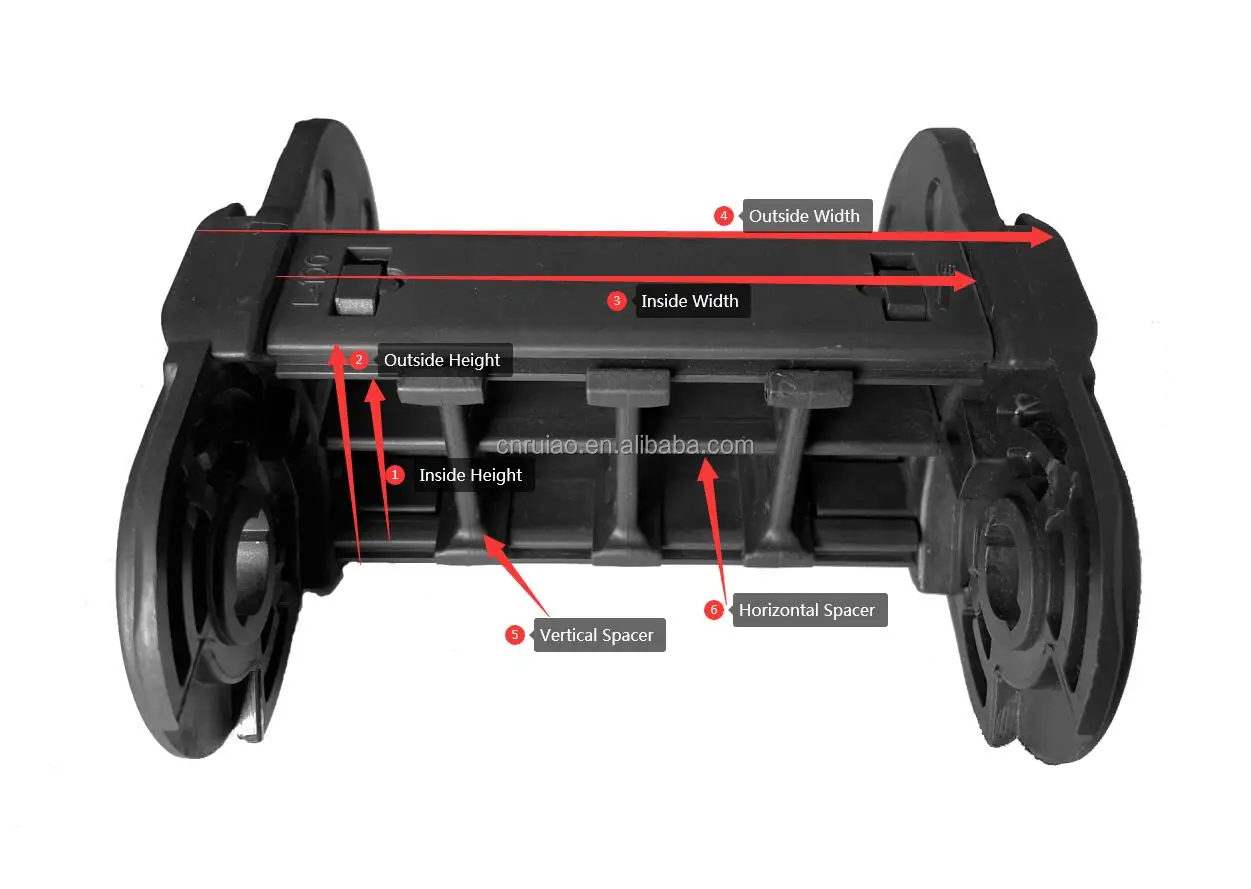

inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .

inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin

radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin

Characteristics and Applications of cable tray drag chain

The product can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.

Each joint of the chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of antiwearing while running. It can also be operated under high speed.

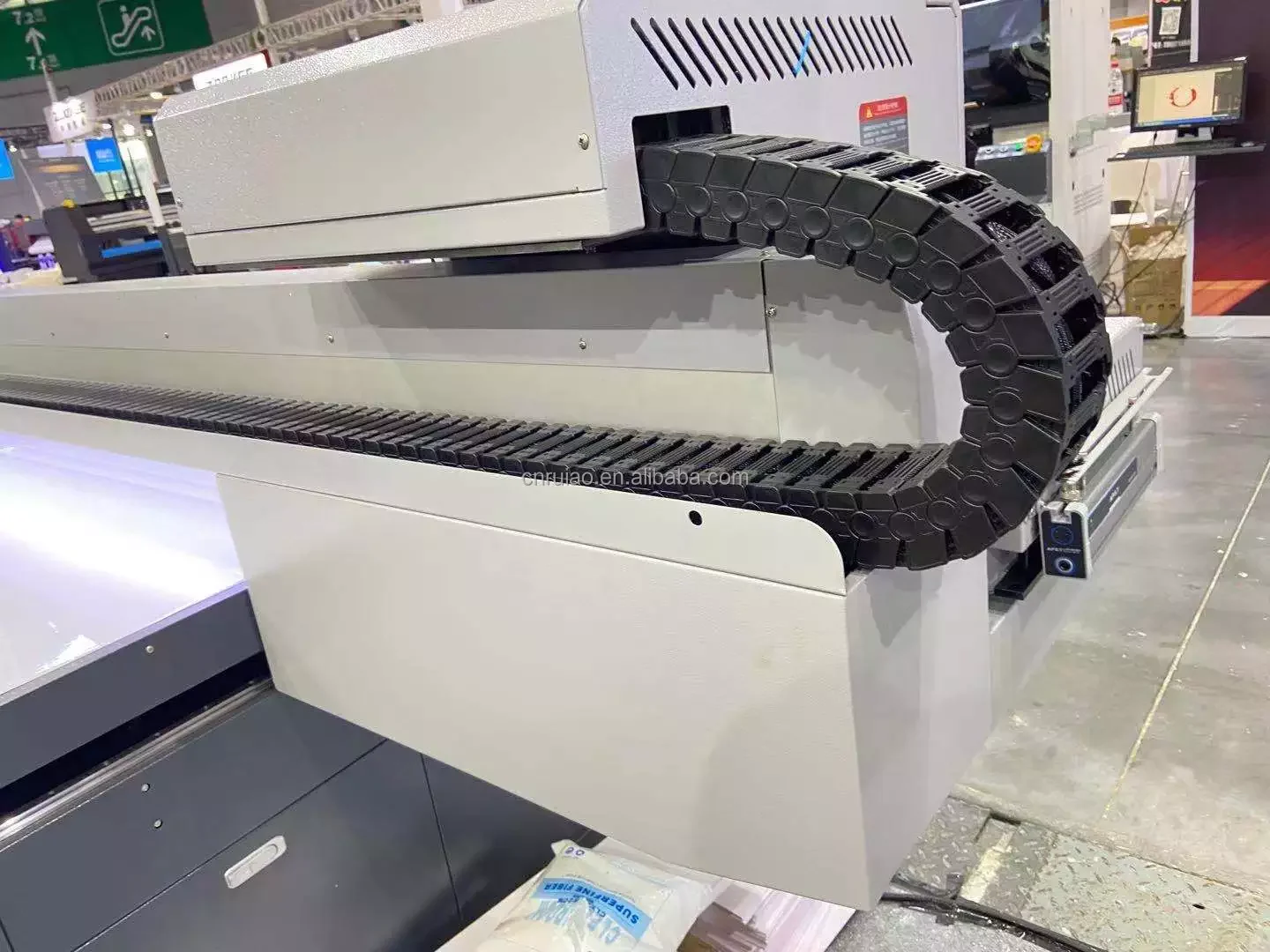

The drag chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.

Basic parameters of cable towline chain carrier

Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance

Resistances:It is oil and salt resistant.

operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).

Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)

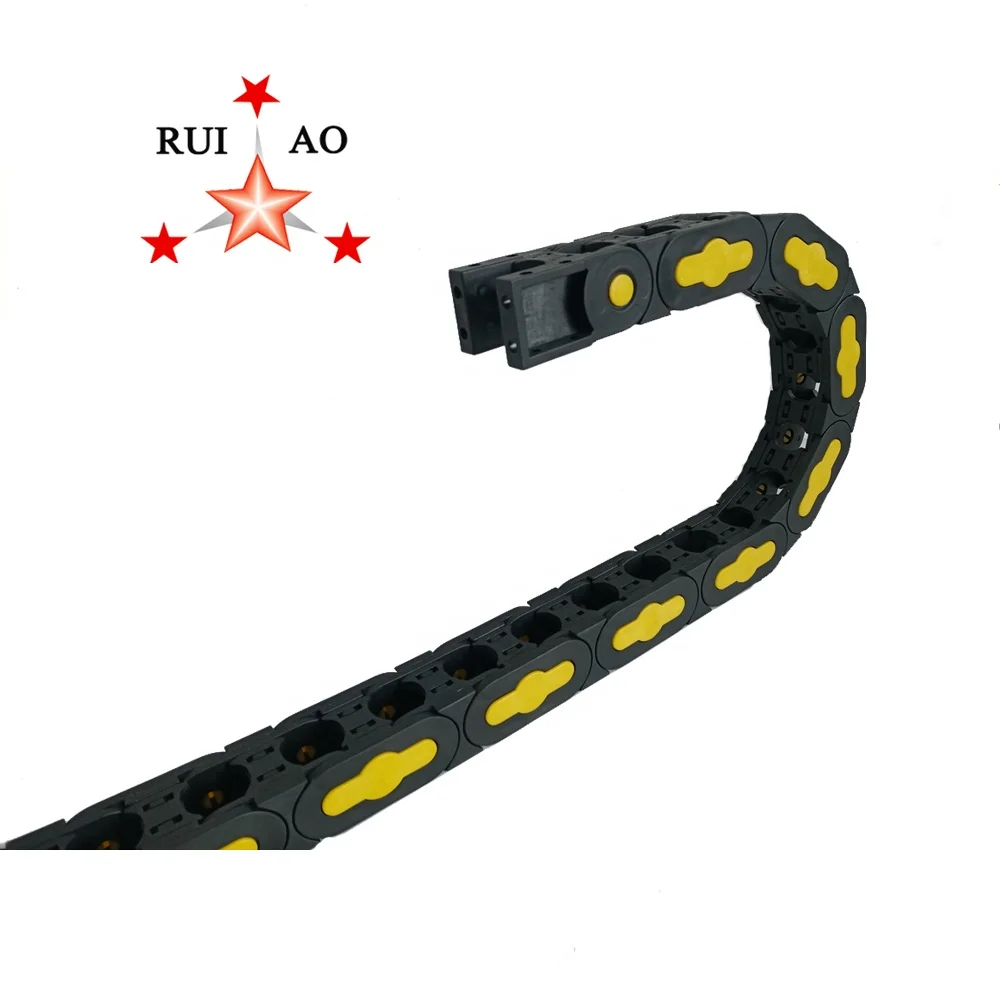

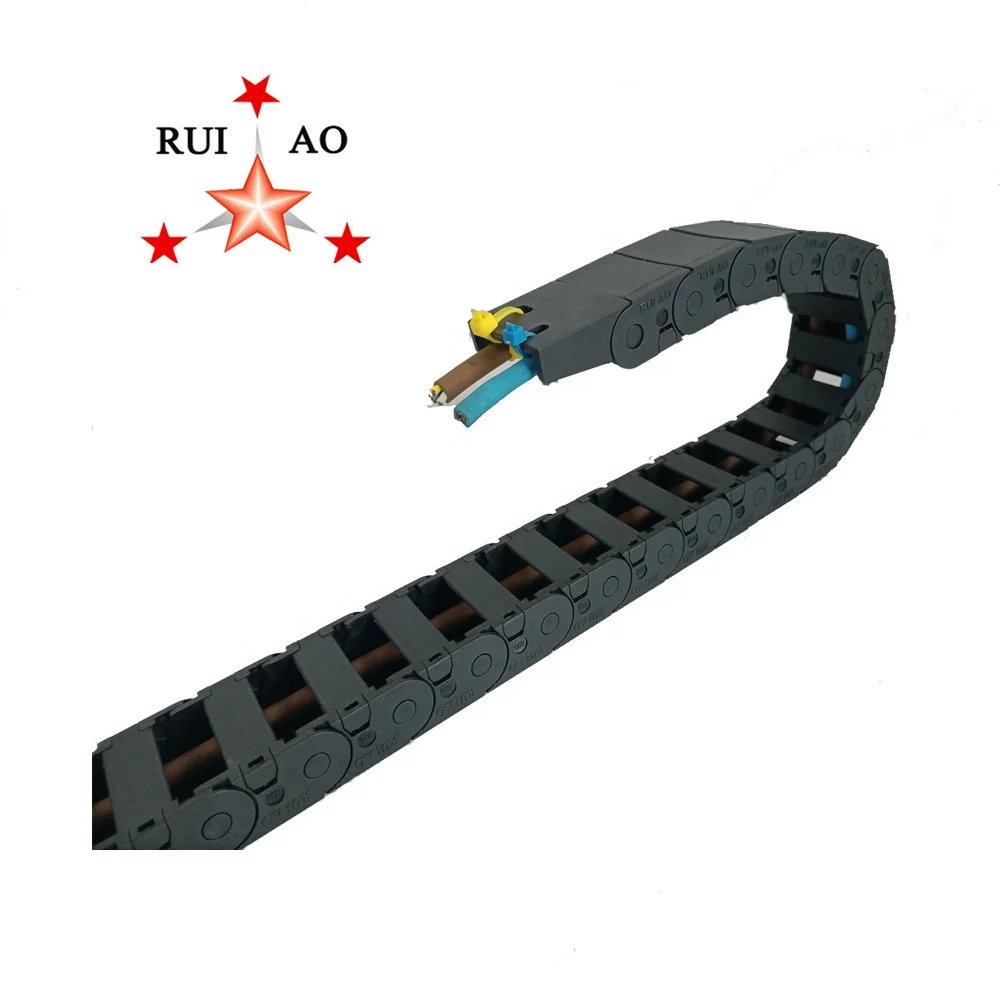

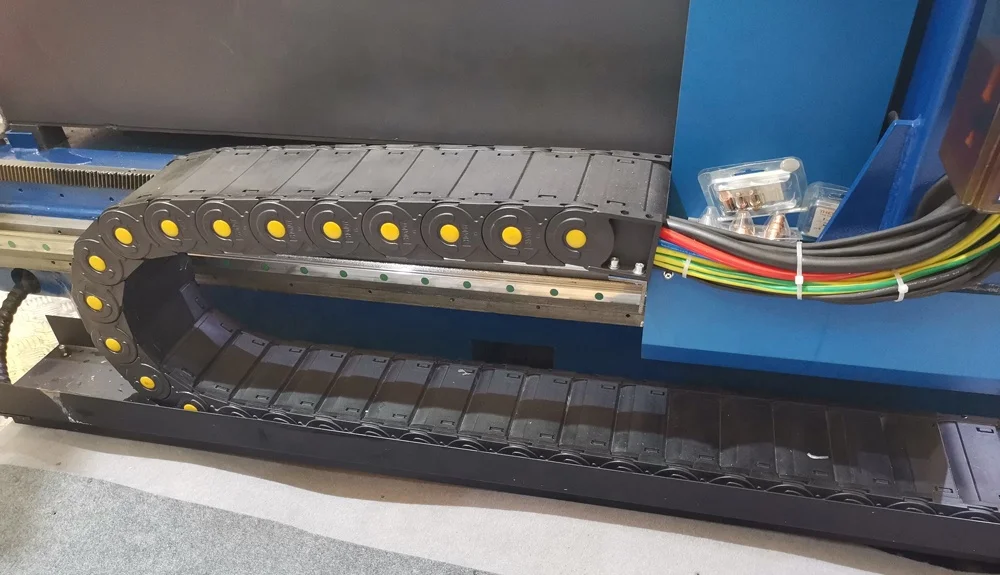

plastic flexible cable drag chain for plasma laser cutting machine

1.Name: plastic cable drag chain, cable carrier, cable towline, towing chain

2.. Model: TEZ25 series,TEZ35 series, TEZ45 series.TEZ56 series,TEZ65 series,TEZ80 series,

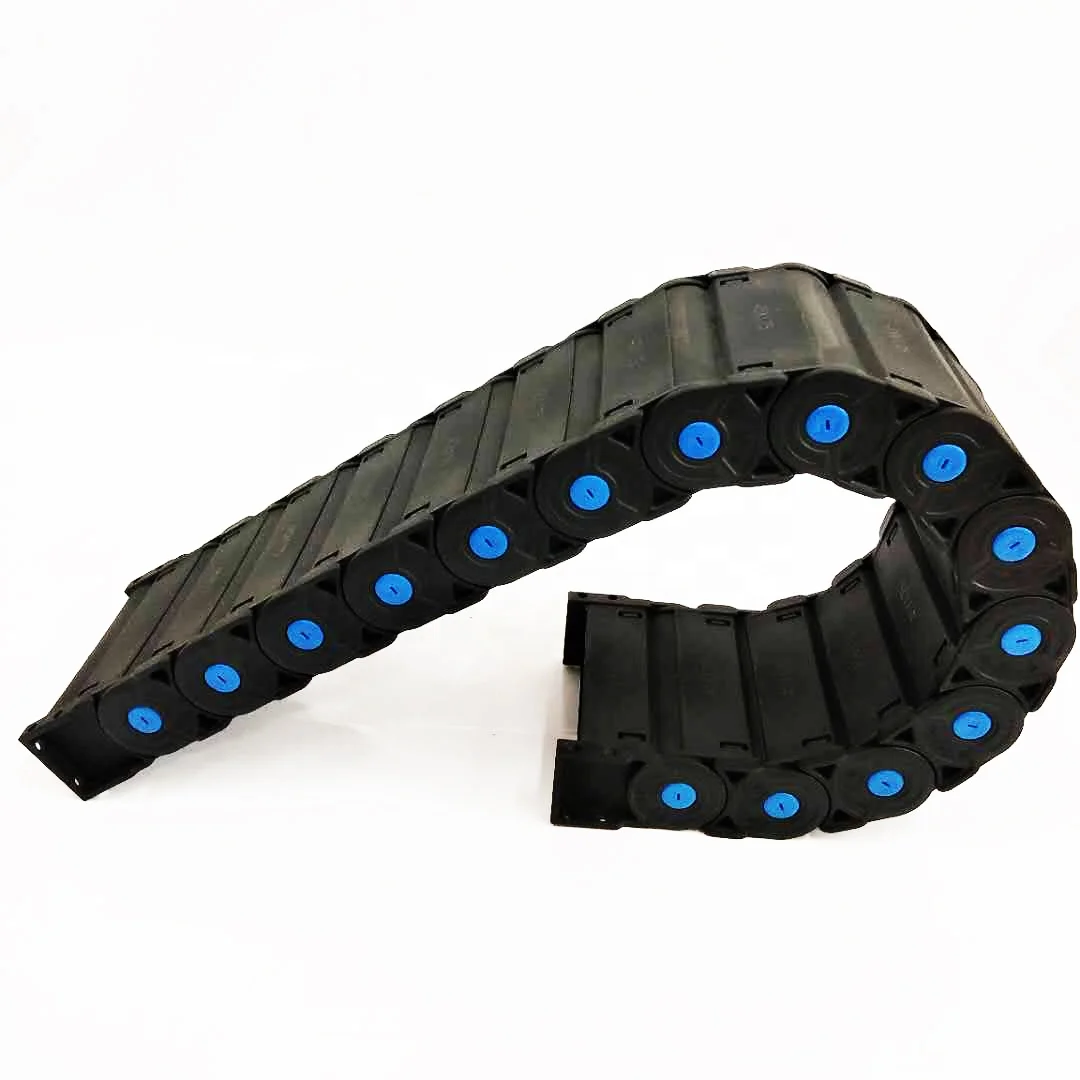

3..Type: Totally enclosed or bridge type

4.Material:reinforced nylon PA66

5. Certification: ISO9001, CE.

Hebei RUIAO Machine Tool Accessories Producing Co.Ltd
http://www.ruiao-dragchain.com
Add:ZhiFangTou Industrial Estate,Cangzhou City,Heibei Province,China

Packing Details  : carton ,wooden case, pallet

Delivery Details : 5-10 days after confirming the order and receiving payment if no stock.

Application

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
