Новое поступление товара сменная горелка для
- Категория: Fireplace Parts >>>
- Поставщик: Changxing,Benneng,Gas,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2.62 $* | 2.61 $* |
| Aug-20-2025 | 2.59 $* | 2.28 $* |
| Jul-20-2025 | 2.10 $* | 2.11 $* |
| Jun-20-2025 | 2.12 $* | 2.95 $* |
| May-20-2025 | 2.82 $* | 2.21 $* |
| Apr-20-2025 | 2.14 $* | 2.67 $* |
| Mar-20-2025 | 2.57 $* | 2.64 $* |
| Feb-20-2025 | 2.8 $* | 2.85 $* |
| Jan-20-2025 | 2.1 $* | 2.61 $* |
Характеристики
Material | Brass/ Stainless steel/ Steel/ Other |
Pilot hood | 1/2/3 flame |
Compression olive | 4 mm, 6 mm, 1/4” |
Gas source | NG/ LPG |
Supply ability | 20000PCS/Month |
Application | Gas heater/ BBQ/ Pizza oven/ Fireplace/ Water heater/ Gas stove |
Packaging | Customizable with standard export carton |
MOQ | 1000pcs |

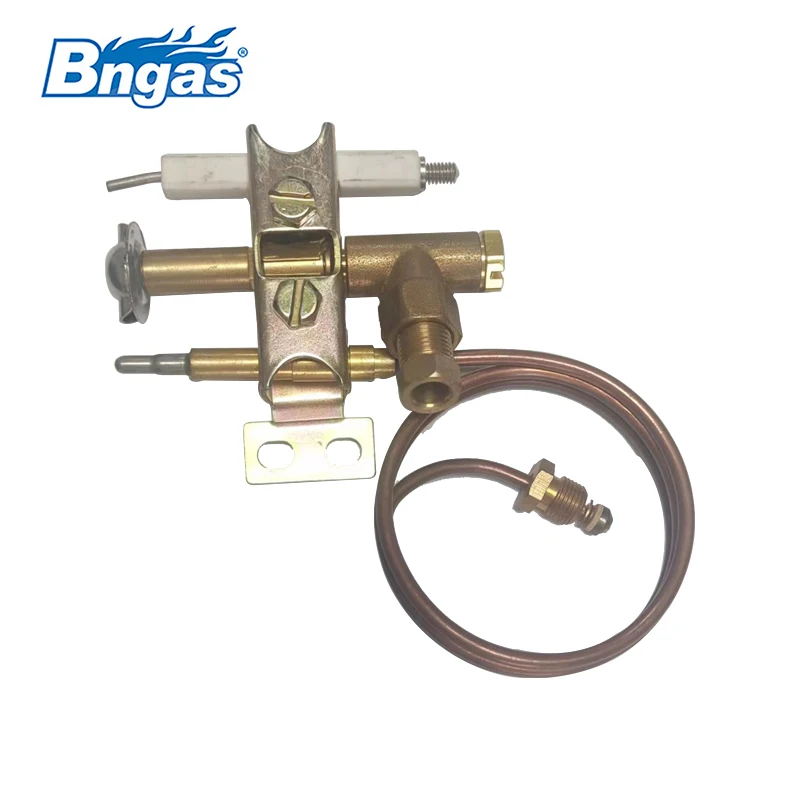

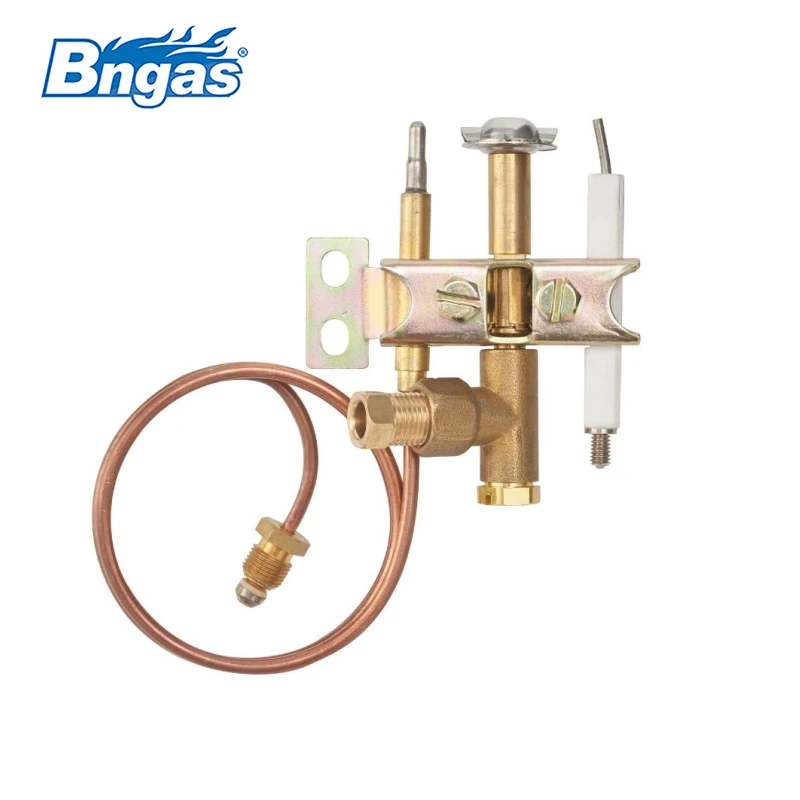

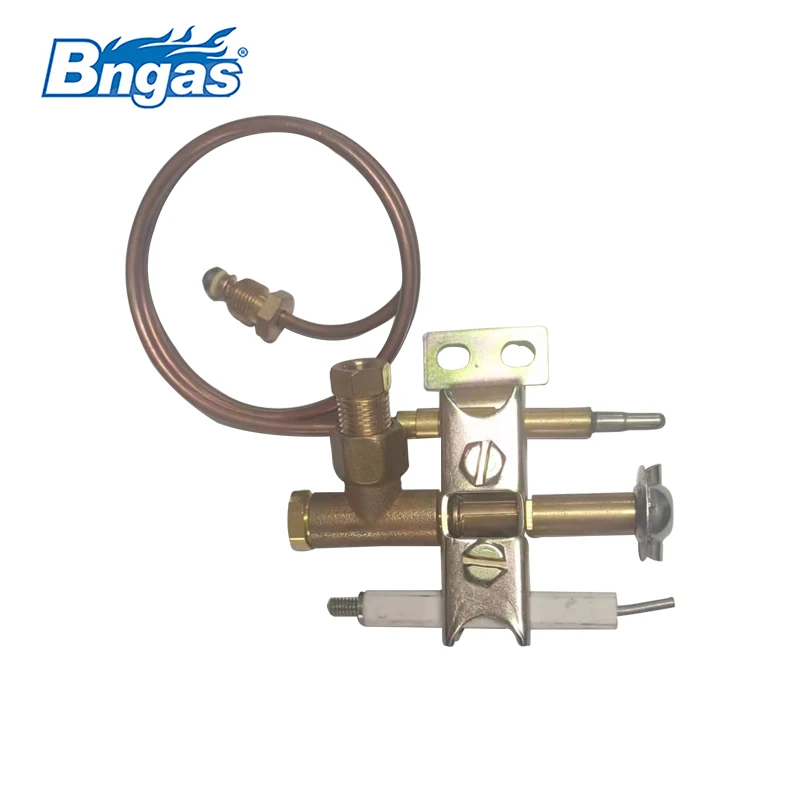

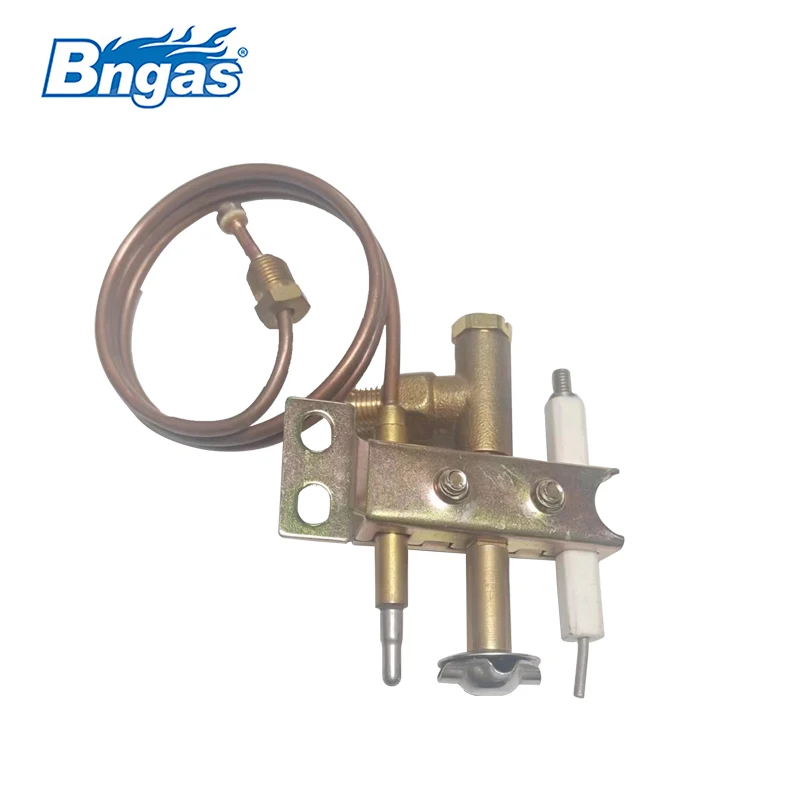

BNGAS® Pilot Assembly
The Pilot Assembly parts include the injector, 30 mV thermocouple/750 mV thermopile (depending on model), electrode, ignition wire, pilot tubing, and bracket.
They are used in various natural and LP gas-fired equipment, ensuring that the main burner’s flame is properly and safely formed and does not go out when the appliance is in use.
They are classified as thermoelectric-type safety devices or ion-detection safety devices.
Product By Bngas Series
We have divided some series according to similar brackets or flame hoods to facilitate customers to find what they need faster.
Some of them are similar to SIT series.
Some of them are similar to SIT series.
BN2205_Series
This pilot burner series can be adjusted the gas flow through the end of a screw. They can be used with any gas.
The advantages are versatility, simplicity of design, economy and good performance characteristics. They are widely used in commercial kitchens.
The advantages are versatility, simplicity of design, economy and good performance characteristics. They are widely used in commercial kitchens.
BN2217_Series
This pilot burner series can only use secondary air to achieve reliable performance.
They are suitable for gas appliances that need to reduce gas consumption. They can be used with any gas if you change their various injectors.
They are suitable for gas appliances that need to reduce gas consumption. They can be used with any gas if you change their various injectors.
BN2218_Series
This pilot burner series can only use secondary air to avoid the effects of dust clogging caused by primary air. They can use various gases after changing different injectors.
They are popularly used in gas heaters, boilers and furnaces.
They are popularly used in gas heaters, boilers and furnaces.
BN2218A_Series
This pilot burner series can only use secondary air to avoid the effects of dust clogging caused by primary air. They can use various gases after changing different nozzles.
Due to its simplicity, it adapts itself to the most demanding working conditions.
Due to its simplicity, it adapts itself to the most demanding working conditions.
BN2214_Series
This pilot burner series relies on a pre-set injector to improve operating stability. Various gases can be used with different injectors installed.
Usually applied in gas water heaters or boilers. It is used with Tubular Gas Burners.
Usually applied in gas water heaters or boilers. It is used with Tubular Gas Burners.
BN2203_Series
This pilot burner series is available with thermocouples and thermopiles installed (continuous pilot ignition) or two electrodes installed (intermittent pilot ignition).
The pilot burners have 2, 3 or 4 flames in different directions, and their pilot hoods are divided into fixed and removable, with additional brackets. They are often used in gas fireplaces.
The pilot burners have 2, 3 or 4 flames in different directions, and their pilot hoods are divided into fixed and removable, with additional brackets. They are often used in gas fireplaces.
BN2210_Series
This pilot burner series is almost identical to the BN2203 series with a pilot tube, thermocouple, thermopile and electrode assembly with ignition wires for continuous pilot ignition or install two electrodes for intermittent pilot ignition.
They have a rotatable hood with different mounting brackets for easy installation. Have 2, 3 or 4 flames in different directions. They are often used in gas fireplaces.
They have a rotatable hood with different mounting brackets for easy installation. Have 2, 3 or 4 flames in different directions. They are often used in gas fireplaces.
BN2223 PRIME AIR
This PRIME AIR series consists of a single-port flame burner, thermocouple, ignition electrode with wire, and a pilot tube with brass nut and olive.
This bracket is very easy to replace the thermocouple and electrode. Various gases can be used with different injectors installed. They are often used in storage water heaters.
This bracket is very easy to replace the thermocouple and electrode. Various gases can be used with different injectors installed. They are often used in storage water heaters.
Features of BNGAS® Pilot Assembly
BNGAS® Pilot Burner Parts Production
BNGAS uses the most advanced machines and equipment manufacturing the Pilot Burner. They are assembly together from many parts,
such as:
* Flame Hood
* Spark Electrode
* 4mm, 6mm, and 1/4″ pilot tube shear-off
* Bracket
* Pilot Tubing
* Injector
* Nozzle
* Brass Nut and Olive
* Thermocouple
* Thermopile
* Ignition Wire
such as:
* Flame Hood
* Spark Electrode
* 4mm, 6mm, and 1/4″ pilot tube shear-off
* Bracket
* Pilot Tubing
* Injector
* Nozzle
* Brass Nut and Olive
* Thermocouple
* Thermopile
* Ignition Wire
BNGAS® Pilot Burner Assembly
BNGAS will self-inspect all parts before assembling the pilot burner and manually assemble them after passing.
Some pilot burners are assembled with thermocouples, thermopiles, ignition wires, or pilot tubing. This requires a very high level
of mounting position on the bracket; if the position is not precise, the flame will not burn and will not be protected.
Some pilot burners are assembled with thermocouples, thermopiles, ignition wires, or pilot tubing. This requires a very high level
of mounting position on the bracket; if the position is not precise, the flame will not burn and will not be protected.
BNGAS® Pilot Burners Packaging
When the assembled pilot burners have passed the test, our staff pack them into cartons. They fit very safely into multiple inner
boxes, are finally placed on pallets, and are delivered in stable condition to their destination.
Some products can also be packaged in individual plastic bags according to customer requirements.
boxes, are finally placed on pallets, and are delivered in stable condition to their destination.
Some products can also be packaged in individual plastic bags according to customer requirements.
BNGAS® Pilot Burners Ignition Testing
All BNGAS® Pilot Burners have passed 100% self-testing, and some have passed CSA certification. During our self-test, we perform
an ignition test to ensure that the parts are installed in the correct position for stable working.
Since pilot burner products are hand assembled, it is impossible to guarantee that every product is assembled correctly, so they
must pass a pre-shipment test to ensure their quality.
an ignition test to ensure that the parts are installed in the correct position for stable working.
Since pilot burner products are hand assembled, it is impossible to guarantee that every product is assembled correctly, so they
must pass a pre-shipment test to ensure their quality.
OEM & ODM BNGAS Pilot Assembly Applications
Choose BNGAS to Custom Pilot Assembly
Q1: Is the Pilot Burner for heating furnace burning all the time?
Q2: What is the MOQ of your Pilot Burner?
Therefore, we set a minimum order quantity of 1,000 pcs of each. If we have the same product in production, we can reduce the amount to 500 of each.
Q3: What is the delivery time of your Pilot Burner?
if we have a lot of orders piling up or need to wait for certain raw materials to arrive.
Q4: What's your payment method?
Q5: Do your Pilot Assembly have certification?
Q6: Can you customize the pilot burner according to my sample?
