48KGS Коммерческая нержавеющая сталь машина льда


Поделиться:


Цена:450,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 536.90 $* 563.10 $*
Aug-15-2025 531.18 $* 558.60 $*
Jul-15-2025 446.97 $* 468.68 $*
Jun-15-2025 522.34 $* 548.19 $*
May-15-2025 455.9 $* 478.46 $*
Apr-15-2025 513.13 $* 539.75 $*
Mar-15-2025 509.16 $* 534.83 $*
Feb-15-2025 504.57 $* 529.14 $*
Jan-15-2025 500.54 $* 525.35 $*

Характеристики


Commodity:Ice Maker,Ice Making Machine






















Model:SD-18


Size:420x450x760mm


Volts:110V/220V


Power:0.2kw


Daily Production:18-20kg


Bin Capacity: 8kg


 Model:SD-60

Size:706x608x1010mm


Volts:110V/220V


Power:0.48kw


Daily Production:60-70kg


Bin Capacity: 35kg




Model:SD-22


Size:500x500x810mm


Volts:110V/220V


Power:0.29kw


Daily Production:28-35kg


Bin Capacity: 10kg


 Model:SD-90

Size:830x570x1010mm


Volts:110V/220V


Power:0.68kw


Daily Production:90-100kg


Bin Capacity: 45kg


 Model:SD-43

Size:560x510x890mm


Volts:110V/220V


Power:0.35kw


Daily Production:48-55kg


Bin Capacity: 20kg


 Model:SD-120

Size:706x608x1010mm


Volts:110V/220V


Power:0.75kw


Daily Production:120-130kg


Bin Capacity: 45kg


 Model:SD-150

Size:760x820x1430mm


Volts:110V/220V


Power:0.78kw


Daily Production:150-165kg


Bin Capacity: 150kg

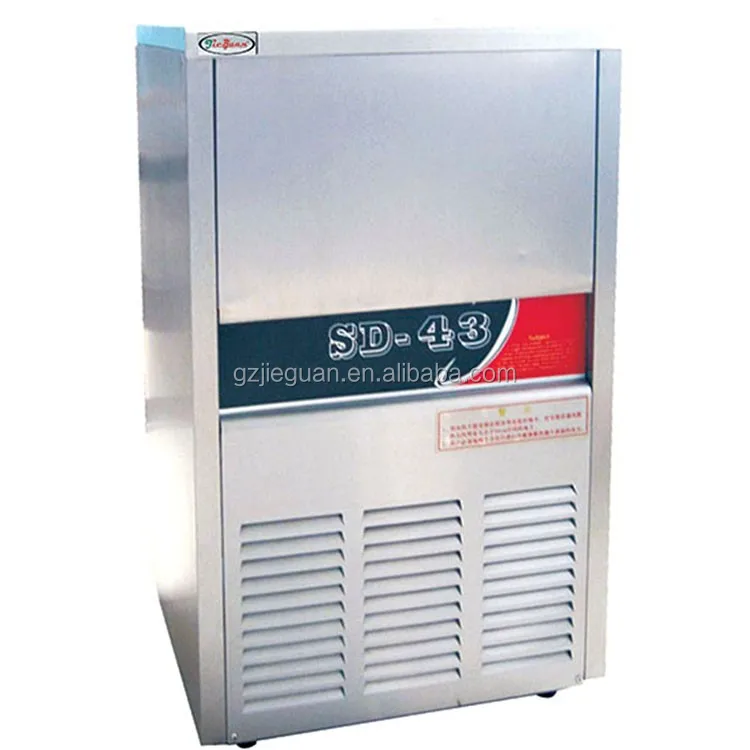

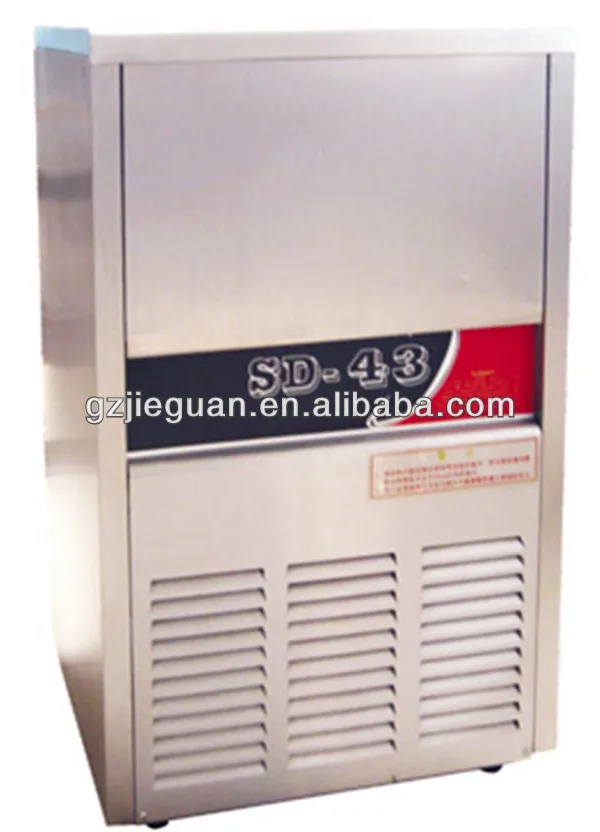

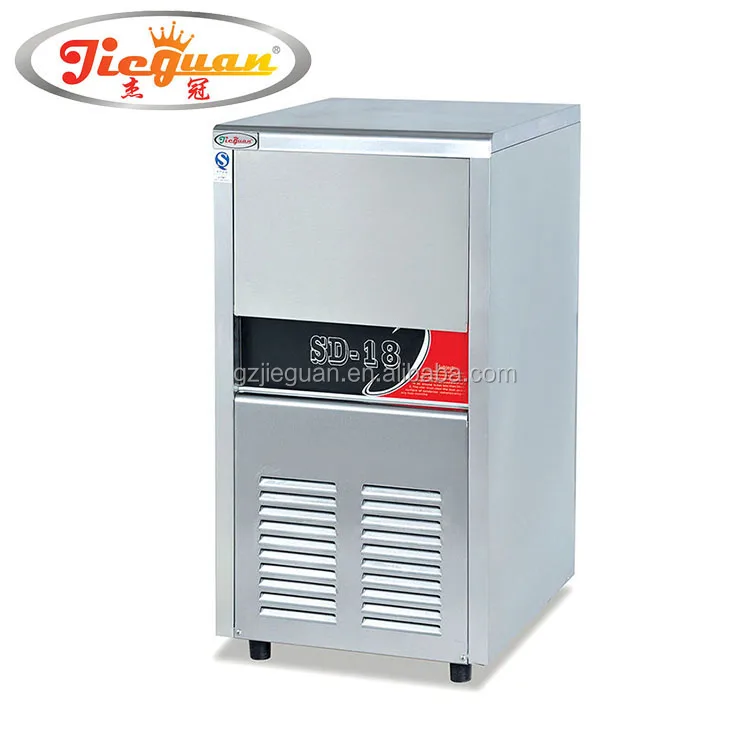

SD-18.jpg                              SD-43.jpg


                          SD-18                                                                                        SD-43


SD-60.jpg                          SD-90.jpg


                        SD-60                                                                            SD-90







                               SD-150


Installation:
(1) The location for the machine should be equipped with the following devices:
a. power of 220V/50Hz
b. water resource and switch
c. pipeline for water drainage
 (2) The machine should be put in level to keep the ice producing effort and prevent from the vibration.
 (3) The machine has to be put in the good ventilation location, it should kept away 150mm from the other objects for the air exchange. The machine should be kept away from other heating resources, such as heaters and ovens etc. The machine should be equipped with suitable power switch, fuse and breaker . The current volume for the socket and cable is not less than 10A. The socket must have qualified earthling wire.
 (4) If the water quality is not so good, you should connect a filter to the tap. The water quality for the ice producing should meet the drinking standards.
Transportation and storage
In transportation, it should be very careful, prevention from heavy vibration. The machine in package cannot be put in open-air for long time. It should be put in the good facility of air and non-corrosive air storage. It cannot be put upside-down. If it is necessary to put it in open-air, it should have waterproof facilities.
Operation
The appliance is equipped with temperature and time control system. The process is completed automatically from water in to ice out. It is no need man power, so it is simple and convenient in operation. What you have to do is only turning on the power and water.
During the operation, when the cabinet is full of ice cubes, the machine will stop automatically. You should take out some of ice cubes and the machine will start again.
You should connect water pipe for the machine. The water pressure should be between 0.1-0.5MPa. The flow can be adjusted by the tap and it depends on the drainage volume of frost-melting. If the drainage is big, turn up the tap, if the drainage is small, turn down the tap.
The silicon balls inside the machine are for prevention of the internal bottom from striking of the ice falling down. So, the silicon balls have to be put in the operation and taken out for cleaning regularly.
