Характеристики
Product Description

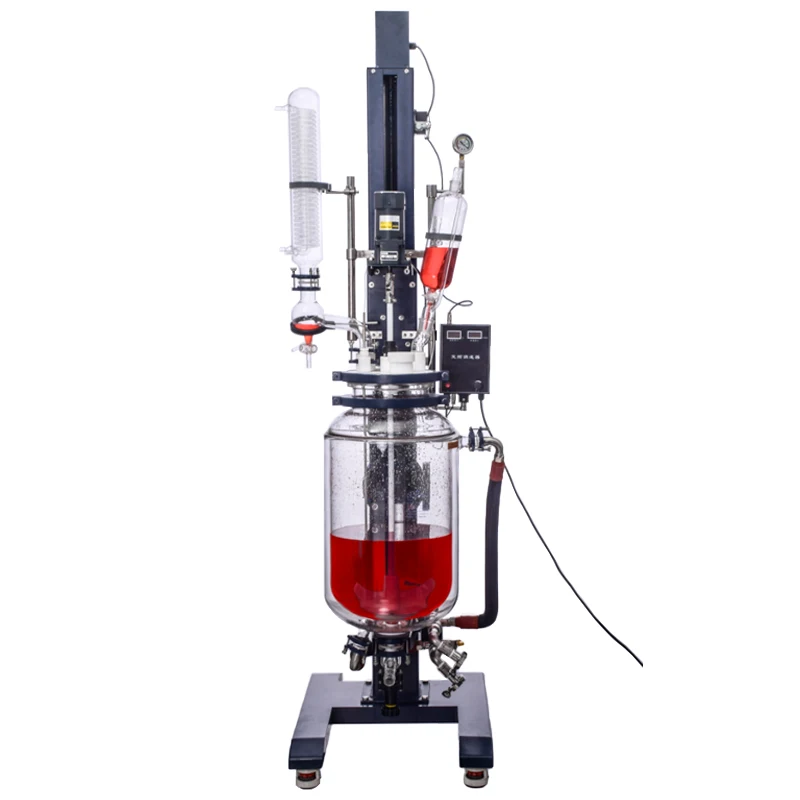

Lifting and rotating double-layer glass reactor TST-SJS212-30L
Working principle
This machine has an electric constant speed stirring system, condensation and drip feeding system, and the interlayer of the kettle body needs external heating or refrigeration circulation equipment. At the same time of stirring the materials, the circulating hot solution or coolant is injected through the interlayer to heat or cool the materials in the kettle at constant temperature. When the material is heated, the evaporation efficiency can be improved under vacuum conditions (a vacuum device needs to be connected). When the solvent vapor passes through the glass condensing coil, it is cooled into liquid (a cooling device needs to be connected), which can be returned to the kettle or recovered through the lower valve of the return elbow. After the reaction is completed, the material can be released from the side discharge port at the bottom of the kettle.
The lifting and rotating reaction kettle is based on the common reaction kettle, which can make the kettle cover and the above part of the kettle cover rise as a whole. After the stirring rod leaves the kettle body, the kettle body can rotate 150 degrees to the left through the hand wheel to directly pour out the materials, thus facilitating cleaning the kettle body.
This series of products need to be equipped with vacuum device, high temperature or low temperature circulation device and other system devices.
Working principle
This machine has an electric constant speed stirring system, condensation and drip feeding system, and the interlayer of the kettle body needs external heating or refrigeration circulation equipment. At the same time of stirring the materials, the circulating hot solution or coolant is injected through the interlayer to heat or cool the materials in the kettle at constant temperature. When the material is heated, the evaporation efficiency can be improved under vacuum conditions (a vacuum device needs to be connected). When the solvent vapor passes through the glass condensing coil, it is cooled into liquid (a cooling device needs to be connected), which can be returned to the kettle or recovered through the lower valve of the return elbow. After the reaction is completed, the material can be released from the side discharge port at the bottom of the kettle.
The lifting and rotating reaction kettle is based on the common reaction kettle, which can make the kettle cover and the above part of the kettle cover rise as a whole. After the stirring rod leaves the kettle body, the kettle body can rotate 150 degrees to the left through the hand wheel to directly pour out the materials, thus facilitating cleaning the kettle body.
This series of products need to be equipped with vacuum device, high temperature or low temperature circulation device and other system devices.
Specification
Model Number | TST-SJS212-30L |
Volume of kettle | 30L inner diameter 330mm outer diameter 365mm inner length 481mm |
Interlayer capacity | About 9L |
Voltage frequency | 220V/50HZ |
Overall power | 160W |
Stirring motor power | 120W1/3 |
Lifting motor power | 40W1/12.5 |
Stirring speed | 0-450rpm/min |
Temperature range of kettle body | -80 ℃ ~ +250 ℃ |
Temperature measurement accuracy | ± 1 ℃ |
Vacuum degree | 0.098Mpa |
Kan cover φ 265mm Six ports (full tetrafluoroethylene cap) | Mixing port Φ50mm threaded port |
Condensation return port 50# ball mill | |
Constant pressure funnel mouth 40# Marks | |
Decompression port 34# Marked Port | |
Temperature measuring port 24# Marketplace | |
Solid feeding port Φ80mm threaded port, inner diameter 50#mm | |
Mixing paddle | φ 17 × 1000H(mm) leaf spread 190mm |
Condenser | φ 120 × 600H(mm) lower φ 60 flange port |
Condensation area | 0.5 ㎡ |
Return elbow | Upper Φ 60 flange port left 50# ball mill plug |
Constant pressure funnel | 2L upper 29# marking port with glass plug lower 40# marking plug The lower part is connected with the S-shaped adapter of 40# marking port × 40# marking plug and the kettle cover. |
Pressure reducing valve | 34# standard plug valve drain nozzle (pagoda connector) outer diameter 12mm |
Interlayer inlet and outlet circulation port | Φ45mm flange port matching 6-point buffer device, external interface 4-point wire port |
discharge port | Φ75mm flange Φ33mm discharge hole inclined discharge port (pagoda joint) Φ34mm 300mm from the ground |
Vacuum suction nozzle | The outer diameter of the pagoda joint is 12 mm. |
Condensation coil inlet and outlet circulation nozzle | The outer diameter of the pagoda joint is 15 mm. |
Host lifting stroke | 640mm (actually 50mm when the stirring rod leaves the upper opening of the kettle cover) |
Rotation of kettle body | Rotate 150 to the left |
Size of space occupied by the whole machine | 750 × 950 ×(2150-2700 after rising) mm width and depth |
Net weight of machine | 142KG |
Package size | 2180 × 680 × 1080mm wooden box 1.6m ³ |
Packing weight | 205KG |
