Оцинкованная железная мягкая проволока gi, переплетная проволока
US $499.00-$799.00
Производители Труб из ковкого чугуна самокрепежный шарнир двойная труба Flang в Ирак En545 En598 чугунная
- Категория: >>>
- Поставщик: Shandong,Baotai,Metal,Materials,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 619.41 $* | 650.20 $* |
| Aug-19-2025 | 614.56 $* | 645.27 $* |
| Jul-19-2025 | 515.38 $* | 541.8 $* |
| Jun-19-2025 | 603.90 $* | 633.81 $* |
| May-19-2025 | 525.76 $* | 551.42 $* |
| Apr-19-2025 | 593.85 $* | 623.62 $* |
| Mar-19-2025 | 588.53 $* | 617.89 $* |
| Feb-19-2025 | 582.46 $* | 611.36 $* |
| Jan-19-2025 | 577.89 $* | 606.15 $* |
Характеристики
Product Description

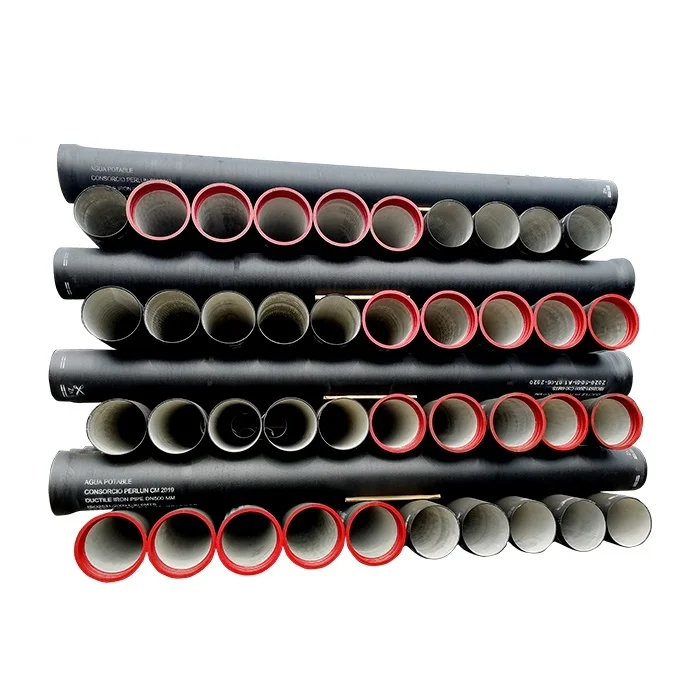

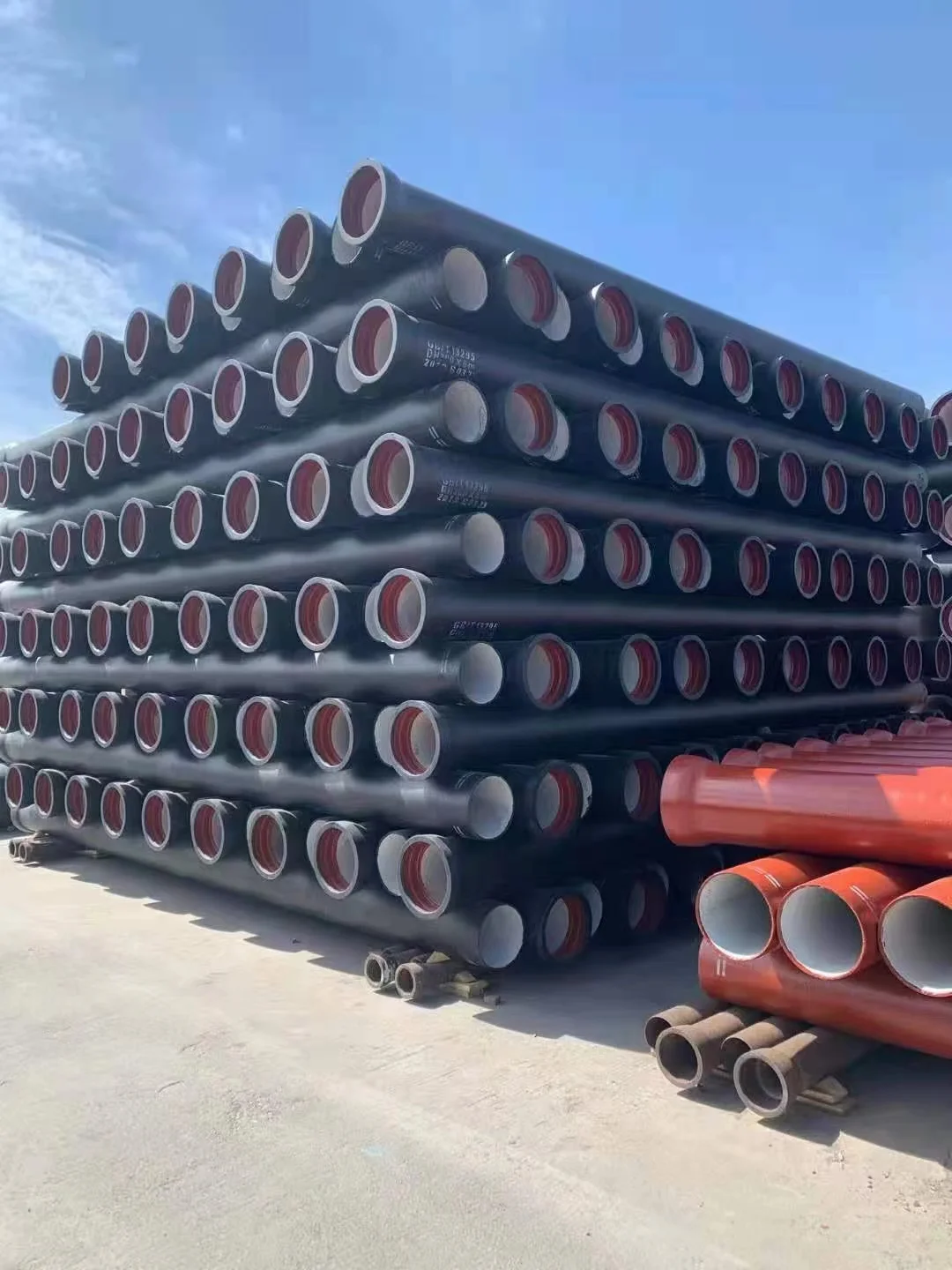

Ductile Iron Pipe
Is a kind of pipe made from spherical graphite cast iron by centrifugal spinning process. The pipes, which can convey many fluid media such as water, oil and gas, are widely used in various pipeline projects for metallurgy, mine, water conservancy, petroleum and urban public service utility.
Possessing high strength, good toughness as steel and better corrosion resistance than steel, the ductile iron pipe is the ideal substitute for gray cast iron pipe and common steel pipe. In addition, the DI pipes are produced with good straightness, even wall thickness, high dimension accuracy, smooth surface finishing and remarkable mechanical properties, plus with firmly sticking internal & external coating layer. Flexible Push-in joint and rubber gasket are used resulting in convenient installation of pipelines.
Specification
Works Hydraulic Test Pressure | ||||||||||||
Nominal Diameter | Works Test Pressure(Bar) | |||||||||||
DN | Pipes K9 | Fittings | Pipes With Weld-on or Screwed-on Flange | |||||||||
PN10 | PN16 | PN25 | PN40 | |||||||||
80 to 300 | 50 | 25 | 16 | 25 | 32 | 40 | ||||||
350 to 600 | 40 | 16 | ||||||||||
700 to 1000 | 32 | 10 | ||||||||||
1100 to 2000 | 25 | 10 | ||||||||||
Specifications:
1) The standard of pipe: ISO 2531, EN545 , EN598.
2) Pipe class: K9, C40, C30, C25, etc.
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint
4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.
5) Internal lining: cement mortar lining as per ISO4179
6) Zinc coating: at least 130g/m2 as per ISO 8179
7) Bitumen painting: at least 70um as per ISO 8179
8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633
9) DN 80 - 2,600 mm
1) The standard of pipe: ISO 2531, EN545 , EN598.
2) Pipe class: K9, C40, C30, C25, etc.
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint
4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.
5) Internal lining: cement mortar lining as per ISO4179
6) Zinc coating: at least 130g/m2 as per ISO 8179
7) Bitumen painting: at least 70um as per ISO 8179
8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633
9) DN 80 - 2,600 mm
Flange connection and socket connection
For the way of Flange Connection, it cannot be buried directly, because the bolts are easy to be corroded, which will cause problems such as water leakage at the connection port, and the requirements for operation will be more strict. For Socket Connection, there is no restriction on direct burial, but there are requirements on the diameter of the pipeline.
Product Application
APPLICATION
1. Municipal Engineering: Buried drainage and sewage pipes.
2. Road works : Raiway and highway drainage pipes.
3. Agricultural Engineering: Farmland, orchard, irrigation and drainage.
4. Mine: Mine ventilation air supply, drainage, mud pipe.
5. Communication: Communication cable protection pipe.
3. Agricultural Engineering: Farmland, orchard, irrigation and drainage.
4. Mine: Mine ventilation air supply, drainage, mud pipe.
5. Communication: Communication cable protection pipe.

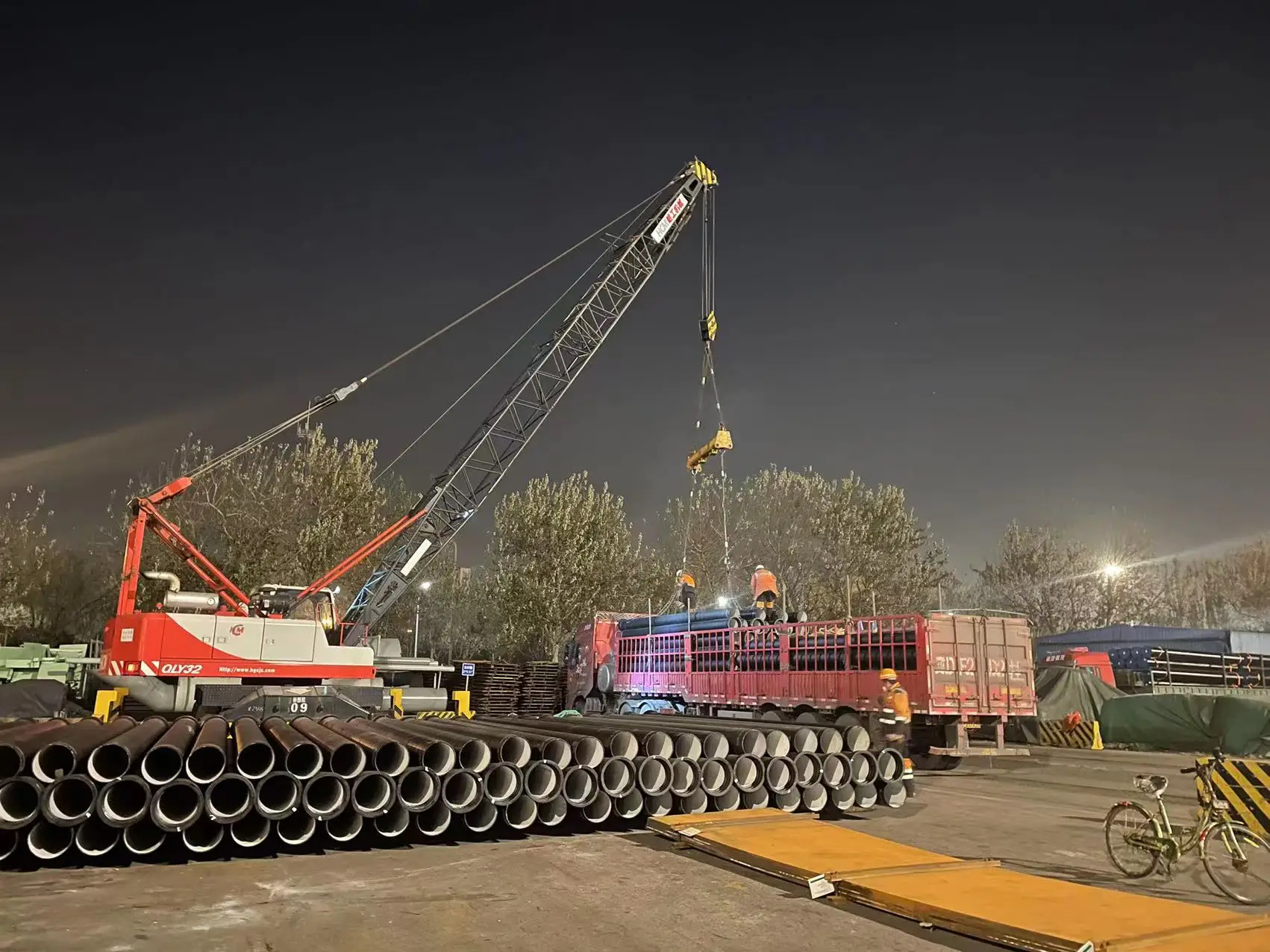

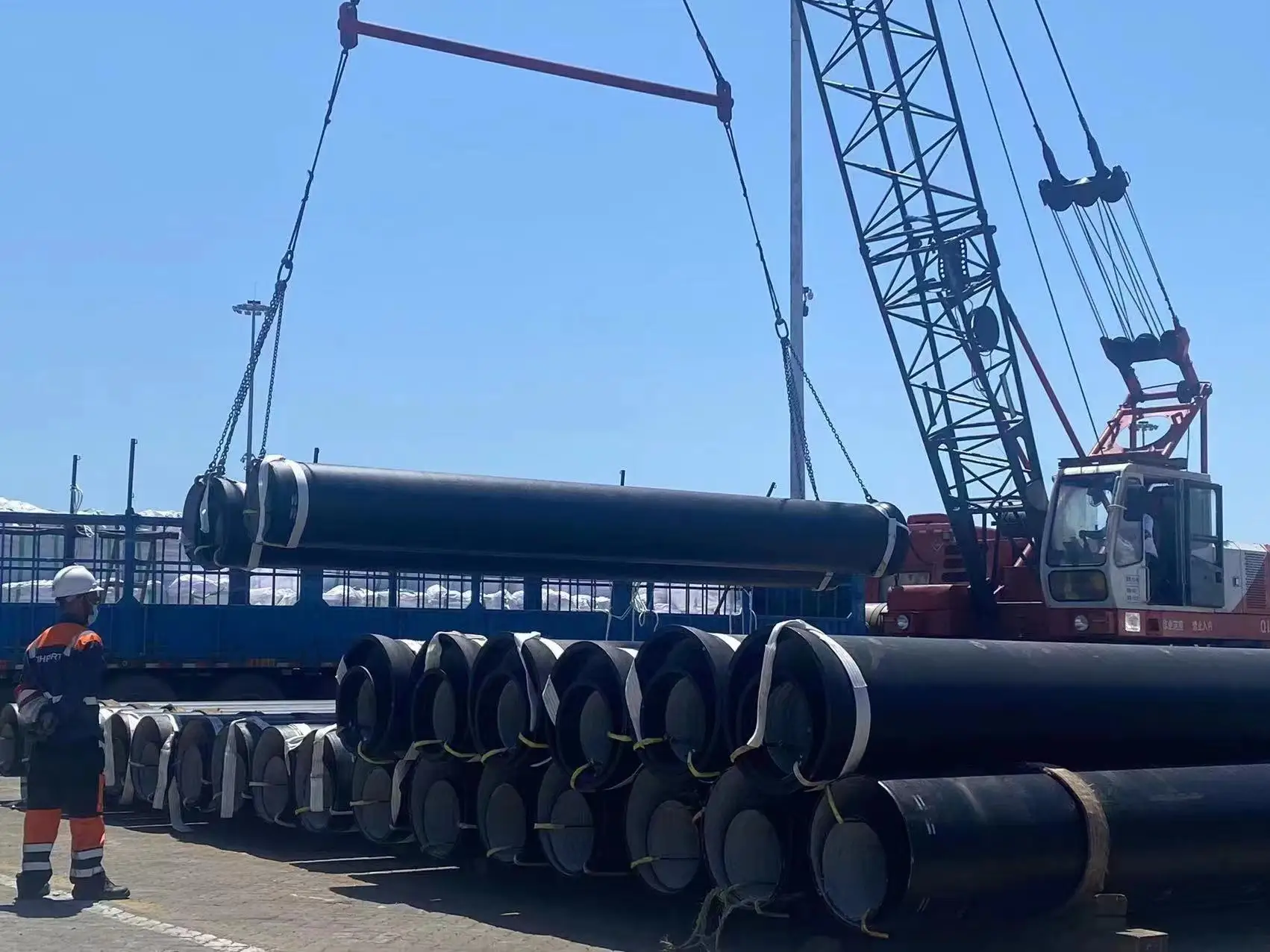

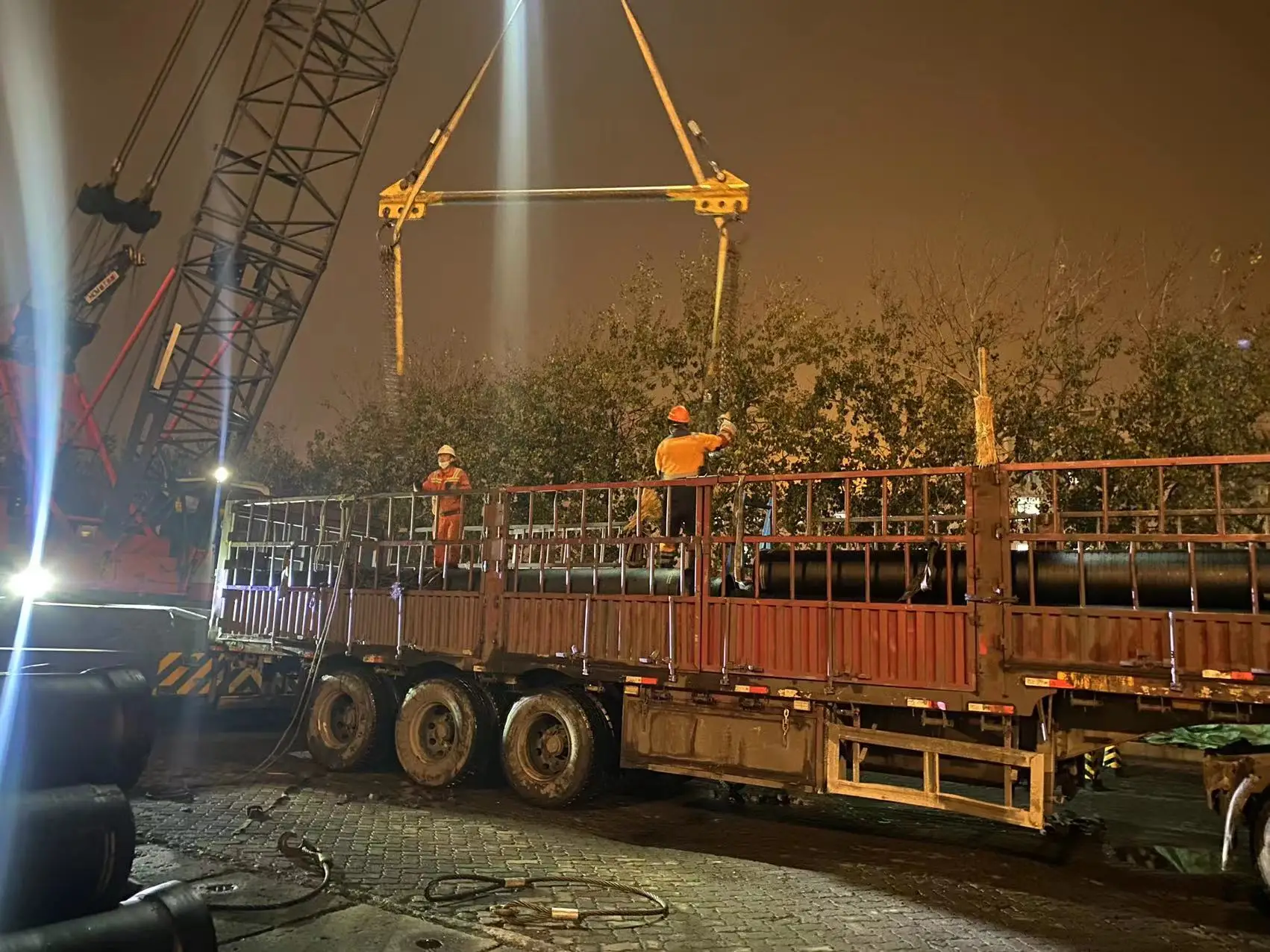

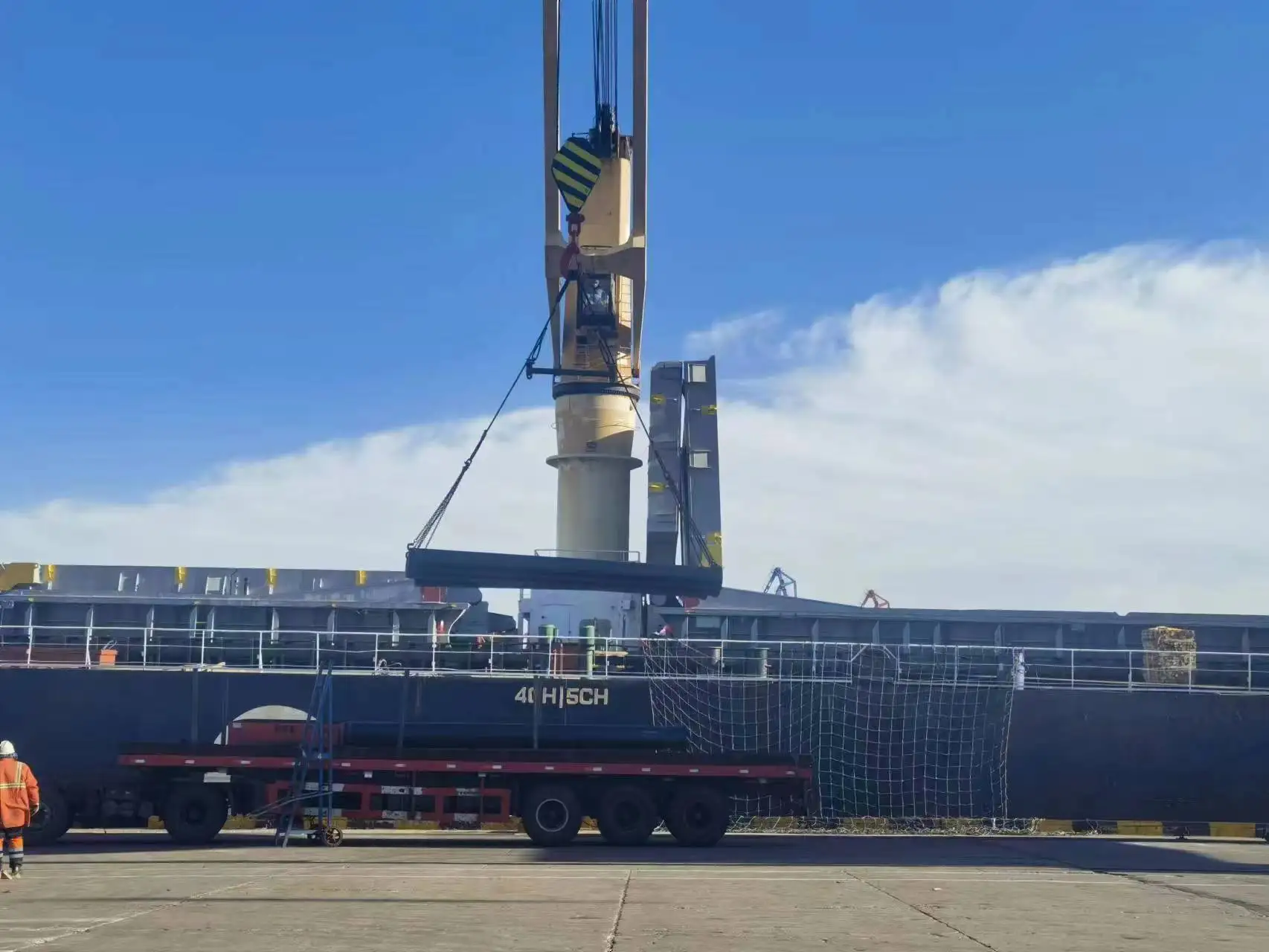

Packing & Delivery
Company Profile
Shandong Baotai Metal Materials Group Co., Ltd. is located in Jinan.
Mainly engaged in stainless steel, carbon steel, galvanized steel, PPGI, PPGL, copper, aluminum. The company has established long-term close cooperative relations with well-known domestic steel companies. Baotai Group provides services for large enterprises such as domestic government construction projects, Chinese listed companies, and state-owned enterprises. we can guarantee a short delivery time. High-quality products, and high-quality services are highly praised by customers. Customers from various countries have signed agency agreements with Baotai Group and become Baotai Group's agents. Baotai Group adheres to the oncept of win-win, customer-centric, and looks forward to becoming your trustworthy and high-quality enterprise.
FAQ
1. who are we?
We are based in Shandong, China, start from 2021,sell to Southeast Asia(20.00%),South America(20.00%),South Asia(15.00%),Africa(10.00%),North America(7.00%),Eastern Asia(6.00%),Eastern Europe(6.00%),Southern Europe(6.00%),Mid East(3.00%),Northern Europe(2.00%),Central America(2.00%),Oceania(2.00%),Western Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PPGI,Galvanized Steel,Stainless Steel,Carbon Steel,Ductile Iron Pipes
4. why should you buy from us not from other suppliers?
The company has sufficient inventory to ensure that customers receive the goods at the lowest price and the shortest delivery time when purchasing. A professional logistics team and after-sales team will solve all delivery and receiving problems for you.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2021,sell to Southeast Asia(20.00%),South America(20.00%),South Asia(15.00%),Africa(10.00%),North America(7.00%),Eastern Asia(6.00%),Eastern Europe(6.00%),Southern Europe(6.00%),Mid East(3.00%),Northern Europe(2.00%),Central America(2.00%),Oceania(2.00%),Western Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PPGI,Galvanized Steel,Stainless Steel,Carbon Steel,Ductile Iron Pipes
4. why should you buy from us not from other suppliers?
The company has sufficient inventory to ensure that customers receive the goods at the lowest price and the shortest delivery time when purchasing. A professional logistics team and after-sales team will solve all delivery and receiving problems for you.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
