Пластиковый экструзионный одновинтовой цилиндр для ПВХ ПП ПЭ АБС ПЭТ профили ПЭНД листовая плита Экструзионные
- Категория: Plastic & Rubber Machinery Parts >>>
- Поставщик: Nantong,Bogda,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3332.20 $* | 3499.21 $* |
| Aug-19-2025 | 3304.2 $* | 3469.46 $* |
| Jul-19-2025 | 2772.60 $* | 2911.3 $* |
| Jun-19-2025 | 3248.90 $* | 3410.65 $* |
| May-19-2025 | 2828.57 $* | 2969.53 $* |
| Apr-19-2025 | 3192.63 $* | 3352.58 $* |
| Mar-19-2025 | 3164.38 $* | 3322.45 $* |
| Feb-19-2025 | 3136.88 $* | 3293.73 $* |
| Jan-19-2025 | 3108.93 $* | 3263.64 $* |
Характеристики
PVC Extruder Bimetallic Twin Screw Barrel With Cooling Water
1. Screw material :38CrMoAl, stainless steel (316, 304, 9Cr18Ni9TA)
2. Nitride layer depth: 0.5-0.8 mm
3. Surface roughness: Ra 0.4 um
5. Screw straightness: 0.015 mm
5. Hardness of hard chrome plating after nitriding: >960HV
Normal Conical Twin Screw Dimension | ||||||||
φ35/73 | φ35/75 | φ37/75 | φ40/83 | φ45/90 | ||||
φ45/97 | φ45/100 | φ50/93 | φ50/103 | φ50/105 | ||||
φ51/104 | φ51/105 | φ53/106 | φ55/110 | φ55/120 | ||||
φ55/113 | φ58/125 | φ58/126 | φ60/120 | φ60/125 | ||||
φ61/125 | φ64/128 | φ65/120 | φ65/132 | φ68/123 | ||||
φ68/147 | φ70/156 | φ72/151 | φ80/143 | φ80/156 | ||||
φ80/174 | φ92/188 | φ95/191 | φ105/216 | |||||
Product Description
45/90, 45/100, 50/105, 51/105, 55/110, 55/120, 58/124, 60/125, 65/120, 65/132, 68/143, 70/135, 70/140, 75/150, 80/143, 80/156,92/188,105/216
The above are our standard specifications, we can customize according to customer's requirements.
The compression ratio of screws can be designed according to different raw material and products.
The compression ratio of screws can be designed according to different raw material and products.
Application For PVC Extruder Bimetallic Twin Screw Barrel With Cooling Water
Used For kinds of plastic extruders
Material of Barrel
Raw Material | The Finished Product Processing Requirements |
38CrMoAlA, SACM645, 42CrMo | Nitriding Treatment |
42CrMo，AISI 4140 | Chrome Plating Hardness Layer |
4Cr5MoSiV1, SKD-61, SKD-11 | Spraying Bimetal Alloy Layer And Nitriding Treatment |
HPM38, SI36, SUS440, 9Cr18MoV | Stainless Steel(Iron), High Frequency Quenching |
GHII3 | Nature Harden After High Temperature |

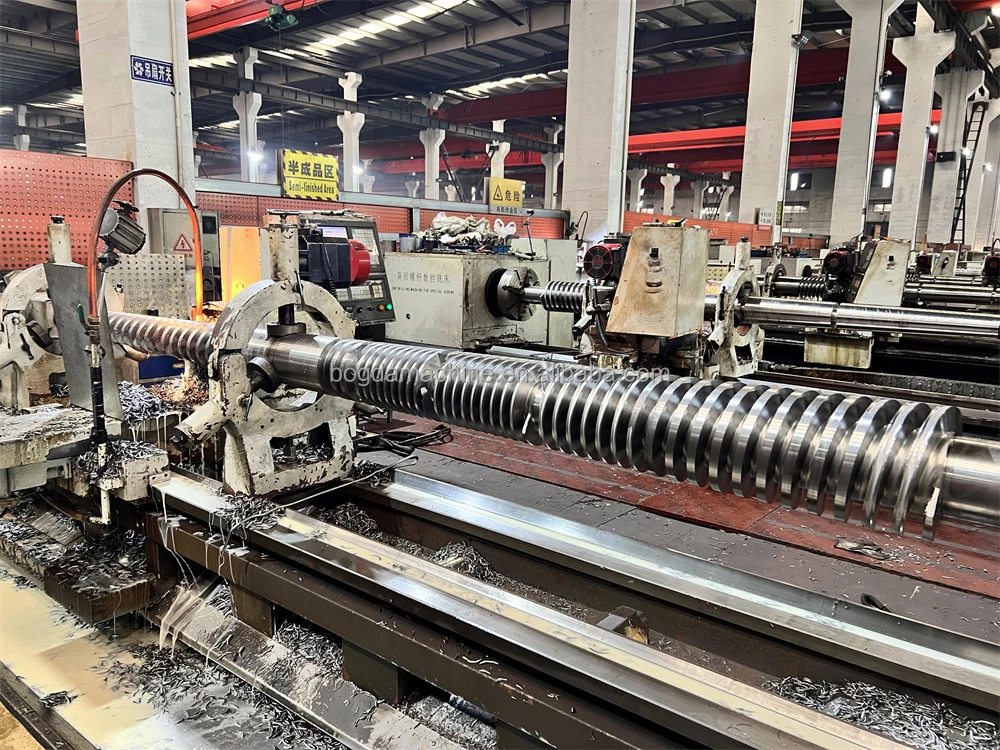

Workshop Picture

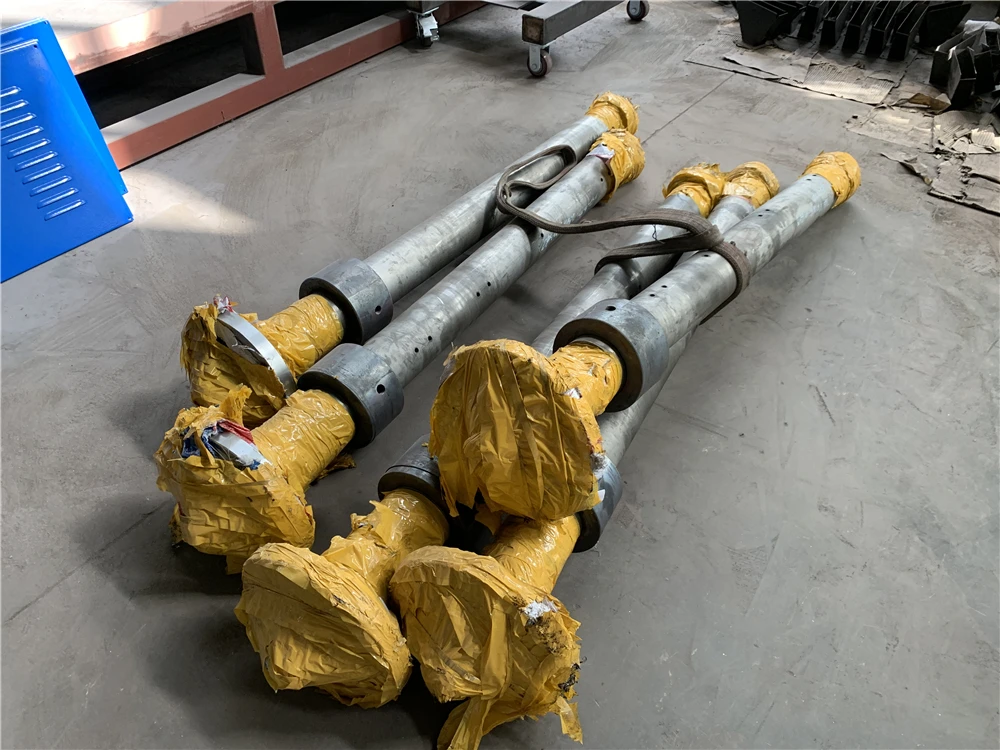

Packaging
BOGDA Company Information
- BOGDA Machinery Group is located in Europe and America (Hai'an) Industrial Park and Shanghai Fengxian (Hai'an) Industrial Park. It is a high-tech and innovative company dedicated to the research and development and manufacturing of plastic extrusion molding equipment. The company is people-oriented and innovative Development, with its unique corporate culture that has been brewing for many years, and the company’s eager attention to global economic development, it has continued to grow with its majestic momentum and quick response, making itself a large-scale and highly anticipated industry in this industry.
- Leading technology and excellent quality have been highly recognized by authoritative departments and markets. Products are exported to more than 110 countries and regions such as Europe, America, the Middle East, Southeast Asia, South America, Russia, Turkey, Italy, Poland, Brazil, Romania, etc. Deeply trusted and praised by customers, the company has many subsidiaries such as pipeline equipment, sheet film intelligent equipment, intelligent automation, and granulation equipment. The company has a high-quality talent R&D team and more than 20 years of experience in the industry. A team of mechanical and electrical ommissioning engineers, as well as an advanced machining base and a standardized assembly workshop. More than 600 sets of high-end plastic extrusion lines are produced every year.
The main products of the company are:
1. PVC/PP/PE wood plastic production lines
2. PVC/PP/ wide sheet production lines
3. PVC/UPVC door and window profiles, ceiling panels, wall panels, window sill panels, wall hanging panels and other profiles
extrusion production lines
4. PC/PA/ABS and other profiles production lines
5. PVC pipe production lines
6. HDPE/PE/PVC/PPR/PERT solid wall pipe production lines, as well as HDPE/PE gas pipe production lines
7. Vertical and horizontal HDPE/PP/PVC corrugated pipe production lines & reinforced winding pipe production lines
8. Multi-layer and single-layer PE/PP/PS/HIPS/GPPS/PC/ABS/PLA/PET/PMMA/GPPS/APET/PETG sheet production line
9. EVA/POE/PVB/SGP film production line; TPU/TVB film and lithium battery separator production line
10. All kinds of PE/PP/PLA/PET pelletizing units
11. PVC/PE/PP automated centralized feeding system
12. PP meltblown fabric and various spunbond non-woven fabric production lines
13. SPC LVT PVC Floor Production Line
14. PVC foamed board extrusion production lines
15. Recycling auxiliary equipment related to extrusion line, such as extrusion mold, plastic shredder, plastic crusher, plastic
pulverizer, cooling tower, automatic screw loader, hopper dryer, plastic mixer and etc.
BOGDA has advanced design concepts in the extrusion field, strives for perfection in product quality, and continues to improve in technology. It can provide customized solutions for each customer to meet the different needs of customers. Project planning, product positioning, plant planning, equipment installation and commissioning, customer staff training, equipment after-sales maintenance and other all-round services. Our advantage is to provide customers with desired, satisfactory, and high-quality products to help customers create the greatest Profits and business opportunities, customer success is our ultimate goal.
FAQ
1. How many electric, water, air need for the machines? BOGDA: technical department supply the whole layout for workshop details.
2. Can I operate machine if don’t have experienced engineers?
BOGDA: (1) short-time engineers to customer company (5-15days)
(2) Year-time working as requirements
3. Any quality checking before shipment?
BOGDA: 100% confirm, run and test machines before shipment with quality certificate.
4. How long is the guarantee?
BOGDA: 12 months since the first day customer operates (except wear parts)
5. How can u help us when face some technical problem?
BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
6. Where can we get spare part?
BOGDA: we choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, orsend parts by DHL, Fedex, TNT and other express.
2. Can I operate machine if don’t have experienced engineers?
BOGDA: (1) short-time engineers to customer company (5-15days)
(2) Year-time working as requirements
3. Any quality checking before shipment?
BOGDA: 100% confirm, run and test machines before shipment with quality certificate.
4. How long is the guarantee?
BOGDA: 12 months since the first day customer operates (except wear parts)
5. How can u help us when face some technical problem?
BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
6. Where can we get spare part?
BOGDA: we choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, orsend parts by DHL, Fedex, TNT and other express.
