Высокоточный портативный промышленный детектор газа TDLAS с быстрым откликом удаленный лазерный
- Категория: Gas Analyzers >>>
- Поставщик: Henan,Relia,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2142.58 $* | 2249.70 $* |
| Aug-15-2025 | 2124.98 $* | 2230.84 $* |
| Jul-15-2025 | 1782.95 $* | 1871.77 $* |
| Jun-15-2025 | 2088.79 $* | 2192.22 $* |
| May-15-2025 | 1818.60 $* | 1909.4 $* |
| Apr-15-2025 | 2052.18 $* | 2155.98 $* |
| Mar-15-2025 | 2034.54 $* | 2136.79 $* |
| Feb-15-2025 | 2016.76 $* | 2117.1 $* |
| Jan-15-2025 | 1998.74 $* | 2098.79 $* |
Характеристики

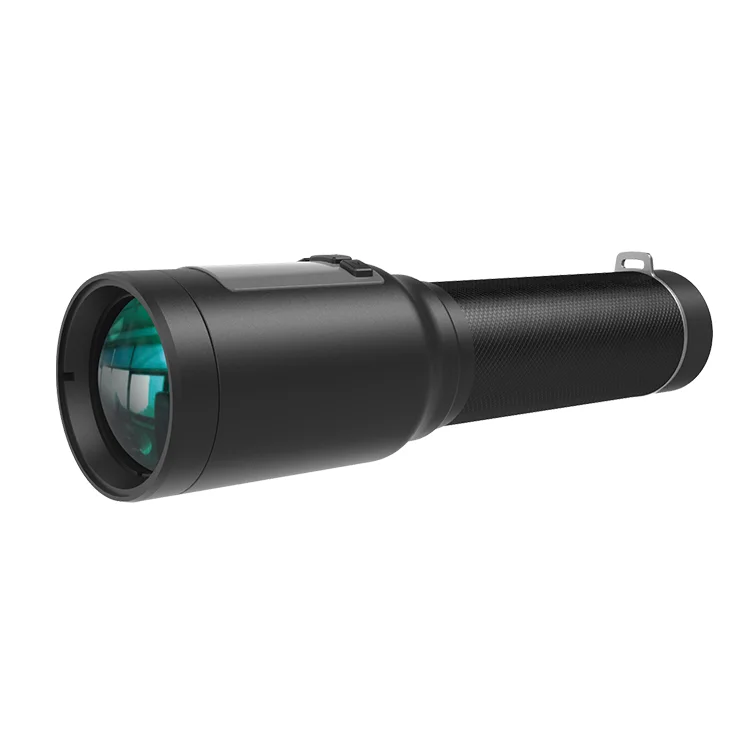

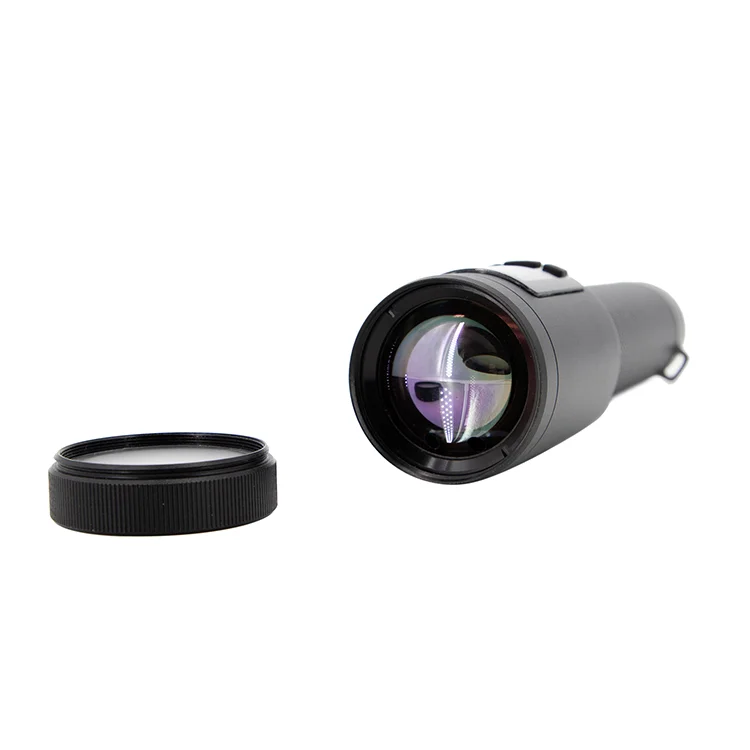

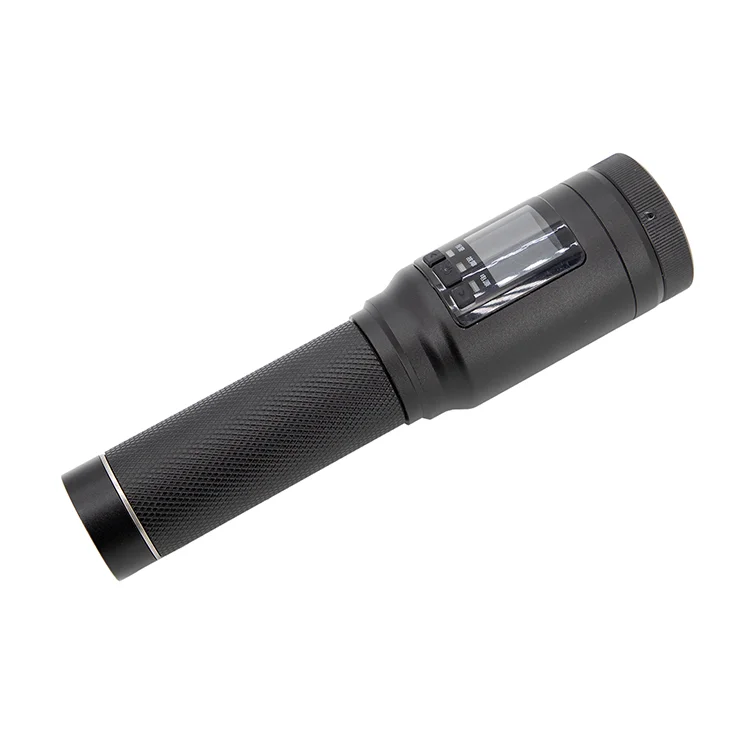

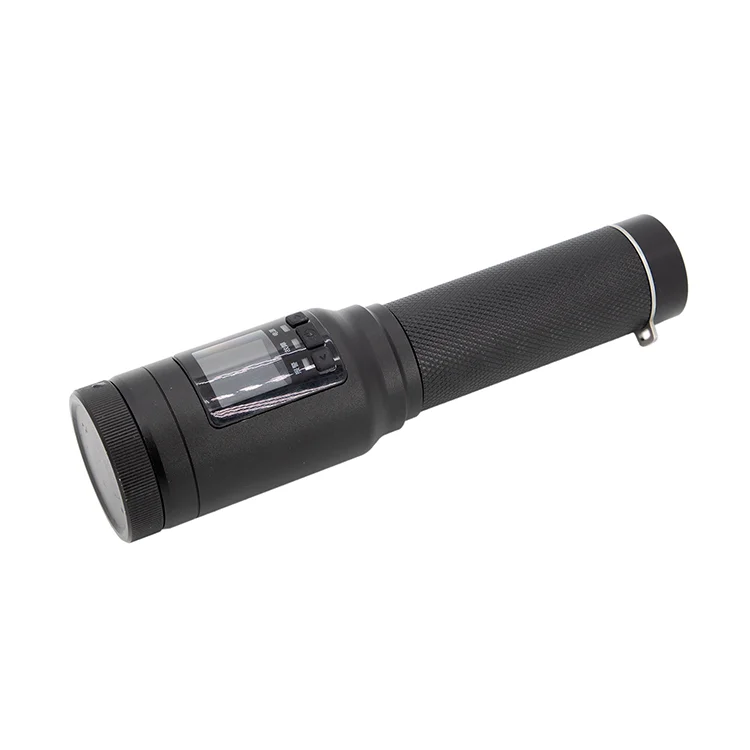

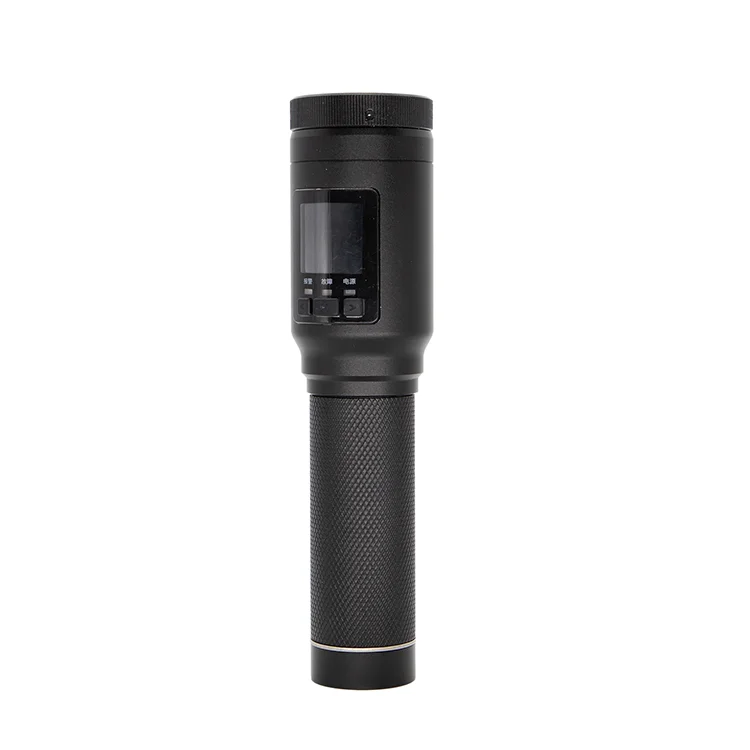

High Sensitive Fast Response Portable Handheld Industrial TDLAS Remote Laser CH4(Methane) Gas Detector
Features
1.Remote detection, maximum distance is 20 meters
2. Small size and light-weight easy to carry
3. Good selectivity, response to Methane only
4. Sensitivity of 5ppm.m
5. Fast response, no alarm delay
6. Adopts spotter beam to improve visibility of long distance
7. Optional display detector of PPM.M, LEL.M and VOL.M
8. Shock proof design
9. Visual, audible and vibration alarm
10. Self -test function
11. Low battery warning
12. Low consumption, can be used for continuous testing
2. Small size and light-weight easy to carry
3. Good selectivity, response to Methane only
4. Sensitivity of 5ppm.m
5. Fast response, no alarm delay
6. Adopts spotter beam to improve visibility of long distance
7. Optional display detector of PPM.M, LEL.M and VOL.M
8. Shock proof design
9. Visual, audible and vibration alarm
10. Self -test function
11. Low battery warning
12. Low consumption, can be used for continuous testing
Specification
Gas | CH4 |
Principle | TDLAS |
Sensitivity | 5ppm.m |
Detection range | 0～100000ppm.m |
Distance | 20 meters |
Response time | T90 < 0.1S |
Working temperature | -20℃～50℃ |
Storage temperature | -20℃～60℃ |
Humidity | <99% RH (no condensation) |
Explosion-proof grade | Ex ib IIB T4 Gb |
Ingress protection | IP68 |
Weight | About 380g |
Power supply | DC3.7V rechargeable Lithium battery |
Working time | 10 hours after full charging |
Display | Color LCD screen |
Lifespan | 10 years |
Alarming method | Visual &audible alarm |
Penetrating | An object that can be penetrated by light without effecting detection, as through ordinary glasses. |
Data transmission | Blue-tooth |
Laser safety class | Detecting beam: Class 1 Aiming beam: Class 3R |
Accessory | Battery Charger, wrist band, carrying case etc |
Application
The products are widely used in Petrochemical, Gas, Municipal fire-fighting, Sewage treatment, medical and health care, smelting, food refrigeration, Dangerous chemicals storage and other industrial manufacturing sites requiring explosion prevention and poisoning prevention, Home safety and protection, Traffic regulation and security areas etc.
Certifications
Stand ISO9001:2015, CE, FCC, CCCF, ATEX, RoHS, Explosion Proof and other certifications.
Company Profile
Henan Relia Instrument Co., Ltd is a high-tech innovative enterprise integrating industry and trade. insists to take the forefront of the since and technology, customer-oriented, quality first, providing superior qualified products and excellent service for customers and bring safety for each industry and household.
The company specializes on gas detection instrument and related service. Products include gas leak detectors, portable gas detectors for personal safety care, fixed gas detectors and control system, flame detector, laser methane detector, smoke detector, carbon monoxide alarm, standalone household gas alarm, wireless gas alarm, particle dust monitor, air quality monitor, breath detector, alcohol tester, water meter, gas meter etc.
Packaging & Shipping

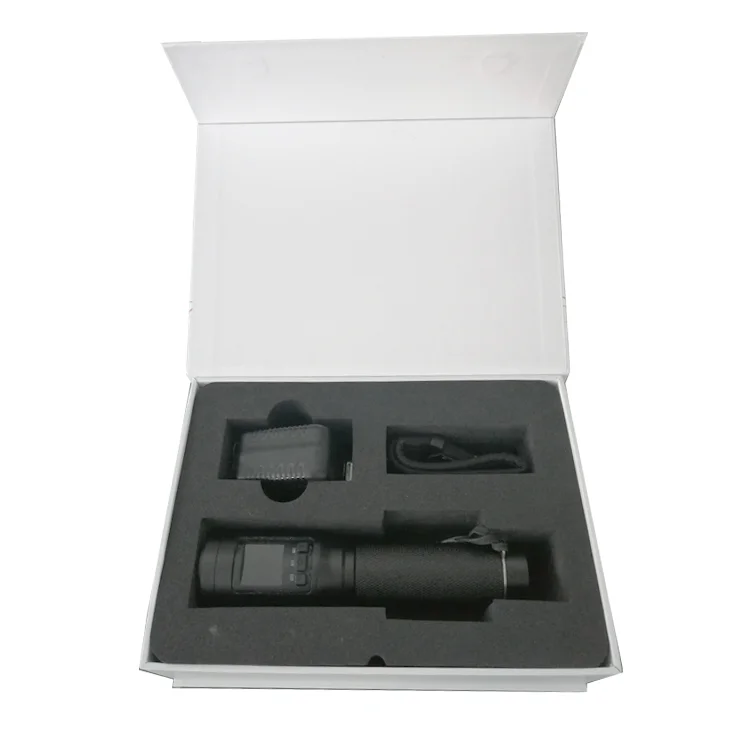

Package
1. Each Set Gas Detector Will Packed With Export Standard Carton or Aluminum Box.
2. Follow Customer Demand.
Delivery Time
Existing Samples, within 2-3 days.
15-30 days for bulk order after receiving the deposit.
15-30 days for bulk order after receiving the deposit.
Gas
No | Detecting Gas | Gas | Measure Range | Resolution | Alarm Point (Low/High) | |||||
1 | Combustible Gas | EX | 0-100%LEL /0-100%VOL | 1%LEL/1%VOL | 20 / 50% LEL | |||||
2 | Oxygen | O2 | 0-25% /30%VOL | 0.1%VOL | 19.5% / 23.5%VOL | |||||
3 | Hydrogen Sulfide | H2S | 0-50/100/200/1000 ppm | 0.1 ppm | 10 / 20 ppm | |||||
4 | Carbon Monoxide | CO | 0-500/1000/2000/5000 ppm | 1 ppm | 50 / 150 ppm | |||||
5 | Nitrogen Dioxide | NO2 | 0-20/50/1000 ppm | 0.1 ppm | 5 / 10 ppm | |||||
6 | Nitric Oxide | NO | 0-250/500/1000 ppm | 1 ppm | 50 / 150 ppm | |||||
7 | Carbon Dioxide | CO2 | 0-5000 ppm /0-1%/5%/10%VOL | 1 ppm/0.1%VOL | 1000 /2000 ppm | |||||
8 | Sulfur Dioxide | SO2 | 0-20/50/100/200/1000 ppm | 0.1 /1 ppm | 5 / 10 ppm | |||||
9 | Chlorine | CL2 | 0-20/100/1000 ppm | 0.1 ppm | 5 / 10 ppm | |||||
10 | Ammonia | NH3 | 0-50/100/500/1000 ppm | 0.1 ppm | 20 / 50 ppm | |||||
11 | Hydrogen | H2 | 0-1000/5000 ppm | 1 ppm | 50 /150 ppm | |||||
12 | Phosphine | PH3 | 0-5/20/50/100/500/1000 ppm | 0.1 ppm | 5 / 10 ppm | |||||
13 | Hydrogen Chloride | HCL | 0-20/500/1000 ppm | 0.01/0.1 ppm | 5 / 10 ppm | |||||
14 | Chlorine Dioxide | CLO2 | 0-10/50/100 ppm | 0.1 ppm | 5 / 10 ppm | |||||
15 | Hydrogen Cyanide | HCN | 0-50/100 ppm | 0.01/0.1 ppm | 10 / 20 ppm | |||||
16 | Ethylene Oxide | C2H4O | 0-10/20/50/100/200/500 ppm | 0.1 /1 ppm | 20 / 50 ppm | |||||
17 | Ozone | O3 | 0-10/20/100 ppm | 0.1 ppm | 2 / 5 ppm | |||||
18 | Formaldehyde | CH2O | 0-20/50/100 ppm | 0.1 /1 ppm | 5 / 10 ppm | |||||
19 | Hydrogen Fluoride | HF | 0-1/10/50/100 ppm | 0.01 /0.1 ppm | 2 / 5 ppm | |||||
20 | Methylbenzene | C7H8 | 0-1/10/20/50/100 ppm | 0.01 /0.1 ppm | 5 / 10 ppm | |||||
Note: Other gas and measure range not listed are all support customize, please contact us for more details. | ||||||||||
