В наличии новый высококачественный подъемный инструмент стойка домкрат и штырь 5t механический со
- Категория: Car Jacks >>>
- Поставщик: Hangzhou,Hangzhu,Hoisting,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 48.83 $* | 50.50 $* |
| Aug-17-2025 | 47.77 $* | 49.45 $* |
| Jul-17-2025 | 40.55 $* | 42.20 $* |
| Jun-17-2025 | 46.5 $* | 48.88 $* |
| May-17-2025 | 40.43 $* | 42.81 $* |
| Apr-17-2025 | 46.42 $* | 48.89 $* |
| Mar-17-2025 | 45.24 $* | 47.22 $* |
| Feb-17-2025 | 45.32 $* | 47.35 $* |
| Jan-17-2025 | 44.12 $* | 46.15 $* |
Характеристики
PRODUCT PARAMETERS
Model | SJ-1.5 | SJ-3 | SJ-5 | SJ-10 | SJ-16 | SJ-20 | SJ-25 |
Rated capacity(T) | 1.5 | 3 | 5 | 10 | 16 | 20 | 25 |
Test load(KN) | 18.4 | 36.8 | 61.3 | 122.5 | 196 | 245 | 306 |
Hand shake to lift full load(N) | 140 | 196 | 235 | 431 | 580 | 650 | 750 |
Net weight(KG) | 10.7 | 21.3 | 27 | 47 | 47 | 72 | 93 |
Picking size(CM) | 62*17*19 | 75*21.5*21 | 75*22*22.4 | 83*27*29 | 85*30*34 | 90*30*34 | 102*42*35 |

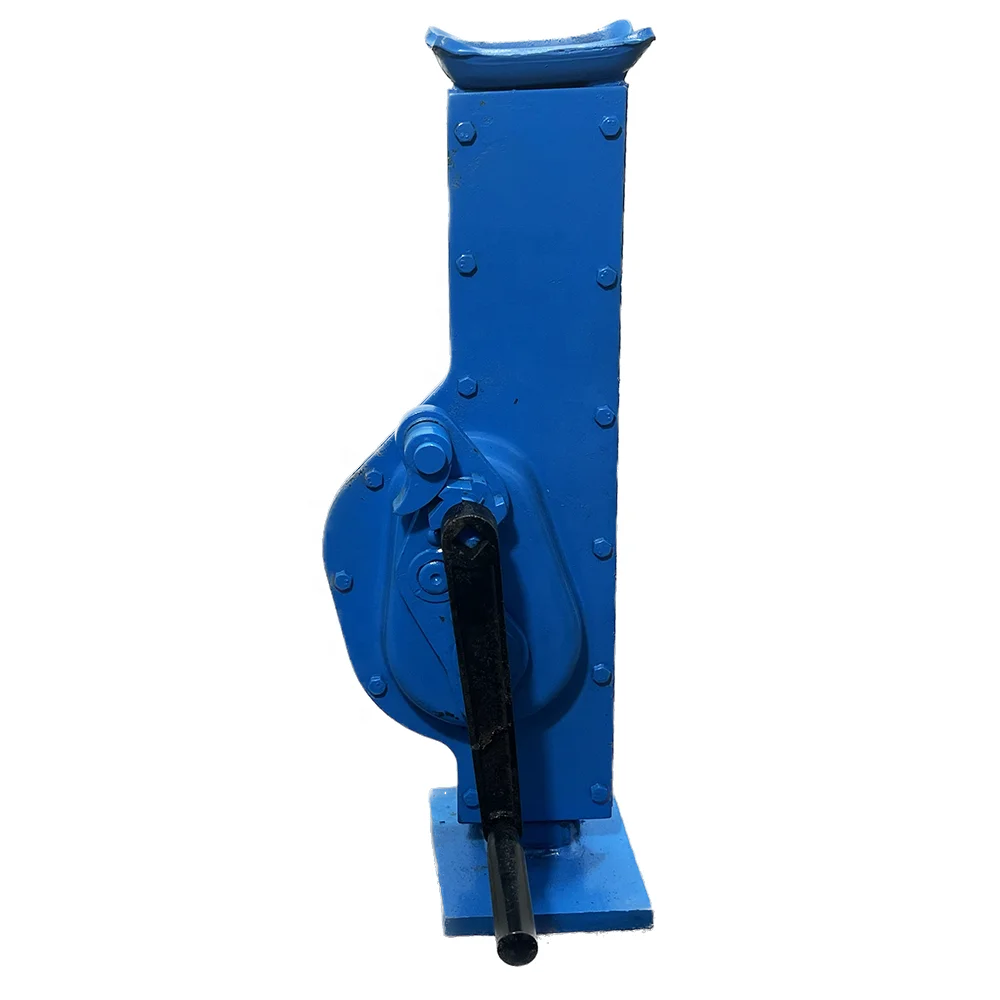

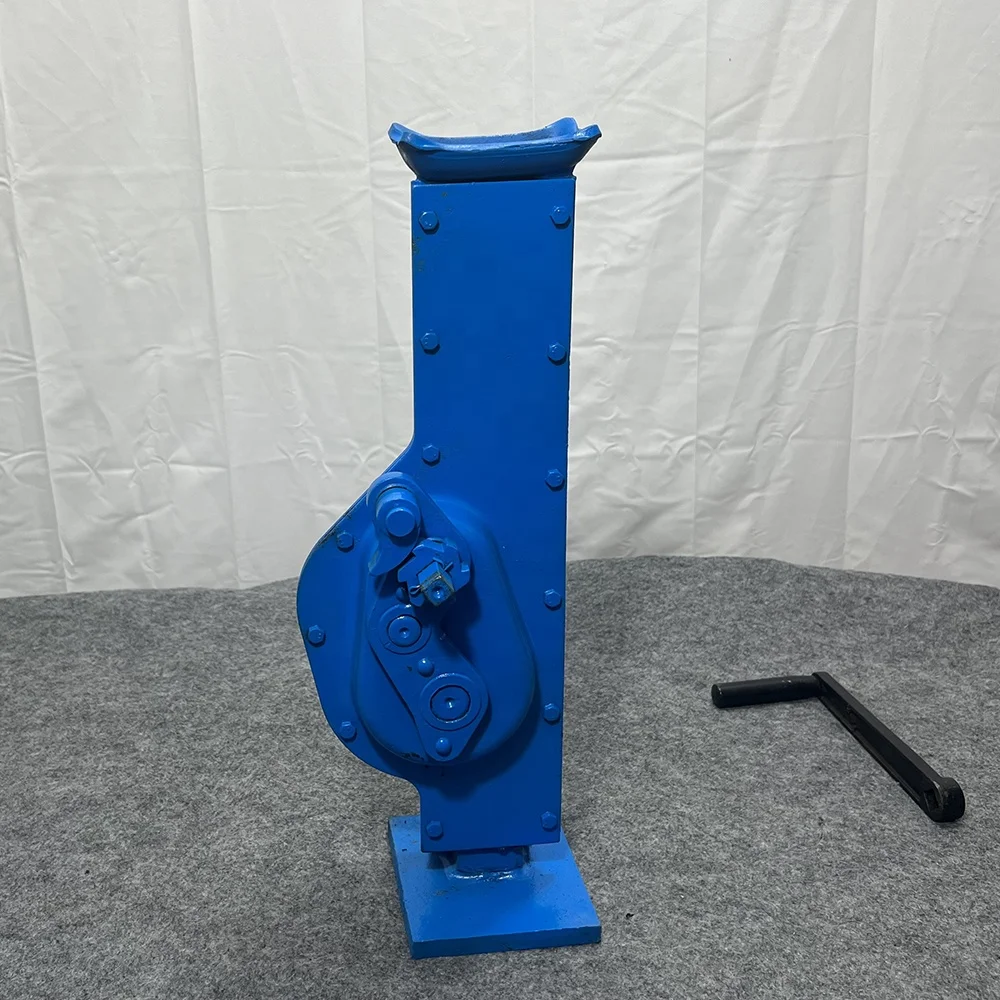

PRODUCT DISPLAY

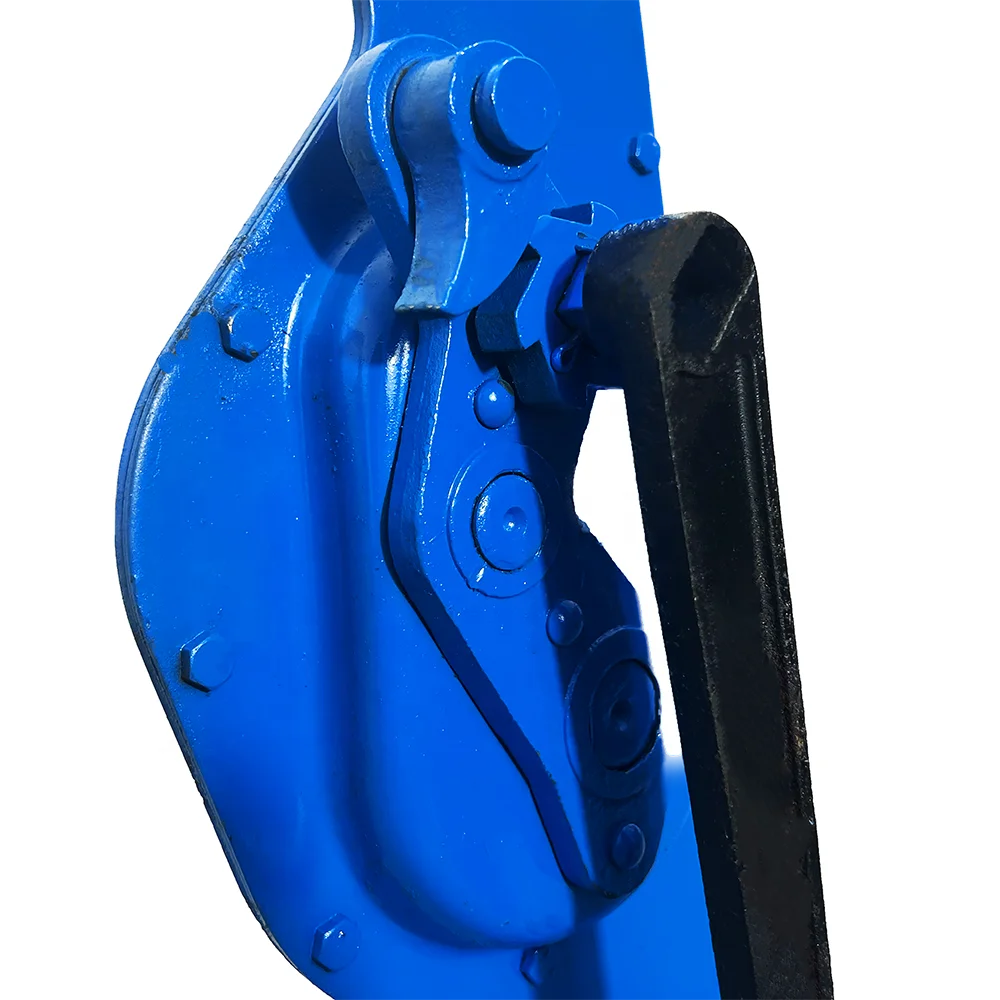

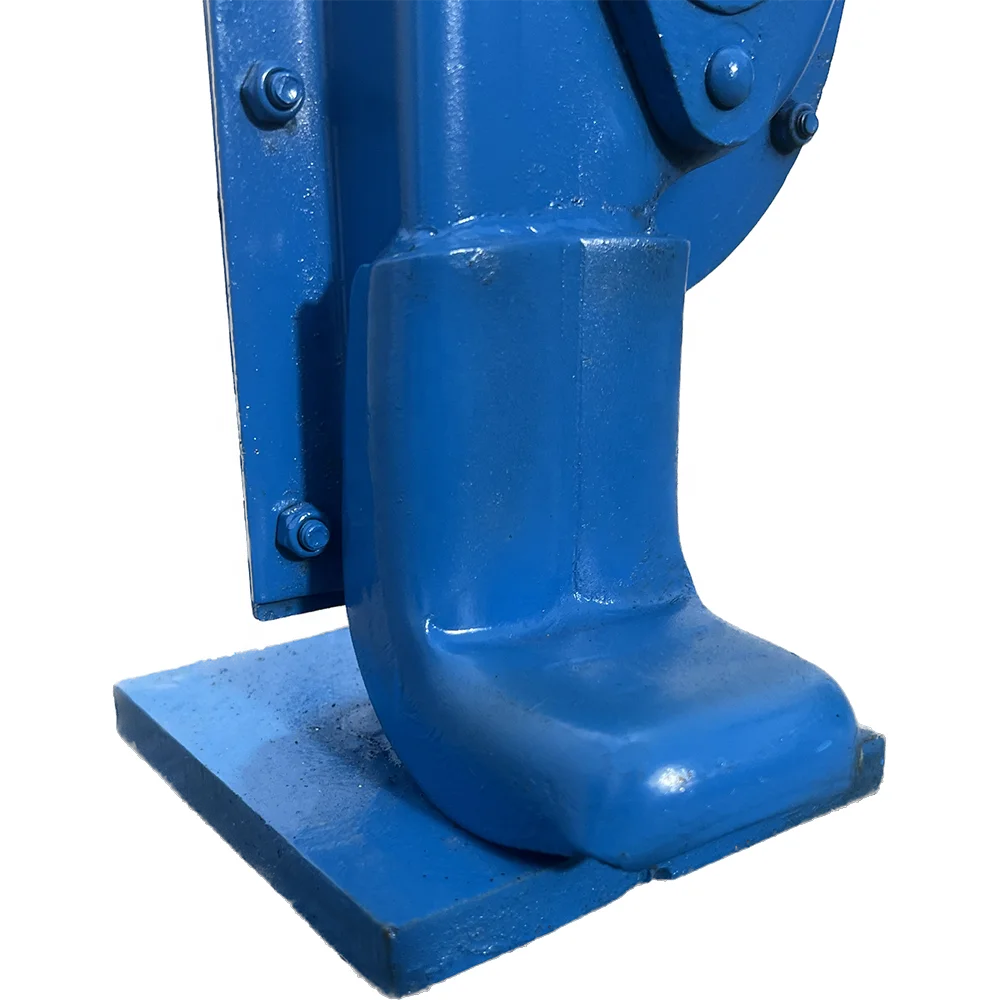

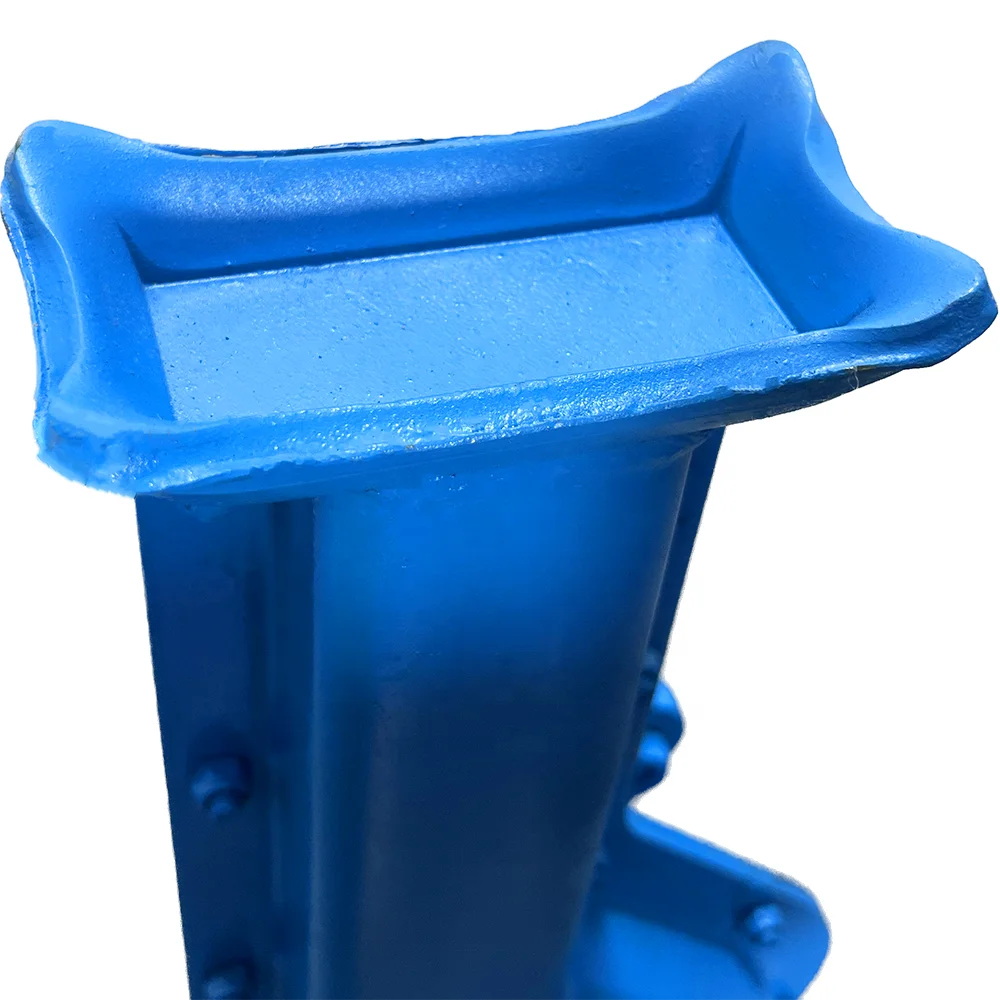

PRODUCT DETAILS
Usage Method:
1. The placement position of the hand-operated top should be selected according to the center of gravity of the weight, so that
it will not turn over when lifting.
2. During lifting and landing, the area of the hand-operated shoulder top or shoulder foot must be in full contact with the
weight to ensure sufficient strength to prevent the weight from falling.
3. The ground on which the handlebar top is placed shall be firm.
4. Before use, check whether there is jamming or abnormal phenomenon, and use only when everything is normal.
it will not turn over when lifting.
2. During lifting and landing, the area of the hand-operated shoulder top or shoulder foot must be in full contact with the
weight to ensure sufficient strength to prevent the weight from falling.
3. The ground on which the handlebar top is placed shall be firm.
4. Before use, check whether there is jamming or abnormal phenomenon, and use only when everything is normal.
Matters Needing Attention:
1. The weight of heavy objects and the scope of use of the jack must be known before using the hand-operated top. Overload use
is strictly prohibited to avoid equipment damage and accidents.
2. If the weight exceeds the rated lifting capacity, it is necessary to use multiple sidecars to operate at the same time, so as
to keep the load of multiple sidecars uniform, the lifting and lowering speed consistent and stable.
3. After lifting, if the load cannot be unloaded in a short time, an auxiliary cushion block with the same height from the
ground must be filled under the load as a support.
is strictly prohibited to avoid equipment damage and accidents.
2. If the weight exceeds the rated lifting capacity, it is necessary to use multiple sidecars to operate at the same time, so as
to keep the load of multiple sidecars uniform, the lifting and lowering speed consistent and stable.
3. After lifting, if the load cannot be unloaded in a short time, an auxiliary cushion block with the same height from the
ground must be filled under the load as a support.
Maintenance:
1. The brake part shall be kept clean frequently, and lubricating oil shall be added to the pawl shaft frequently to make the
pawl move flexibly and reliably.
2. When using the hand-operated top frequently, open the cover for 2-3 months at most, wash it with kerosene, and then inject
lubricating grease.
3. Do not put it in a place with high temperature after use to prevent the lubricating grease from liquefying when heated.
pawl move flexibly and reliably.
2. When using the hand-operated top frequently, open the cover for 2-3 months at most, wash it with kerosene, and then inject
lubricating grease.
3. Do not put it in a place with high temperature after use to prevent the lubricating grease from liquefying when heated.
