Пластиковая дробилка из полипропилена, 800 кг/ч
US $10000-$28000
Прямая поставка с завода промышленный измельчитель металла картона пластика двумя валами для
- Категория: Plastic Crushing Machines >>>
- Поставщик: Shandong,Qufu,Taifeng,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3927.28 $* | 4123.65 $* |
| Aug-19-2025 | 3894.73 $* | 4089.22 $* |
| Jul-19-2025 | 3267.8 $* | 3430.68 $* |
| Jun-19-2025 | 3828.76 $* | 4019.45 $* |
| May-19-2025 | 3333.36 $* | 3500.46 $* |
| Apr-19-2025 | 3762.31 $* | 3950.78 $* |
| Mar-19-2025 | 3729.49 $* | 3915.34 $* |
| Feb-19-2025 | 3696.50 $* | 3881.62 $* |
| Jan-19-2025 | 3663.59 $* | 3846.59 $* |
Характеристики

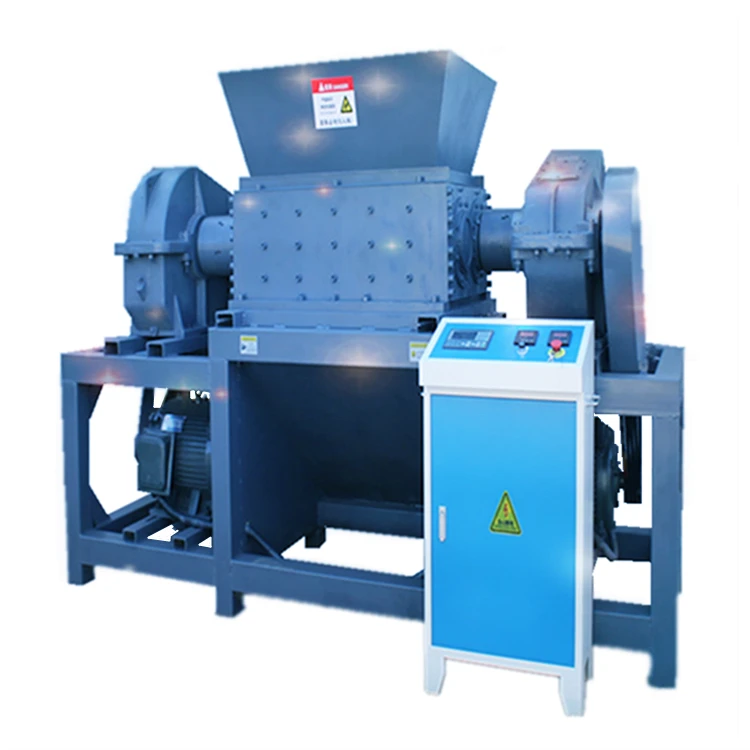

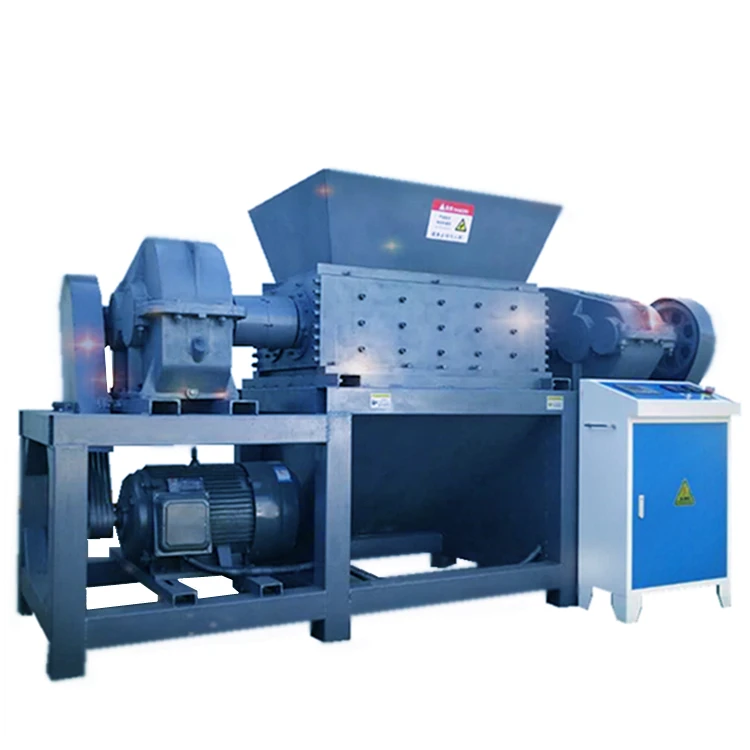

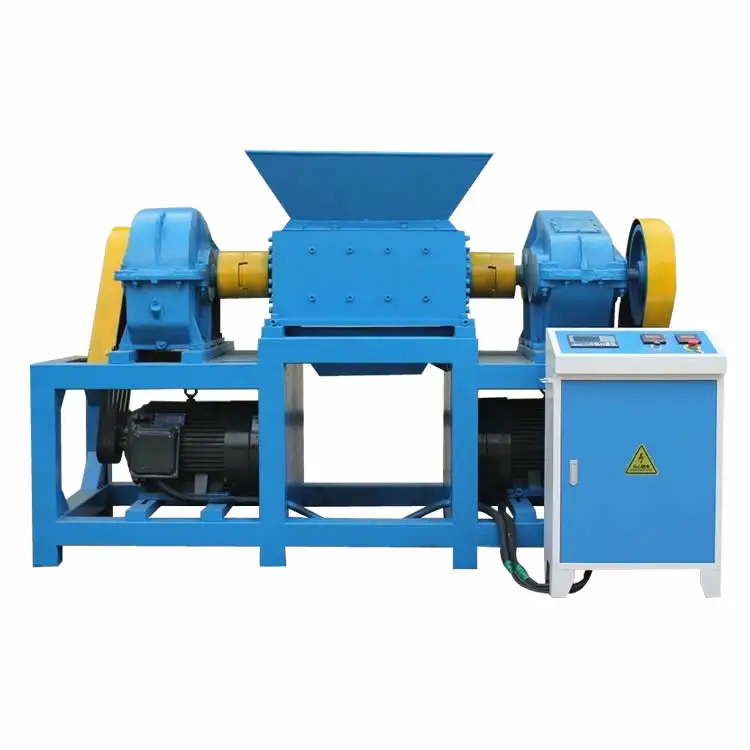

Factory Direct Industrial Scrap Cardboard Metal Plastic Double Shaft Shredder Machine For Recycling Wastes
Product Overview
Shredder
A shredder is a machine used for coarse crushing. It is generally used to process unprocessed raw materials or leftovers, and to make them smaller in size in the recycling industry. Compared with other crushers, the cutter shaft has low speed, low noise and low energy consumption.

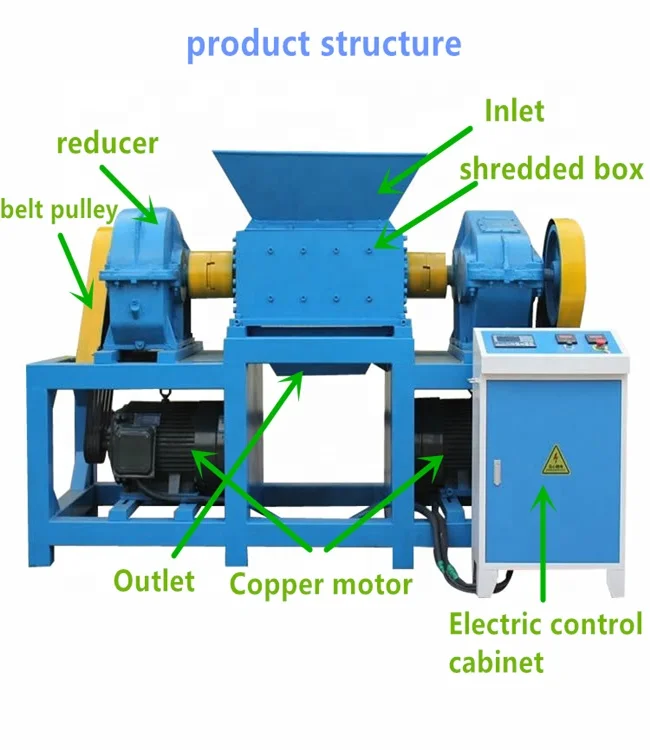

Double shaft shredder structure:
1. The main body of the crusher: the double main body adopts high-quality steel plate welding to eliminate stress treatment/integral machining to ensure the stability of the equipment under heavy load for a long time.
2. Bearing/seal: The bearing seat adopts split and detachable type, which can quickly remove the moving knife, fixed knife bearing and other components, and is easy to maintain and replace the knife. The sealing structure can effectively block the contact of broken objects and grease, and can also protect liquid materials Bearings and gears etc.
3. Moving knife/fixed knife: The material of the moving knife is made of forged blank of special alloy tool steel, which is machined for multiple times of heat treatment and low-temperature freezing heat treatment technology. The overall toughness and hardness are consistent and can be repaired and used repeatedly to ensure cutting performance and service life. The fixed knife is installed with a hook to optimize the tool replacement function.
4. Cutter shaft: It is processed and refined with high-strength heavy-duty special steel, and reasonably cooperates with the cutter to provide power for cutting. The main shredding objects of the shredder are as follows:

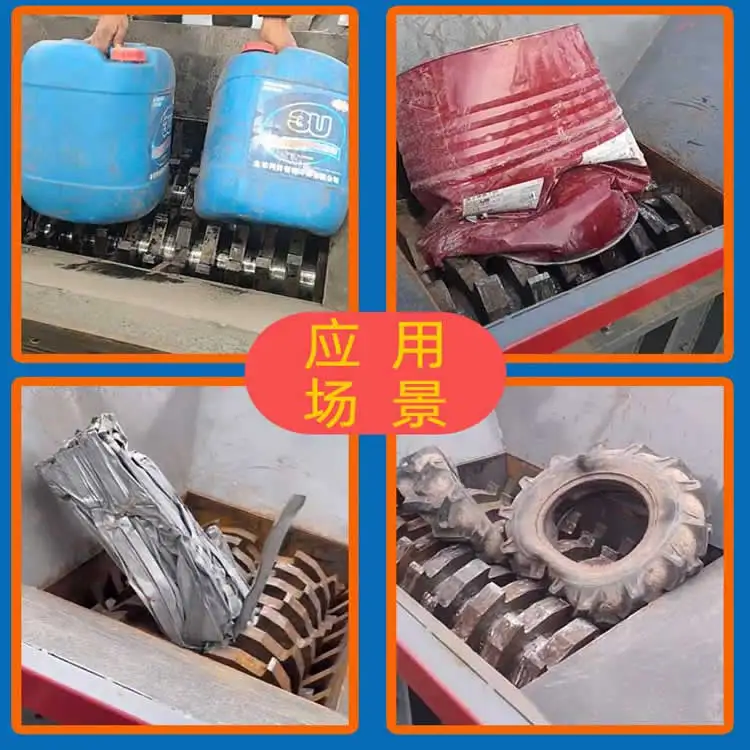

Industrial waste/domestic waste - domestic waste, waste wood, kitchen waste, kitchen waste, industrial waste, factory waste, municipal sludge, glass fiber reinforced plastics, pulp and oilcloth Biomass - branches, leaves, straw, corn cobs, Straw, bark, banana tree straw, garden waste
Recycling and recycling waste - waste tires, waste paper, waste plastics, plastic bottles, aluminum materials for chemical barrels
Destruction of product documents - computer hard drives, documents, unqualified products, expired medicines, plastic parts,
Waste treatment - medical waste, radioactive materials, organic waste, hazardous solid waste Metal solid waste - paint buckets, paint cans, iron oil drums, metal waste, aluminum waste
Double shaft shredder structure:
1. The main body of the crusher: the double main body adopts high-quality steel plate welding to eliminate stress treatment/integral machining to ensure the stability of the equipment under heavy load for a long time.
2. Bearing/seal: The bearing seat adopts split and detachable type, which can quickly remove the moving knife, fixed knife bearing and other components, and is easy to maintain and replace the knife. The sealing structure can effectively block the contact of broken objects and grease, and can also protect liquid materials Bearings and gears etc.
3. Moving knife/fixed knife: The material of the moving knife is made of forged blank of special alloy tool steel, which is machined for multiple times of heat treatment and low-temperature freezing heat treatment technology. The overall toughness and hardness are consistent and can be repaired and used repeatedly to ensure cutting performance and service life. The fixed knife is installed with a hook to optimize the tool replacement function.
4. Cutter shaft: It is processed and refined with high-strength heavy-duty special steel, and reasonably cooperates with the cutter to provide power for cutting. The main shredding objects of the shredder are as follows:
Industrial waste/domestic waste - domestic waste, waste wood, kitchen waste, kitchen waste, industrial waste, factory waste, municipal sludge, glass fiber reinforced plastics, pulp and oilcloth Biomass - branches, leaves, straw, corn cobs, Straw, bark, banana tree straw, garden waste
Recycling and recycling waste - waste tires, waste paper, waste plastics, plastic bottles, aluminum materials for chemical barrels
Destruction of product documents - computer hard drives, documents, unqualified products, expired medicines, plastic parts,
Waste treatment - medical waste, radioactive materials, organic waste, hazardous solid waste Metal solid waste - paint buckets, paint cans, iron oil drums, metal waste, aluminum waste
PRODUCT SPECIFICATIONS
type | power | production capacity kg/h | Blade size mm | Blade box size mm | overall size mm |
TF 400S | 7.5KW | 200-4000 | 186*20 | 415*380 | 1500*900*1300 |
TF 400D | 11KW*2 | 200-4000 | 220*20 | 415*390 | 2100*950*1300 |
TF 400H | 11KW*2 | 200-4000 | 220*20 | 410*410 | 2100*1000*1800 |
TF 600D | 18.5KW*2 | 300-5000 | 320*20 | 600*400 | 2100*1100*1800 |
TF 600H | 22KW*2 | 300-5000 | 320*20 | 600*600 | 2900*1100*1900 |
TF 800D | 22KW*2 | 500-6000 | 330*30 | 800*600 | 3200*1100*1900 |
TF 800H | 30KW*2 | 500-6000 | 420*50 | 800*800 | 3700*1200*2100 |
TF 1000D | 37KW*2 | 1000-15000 | 420*50 | 1000*800 | 4100*1200*2300 |
TF 1000H | 45KW*2 | 1000-15000 | 500*100 | 1000*1000 | 1400*1400*2500 |
Why Choose Us
Shandong Qufu Taifeng Machinery Co., Ltd
Shandong Qufu Taifeng Machinery Co., Ltd. was established in 2012, is a manufacturer and exporter specializing in the design, development and production of various poultry products, forestry, agricultural planting and human food equipment, the company has been established for 10 years, we focus on high quality .We never relax our high requirements for product research and development, from the production line to a screw. We take every customer seriously and ensure that customers have a good experience in use.
The company covers an area of 5,000 square meters, with more than 30 employees and annual sales of 2 million US dollars. Our scale is not large, which also allows us to continuously improve our specialized technologies, and our patented technologies become more and more mature. With our high quality products and excellent customer service, our global sales network covers more than 40 countries in Europe, North/South America, Middle East and Asia. We will continue to strive to meet customer expectations and deliver high-quality products in a timely manner.
SIMILAR PRODUCTS
Warranty
2-3 years or 5000-10000 hours or 600-8000 tons which come first.
