Металлический кнопочный переключатель LANBOO 12/16/19/22 мм с красной зеленой и синей
- Категория: Switches >>>
- Поставщик: Lanboo,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.71 $* | 0.53 $* |
| Aug-18-2025 | 0.35 $* | 0.7 $* |
| Jul-18-2025 | 0.6 $* | 0.2 $* |
| Jun-18-2025 | 0.70 $* | 0.51 $* |
| May-18-2025 | 0.33 $* | 0.59 $* |
| Apr-18-2025 | 0.8 $* | 0.82 $* |
| Mar-18-2025 | 0.68 $* | 0.10 $* |
| Feb-18-2025 | 0.67 $* | 0.12 $* |
| Jan-18-2025 | 0.57 $* | 0.20 $* |
Характеристики

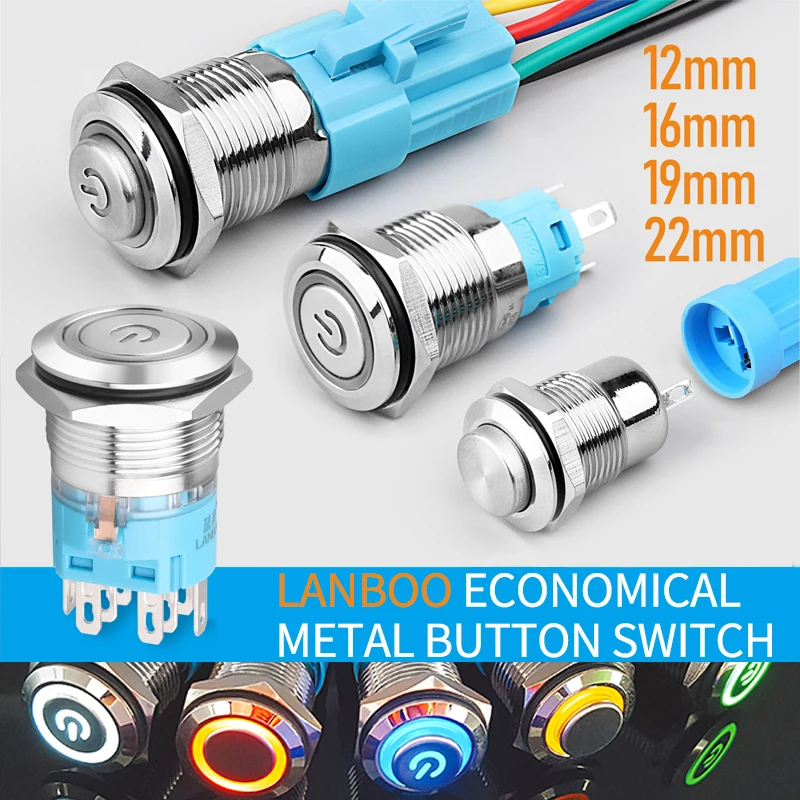

| Mounting Aperture | 12mm / 16mm / 19mm / 22mm |
| Serial Number | LB12B2/16A2/19A1.2/22B2 Metal push button switch |
| Head shape | Flat Head/High Head |
| Switch combination | Self-locking / Self-recovering |
| Action form | 12B2: 1NO-Normally Open Contact, Slow Acting Double Contact 16A2/22B2: 1NO1NC-1 Normally Open And 1 Normally Closed Contact, Quick Acting Single Contact 19A1.2: 1NO1NC-1 Normally Open And 1 Normally Closed Contact, Quick Acting Single Contact(custom:2NO2NC) |

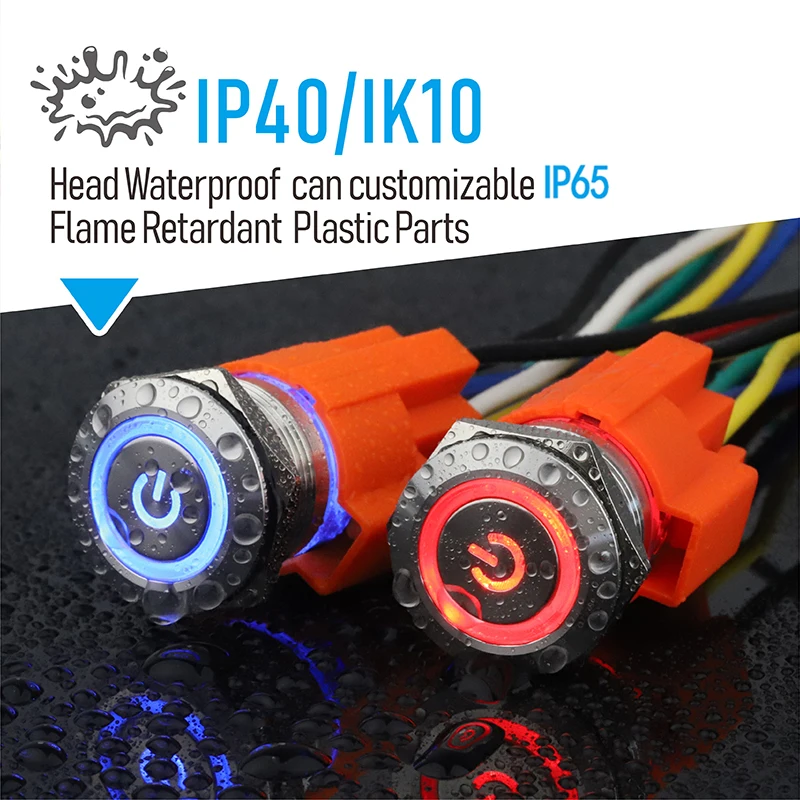

| Waterproof level | IP65, anti-collision IK10 (refer to GB/T 20138) |
| Heating current | Ith: 3A/250VAC / Ith: 5A/250VAC / Ith: 10A/250VAC |
| Working environment | -40°C~+85°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |
| Contact resistance | ≤50mΩ |
| LED voltage | 5-24V,9-24V, 220V / Customized: 3-8V,25-48V,110V |
| Resistive load | 12B2: AC-12:110V:1A, 220V:0.5A, DC-13:12V/24V:2A 16A2: AC-15:110V:1A, 220V:0.5A, DC-13:12V/24V:1A 19A1.2: AC-15:110V:1A, DC-13:12V/24V:1A 22E: AC-15:110V:7A, 220V:7A, DC-13:12V/24V:7A |
| Inductive load | 12B2: AC-12:110V/220V:0.3A, DC-13:110V:0.2A 16A2: AC-15:110V/220V:0.2A, DC-13:110V:0.2A 19A1.2: AC-15:110V:0.2A 22B2: AC-15:110V/220V:2.5A, DC-13:110V:2.5A |
| Glowing shape | Ring/Ring+Power Symbol / Customized: Custom Pattern Symbol |

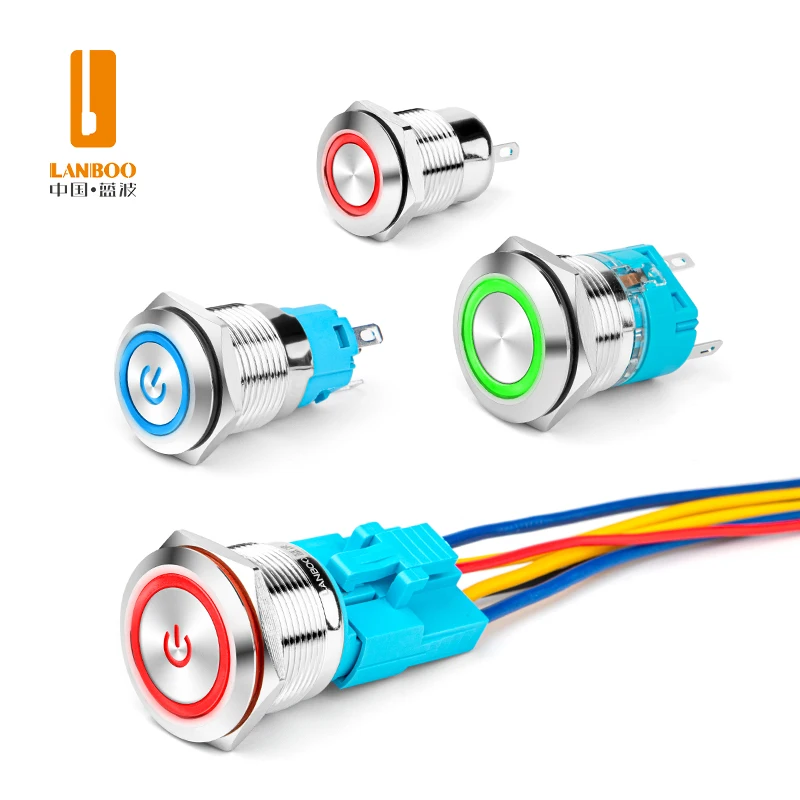

| Glow color | Red, Green, Blue / Customized: Yellow, White |
