Профессиональный консольный лазерный сварочный аппарат 1500 Вт 2000 с подъемным рычагом для точного ремонта
- Категория: Laser Welders >>>
- Поставщик: Maven,Laser,Automation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 13685.87 $* | 14369.24 $* |
| Aug-17-2025 | 13570.40 $* | 14249.57 $* |
| Jul-17-2025 | 11385.42 $* | 11954.52 $* |
| Jun-17-2025 | 13340.81 $* | 14007.88 $* |
| May-17-2025 | 11615.14 $* | 12196.27 $* |
| Apr-17-2025 | 13110.15 $* | 13766.37 $* |
| Mar-17-2025 | 12995.77 $* | 13645.5 $* |
| Feb-17-2025 | 12880.66 $* | 13524.61 $* |
| Jan-17-2025 | 12765.31 $* | 13403.93 $* |
Характеристики
Products Description

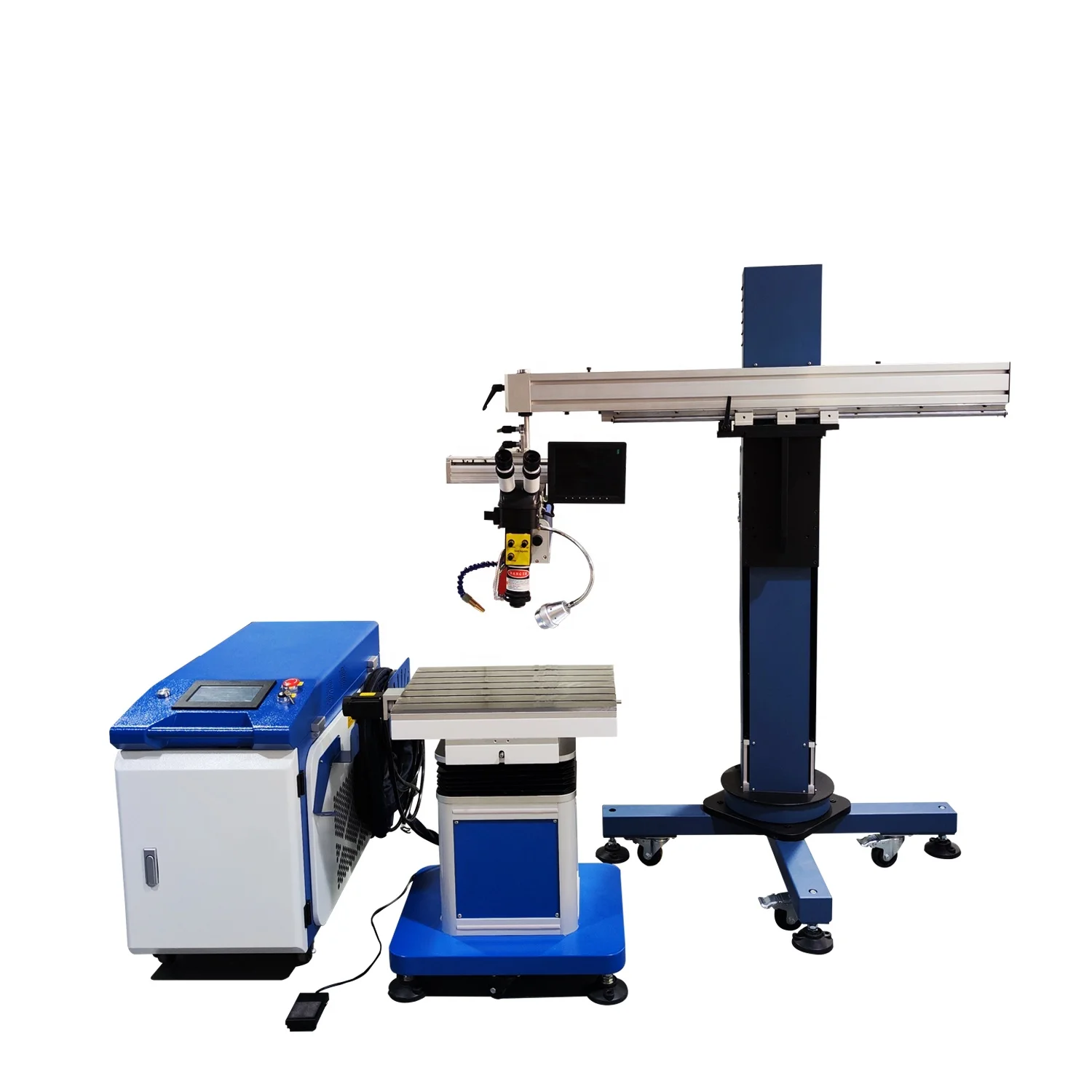

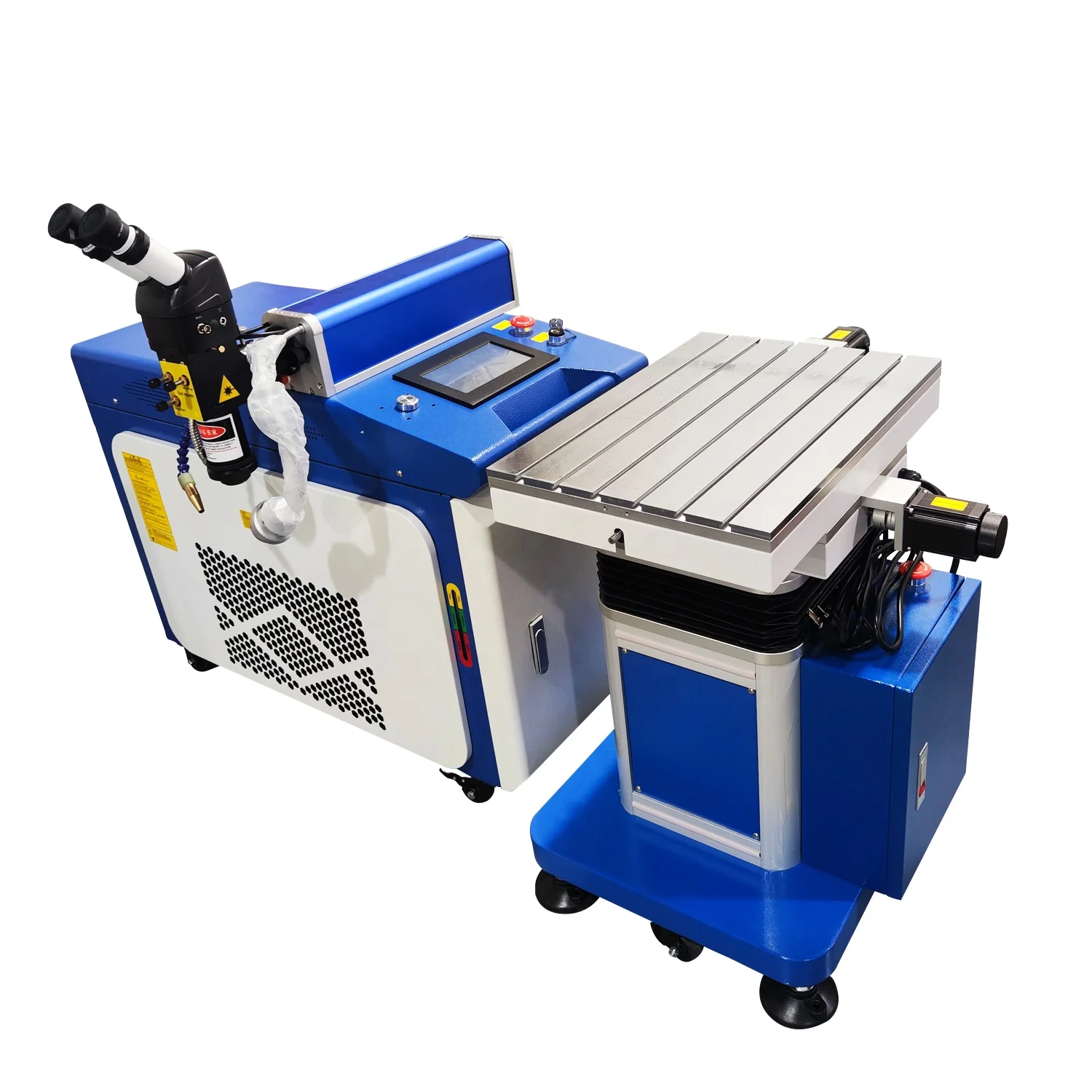

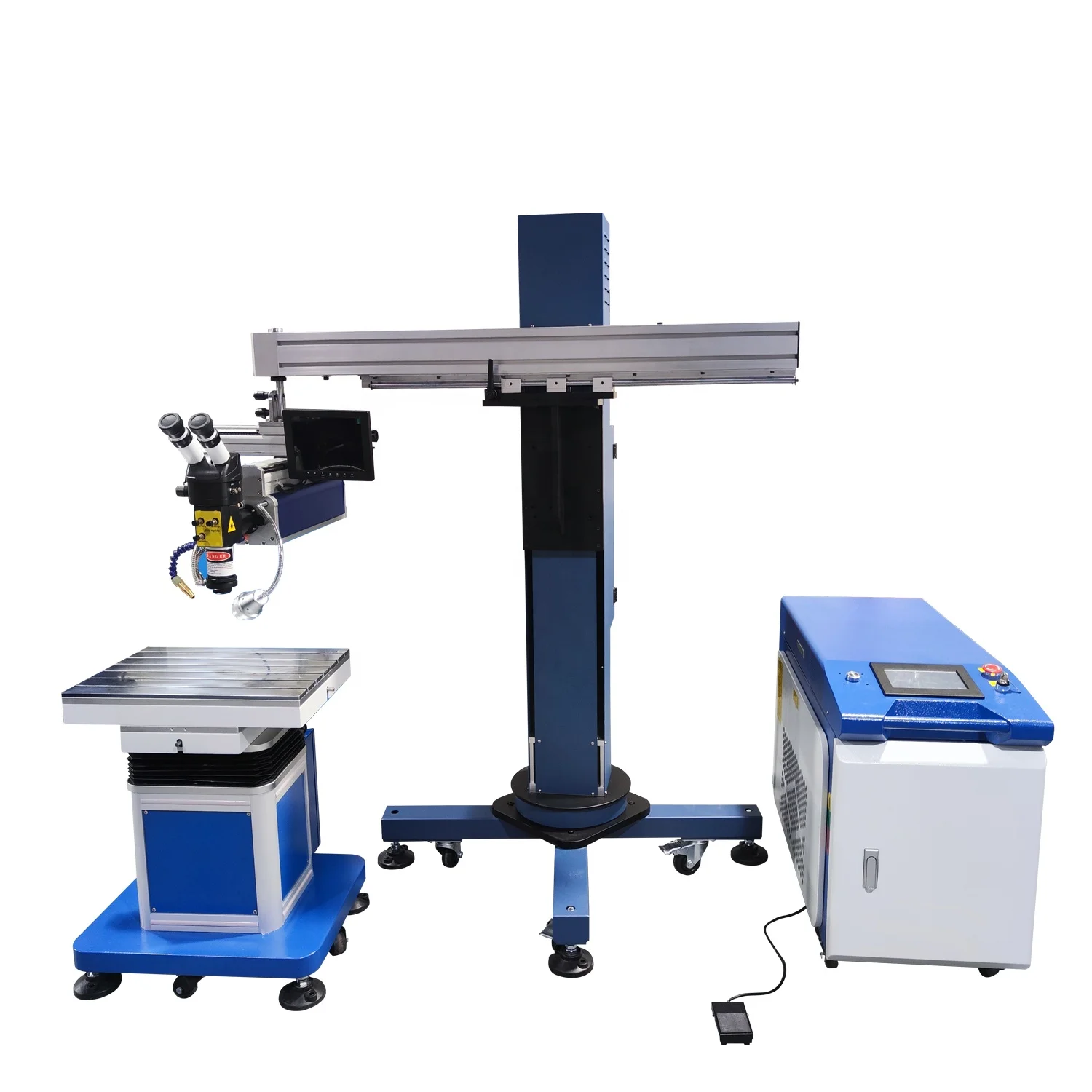

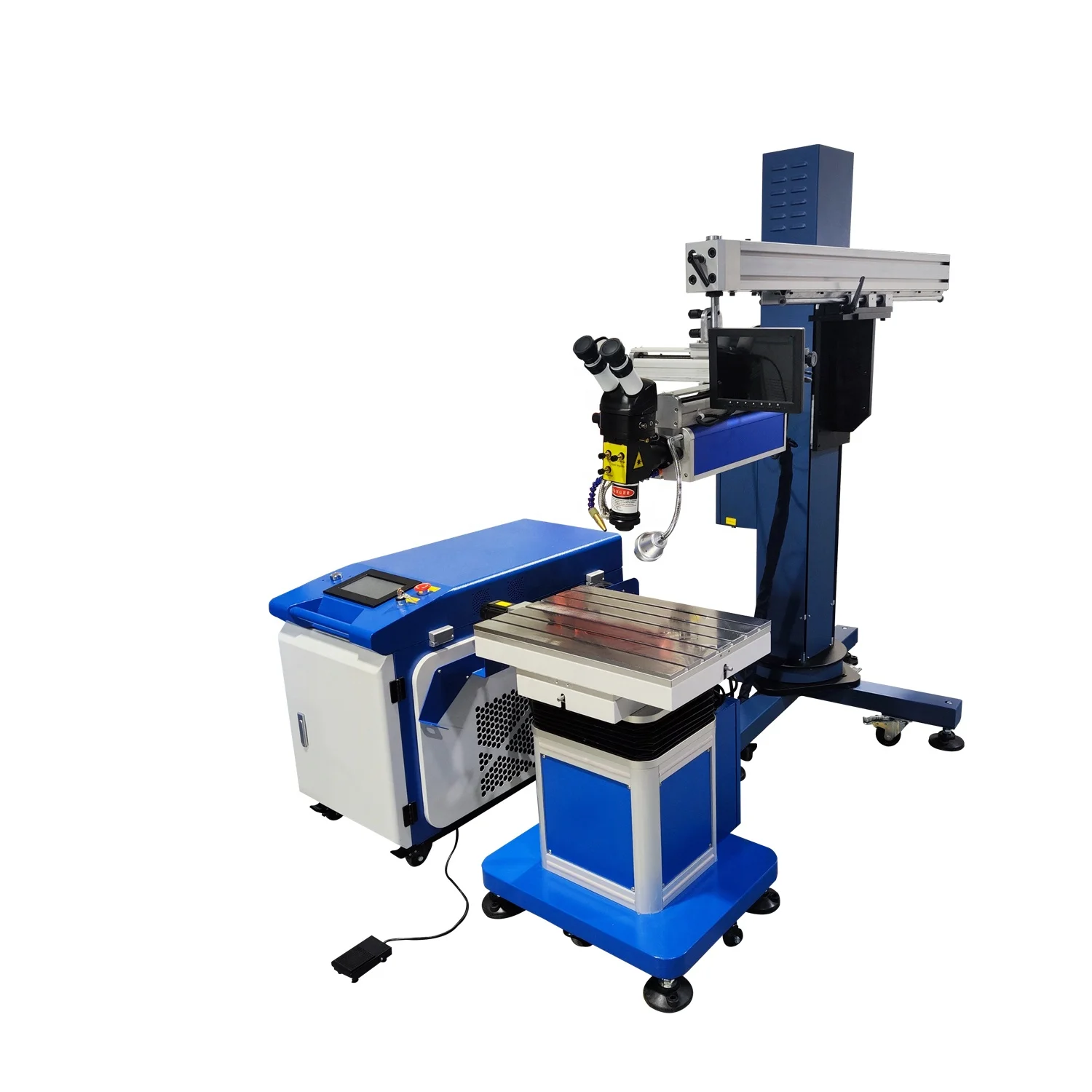

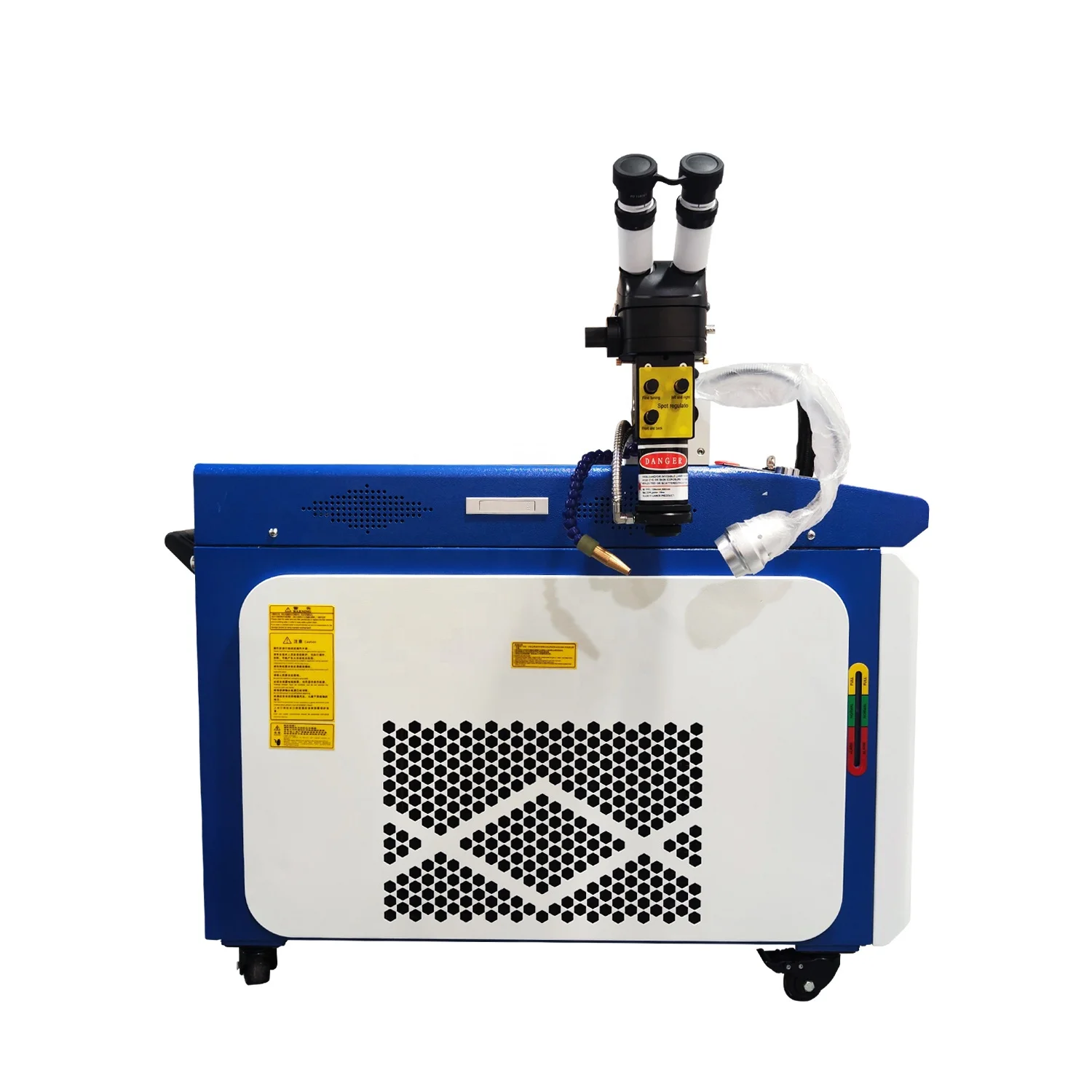

MavenLaser Cantilever Fiber Laser Mold Wlding Machine- MLA-W1000
Cantilever fiber mold laser welding machine is a new type of welding processing, mainly for thin-walled material precision parts welding, can realize butt welding, sealing welding, spot welding, stack welding, etc., small welding seam width, high depth to width ratio, small heat affected zone, small deformation, fast welding speed, smooth and beautiful welding seam, no treatment or only simple treatment after welding, high quality welding seam, no porosity, precise control of positioning accuracy, small focusing spot, easy to realize welding automation.
Item | Parameter Name | Data |
Laser Source Parameter | MAX OUTPUT POWER | 1000W/1500W/2000W |
TOTAL POWER | 4KW | |
LASER WAVELENGTH | 1080nm | |
MAXIMUM LASER PULSE ENERGY | 70J/50ms | |
PULSE WIDTH | 1-50ms | |
PULSE FREQUENCY | 1-100HZ | |
SPOT ADJUSTMENT | 0.1-3.0mm | |
SPOT SIZE | 0.2mm-3mm | |
LENSE SIZE | F150mm | |
WELDING THICKNESS | 0.1-1.2mm | |

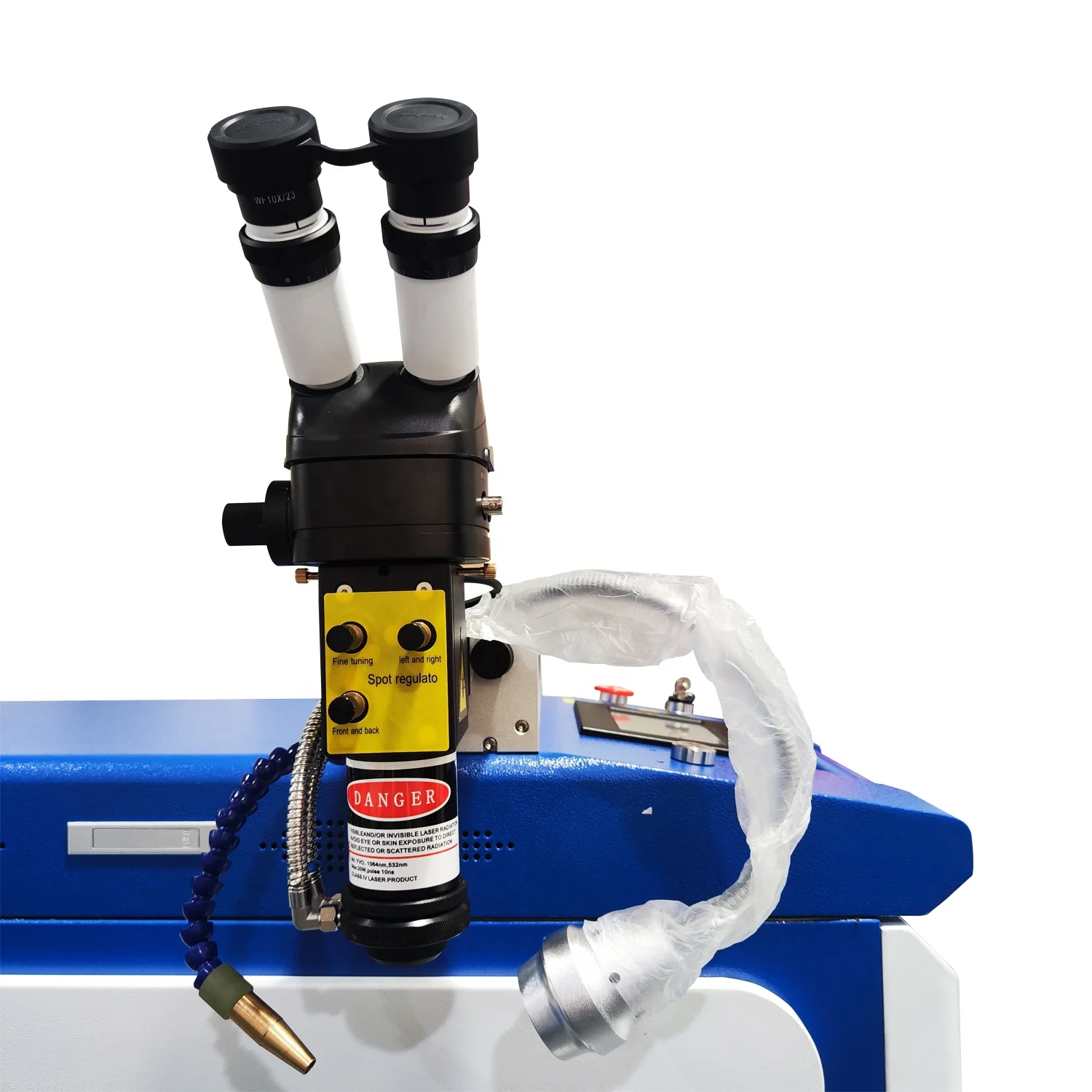

FOCUS LOCATIONING | Microscope（CCD also can be add） | |
LASER SOURCE UPSIDE MOVE LENGTH | 300mm | |
SOURCE MOVE DIRECTION | 360D Degree | |
LASER HORIZONTAL DIRECTION | Y Axis move | |
3D WORKBENCH | X Y manual，Z motorized | |
Physical Properties And Others | WATER COOL CAPACITY | 1.2P |
POWER VOLTAGE | 220V±10% 50Hz 30A | |
WORKING ENVIRONMENT | Clean no rust, 13℃-28℃ | |
CONSUMABLE | Protected mirror |
Sample & Applicaton
