Литий-железо-фосфатный аккумулятор глубокого цикла 48 В Lifepo4 5 кВтч 10 15 20 солнечная система в 100 Ач 200
- Категория: >>>
- Поставщик: Guangdong,Tian,Qin,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.91 $* | 0.65 $* |
| Aug-20-2025 | 0.38 $* | 0.97 $* |
| Jul-20-2025 | 0.28 $* | 0.13 $* |
| Jun-20-2025 | 0.27 $* | 0.21 $* |
| May-20-2025 | 0.69 $* | 0.44 $* |
| Apr-20-2025 | 0.99 $* | 0.79 $* |
| Mar-20-2025 | 0.53 $* | 0.1 $* |
| Feb-20-2025 | 0.16 $* | 0.88 $* |
| Jan-20-2025 | 0.40 $* | 0.81 $* |
Характеристики
Specification
Battery type | 48V Lifepo4 Battery |
Cells | 3.2V Lifepo4 Cell |
Type | Prismatic Cells |
Nominal Voltage | 48 Volt 51.2Volt |
Warranty | 3 years |
Brand | 300Ah:CATL Cells 200Ah：CATL Cells 105Ah：Guoxuan Cells |
Certification | MSDS,UN38.3,CE,FCC |
BMS | 200A BMS |
Weight | 120-160 Kg, |
Capacity | 100Ah -300Ah |
Max Power | 48V 100Ah：4800W /48V 200Ah：9600W/ 48V 300Ah：14400W |
Energy | 48V 100Ah：5kwh / 48V 200Ah：10kwh / 48V 300Ah：15kwh |
Charging And Discharging Current | 100A-200A |
Cycle Life | More Than 6000 Times |
Communication | RS485+CAN,And Custom |
Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity |
BMS | 16S 48V 100A Or 16S 48V 200A |
Components | BMS+16 PCS Lifepo4 Cells |
Recommended Discharge cutoff Voltage | 45.75V |
Recommended Charging voltage | 52.5V |
48V Lifepo4 Battery Deep Cycle Lithium Iron Phosphate Battery Pack 5kwh 10Kwh 15Kwh 20Kwh solar system 48V 100Ah 200Ah 300Ah
PRODUCT SPECIFICATIONS
Application
1. Can be used for energy storage：Wind power system energy storage, home/outdoor solar energy storage, solar street lamp energy storage, etc. 2. Can be used for emergency backup in various industries：Telecommunication base/cable television system/computer server center/medical institution/military equipment .
3. It can also be used for other daily applications：Bicycles/Electric Vehicles/New Energy Vehicles/RVs/Golf Carts/Marine Yachts/Electric Skateboards/Electric Wheelchairs, etc.
* Built-in 100A/200A BMS
* 100% Grade A Brand NEW
* 100% Grade A Brand NEW
* More Than 6000 Times Cycle
* After Our Test, The Max Discharge Capacity Can Reach 310Ah---320Ah.（CATL 302Ah Cells）
* After Our Test, The Max Discharge Capacity Can Reach 310Ah---320Ah.（CATL 302Ah Cells）

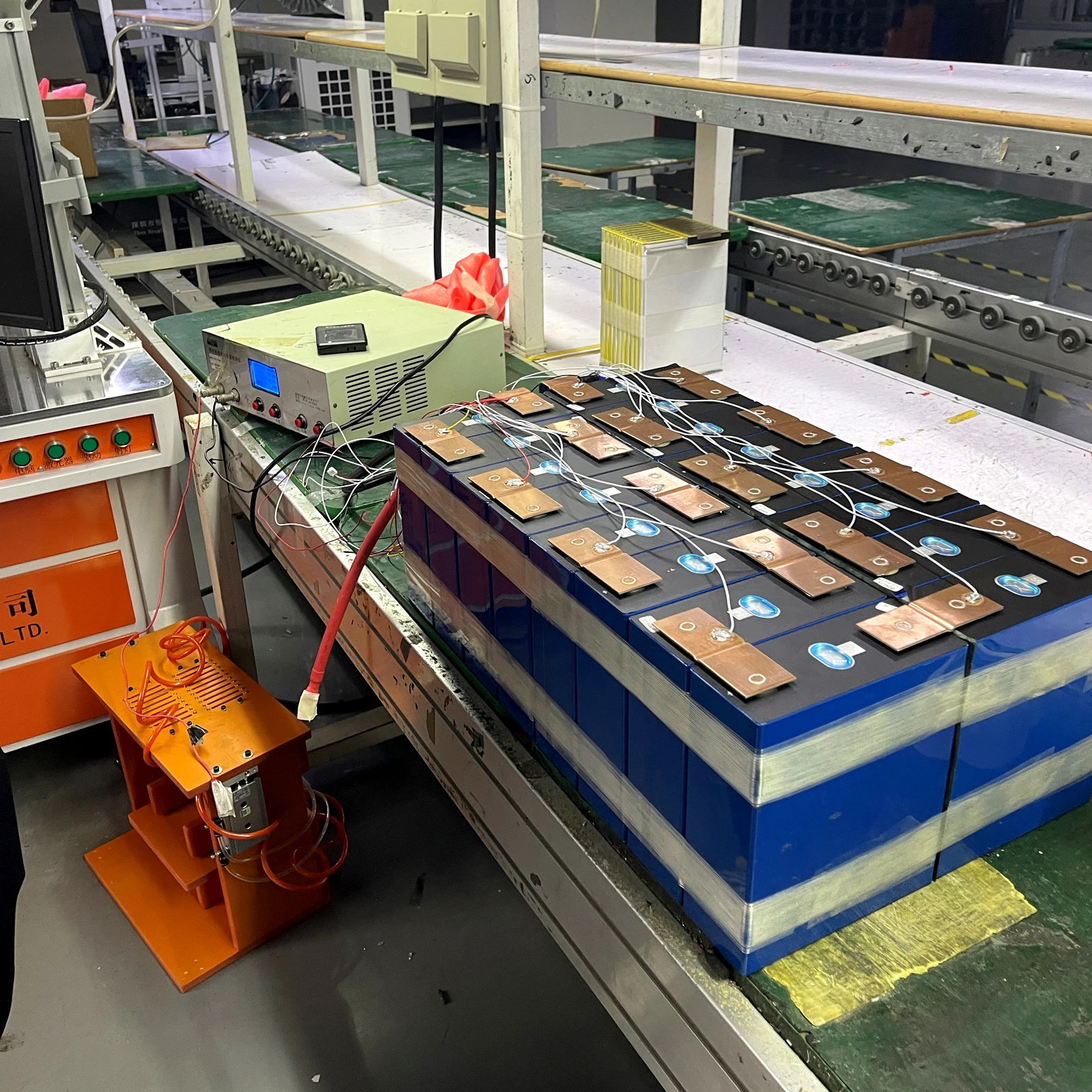

All products are tested before shipping
Voltage: The deviation less than 0.01V
Resistance: The deviation less than 0.1mΩ
Each cell has been tested again by professional aging tester to make sure they will be highly matched when assembling,cells capacity difference within 3Ah.
Comparison of three capacities
The far left is the CATL 300Ah cell
The middle is CATL 230Ah cells
The far right is the Guoxuan 105Ah cell
The far left is the CATL 300Ah cell
The middle is CATL 230Ah cells
The far right is the Guoxuan 105Ah cell
300Ah Cells 230Ah Cells 105Ah Cells
105Ah battery charge and discharge data: Max Capacity 108Ah
230Ah battery charge and discharge data: Max Capacity 242Ah
300Ah battery charge and discharge data: Max Capacity 317Ah
Recommend Products
Product packaging
About after-sales：
* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* Wrap the outer box with waterproof tape
* If customer have requirement, we can provide Wooden Packing for shipping.
* US overseas warehouses can achieve the fastest three-day delivery
Note:
● The charging current should be less than the maximum charging current specified in the product specifications. A charging current greater than the recommended current may damage the battery;
● The discharge current should be less than the maximum discharge current pecified in the product specifications; the discharge current greater than the recommended current may damage the battery;
● Do not reverse the polarity of the battery pack for any reason;
● Do not charge in reverse polarity;
● Please use a professional charger for charging;
●If the lithium battery is not used for a long time, it should be charged with 50%~80% power, stored separately in a dry and cool environment, and recharge the battery every 3 months to avoid long storage time and low power due to self-discharge of the
battery, Will cause the battery performance,characteristics or battery function to decline;
● A single battery cell is not waterproof, and the finished battery pack has a aterproof layer to prevent rain. But do not soak in water and do not expose the battery to a high-temperature open flame.
● If you want to DIY yourself, please ensure that the battery voltage is the same when installing the battery. Be careful not to short-circuit the battery. There are more protection boards, batteries, and finished battery packs on sale in the store. You can
view more.
Feature:
● Do not reverse the polarity of the battery pack for any reason;
● Do not charge in reverse polarity;
● Please use a professional charger for charging;
●If the lithium battery is not used for a long time, it should be charged with 50%~80% power, stored separately in a dry and cool environment, and recharge the battery every 3 months to avoid long storage time and low power due to self-discharge of the
battery, Will cause the battery performance,characteristics or battery function to decline;
● A single battery cell is not waterproof, and the finished battery pack has a aterproof layer to prevent rain. But do not soak in water and do not expose the battery to a high-temperature open flame.
● If you want to DIY yourself, please ensure that the battery voltage is the same when installing the battery. Be careful not to short-circuit the battery. There are more protection boards, batteries, and finished battery packs on sale in the store. You can
view more.
Feature:
Why Choose Lifepo4 Cells?
1. Long life, 4 times that of ordinary lead-acid batteries. If you want to upgrade from lead-acid batteries to lithium batteries,this is a good choice.
2. It is safe to use. The lithium iron phosphate battery has undergone strict safety tests and will not explode even in a serious collision.
3. Large capacity, high temperature resistance, good performance, small size, light weight, environmentally friendly materials.
1. Long life, 4 times that of ordinary lead-acid batteries. If you want to upgrade from lead-acid batteries to lithium batteries,this is a good choice.
2. It is safe to use. The lithium iron phosphate battery has undergone strict safety tests and will not explode even in a serious collision.
3. Large capacity, high temperature resistance, good performance, small size, light weight, environmentally friendly materials.
Company Profile
FAQ
Q1: Are the batteries GRADE-A,Brand NEW？
A1:This listing is 3.2V 310Ah Lithium Ion Battery,the QR code is intact,Grade A,Brand new.
Q2: Are you a factory?
Q2: Are you a factory?
A2: Yes, we are the original factory and have been focusing on reliable and safe lithium batteries for more
than 6 years.
Q3: Can I place an order?
A3: Yes, RTS products can be ordered directly. However, due to the special nature of battery transportation, international logistics prices are unstable. I hope you can communicate with us about model, quantity, size, logistics cost and other information before placing an order, we also can accept customized products.you can contact us ,thank you very much.
Q4: Do you have a minimum order quantity?
A4: There is no limit, but the more you order, the more favorable the price you will get.
Q5: What is your delivery date?
A5: Usually, small cargo is delivered by logistics and express, and large cargo is delivered by sea.Usually within 3-5 weeks after payment confirmation, the exact order quantity shall prevail.
Q6:What kind of the package of the cells?
A6:They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
Q7:How can I do if I need more help for the order?
A7:You can chat our sales online or send inquiry email, We sincerely look forward to establishing a long-term cooperative relationship with you, if you have any questions, please feel free to contact us!
than 6 years.
Q3: Can I place an order?
A3: Yes, RTS products can be ordered directly. However, due to the special nature of battery transportation, international logistics prices are unstable. I hope you can communicate with us about model, quantity, size, logistics cost and other information before placing an order, we also can accept customized products.you can contact us ,thank you very much.
Q4: Do you have a minimum order quantity?
A4: There is no limit, but the more you order, the more favorable the price you will get.
Q5: What is your delivery date?
A5: Usually, small cargo is delivered by logistics and express, and large cargo is delivered by sea.Usually within 3-5 weeks after payment confirmation, the exact order quantity shall prevail.
Q6:What kind of the package of the cells?
A6:They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
Q7:How can I do if I need more help for the order?
A7:You can chat our sales online or send inquiry email, We sincerely look forward to establishing a long-term cooperative relationship with you, if you have any questions, please feel free to contact us!
