Высокоплотная квадратная алюминиевая силиконовая керамическая волоконная веревка для
- Категория: Ceramic Fiber Rope >>>
- Поставщик: DKJL,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.80 $* | 0.38 $* |
| Aug-18-2025 | 0.15 $* | 0.62 $* |
| Jul-18-2025 | 0.95 $* | 0.26 $* |
| Jun-18-2025 | 0.4 $* | 0.46 $* |
| May-18-2025 | 0.51 $* | 0.98 $* |
| Apr-18-2025 | 0.15 $* | 0.57 $* |
| Mar-18-2025 | 0.5 $* | 0.73 $* |
| Feb-18-2025 | 0.13 $* | 0.53 $* |
| Jan-18-2025 | 0.93 $* | 0.1 $* |
Характеристики
High density square type aluminum silicate ceramic fiber rope for heat insulation
Product Description
Ceramic fiber rope, use a special high strength swing long fiber with good spinning performance as raw material, which is made by spinning and weaving. According to different service temperature or different use conditions, add glass filament, stainless steel or other reinforcing material to reinforce the rope strength.
According to different technics, ceramic fiber rope can be divided into round rope, square rope and twisted rope.
Ceramic fiber rope specification: 6.0mm~50mm
service temperature: 800- 1200°C.
Length:25m, 30m, 50m for 1 roll or as customers request.
Advantages:
(1)Excellent refractoriness (Excellent heat resistance), the continuous use temperature can reach 1260C for alloy wire reinforced ropes.
(2)Excellent corrosion resistance to acid, oil, gas, aluminum, zinc and other non-ferrous metals.
(3)Excellent high temperature strength and tensile strength,
(4)Excellent electrical insulation,
(5)Non-toxic harmless, no adverse effects on the environment.
(6)Excellent chemical stability and thermal stability
(7) Low thermal conductivity, low thermal capacity, so that the products have excellent heat insulation
(8) Resist to external mechanical forces
(9) Able to withstand any thermal shock
(10) Generate no gaps between modules
Application
Ceramic fiber rope (can replace asbestos rope) is widely used for fire-resistant, heat insulation, fire prevention, sealing; friction braking, noise reduction, high temperature filtration in metallurgy, chemical, ceramics, glass, refractories, shipbuilding, aerospace, automotive, machinery, electronics, building materials, light industry field and other industrial sectors
(1) High temperature pipe insulation and sealing
(2) Cable insulation coating
(3) Coke oven opening sealing
(4) Pyrolyzer brick wall expansion joints
(5) Electric stove and bake oven’s door sealing, boiler
(6) High temperature gas seals
(7) Flexible expansion joint connection;
ceramic fiber braided rope Technical Index:
Ceramic Fiber Twisted Rope
Reinforcement | Diameter (mm) | Twisting strands |
Glass filament | 5 up to 60 | 1 or multi-strand |
Glass filament+s.s.wire | 5 up to 60 | 1 or multi-strand |
Ceramic Fiber Round Braided Rope
Reinforcement | Diameter (mm) | Braiding way |
Glass filament | 5 up to 60 | 2 or 4 tracks |
Glass filament+s.s.wire | 5 up to 60 | 2 or 4 tracks |
Ceramic Fiber Square (rectangular) Braided Rope
Reinforcement | Diameter (mm) | Braiding way |
Glass filament | 5 up to 60 | 2 or 4 tracks |
Glass filament+s.s.wire | 5 up to 60 | 2 or 4 tracks |
DKJL ceramic fiber products covers
Ceramic fiber paper
Ceramic fiber board
Ceramic fiber blanket and felt
Ceramic fiber bulk
Ceramic fiber modules with kinds of mechanical anchor fixing
Ceramic fiber textiles (ceramic fiber yarn, cloth, tape, twisted rope & briaded rope)
Special shaped ceramic fiber products / vacuum formed ceramic fiber products
Refractory binders
Technical Data:
Item | Al2O3 | Al2O3 | Fe2O3 | K2O | Length of fiber mm | Diameter of fiber μm | Rate of linear change % | Bulk density kg·cm-3 | thermal conductivity W·(m·K)-1 | Working temp |
BF100 | 97 | ≥45 | ≤1.1 | ≤0.4 | 20~60 | 3~8 | ≤3 | 200 | ≤0.14 | 950~100 |
BF105-110 | 99 | ≥52 | ≤0.12 | ≤0.1 | 20~40 | 2~5 | ≤4.5 | 220 | ≤0.22 | 1050~1100 |
BF120 | 98.5 | ≥58 | ≤0.3 | ≤0.2 | 20~630 | 2~5 | ≤4.5 | 300 | ≤0.18 | 1200 |

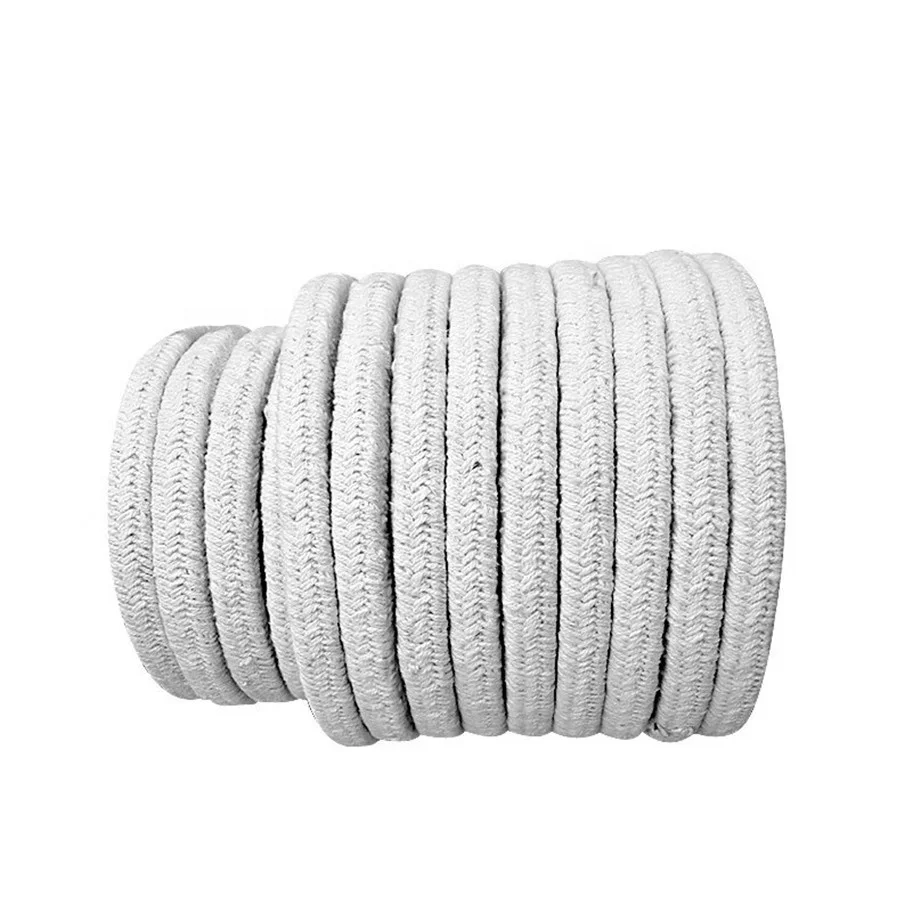

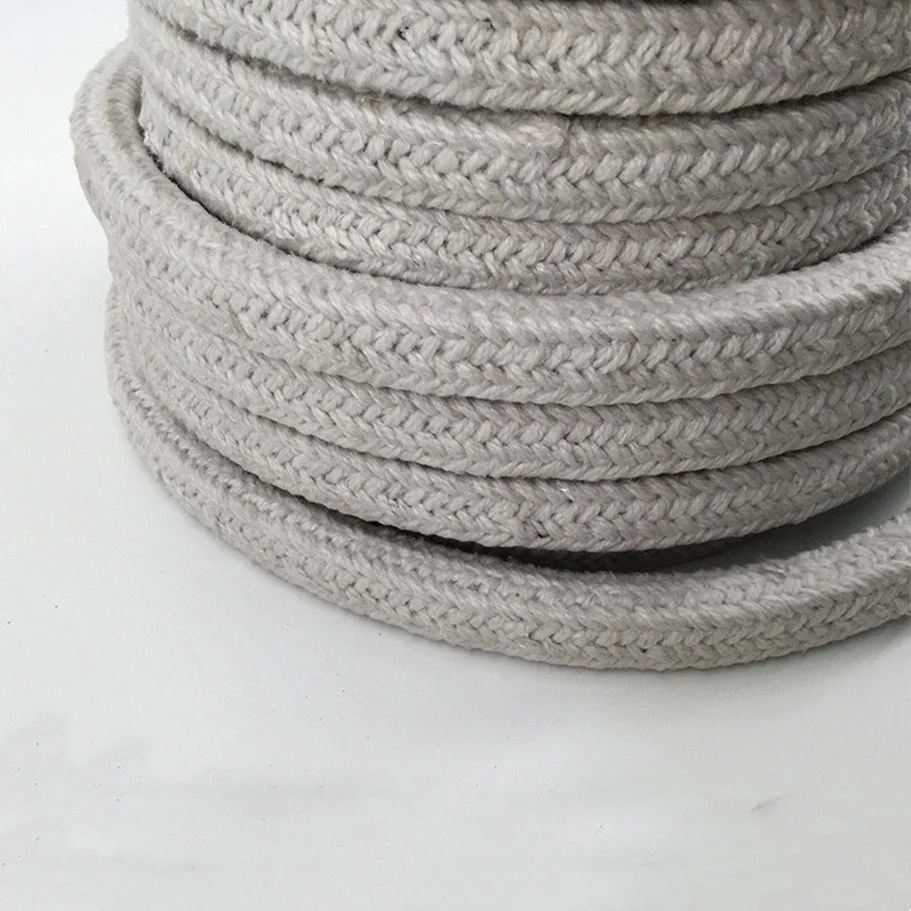

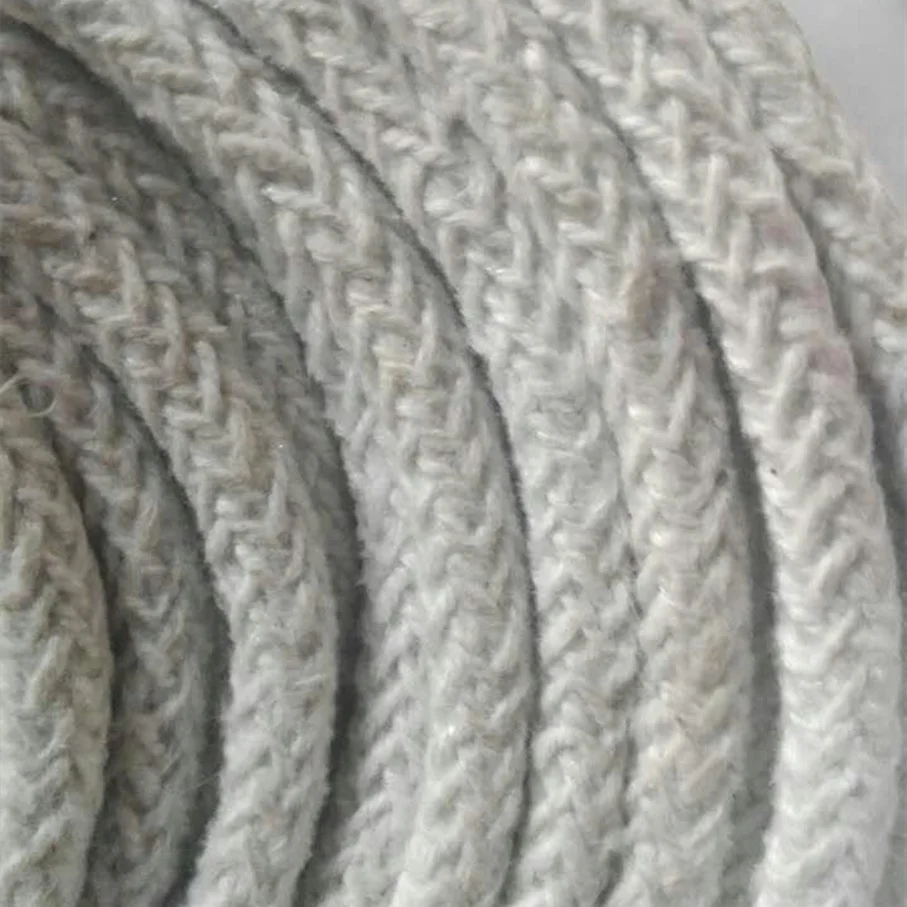

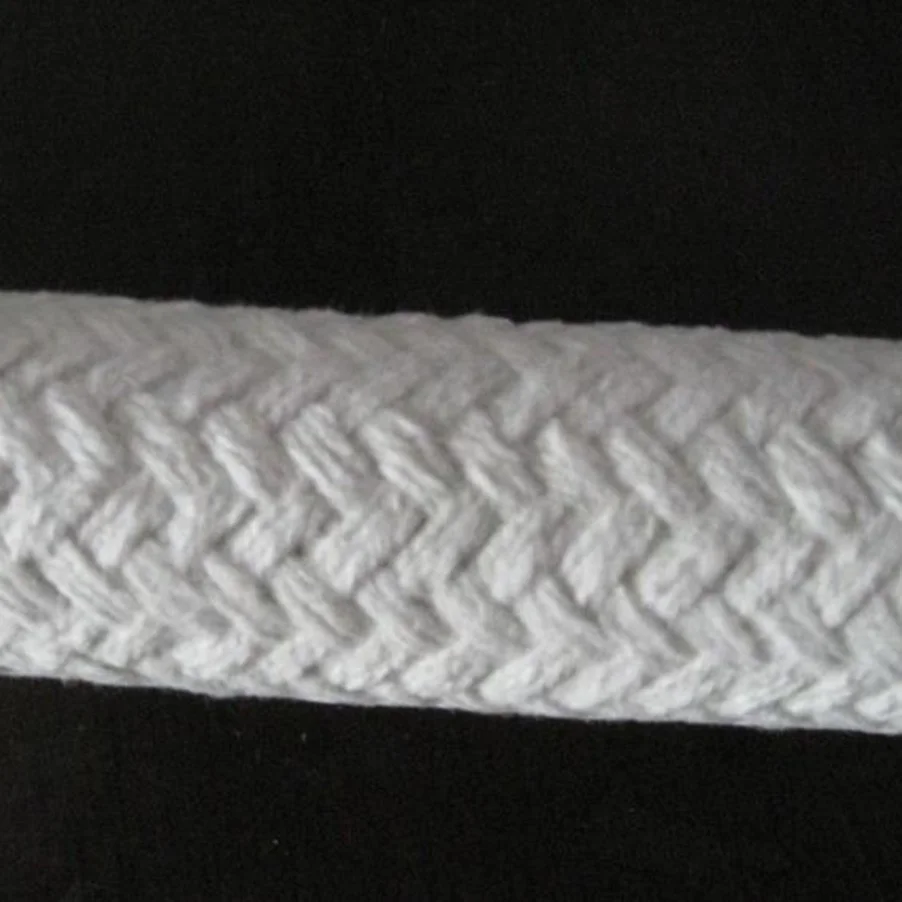

pictures of ceramic fiber braided rope
Packaging & Shipping
Packing: woven bag or carton with plastic bag inner side
Shipping: By vessel or by train from any Chinese port, Samples can be delivered by International express.

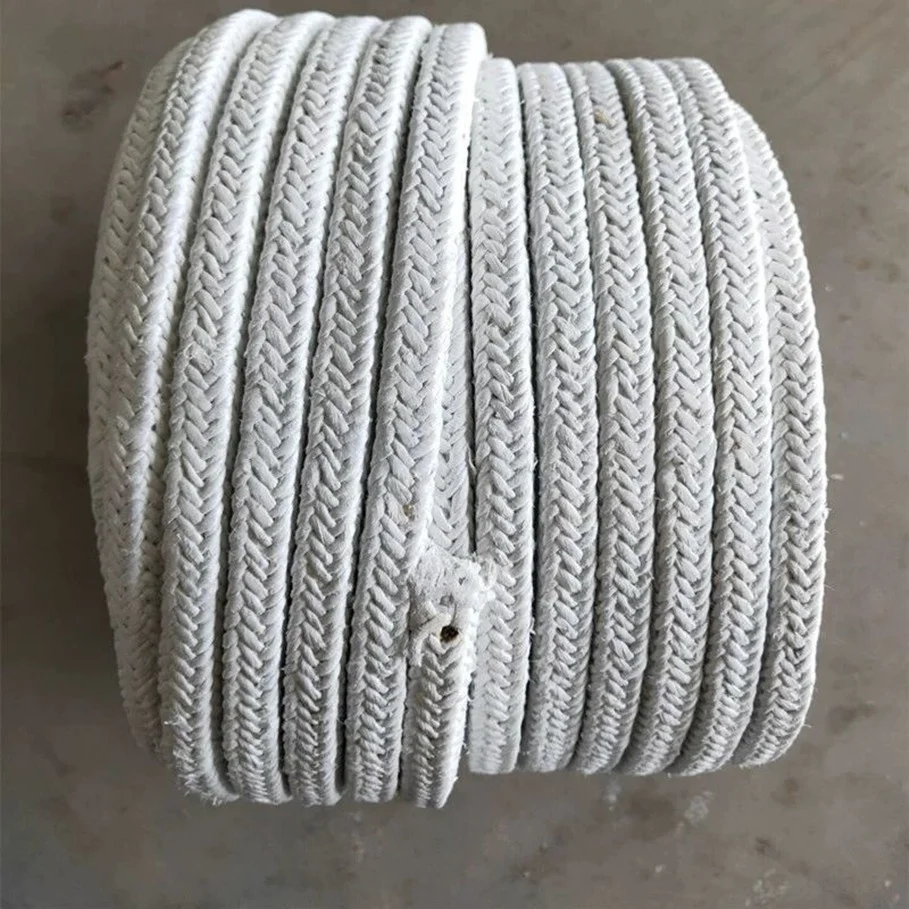

packages of ceramic fiber braided rope
Our Services
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Free sample
Sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
Company Information
DKJL refractories exporting company is one of the most professional suppliers of refractories in China.
Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics.
They are available in various sizes and shapes.
Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
FAQ
1. How can I get your prompt quotation for ceramic fiber braided rope?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: working temperature, size, quantity, application and reinforcement if needed.
2. What is the MOQ (minimum order quantity)?
Not limit.
3.Which payment terms can you accept?
T/T,LC,Western Union,moneygram are all available for us.
4.After an order is placed, when to deliver?
15-25days after confirming the order.
5. Does your company accept customization?
We accept OEM service.
6. How to solve the quality problems?
If the products don’t conform to customer samples or have quality problems, our company will be responsible for it.
7. What is the HS code?
The HS code is 68061010
