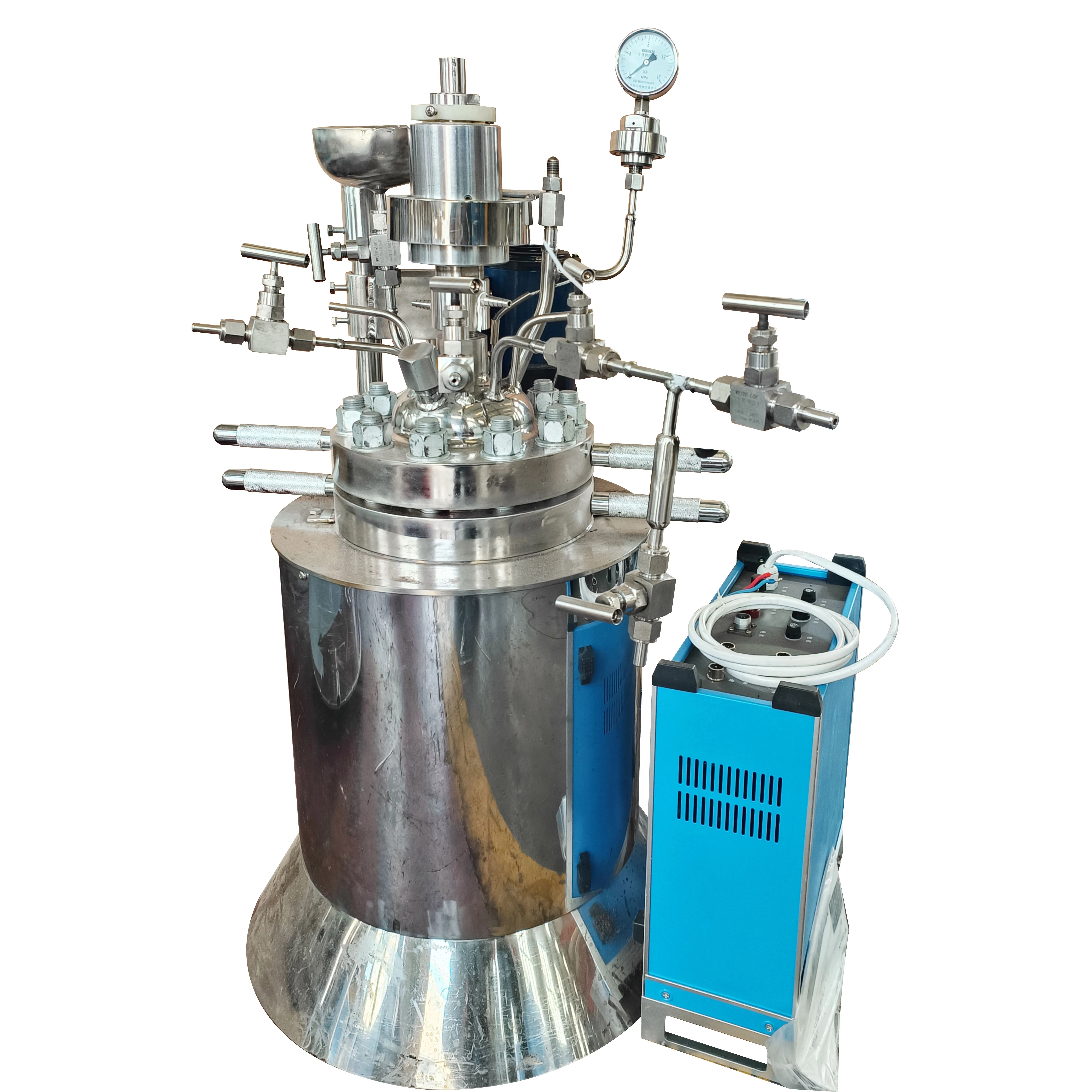

Новый каталитический реактор 2л WHGCM для биодизельных химических
- Категория: Reactors >>>
- Поставщик: Weihai,Global,Chemical,Machinery,Mfg,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5712.87 $* | 5998.7 $* |
| Aug-17-2025 | 5664.76 $* | 5947.99 $* |
| Jul-17-2025 | 4752.13 $* | 4990.65 $* |
| Jun-17-2025 | 5568.13 $* | 5846.53 $* |
| May-17-2025 | 4848.96 $* | 5090.14 $* |
| Apr-17-2025 | 5472.36 $* | 5746.81 $* |
| Mar-17-2025 | 5424.35 $* | 5695.23 $* |
| Feb-17-2025 | 5376.44 $* | 5645.83 $* |
| Jan-17-2025 | 5328.81 $* | 5594.32 $* |
Характеристики
Recommend Products
Certifications
Product Paramenters
Technical Parameters | ||||||||
Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25~50 | ||||
Working pressure(MPa) | Negative pressure -0.1~40 MPa | Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa | ||||
Working temperature | -196~500 ℃ | |||||||
Stirring speed (r/min) | 0-1500 | |||||||
Motor power (W) | 40~80 | 80~200 | 300~750 | 1100 | ||||
Heating power (KW) | 0.8~1 | 1~3 | 3~6 | 4~9 | ||||
Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||||||
Charging type | Charging from above, discharging from below or above. | |||||||
Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||||||
Stirring type | Paddle, Impeller, Anchor, Screw, Belt or as per customer request | |||||||
Seal type | Magnetic seal, packing seal. | |||||||
Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||||||
Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy, etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||||||

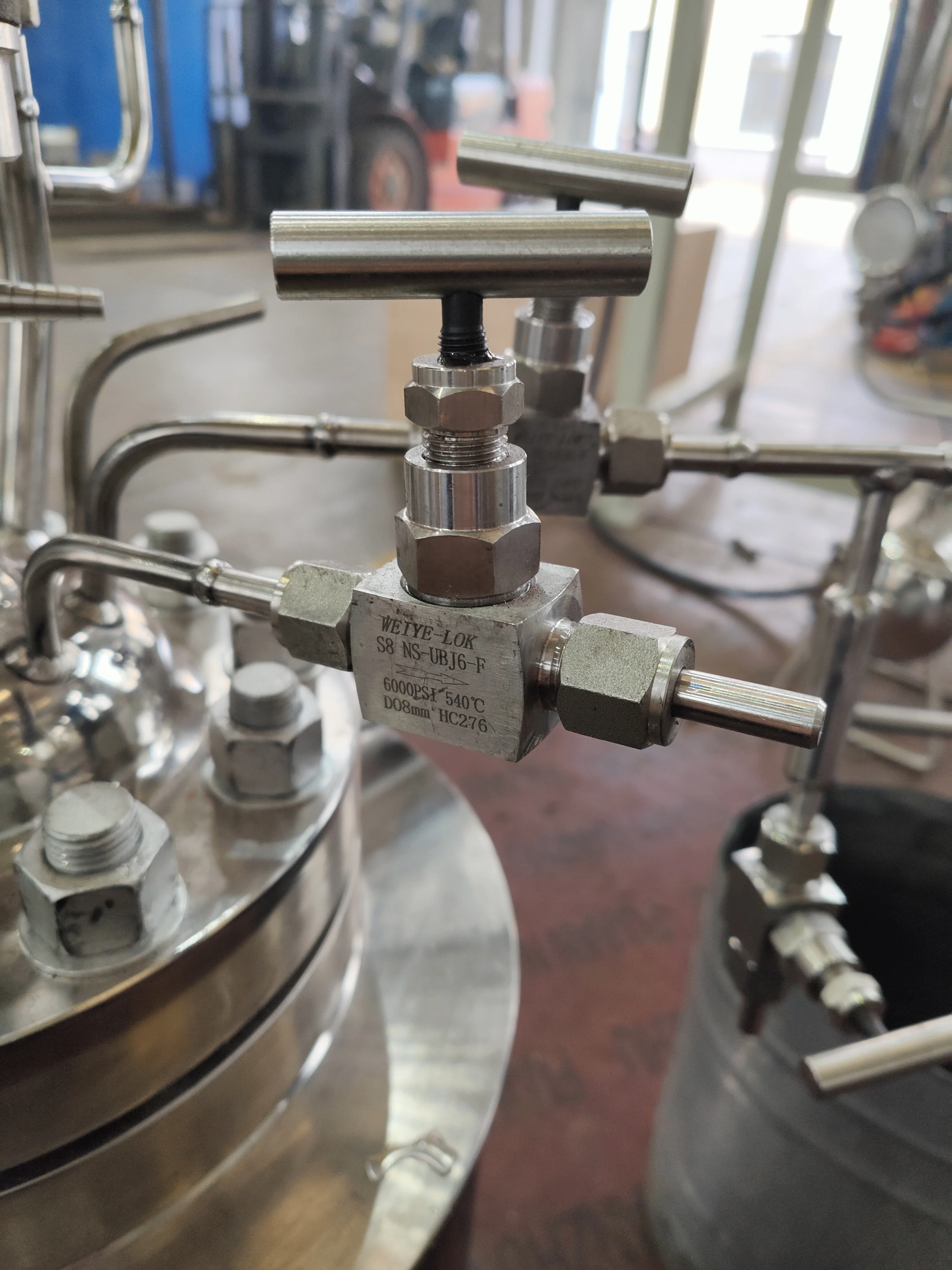

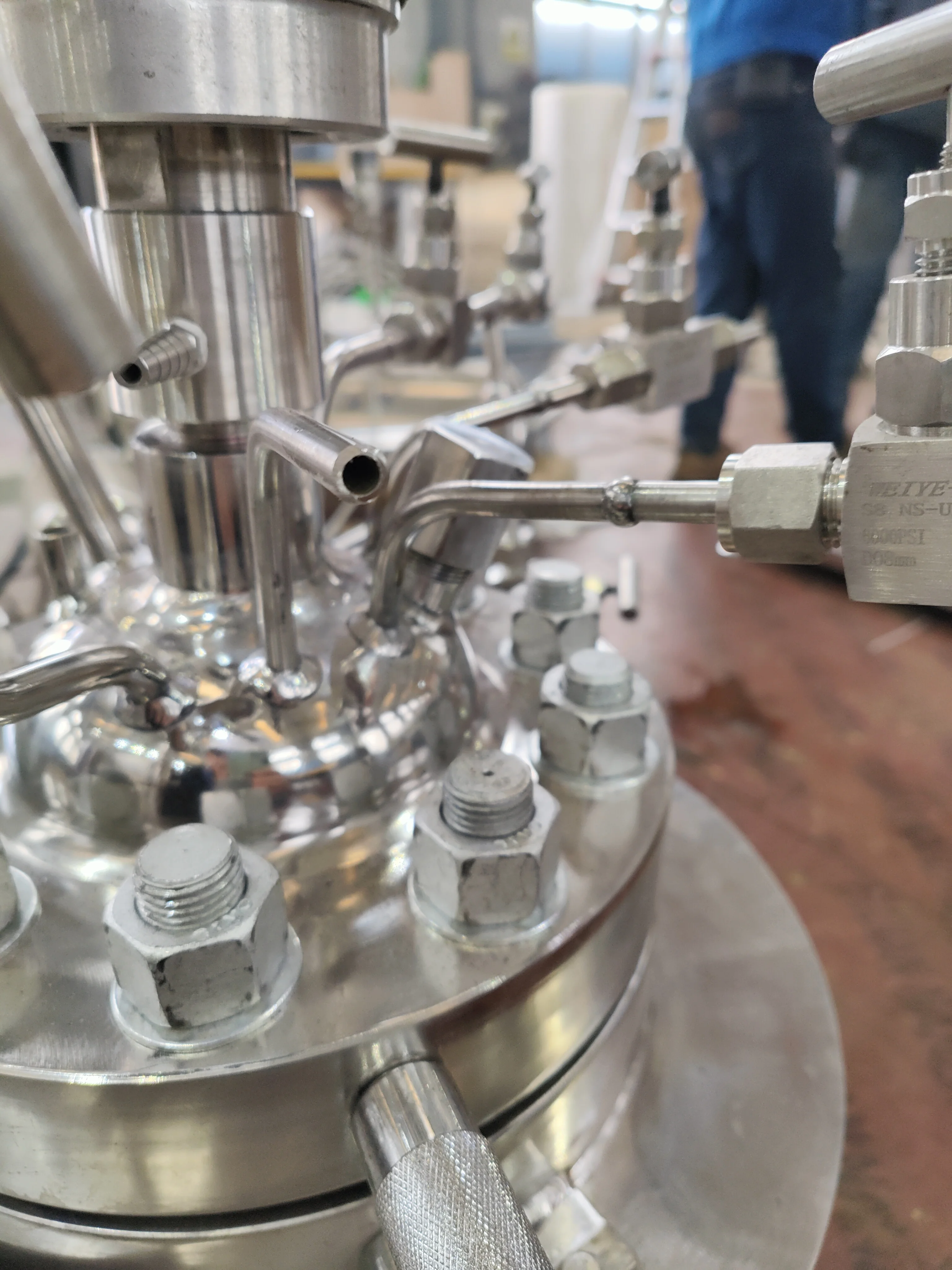

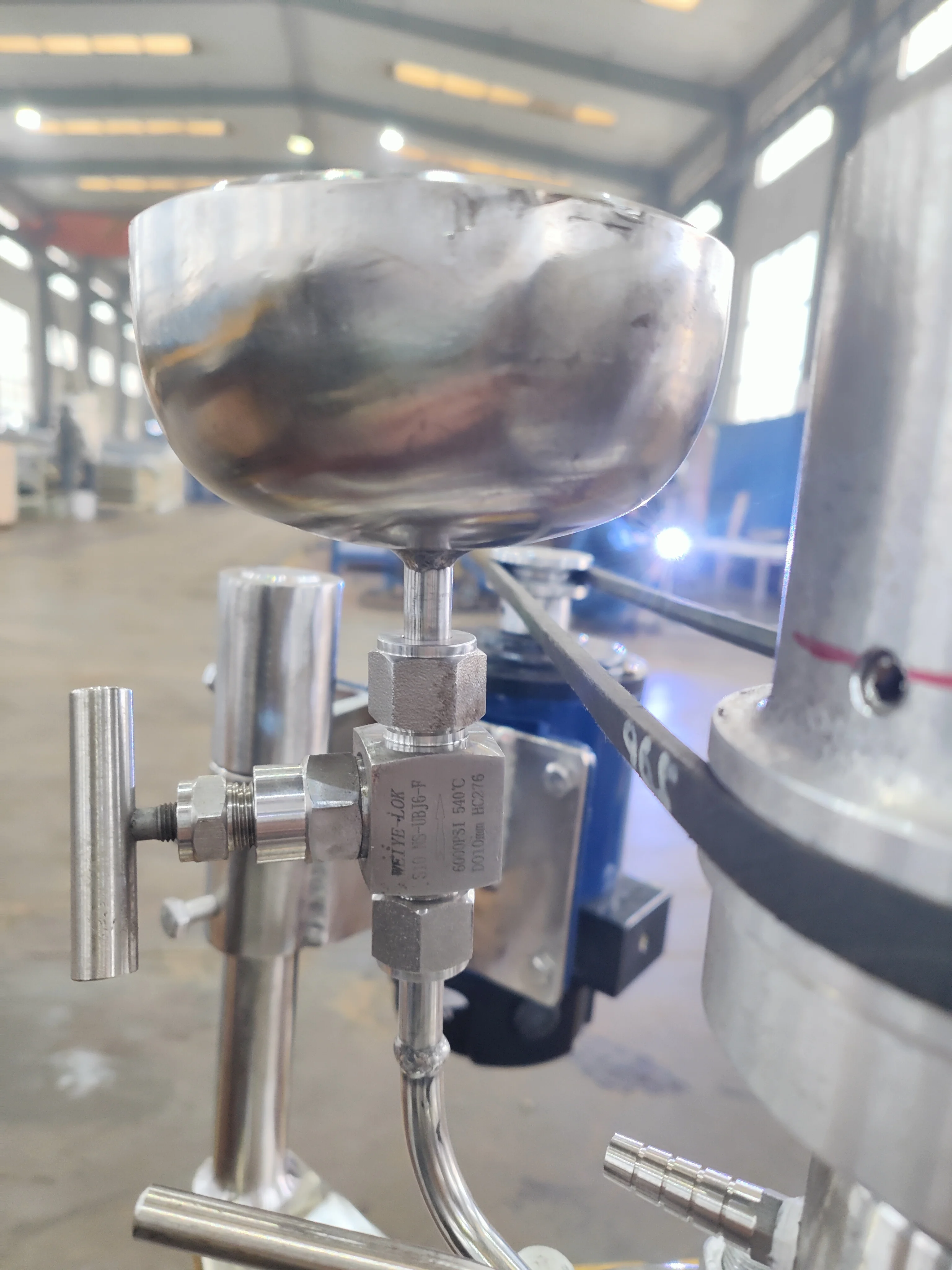

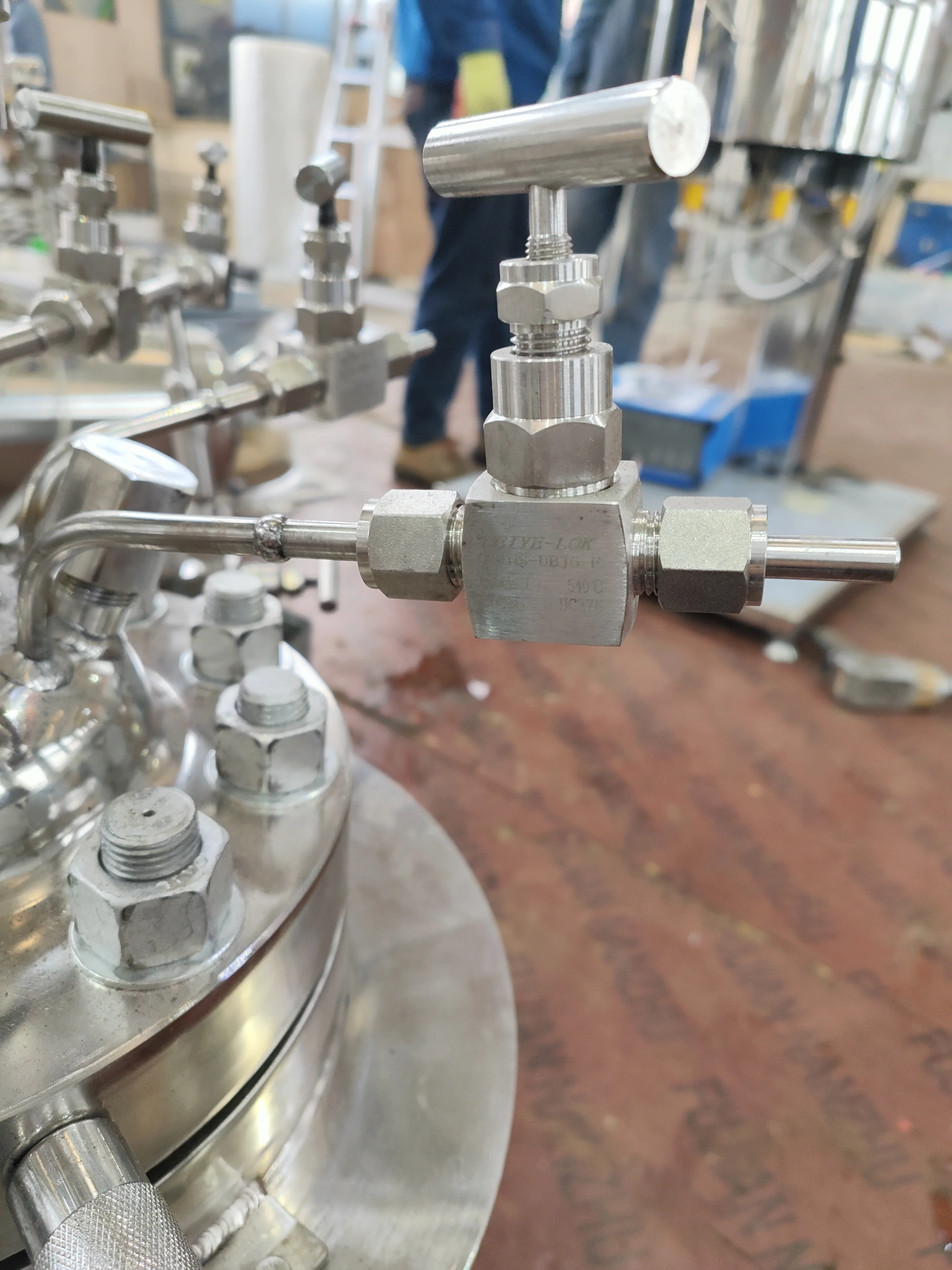

Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100) on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. | |||||||
Controller Device | Equipped with automatic or programmed PID or PLC to achieve: Temperature display and control, accuracy ± 1 ℃; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control; Flow display and control; Valve open/close control, etc. | |||||||
Products Description
Model | GSH 0.01~20 |
Norminal volume | 10mL-20L |
Material | SS304, SS316L,other alloy lined |
Design pressure | Standard 100bar; Max.: 450 bar |
Design temp. | -196~450℃ |
Stirring speed | 20~1500rpm |
Sealing type | Magnetic seal |
Stirrer | Propeller, turbine type, anchor type, ribbon type, others |
Heating type | Electric heating |
The lab reactor can conduct a reaction under pressure inside its vessel, pressure reactor is a special application of a pressure vessel.
The pressure can be caused by the reaction itself or created by an external source, like hydrogen in catalytic transfer
hydrogenation. High pressure reactors are used in reactions included but are not limited to Hydrogenation, Polymerization,
Synthesis, Catalytic, Petrochemical and so on. They are also used to perform research such as Upstream, Biomass, Biopolymer,Zeolite, etc.
The pressure can be caused by the reaction itself or created by an external source, like hydrogen in catalytic transfer
hydrogenation. High pressure reactors are used in reactions included but are not limited to Hydrogenation, Polymerization,
Synthesis, Catalytic, Petrochemical and so on. They are also used to perform research such as Upstream, Biomass, Biopolymer,Zeolite, etc.
Compact structure
* SS-316, SS-316L,SS304,SS904L,SS321 HastelloyB/C, Monel, Nickel, Inconel, Titanium, Zirconium
* 100ml to 5 liters volume.
* Up to 350 bar & 350°C.
* Electric heating with PID control
* 100ml to 5 liters volume.
* Up to 350 bar & 350°C.
* Electric heating with PID control
Magnetic couplings driver
* 100% Sealing. Zero leakage.* Zero emission of hazardous fluids.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
Internal components
* Internal cooling coil
* Agitator & impeller
* Dip tube
* Temperature measuring tube
* Agitator & impeller
* Dip tube
* Temperature measuring tube
* Pressure gauge/Bursting disc/Vacuum gauge/Pressure sensor
* Gas distributor
* Other
* Other
Intelligent digital temperature controlwith the temperature, stirring speed display & control and working time display

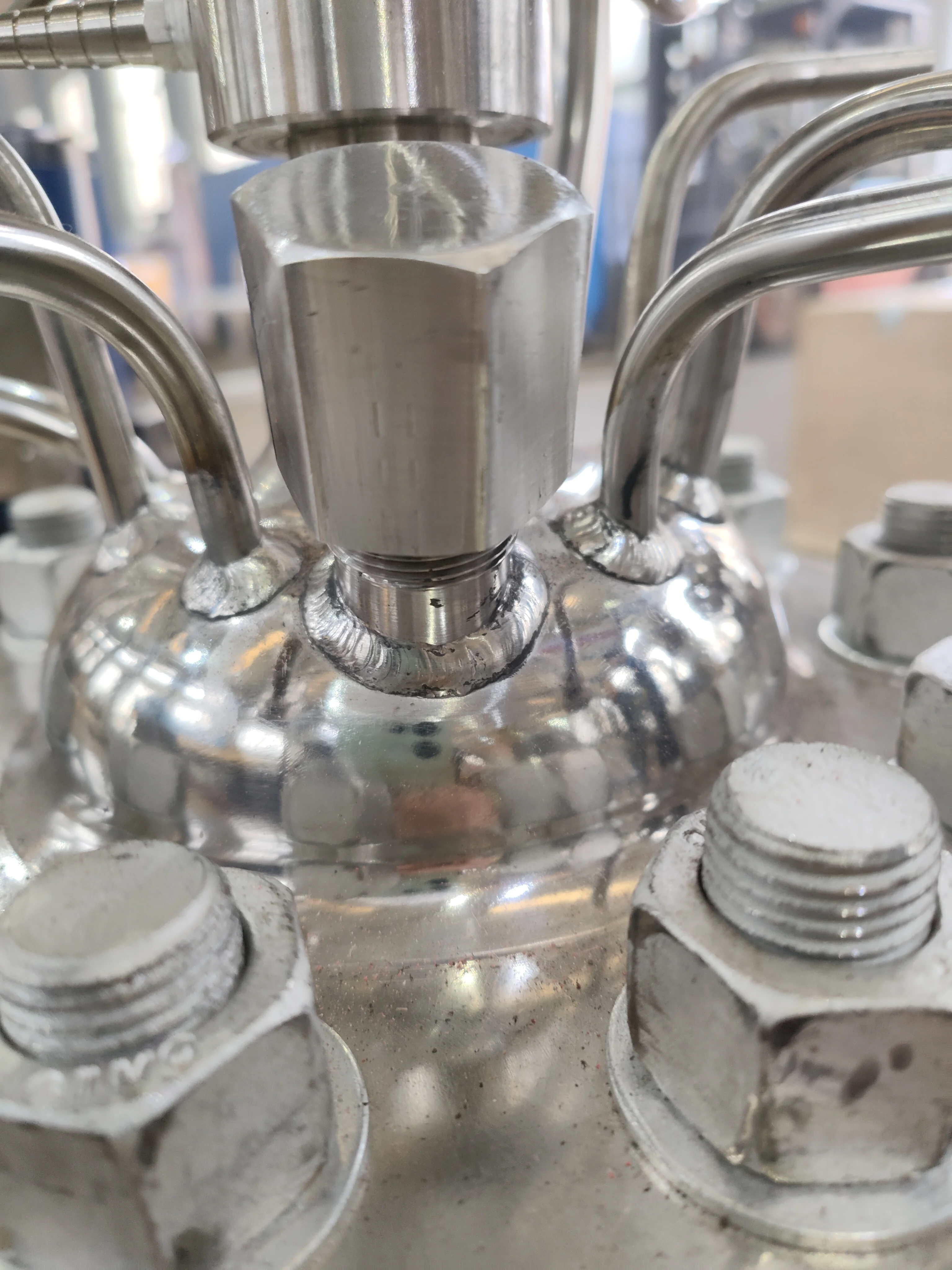

The reactor lid and reactor body are connected by bolts and nuts on flanges, some times, quick open structure will be used for easy opening process.With water or gas circulation through cooling coil, temperature inside reactor kettle can be cool down quickly without opening kettle lid.
Types of mixer styles available for various working medium according to different viscosity and property.
Types of mixer styles available for various working medium according to different viscosity and property.
In order to work better and realize more functions, our reactor can also be equipped with other equipment.
Easy-operation device
With quick-open and lifting device, the kettle lid can be easily opened and lifted, also, the kettle body can be flipped for clean up or discharging.
Distillation and Esterification Reactor
With extra components, like horizontal condenser, vertical condenser, collecting tank, buffer tank, a distillation or
esterification reaction can happen inside, a vacuum pump can help speed up the whole process.
esterification reaction can happen inside, a vacuum pump can help speed up the whole process.
Circulating equipment
The auxiliary heating equipment of the reactor heats the thermal oil or other media in the reactor, which is circulated to the jacket of the reactor for heating
Pumps
Pumps are machine that conveys or pressurizes fluid.
It can be used with the reactor to transport liquid or gas to realize the reaction.
Controller
PID or PLC controller
Explosion proof and common control cabinet
Customer Photos
Company Profile
Product packaging
Plastic film wrapping against moisture;Steel frame or wood frame inside for necessary support;
Strong fixture for whole set equipment;
All wood used in package is Fumigation free type, no need extra inspection during custom.
Strong fixture for whole set equipment;
All wood used in package is Fumigation free type, no need extra inspection during custom.
FAQ
Pre-Sale Stage
Provide Chemical Process , Project Drawing and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
1. Working Volume
2. Working Temperature
3. Working Pressure
4. Reactor material and inside medium
5. With mixer/agitator or not
2. Working Temperature
3. Working Pressure
4. Reactor material and inside medium
5. With mixer/agitator or not
Production Stage
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, Electric Circuit Drawing, All Related Test Report, Approval Certificate.
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, Electric Circuit Drawing, All Related Test Report, Approval Certificate.
After Sale Stage
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
Training & Installation
Arrange engineer to assist customer in equipment assembly and installation;
Training workers to use machine properly.
Training workers to use machine properly.
