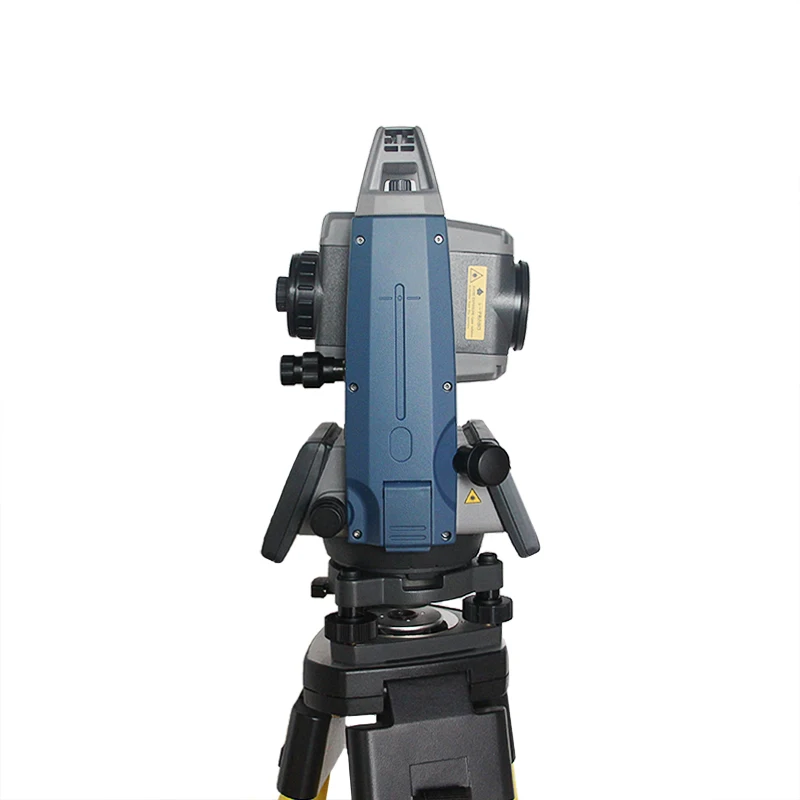

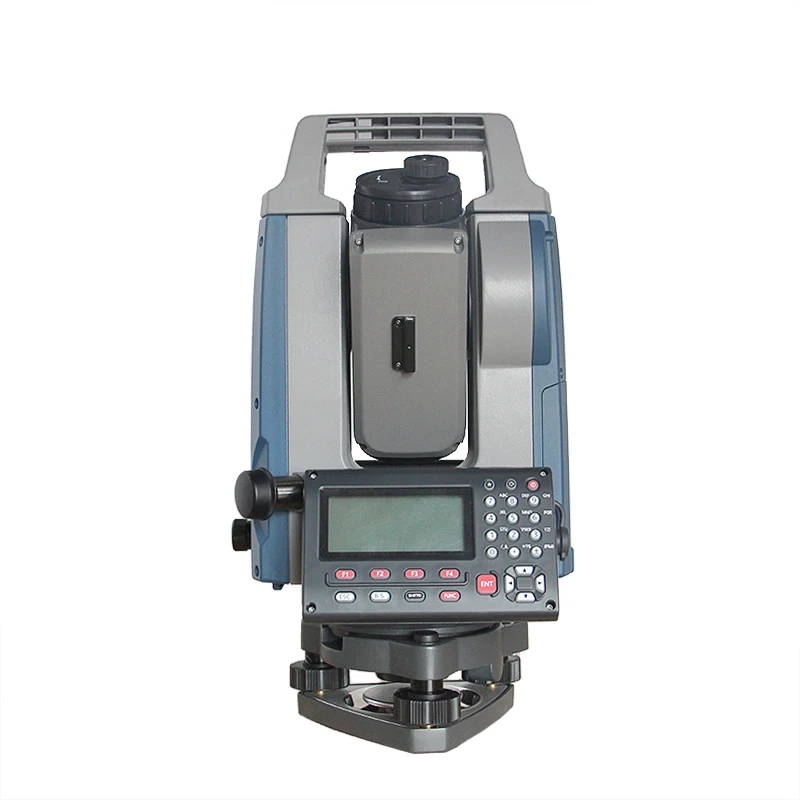

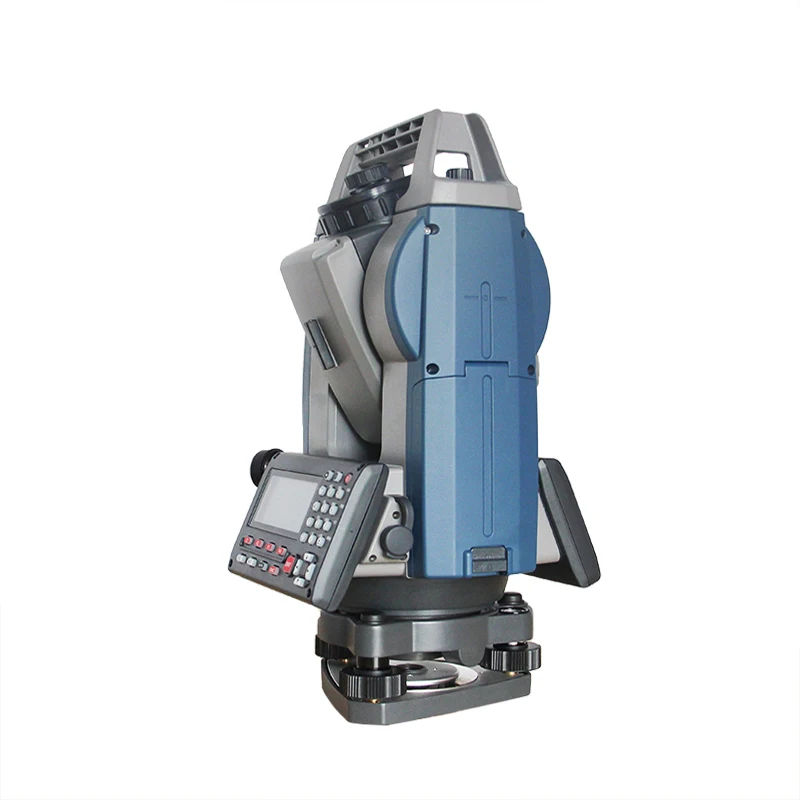

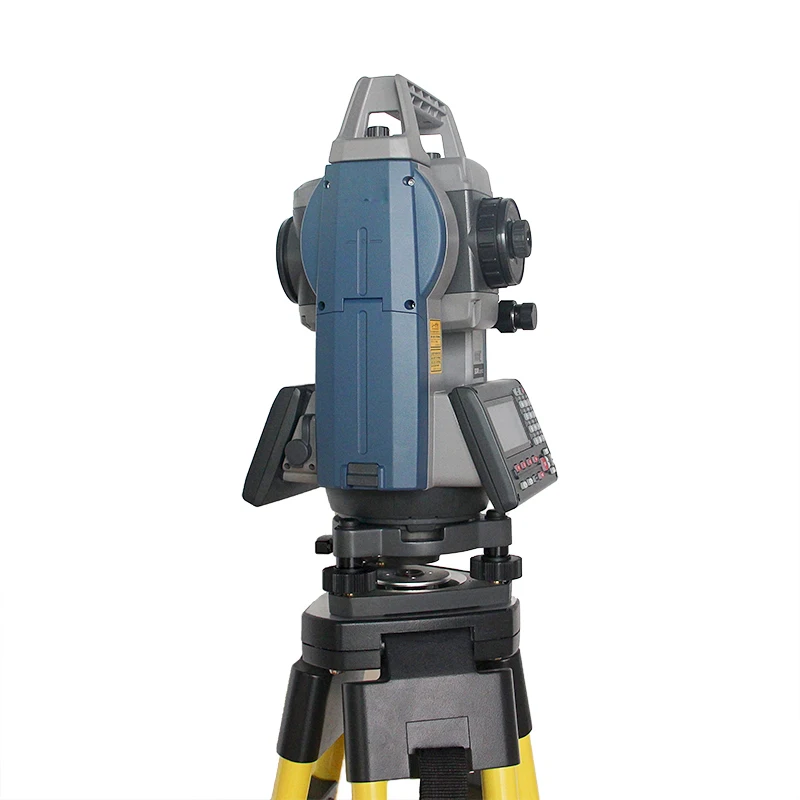

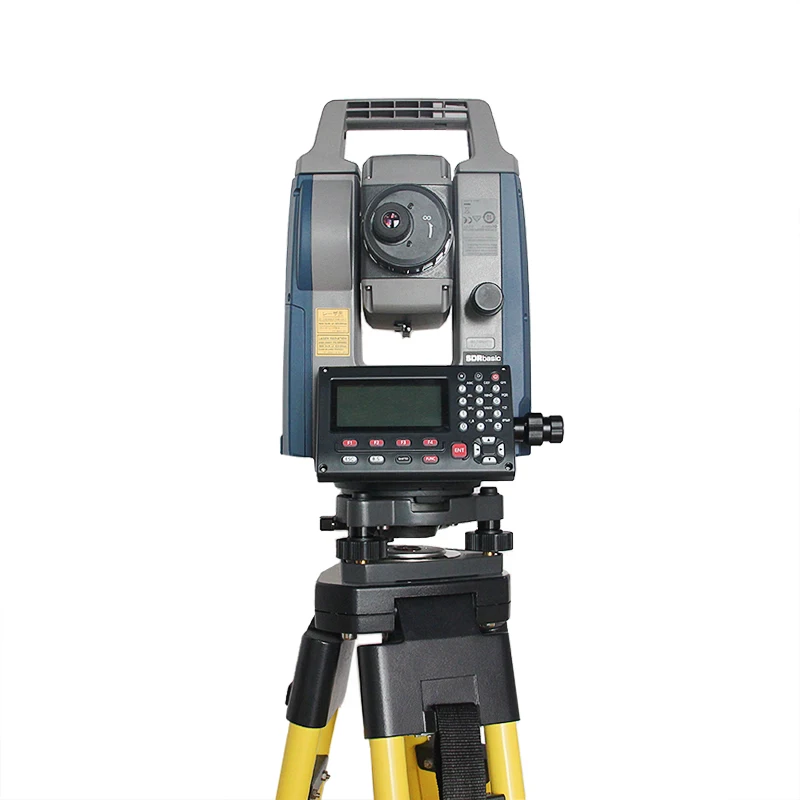

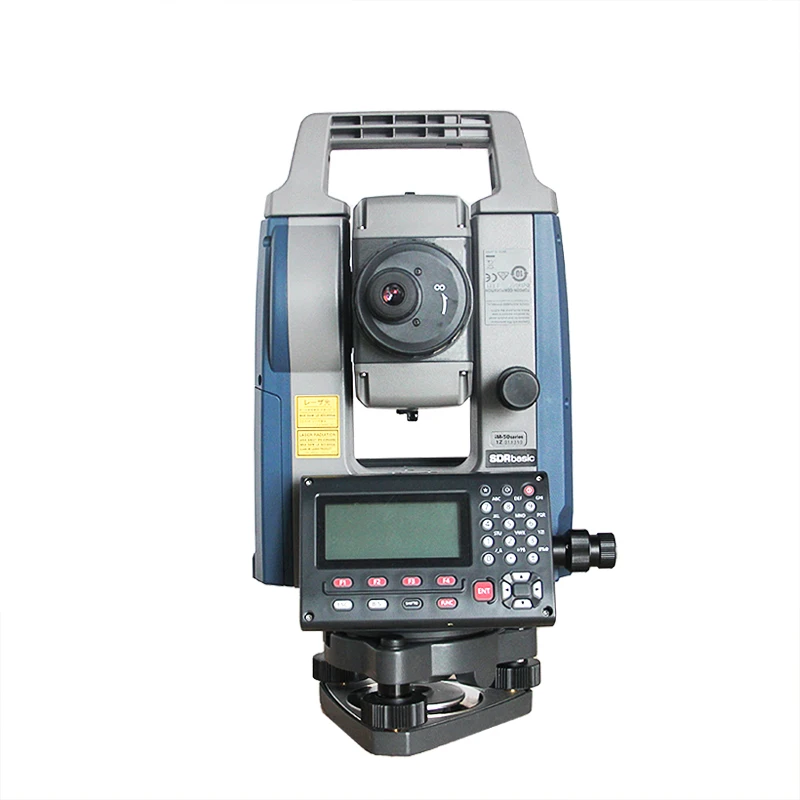

Японский бренд IM52 землесъемка низкая цена Роботизированная


Поделиться:


Цена:3 850,00 $ - 3 900,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 4582.74 $* 4811.3 $*
Aug-15-2025 4543.63 $* 4770.97 $*
Jul-15-2025 3812.64 $* 4003.35 $*
Jun-15-2025 4466.9 $* 4689.54 $*
May-15-2025 3889.0 $* 4083.20 $*
Apr-15-2025 4389.41 $* 4608.45 $*
Mar-15-2025 4351.10 $* 4569.39 $*
Feb-15-2025 4312.6 $* 4528.89 $*
Jan-15-2025 4274.88 $* 4488.73 $*

Характеристики


new coupon


















total surveying station








































































































































































































MODELiM-52iM-55
Telescope
Magnification / Resolving power30x / 2.5”
OthersLength : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30’
(26m/1,000m),
Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels
Angle Measurement
Minimum Display (selectable)1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001)2”5”
Dual-axis compensatorDual-axis liquid tilt sensor, working range: ±6’
Collimation compensationOn/Off (selectable)
Distance Measurement
Laser output*1Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
Measuring rangeReflectorless*30.3 to 500m (1,640ft.)
(under average conditions*2)Reflective sheet *4/*5RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.)
 Mini prismsCP01: 1.3 to 2,500m (4.3 to 8,200ft.), OR1PA: 1.3 to 500m (4.3 to 1,640ft.)
 One prism1.3 to 4,000m (4.3 to 13,120ft.)
Minimum DisplayFine / Rapid : 0.0001m (0.001ft. / 1/16 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable) Tracking / Road : 0.001m (0.005ft. / 1/8
in.) / 0.01m (0.02ft. / 1/2 in.) (selectable)
Accuracy*2Reflectorless*3(2 + 2ppm x D) mm*6
(ISO 17123-4:2001)Reflective sheet*4/5(2 + 2ppm x D) mm
(D=measuring distance in mm)Prism*7(1.5 + 2ppm x D) mm
Measuring time*8 Fine0.9s (initial 1.5s)
Rapid0.6s (initial 1.3s)
Tracking0.4s (initial 1.3s)
OS, Interface and Data management
Operating systemLinux
Display / KeyboardGraphic LCD, 192 x 80 dots, backlight : on/off (Selectable) / Alphanumeric keyboard / 28 keys with backlight
Control panel locationOn both facesOn single face
Data storageInternal memoryApprox. 50,000 points
Plug-in memory deviceUSB flash memory (max. 32GB)
InterfaceSerial RS-232C, USB2.0 (Type A, for USB flash memory)
modem (option)*9Class 1.5, Operating range: up to 10m*10
General
Laser-pointerCoaxial red laser using EDM beam
LevelsGraphic6’ (Inner Circle)
Circular level (on tribrach)10’ / 2 mm
PlummetOptical*11OptionalStandard
Laser*12StandardOptional
Dust and water protection / Operating temperatureIP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF)
Size with handle183(W)x 181(D)x 348(H)mm183(W)x 174(D)x 348(H)mm
(On both faces)(On single face)
Instrument height192.5mm from tribrach mounting surface
Weight with battery & tribrachApprox. 5.1kg (11.3lb)
Power Supply
BatteryLi-ion rechargeable battery BDC46C
Operating time (20ºC)*13Approx. 14hours*14



total surveying station




-3
