AELAB промышленное оборудование для рентгенографической трубки
- Категория: Industrial Metal Detectors >>>
- Поставщик: AELAB,GUANGZHOU,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.32 $* | 0.79 $* |
| Aug-17-2025 | 0.68 $* | 0.97 $* |
| Jul-17-2025 | 0.13 $* | 0.31 $* |
| Jun-17-2025 | 0.13 $* | 0.23 $* |
| May-17-2025 | 0.30 $* | 0.93 $* |
| Apr-17-2025 | 0.73 $* | 0.77 $* |
| Mar-17-2025 | 0.11 $* | 0.54 $* |
| Feb-17-2025 | 0.70 $* | 0.23 $* |
| Jan-17-2025 | 0.18 $* | 0.13 $* |
Характеристики
Product Description
Features & Specification
Technical Specifications:

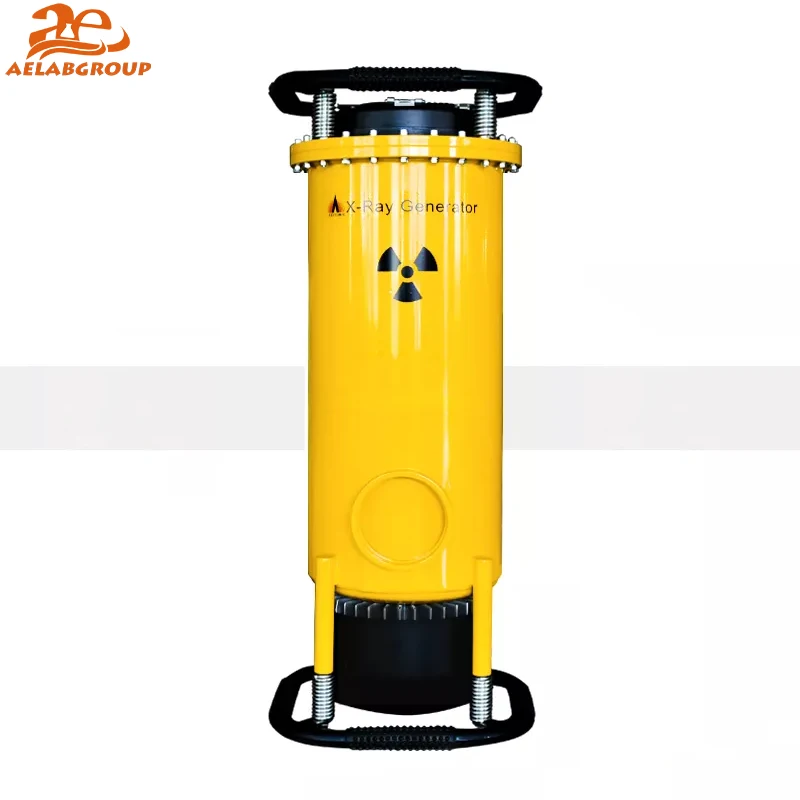

Panoramic Portable X-ray Flaw Detector (with Ceramic X-ray Tube)
Model | Input | Focus Size | Beam Angle | A3 Steel Max. Penetration (mm) | Weight | Dimension | ||||
(kw) | (mm) | Cone Target | Flat Target | Cone Target | Flat Target | (kg) | (mm) | |||
AE-XXH-2005 | 2. 0 | 1.0*5.0 | 30*360° | 25*360° | 24 | 27 | 31 | 290*290*615 | ||
AE-XXH-2505 | 2. 5 | 1.0*5.0 | 30*360° | 25*360° | 34 | 37 | 35 | 325*325*705 | ||
AE-XXH-3005 | 3. 0 | 1.0*5.5 | 30*360° | 25*360° | 44 | 47 | 43 | 245*345*715 | ||
Portable X-ray Detector (with Ceramic X-ray Tube)
Model | Output Voltage (kV) | Input | Focus Size (mm) | Beam Angle | A3 Steel Max. Penetration (mm) | Weight of Generator (kg) | Dimension of Generator (mm) |
AE-XXG-1605 | 80~160 | 1. 5 | 0. 8*0. 8 | 40+5° | 19 | 14. 5 | 225*225*550 |
AE-XXG-2005 | 100~200 | 2. 0 | 2. 0*2. 0 | 40+5° | 30 | 18 | 285*285*615 |
AE-XXG-2505 | 150~250 | 2. 5 | 2. 0*2. 0 | 40+5° | 40 | 30. 5 | 320*320*640 |
AE-XXG-3005 | 170~300 | 3. 0 | 2. 5*2. 5 | 40+5° | 50 | 36. 5 | 345*345*670 |
AE-XXG-3505 | 180~350 | 3. 5 | 2. 5*2. 5 | 40+5° | 60 | 38 | 345*345*670 |
Directional Portable X-ray Detector (with glass X-ray Tube)
Model | Output Voltage (kV) | Input | Focus Size (mm) | Beam Angle | A3 Steel Max. Penetration (mm) | Weight of Generator (kg) | Dimension of Generator (mm) |
AE-XXQ-1005 | 60~100 | 1. 2 | 0. 8*0. 8 | 40° | 8 | 11.1 | 190*190*530 |
AE-XXQ-1605 | 80~160 | 1. 5 | 0. 8*0. 8 | 40° | 19 | 15.2 | 225*225*585 |
AE-XXQ-2050 | 100~200 | 2. 0 | 1. 5*1.5 | 40+5° | 30 | 23 | 285*285*665 |
AE-XXQ-2505 | 150~250 | 2. 5 | 2. 0*2. 0 | 40+5° | 40 | 35 | 320*320*730 |
AE-XXQ-3005 | 170~300 | 3. 0 | 2. 3*2. 3 | 40+5° | 50 | 45. 5 | 345*345*830 |
AE-XXQ-3205 | 180~320 | 3.2 | 2. 5*2. 3 | 40+5° | 55 | 45. 5 | 345*345*830 |
AE-XXQ-3505 | 180~350 | 3. 4 | 2. 8*3. 0 | 40+5° | 60 | 47 | 345*345*800 |
Panoramic Portable X-ray Detector (with glass X-ray Tube)
Model | Output Voltage | Input | Focus Size | Beam Angle | A3 Steel Max. Penetration (mm) | Weight | Dimension | ||||
(kV) | (mm) | Cone Target | Flat Target | Cone Target | Flat Target | (kg) | (mm) | ||||
AE-XXH-1005 | 60~100 | 1. 2 | 1.0*3. 5 | 30+5° | 25+5° | 4 | 6 | 11.1 | 190*190*530 | ||
AE-XXH-1605 | 80~160 | 1.5 | 1.0*3. 5 | 30+5° | 25+5° | 12 | 15 | 15 | 225*225*585 | ||
AE-XXH-2005 | 100~200 | 2. 0 | 1.0*3. 5 | 30+5° | 25+5° | 24 | 27 | 21. 5 | 285*285*665 | ||
AE-XXH-2505 | 150~250 | 2. 5 | 1.0*2. 4 | 30+5° | 25+5° | 34 | 37 | 33. 5 | 320*320*730 | ||
AE-XXH-3005 | 170~300 | 3. 0 | 1.0*2. 3 | 30+5° | 25+5° | 44 | 47 | 40 | 345*345*830 | ||
AE-XXH-3205 | 180~320 | 3.2 | 1.0*5.0 | 30+5° | 25+5° | 45 | 50 | 40 | 345*345*830 | ||
AE-XXH-3505 | 180~350 | 3. 4 | 1.0*5.0 | 30+5° | 25+5° | 52 | 55 | 42. 6 | 345*345*830 | ||
Recommend Products
Packing & Shipping
Company Information
AELAB GUANGZHOU CO.,LTD is a company that has many of manufacturing and selling wide range of science & laboratory instruments. The main product include liquid handing, nucleic acid and protein analysis instruments, general instruments, cleaning machines. Over 15 years international sales experience and already provide service over 100 countries. We are able to provide installation,debugging, training service onsite. For general machines we are providing online training service or telephone call training service to distributors. The machine basic information and brochure customers can download from our website directly.
Please do not hesitate, AELAB products are worth a try! Welcome to join us!
FAQ
Q: How about the warranty for your products?
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A: All of our products have 1-2 year warranty. During the guarantee period, if there are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country.
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A: We will offer technical support like operating manual, operating videos to support or provided training material of the detailed products you are interested in. If you have chance to come to Guangzhou, welcome to our office, we have samples here, and we can show you how to operate them.
