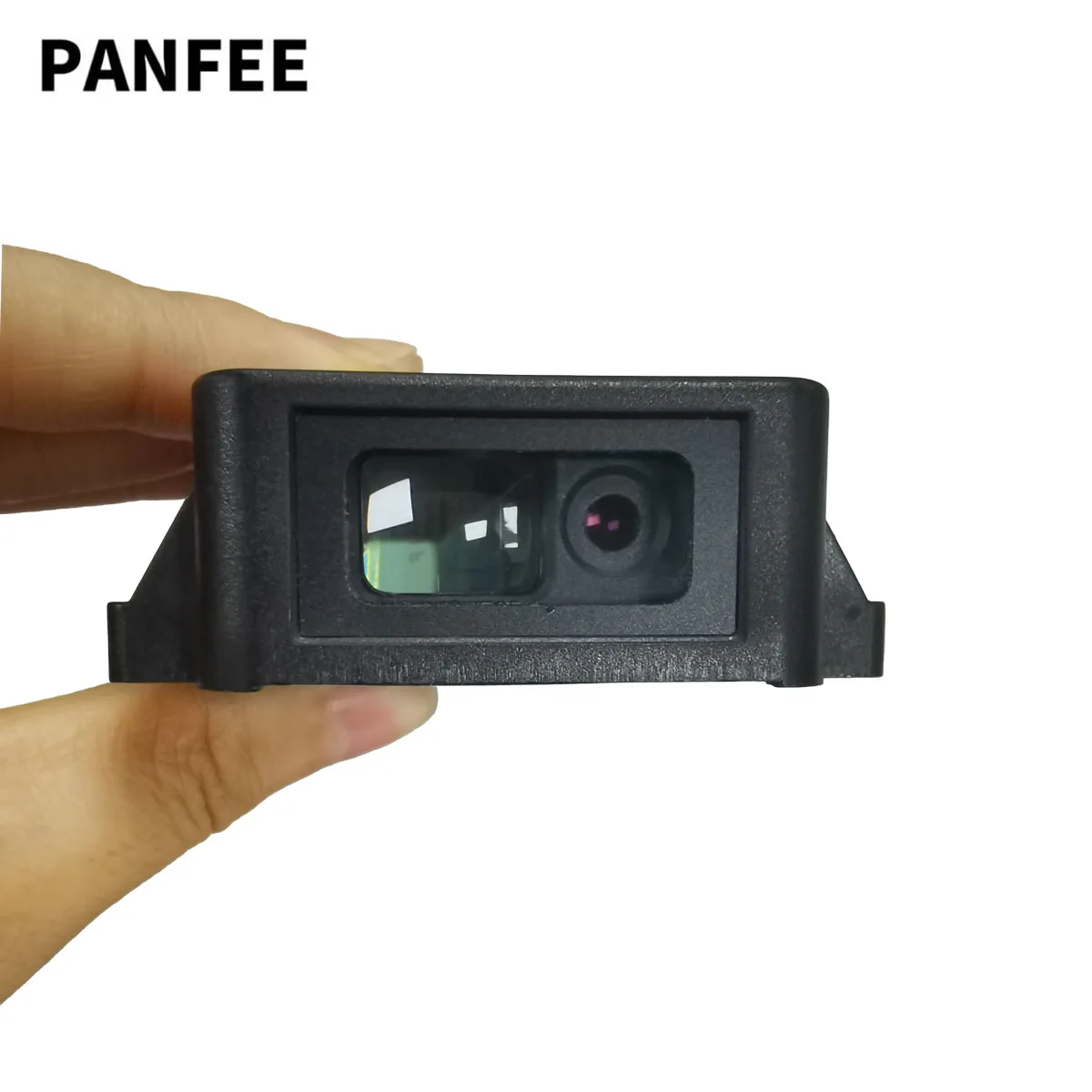

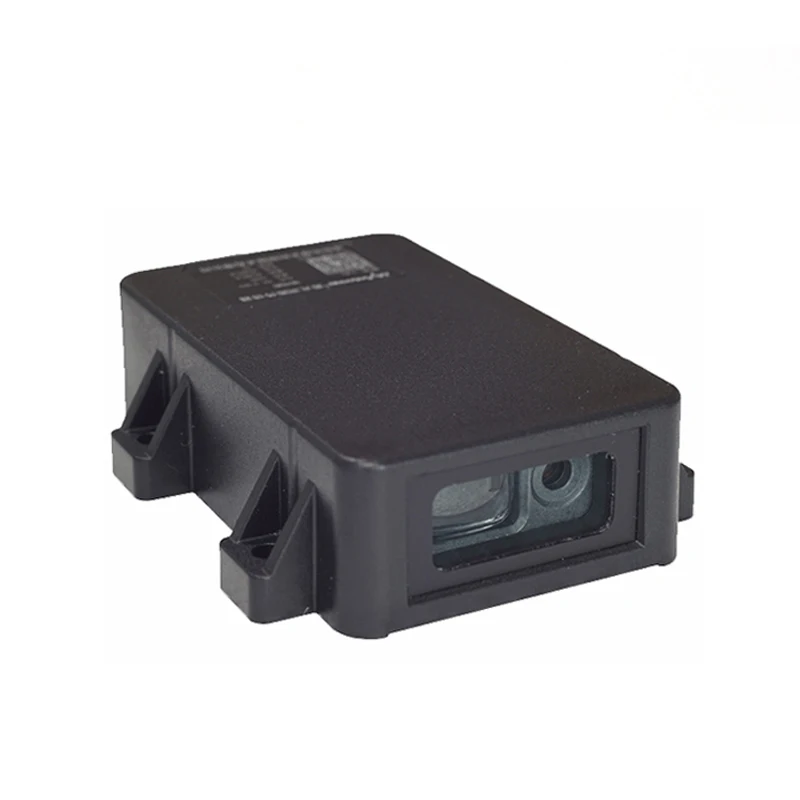

PANFEE IP56 Водонепроницаемый TTL последовательный порт промышленные лазерные приборы для измерения высоты 1 мм
- Категория: >>>
- Поставщик: Shenzhen,MyAntenna,RF,technology,co.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 90.28 $* | 95.37 $* |
| Aug-20-2025 | 90.73 $* | 95.62 $* |
| Jul-20-2025 | 75.56 $* | 79.11 $* |
| Jun-20-2025 | 88.83 $* | 92.89 $* |
| May-20-2025 | 77.38 $* | 81.21 $* |
| Apr-20-2025 | 87.73 $* | 91.52 $* |
| Mar-20-2025 | 86.2 $* | 90.1 $* |
| Feb-20-2025 | 85.40 $* | 89.47 $* |
| Jan-20-2025 | 84.73 $* | 88.76 $* |
Характеристики
Product Description
Technical Parameter | ||
Model | ||
Power Supply | DC 5V | |
Power Consumption | 0.5W at 20Hz, less than 0.2W at standby | |
System Startup Time | 600ms | |
Optical Device Parameters | Wavelength:650nm | |
Laser power:<1mW (Meet the Class II laser standards) | ||
Spot type: point laser | ||
Spot size: less than 4*6mm when 10m | ||
Service life: 20000 hours | ||
Communication Interface | TTL UART | |
Baud Rate | 9600/19200/38400/115200 Baud,The default is 38400 | |
A Serial Port Format | Baud rate: 38400 | |
Data bit: 8 | ||
Stop bit: 1 | ||
Check: none | ||
Flow control: none | ||

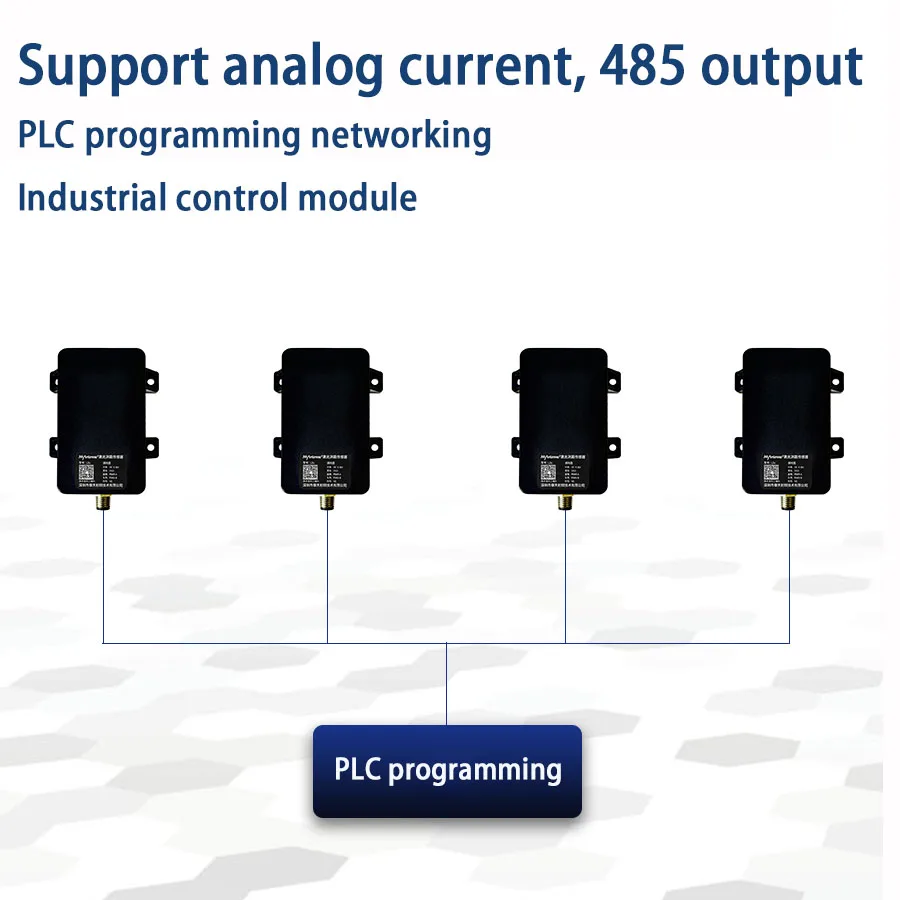

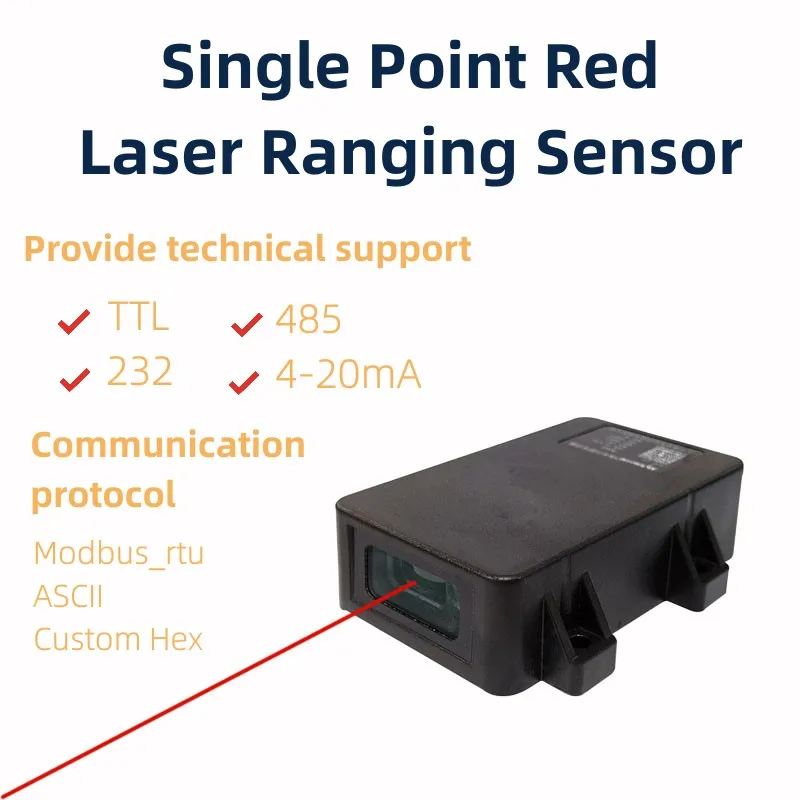

Network Communication Protocol | Modbus_rtu ASCII Custom Hex | |
Sampling Rate | 10Hz, 20Hz, the default is 20Hz | |

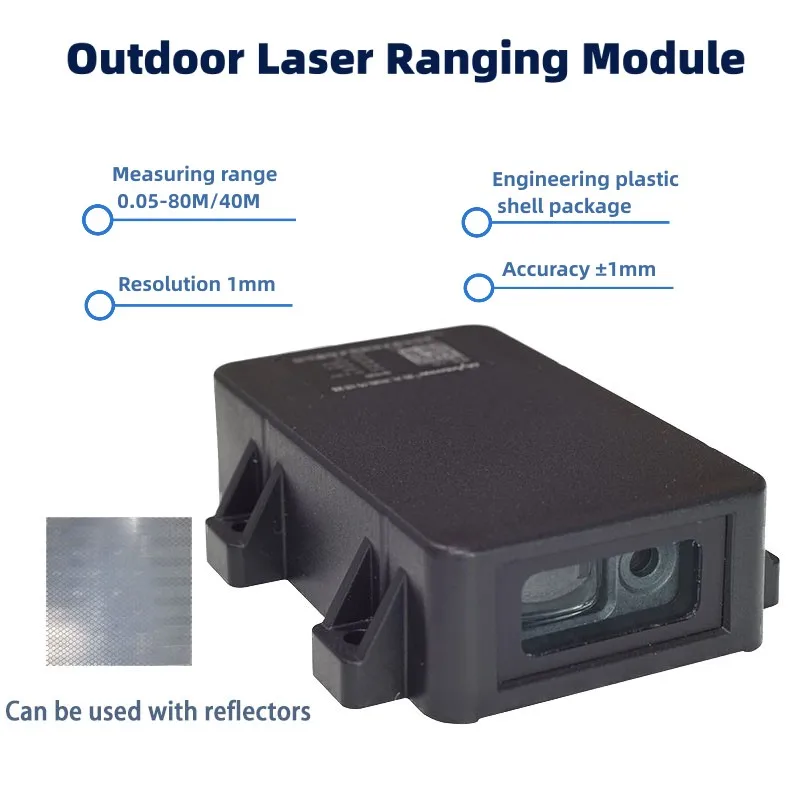

Measuring Range | 0.05—40m | |
Initial Point of Measurement | most significant end | |
Resolution | 0.1mm | |
Accuracy | ±（1.5mm+ D*5‱),D is the actual test distance. This theoretical error has been calibrated during production, and the actual accuracy is ±1mm | |
Repeat Accuracy | ±1mm | |
Working temperature | -10—+50℃ | |
Working Humidity | ≤RH85% | |
Protection Degree | IP56 | |
Cable | Aerial cable | |
Net Weight | 55.6g | |
Gross Weight | 206g | |

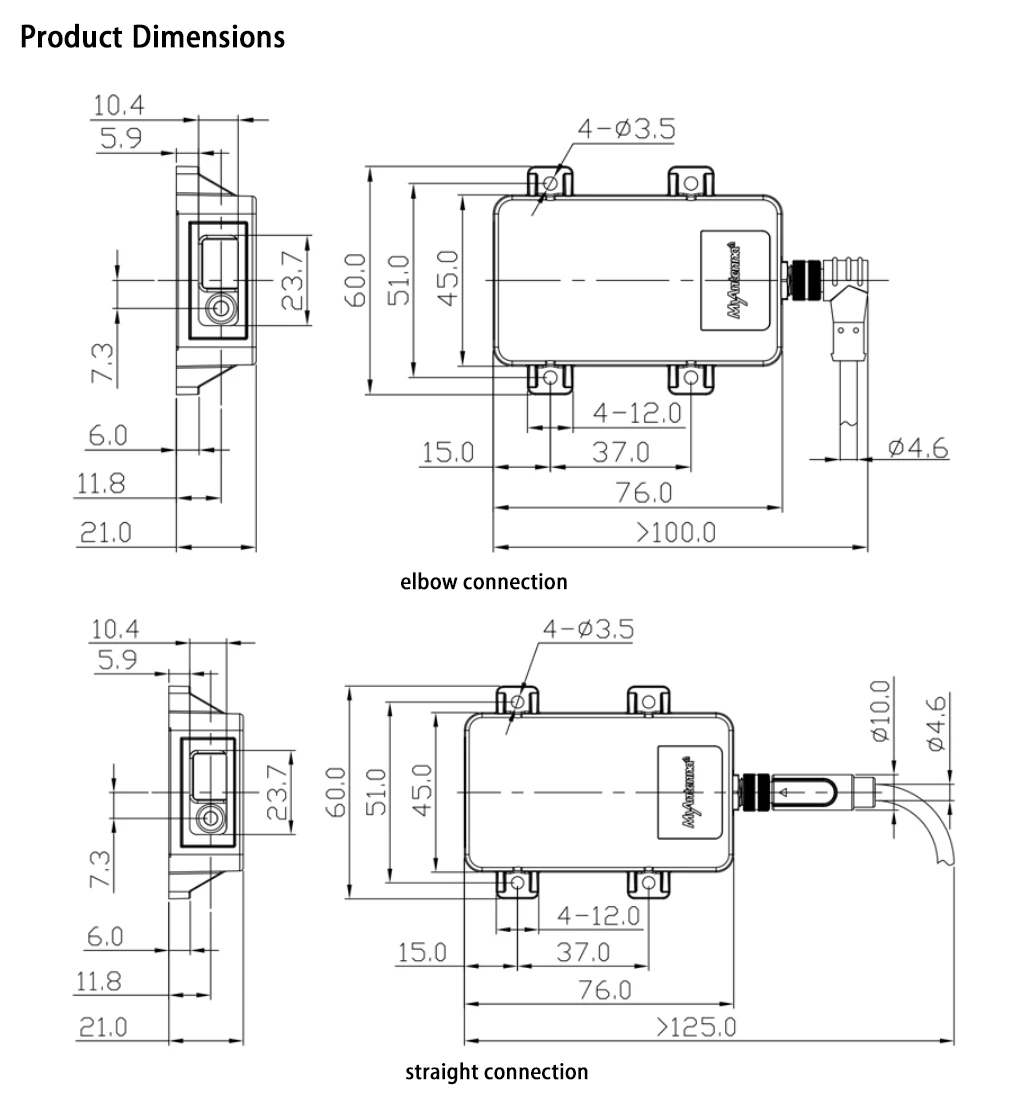

Dimensions | 100*60*21mm（elbow connection）125*60*21mm（straight joint） | |
Note:
*(1) With a strong reflector, a longer distance can be measured. The range value can be set through the downlink command, and the maximum can be set to 80 meters.*(2) In harsh environments, such as outdoor sunlight, the performance will be affected. It can be used with the target reflector to improve performance.
*(3) In the fast mode, the recovery light signal is weak, and the error will become larger, which has certain requirements for the measurement target and distance.
*(4) Not suitable for outdoor daytime applications.
*(3) In the fast mode, the recovery light signal is weak, and the error will become larger, which has certain requirements for the measurement target and distance.
*(4) Not suitable for outdoor daytime applications.
Related Products
Company Profile
MyAntenna sensor business, focusing on the development, production and sales of phase offset to achieve accurate measurement products;
Our engineers have more than 15 years of industry experience in related industries; We have developed a series of
production calibration equipment in order to ensure the accuracy and consistency of our products;
production calibration equipment in order to ensure the accuracy and consistency of our products;
We are the source factory and can provide real-time technical support, specific application details and customized services.
*The power adapter and LED display can be customized.
*Length,Area,Volume,Pythagoras,Space(Two points distance) Height, Pythagorean theorem measurement. angle measuring, beep, and any other functions can be customized.
*Length,Area,Volume,Pythagoras,Space(Two points distance) Height, Pythagorean theorem measurement. angle measuring, beep, and any other functions can be customized.
