Аварийный светодиодный преобразователь Amelech ZigBee многофункциональный источник питания для светодиодных фонарей 7 Вт 3
- Категория: Emergency Lights >>>
- Поставщик: Shenzhen,Amelech,Technology,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 76.16 $* | 80.53 $* |
| Aug-17-2025 | 76.44 $* | 80.15 $* |
| Jul-17-2025 | 63.76 $* | 66.5 $* |
| Jun-17-2025 | 74.46 $* | 78.11 $* |
| May-17-2025 | 65.39 $* | 68.37 $* |
| Apr-17-2025 | 73.19 $* | 77.52 $* |
| Mar-17-2025 | 72.11 $* | 76.94 $* |
| Feb-17-2025 | 72.56 $* | 76.18 $* |
| Jan-17-2025 | 71.36 $* | 75.73 $* |
Характеристики
Products Description

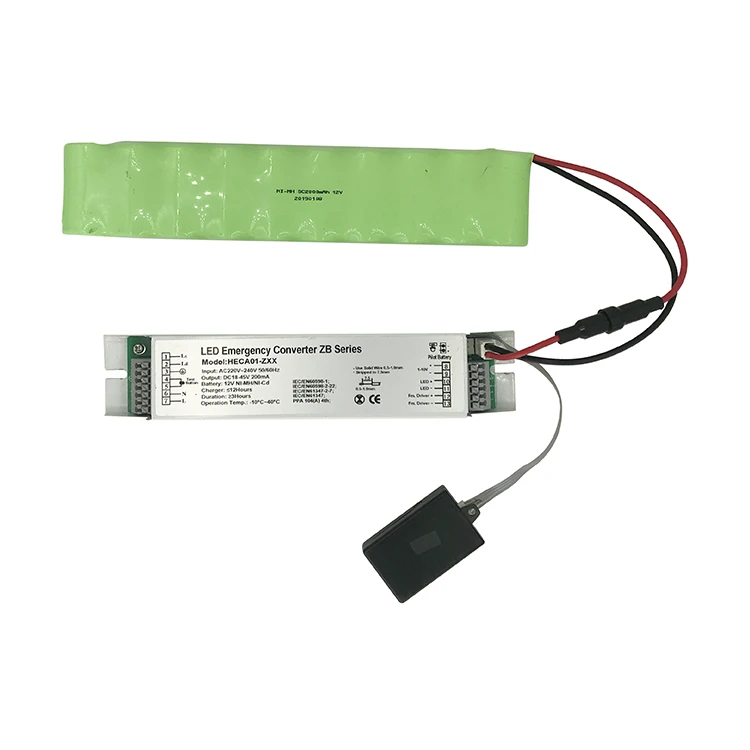

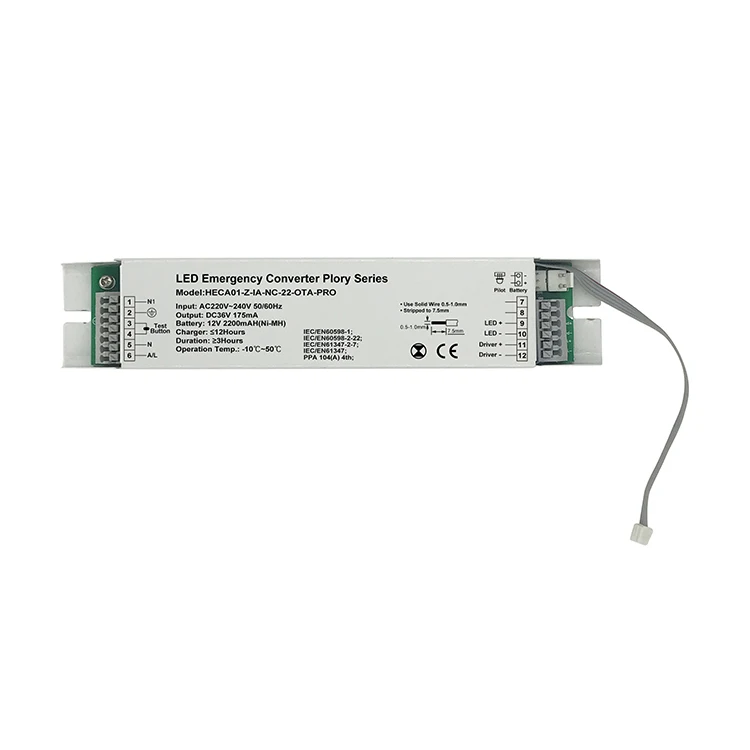

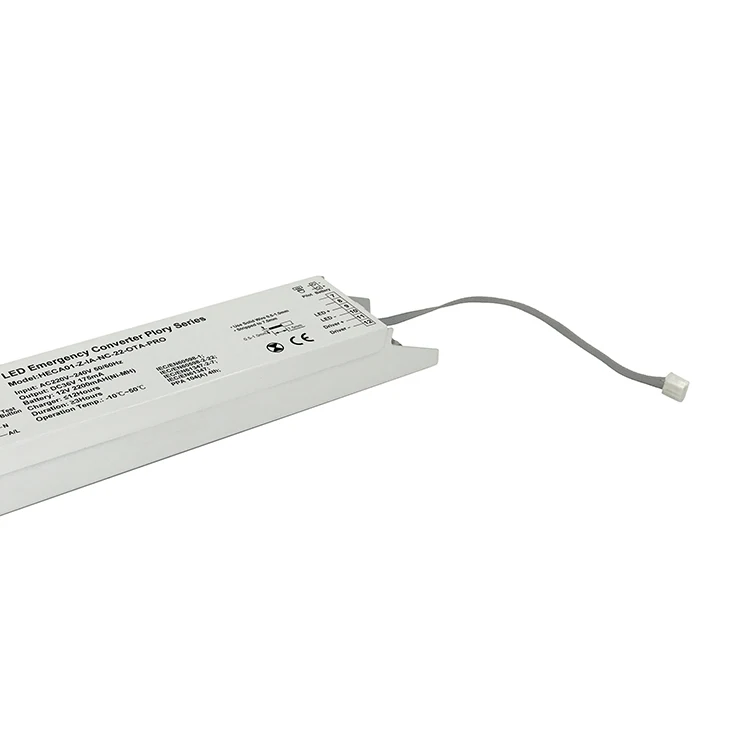

HECA01-Z-IA-NC-XX-OTA-PRO is a 7W intelligent emergency converter with Zigbee module, to integrate in an emergency light for duration & function auto-test, failure alert and test reports monthly/ yearly.

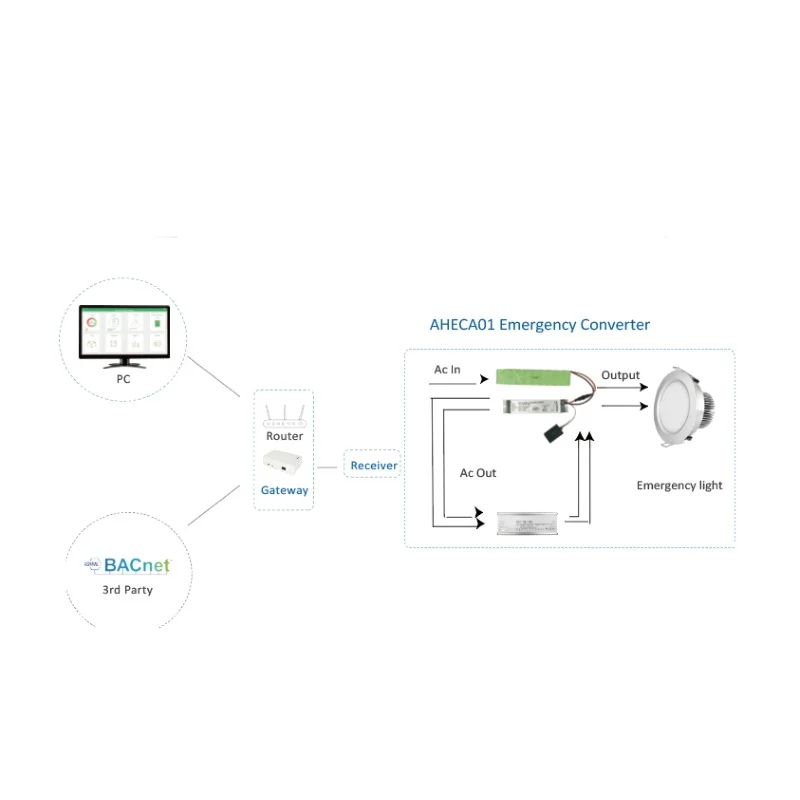

It works with Amelech’s ZigBee lighting control system with PC server App to achieve wireless control and auto-test purposes for emergency light.
It supports:
3 type of emergency lights: maintained, non-maintained and maintained Switchable. Built-in overcharge/ over-discharge protection, and manual testing.
Application:
Mainly for 7W emergency lighting used in schools, hotels, hospital, shopping malls and other places.
It works with Amelech’s ZigBee lighting control system with PC server App to achieve wireless control and auto-test purposes for emergency light.
It supports:
3 type of emergency lights: maintained, non-maintained and maintained Switchable. Built-in overcharge/ over-discharge protection, and manual testing.
Application:
Mainly for 7W emergency lighting used in schools, hotels, hospital, shopping malls and other places.
Parameters | HECA01 |
Input Power | 110V-277V |
Output Current | 60mA |
Transmission Distance: | 30 meters |
Wireless Frequency: | 2.4GHz IEEE 802.15.4 |
Input Power | 11.6W |
Battery Charge time: | 12h |
Waterproof: | IP20 |
Operation Temperature | --10°C to 40°C |
Product Size | 202x39x28mm |
Product Features：
1) Manual on/off switch emergency light in PC app, only working in emergency mode when there is a power cut.
2) Emergency Light Status.
Light status: Luminaire Off, Charging/ Luminaire On, Charging/ Luminaire On, Fully Charged/
Luminaire Off, Fully Charged/ Emergency Mode/ Stop manually/ Offline/ LED Load Fail
Battery status: Fully charged/ Charging/ Discharged/ Battery Failure/ Low Battery
Auto-test status: Testing/ Pass/ Fail/ Stop manually/ Low Battery/ Offline
3) Duration auto-test.
A duration test is to test full rated duration of the emergency lights (e.g. 3 hours).
It gives feedback on the device’s current battery status and if the device is charged before battery is
exhausted.
4) Function auto-test.
A function test gives quick feedback of current status of the device, battery and lamp.
From PC server app, click a single light to run duration auto-test/ function auto-test,
or set schedules for lights on one map or all maps and get testing results periodically.
5) "Non-Maintained" switch.
Dual maintained/ non-maintained emergency light could be switched to non-maintained emergency light
in app.
6) Emailing Auto-Test Reports.
After presetting sender email & password, receiver email in PC app with internet access, end user will get
auto-test reports by email as scheduled.
Recommend Products
iLightsIn Pro Product List
Device Type | Model No. | Device Name | ||
Gateway | HGW928-Z/Z-POE | 30M ZigBee gateway with DC5V input or POE input | ||
HGW928-BEAC-Z/Z-POE | 100m ZigBee gateway with DC5V input or POE input | |||
HGW928-ZD/ZD-POE | 30m ZigBee gateway plus 300m DALI gateway with 2 channel DALI interface, DC5V input or POE input | |||
HGWB53-ZD | 30m ZigBee & 300m DALI gateway& Scene Swtich with AC input, DALI interface | |||
HGWB53-Z | 30m ZigBee gateway& Scene Swtich with AC input | |||
ZigBee Controller | HLC610-Z | IP20 3A ZigBee to 1-10V/0-10V/0-10V dimming controller with power metering | ||
HLC734-Z | IP65 3A ZigBee to 1-10V/0-10V/0-10V dimmer with power metering (round) | |||
HLC912-Z | IP65 3A ZigBee to 1-10V/0-10V dimming controller with power metering (rectangle) | |||
HLC916-Z | IP20 3A ZigBee to 1-10V/0-10V dimming linear controller with power metering | |||
HLC922-Z | IP65 12V DC input ZigBee to 0-10V dimming controller | |||
HLCA05-Z | IP65 12-54V DC input ZigBee to 0-10V dimming controller | |||
HSSA07-Z | IP65 12V DC input ZigBee to 0-10V dimming controller | |||
HSSA18-Z | Zhaga DC ZigBee to 0-10V dimmer dimming controller | |||
HLC833-Z-BEA/BEAC | 100M IP65 16A ZigBee to 1-10V/0-10V dimming controller with power metering | |||
HLC833-Z-IA/EA/EAC | IP65 16A ZigBee to 1-10V/0-10V dimming controller with power metering | |||
HLC833-Z-PM | IP65 power metering controller (no relay) | |||
HLC909-Z | IP20 1/ 2/ 3 channel ZigBee to 0-10V dimming controller | |||
HLC502-Z | IP20 DC 12V/ 24V/36V/ 48V dimming/ CCT/ RGB/ RGBW 4-in-1 switchable strip controller, RGBCW | |||
HLC929-Z | IP20 DC 12V/ 24V/36V/ 48V dimming/ CCT/ RGB/ RGBW/ RGBCW non-switchable strip controller, 5 models | |||
HLC721-Z | IP20 1.5A trailing edge triac dimming controller (rectangle) | |||
HLC821-Z | IP20 1A trailing edge triac dimming controller (round) | |||
HLC614-Z | IP20 3A*3 3-channel on/off controller | |||
ZigBee Driver | HLDB59-Z | 31.5W dimming / CCT linear driver with power metering | ||
HLDB22-Z | 100W dimming / CCT driver with power metering (rectangle, smaller size) | |||
HLD827-Z | 100W/ 150W/ 185W dimming driver with power metering (rectangle) | |||
HLD828-Z | 100W/ 150W/ 185W dimming driver unit with power metering (round) | |||
HLD925-Z | 75W 24-220V dimming linear driver with power metering | |||
HLD816-Z | 80W dimming/ CCT linear driver with power metering | |||
HLD817-Z | 40W dimming/ CCT linear driver with power metering | |||
HLD503-Z-EU | 24-42V 40W dimming/ CCT driver w or w/o power metering | |||
HLD942-Z | 18-200V 56W dimming driver with power metering | |||
HLD719-Z | 25W dimming/ CCT driver | |||
HLD905-Z | 25W dimming/ CCT driver (round) | |||
HLD728-Z | 15W RGB/ RGBW/ RGBCW color changeable driver | |||
HLD812-Z | 13W dimming/ CCT driver | |||
Switch | HWS933-Z | ZigBee HA1.2 6-button Multi-function wall switch, dimming/ tuning/ scenario/ power metering function | ||
HPKA02 | RF 4/ 6 button passive wireless switch, non-ZigBee, work with HWS933 | |||
HWSC05-Z | ZigBee HA1.2 6-button scenarioes wall switch | |||
Romote control | HRC811-Z | ZigBee HA1.2 4-channel dimming/ CCT remote control | ||
ZigBee Sensor | HSSA18-Z-M/ MID/ ID | Zigbee Zhaga DC 0-10V dimmer with Daylight /mcrowave motion / microwave motion daylight sensor | ||
HSSA07-Z-P/ PD/ PID | IP65 12V DC input 0-10V dimming controller with PIR motion/ motion daylight sensor | |||
HSSA07-Z-D/ ID | IP65 12V DC input 0-10V dimming controller with daylight sensor | |||
HSSA07-Z-M/ MD/ MID | IP65 12V DC input 0-10V dimming controller with microwave motion/ motion daylight sensor | |||
HSSA15-Z-PD/P/D | Zigbee 10V pwm dimmer with DC PIR motion daylight/ PIR motion / daylight sensor | |||
HSSA15-U-PD/P/D | UR version DC PIR motion daylight/ PIR motion / daylight sensor | |||
HSS937-P/ PD/ PID | UR version DC PIR motion/ motion daylight sensor | |||
HSS937-D/ ID | UR version DC Daylight sensor | |||
HSS937-M/ MD / MID | UR version DC Microwave motion/ motion daylight sensor | |||
HDS826-Z | Standalone AC IP65 dimming daylight sensor (round) | |||
HDS611-Z | Standalone AC IP65 dimming daylight sensor (rectangle) | |||
HCS901-Z | Standalone AC IP65 CCT daylight sensor | |||
HMS823-Z | Standalone AC IP65 15M microwave motion sensor w or w/o heatmap function | |||
HOS934-Z-OS | Standalone AC IP20 4M occupancy sensor with daylight, power metering | |||
HOS934-Z-PIR | Standalone AC IP20 10M PIR motion sensor with daylight, power metering | |||
ZigBee Emergency | HEC920-Z | IP20 ZigBee 5W emergency converter for panel, with battery | ||
HEC921-Z | IP20 ZigBee 1W emergency converter for bulkhead/ exit box, with battery | |||
HECA01-Z | ZigBee 7W emergency converter for emergency light, with battery | |||
HZM918-Z | ZigBee module for emergency converter | |||
ZigBee Bridge | HBG806-Z | Dali/ ZigBee to 1-10V/0-10V/ RS232/ Dry contact/ L/N detect to ZigBee bridge | ||
Server &Server app | NA | License fee. Lite/ Basic/ Professional/ Full-function version | ||
HSVC16-1K/6K/25K | Industrial PC server with iLightsIn server app pre-installed, controlling up to 1000/6000/25000 devices | |||
HSVC17-1K/6K | Industrial touch-screen server with iLightsIn server app pre-installed, controlling up to 1000/6000 devices | |||
Circuit Breaker | HSAB55-Z | ZigBee 4-channel on/off control magnetic circuit breaker/Switch Actuator with dry contact/ 12V 100mA output | ||
HSAC55-Z | ZigBee 4-channel on/off control magnetic circuit breaker/Switch Actuator with dry contact/ 12V 100mA output | |||
ZigBee GreenPower device | HVSC18-Z | GreenPower 6-button scenario switch | ||
HSVC34-Z | GreenPower PIR motion sensor | |||
HSVC22-Z | GreenPower daylight sensor | |||
