Характеристики

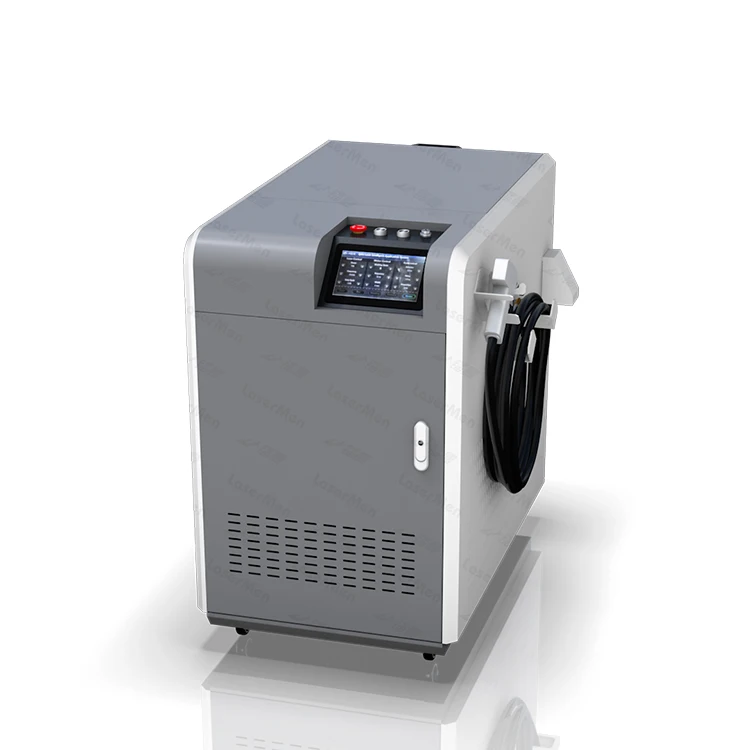

Metal Steel Iron Portable 1kw 1.5kw 2kw 3kw Hand Held Fiber Laser Welding Machine made in China
Product Overview
Popular Star: ★★★★★
Delivery time: 7 days
Delivery time: 7 days
Product name | Handheld fiber laser welding machine | ||||||
Machine model | LM-2000W | ||||||
Laser power | 1000w / 1500w / 2000w / 3000w | ||||||
Fiber laser source | Raycus | ||||||
Laser Head (Welding gun) | Qilin | ||||||
Red dot | Yes | ||||||
Wavelength | 1080nm | ||||||
Cable length | 9 meter outside of machine | ||||||
Welding speed | 0-120mm/sec | ||||||
Cooling method | Water cooling | ||||||
Welding thickness | 0.5-5mm | ||||||
Voltage | 3-phase 380V for 2000W | ||||||
Gas assist | Nitrogen | ||||||
Product description:
1). This machine adopts 1000 / 1500 / 2000 / 3000 watt fiber laser, which has high electro-optical conversion efficiency and long laser life;
2). The laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional welding machine. The weld is fine, the depth is large, the taper is small, the precision is high, fully meet the needs of users in different industries, and the welding is firm, smooth and flat;
3). The whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs;
4). Can be time splitting or energy splitting, suitable for different processing applications, support both continuous welding and spot welding.
5). The welding gun is with wobble head, and the welding gun is hand-held, flexible and convenient, and the welding distance is longer. Mainly for large workpieces, fixed positions such as inner right angle, outer right angle, flat weld welding, small heat affected area during welding, small deformation, large welding depth and firm welding. It is a relatively flexible new welding process for welding large workpieces at a long distance.
6). Double wobble, you can weld both in X and Y directions. Regular type laser welders only weld in Y direction.
2). The laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional welding machine. The weld is fine, the depth is large, the taper is small, the precision is high, fully meet the needs of users in different industries, and the welding is firm, smooth and flat;
3). The whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs;
4). Can be time splitting or energy splitting, suitable for different processing applications, support both continuous welding and spot welding.
5). The welding gun is with wobble head, and the welding gun is hand-held, flexible and convenient, and the welding distance is longer. Mainly for large workpieces, fixed positions such as inner right angle, outer right angle, flat weld welding, small heat affected area during welding, small deformation, large welding depth and firm welding. It is a relatively flexible new welding process for welding large workpieces at a long distance.
6). Double wobble, you can weld both in X and Y directions. Regular type laser welders only weld in Y direction.
Details Images
Fiber laser source
Raycus brand 1000W/1500W/2000W/3000w fiber laser source
Industrial water chiller
Hanli Industrial Water chiller for cooling both fiber laser source and focusing lens in the welding gun
Qilin control system
Including controller board V11, BWT20 double wobble laser welding gun, operation panel.
Portable handheld wobble welding head is the advantage of the machine. Portable welding head, compared to fixed welding head, it offers much convenience for welding
Portable handheld wobble welding head is the advantage of the machine. Portable welding head, compared to fixed welding head, it offers much convenience for welding

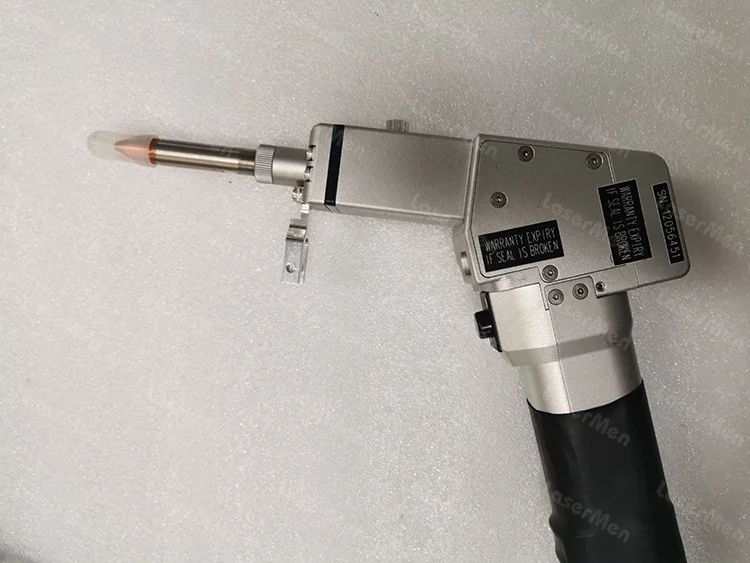

Portable wobble welding gun (double wobble)
Qilin welding head is with double wobble mode which can weld in X and Y both directions. Regular welding head can only weld in Y direction.

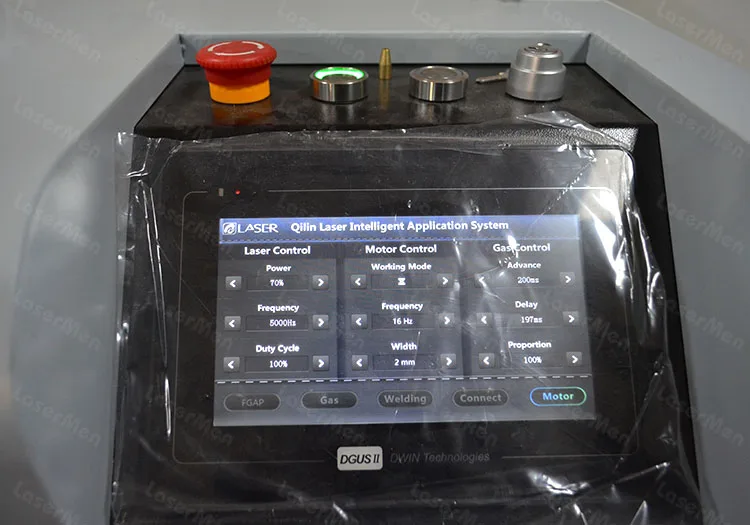

Intelligent touch screen controlling
Laser source control: Laser power output percentage, frequency, duty circle can be set on the screen.
Welding head control: laser dot mode, motor frequency, laser beam width can be set on the screen.
Gas control: Gas blowing can be set on the screen.
Welding head control: laser dot mode, motor frequency, laser beam width can be set on the screen.
Gas control: Gas blowing can be set on the screen.
Nozzles
Whole set nozzles including 6 welding nozzles, 1 cutting nozzle and 3 wire feeding nozzles.

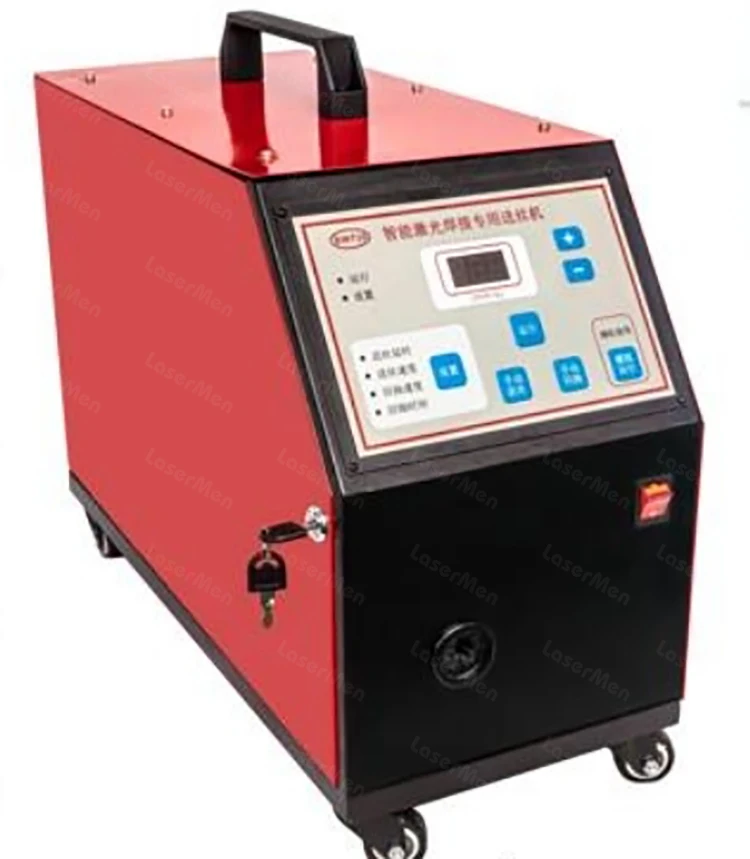

Auto wire feeding system
Lightweight bend wire feeding structure, wire feeding angle position can be adjusted conveniently.

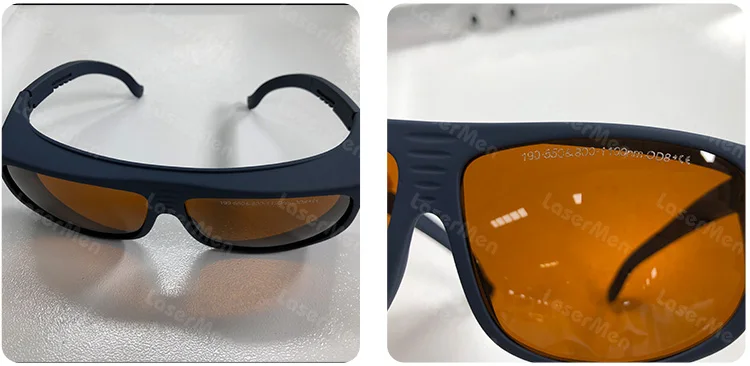

Safety goggles
CE certified security goggles.

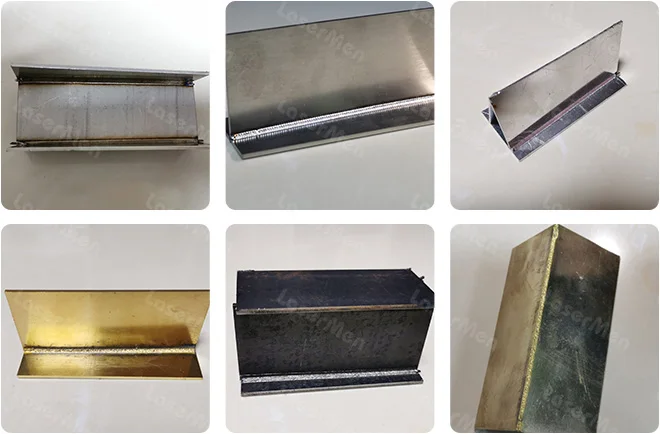

Product application
1.It is widely used in the industries such as advertising signs, hardware products, doors, windows, auto parts, craft gift etc.
2.It can be used to weld various metallic materials, like carbon steel, stainless steel, titanium, aluminum, brass, etc.
2.It can be used to weld various metallic materials, like carbon steel, stainless steel, titanium, aluminum, brass, etc.
What materials can be welded？
Aluminum，Stainless Steel, Carbon Steel，Copper，Silver, Titanium, Tin.
How thick materials can be welded?
How thick materials can be welded? | ||||||
Materials | 1000w | 1500w | 2000w | |||
Carbon steel | 2.5mm | 3.5mm | 5.0mm | |||
Stainless steel | 2.5mm | 3.5mm | 5.0mm | |||
Aluminum | 1.5mm | 2.0mm | 2.5mm | |||
Brass | 1.0mm | 1.5mm | 2.0mm | |||
Customer feedback
Customer Feedback Video ：
Customers are satisfied with the use of our handheld laser welding machine and highly praised it. Click to watch the video.
Company Introduction
Jinan Lasermen CNC Equipment Co., Ltd. is a modern laser equipment production enterprise integrating R&D, design, production, sales and service. The company was established in 2012 and offificially registered in 2014. After years of development and innovation, it has taken a place in the laser industry and has become a high-tech enterprise that provides laser processing solutions for global users.
LaserMen has been guided by the principle of customer-oriented, making sure our laser cutting equipment excellent in quality, high performance in price and function, and most wide range in use within the industry. In various industries like metal cutting, advertising, craft, printing, packaging, electronics, textiles, clothing,etc., our company has enjoyed consensus and high praise of customers at home and abroad. We are mainly specialized in all kinds of laser equipment, such as: CO2 laser engraving cutting machine, fiber laser cutting machine, hybrid laser cutting machine, laser welding machine, laser cleaning machine, laser marking machine, etc. Our products have been spread all over the world including more than 150 countries and regions, like Russia, United States, Mexico, Germany, Canada, Italy, Spain, Brazil, Australia, Singapore, Malaysia, India, South Africa, Syria, Japan, Chile,etc.
Certifications
Packing & Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
1.Q:Why should you choose us?
A: If you choose us, you will get best quality, best service, best price and best warranty.
2.Q: I'm not familiar with the machine?
A:You just need to tell us materials, working size and thickness, I'll recommend you the right machine.
3.Q:How to operate the machine?
A:We will deliver English manual and video with the machine to you, If you still need our help, please contact us.
4.Q:How can get the sample to check your quality?
A:If you want to marking sample to check the quality, we can help you do this.First you need to provide the logo or design to us, free mark samples can be provided.
5.Q:Do the machine can be customized according my requirements ?
A:Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW etc.
A: If you choose us, you will get best quality, best service, best price and best warranty.
2.Q: I'm not familiar with the machine?
A:You just need to tell us materials, working size and thickness, I'll recommend you the right machine.
3.Q:How to operate the machine?
A:We will deliver English manual and video with the machine to you, If you still need our help, please contact us.
4.Q:How can get the sample to check your quality?
A:If you want to marking sample to check the quality, we can help you do this.First you need to provide the logo or design to us, free mark samples can be provided.
5.Q:Do the machine can be customized according my requirements ?
A:Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW etc.
Convenient handhead laser welding machine 1000w 1500w 2000w with auto wire feeding system
