Оригинальный Новый MSN2010-CB2F спектра на основе 10G/25GbE и 100GbE 1U открытые Ethernet-коммутатор с оникс 18 SFP28 4
- Категория: >>>
- Поставщик: Tianjin,Starsurge,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3451.38 $* | 3624.18 $* |
| Aug-16-2025 | 3422.58 $* | 3593.26 $* |
| Jul-16-2025 | 2871.41 $* | 3015.30 $* |
| Jun-16-2025 | 3364.33 $* | 3532.18 $* |
| May-16-2025 | 2929.44 $* | 3075.11 $* |
| Apr-16-2025 | 3306.67 $* | 3471.20 $* |
| Mar-16-2025 | 3277.78 $* | 3441.12 $* |
| Feb-16-2025 | 3248.25 $* | 3410.38 $* |
| Jan-16-2025 | 3219.79 $* | 3380.62 $* |
Характеристики

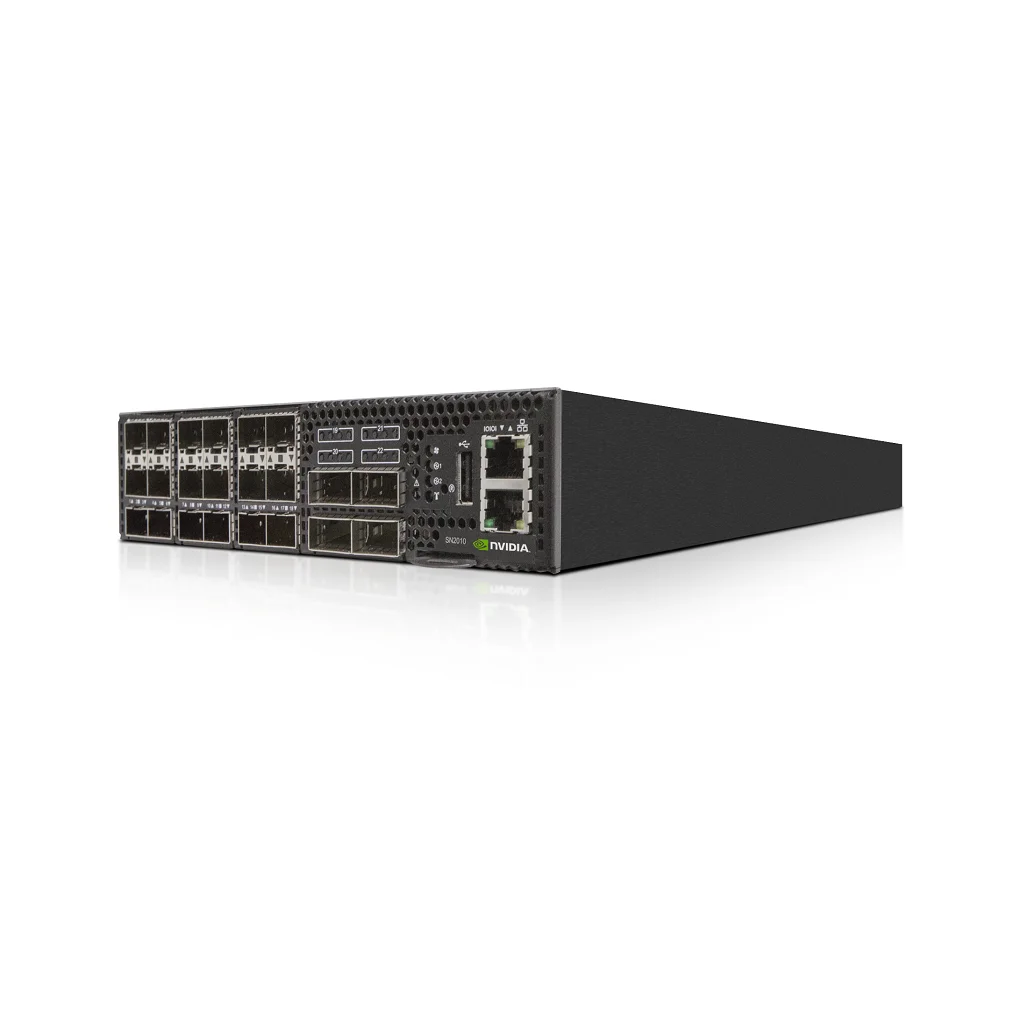

MSN2010-CB2F Spectrum 25GbE/100GbE 1U Open Ethernet Switch
MSN2010-CB2F Spectrum Based 25GbE/100GbE 1U Open Ethernet Switch with Onyx 18 SFP28 and 4 QSFP28 Ports 2 Power Supplies AC x86 CPU Short Depth P2C Airflow
Half-width 10/25GbE and 100GbE Ethernet Switch for Hyperconverged Infrastructures and ESF (Ethernet Storage Fabrics)
The SN2010 switch is the ideal top of rack (ToR) solution for hyperconverged and storage deployments. Packed with 18 ports of 10/25GbE and 4 splittable ports of 40/100GbE, the SN2010 can deliver up to 1.7Tb/s aggregate throughput.
All Spectrum based switches, including the SN2010, support low-latency line rate traffic for all packet sizes and are ONIE
bootable with support for Cumulus Linux, Onyx and other open-source operating systems with a broad installed base that drives the world's most innovative data center infrastructures.
SN2010 introduces low latency for 10/25GbE and 100GbE switching, features a robust implementation of data, control and management planes, and offers the most compact form factor and lowest power consumption.
The SN2010 switch is the ideal top of rack (ToR) solution for hyperconverged and storage deployments. Packed with 18 ports of 10/25GbE and 4 splittable ports of 40/100GbE, the SN2010 can deliver up to 1.7Tb/s aggregate throughput.
All Spectrum based switches, including the SN2010, support low-latency line rate traffic for all packet sizes and are ONIE
bootable with support for Cumulus Linux, Onyx and other open-source operating systems with a broad installed base that drives the world's most innovative data center infrastructures.
SN2010 introduces low latency for 10/25GbE and 100GbE switching, features a robust implementation of data, control and management planes, and offers the most compact form factor and lowest power consumption.
Benefits
* Targets ESF (Ethernet Storage Fabric)
* Combines RoCE support, full buffer utilization and low latencyZero packet loss
* Combines RoCE support, full buffer utilization and low latencyZero packet loss
* True cut-through latency
* Arranged and organized data center
Supports speeds of 1/10/25/40/50/56/100GbEEasy deploymentEasy maintenance
* Unprecedented performance
* Line rate performance on all ports at all packet sizesStorage and server applications run faster
* Software Defined Networking (SDN) support
* Open Ethernet available with Onyx, Cumulus or ONIE
* Arranged and organized data center
Supports speeds of 1/10/25/40/50/56/100GbEEasy deploymentEasy maintenance
* Unprecedented performance
* Line rate performance on all ports at all packet sizesStorage and server applications run faster
* Software Defined Networking (SDN) support
* Open Ethernet available with Onyx, Cumulus or ONIE
Key Features |
* Throughput * 1.7Tb/s *1.26 billion packets per second (Bpps) |
* Lowest latency * 300nsec for 100GbE port-to-port *Consistently low latency regardless of packet size, or L2 vs L3 forwarding *Side by side *configuration *Small port count |
* Lowest power * 57W (ATIS) power consumption |
* Half-width form factor |
* 512K shared forwarding entries flexibly shared across ACL, LPM routes, host routes, MAC, ECMP and tunnel applications |
> The SN2000 series platforms are factory available in three different flavors:
> Pre-installed with NVIDIA Cumulus Linux™, a revolutionary operating system that takes the Linux user experience from servers to
switches, and provides a rich routing functionality for large scale applications.
> Pre-installed with NVIDIA Onyx™, a home-grown operating system, with a classic CLI interface.
> Bare metal including ONIE image, installable with any ONIE-mounted OS. ONIE-based platforms utilize the advantages of Open
Networking and the Spectrum
ASIC capabilities.
> Pre-installed with NVIDIA Cumulus Linux™, a revolutionary operating system that takes the Linux user experience from servers to
switches, and provides a rich routing functionality for large scale applications.
> Pre-installed with NVIDIA Onyx™, a home-grown operating system, with a classic CLI interface.
> Bare metal including ONIE image, installable with any ONIE-mounted OS. ONIE-based platforms utilize the advantages of Open
Networking and the Spectrum
ASIC capabilities.
>NVIDIA SN2000 series switches were designed for high availability from both a software and hardware perspective.
Key high availability features include:
> 1+1 hot-swappable power supplies and four N+1 hot-swap fans (supported on SN2700 and SN2410)
> Color coded PSUs and fans
> Up to 64 1/10/25/40/50/100GbE ports per link aggregation group
> Multi-chassis LAG for active/active L2 multipathing
> 64-way ECMP routing for load balancing and redundancy
Key high availability features include:
> 1+1 hot-swappable power supplies and four N+1 hot-swap fans (supported on SN2700 and SN2410)
> Color coded PSUs and fans
> Up to 64 1/10/25/40/50/100GbE ports per link aggregation group
> Multi-chassis LAG for active/active L2 multipathing
> 64-way ECMP routing for load balancing and redundancy
Cumulux-Linux
NVIDIA Cumulus Linux is a powerful open network operating system enabling advanced automation, customization and scalability using web-scale principles like the world’s largest data centers. It accelerates networking functions and provides choice from an
extensive list of supported switch models including NVIDIA Spectrum based switches. Cumulus Linux was built for automation, scalability and flexibility, allowing you to build data center and campus networks that ideally suits your business needs. Cumulus Linux is the only open network OS that allows you to build affordable and efficient network operations like the world’s largest data center operators, unlocking web-scale networking for businesses of all sizes.
Onyx
Onyx is a high performance switch operating system, with a classic CLI interface. Whether building a robust storage fabric, cloud, financial or media and entertainment fabric, customers can leverage the flexibility of Onyx to tailor their network platform to their environment. With built-in workflow automation, monitoring and visibility tools, enhanced high availability mechanisms, and more, Onyx simplifies network processes and workflows, increasing efficiencies and reducing operating expenses and time-to-service.
Microsoft SONiC
SONiC was designed for cloud networking scenarios, where simplicity and managing at scale are the highest priorities. NVIDIA fully supports the Pure Open Source SONiC from the SONiC community site on all of the SN2000 series switch platforms. With advanced
monitoring and diagnostic capabilities, SONiC is a perfect fit for the NVIDIA SN2000 series. Among other innovations, SONiC on SN2000 series enables fine-grained failure recovery and in-service upgrades (ISSU), with zero downtime.
DOCKER Containers
NVIDA fully supports the running of third party containerized applications on the switch system itself. The third party application has complete access to the bare-metal switch via its direct access to the SDK. The switch has tight controls over the amount of memory
and CPU cycles each container is allowed to use, along with fine grained monitoring of those resources.
NVIDIA Cumulus Linux is a powerful open network operating system enabling advanced automation, customization and scalability using web-scale principles like the world’s largest data centers. It accelerates networking functions and provides choice from an
extensive list of supported switch models including NVIDIA Spectrum based switches. Cumulus Linux was built for automation, scalability and flexibility, allowing you to build data center and campus networks that ideally suits your business needs. Cumulus Linux is the only open network OS that allows you to build affordable and efficient network operations like the world’s largest data center operators, unlocking web-scale networking for businesses of all sizes.
Onyx
Onyx is a high performance switch operating system, with a classic CLI interface. Whether building a robust storage fabric, cloud, financial or media and entertainment fabric, customers can leverage the flexibility of Onyx to tailor their network platform to their environment. With built-in workflow automation, monitoring and visibility tools, enhanced high availability mechanisms, and more, Onyx simplifies network processes and workflows, increasing efficiencies and reducing operating expenses and time-to-service.
Microsoft SONiC
SONiC was designed for cloud networking scenarios, where simplicity and managing at scale are the highest priorities. NVIDIA fully supports the Pure Open Source SONiC from the SONiC community site on all of the SN2000 series switch platforms. With advanced
monitoring and diagnostic capabilities, SONiC is a perfect fit for the NVIDIA SN2000 series. Among other innovations, SONiC on SN2000 series enables fine-grained failure recovery and in-service upgrades (ISSU), with zero downtime.
DOCKER Containers
NVIDA fully supports the running of third party containerized applications on the switch system itself. The third party application has complete access to the bare-metal switch via its direct access to the SDK. The switch has tight controls over the amount of memory
and CPU cycles each container is allowed to use, along with fine grained monitoring of those resources.
Groundbreaking Performance
Packet buffer architecture has a major impact on overall switch performance. The Spectrum packet buffer is monolithic and fully shared across all ports, supporting
cut-through line rate traffic from all ports, without compromising scale or features. With its fast packet buffer, Spectrum is able to provide a high performance fair and bottleneck free data path for mission-critical applications.
Pervasive Visibility
Spectrum provides deep and contextual network visibility, which enables network operators to proactively manage issues and reduce mean time to recovery or innocence. WJH leverages the underlying silicon and software capability to provide granular and
event-triggered information about infrastructure issues. In addition, the rich telemetry information from Spectrum is readily available via open APIs that are integratable with third party software tools and workflow engines.
Unprecedented Agility
For modern data center infrastructure to be software defined and agile, both its compute and network building blocks need to be agile. Spectrum features a unique feature rich and efficient packet processing pipeline that offers rich data center network virtualization features without compromising on performance or scale. Spectrum has a programmable pipeline and a deep packet parser/editor that can process payloads up to the first 512B. Spectrum supports single pass VXLAN routing as well as bridging.
Massive Scale
The number of endpoints in the data center is increasing exponentially. With the current shift from virtual machine-based architectures to container-based architectures, the high-scale forwarding tables required by modern data centers and mega-clouds increase
by up to an order of magnitude or more. To answer the needs for scalability and flexibility, Spectrum uses intelligent algorithms and efficient resource sharing, and supports unprecedented forwarding table, counters and policy scale.
End-to-End 100 GbE Solution
The SN2000 is part of NVIDIA complete end-to-end solutions providing 10 through 100GbE interconnectivity within the data center. Other devices in this solution include ConnectX® network interface cards and LinkX® copper or fiber cabling.
Packet buffer architecture has a major impact on overall switch performance. The Spectrum packet buffer is monolithic and fully shared across all ports, supporting
cut-through line rate traffic from all ports, without compromising scale or features. With its fast packet buffer, Spectrum is able to provide a high performance fair and bottleneck free data path for mission-critical applications.
Pervasive Visibility
Spectrum provides deep and contextual network visibility, which enables network operators to proactively manage issues and reduce mean time to recovery or innocence. WJH leverages the underlying silicon and software capability to provide granular and
event-triggered information about infrastructure issues. In addition, the rich telemetry information from Spectrum is readily available via open APIs that are integratable with third party software tools and workflow engines.
Unprecedented Agility
For modern data center infrastructure to be software defined and agile, both its compute and network building blocks need to be agile. Spectrum features a unique feature rich and efficient packet processing pipeline that offers rich data center network virtualization features without compromising on performance or scale. Spectrum has a programmable pipeline and a deep packet parser/editor that can process payloads up to the first 512B. Spectrum supports single pass VXLAN routing as well as bridging.
Massive Scale
The number of endpoints in the data center is increasing exponentially. With the current shift from virtual machine-based architectures to container-based architectures, the high-scale forwarding tables required by modern data centers and mega-clouds increase
by up to an order of magnitude or more. To answer the needs for scalability and flexibility, Spectrum uses intelligent algorithms and efficient resource sharing, and supports unprecedented forwarding table, counters and policy scale.
End-to-End 100 GbE Solution
The SN2000 is part of NVIDIA complete end-to-end solutions providing 10 through 100GbE interconnectivity within the data center. Other devices in this solution include ConnectX® network interface cards and LinkX® copper or fiber cabling.
Tianjin Starsurge Technology Co., Ltd. is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation, enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus, Aruba, Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always adhere to the concept of "quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!
Tianjin Starsurge Technology Co., Ltd., a professional network equipment supplier with more than 10-yearexperience.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.
2. Professional technical personnel, providing comprehensive technical support and services.
3. Perfect after-sales management system and mature market channels to serve customers wholeheartedly.
Q1.What can you buy from us?
Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.
Q2.How about the delivery date?
It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
A: We supply 12 months warranty time.
Q4.How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths？
First-hand supply, Original and new products with the favorable price and perfect after-sales service.
Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.
Q2.How about the delivery date?
It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
A: We supply 12 months warranty time.
Q4.How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths？
First-hand supply, Original and new products with the favorable price and perfect after-sales service.
